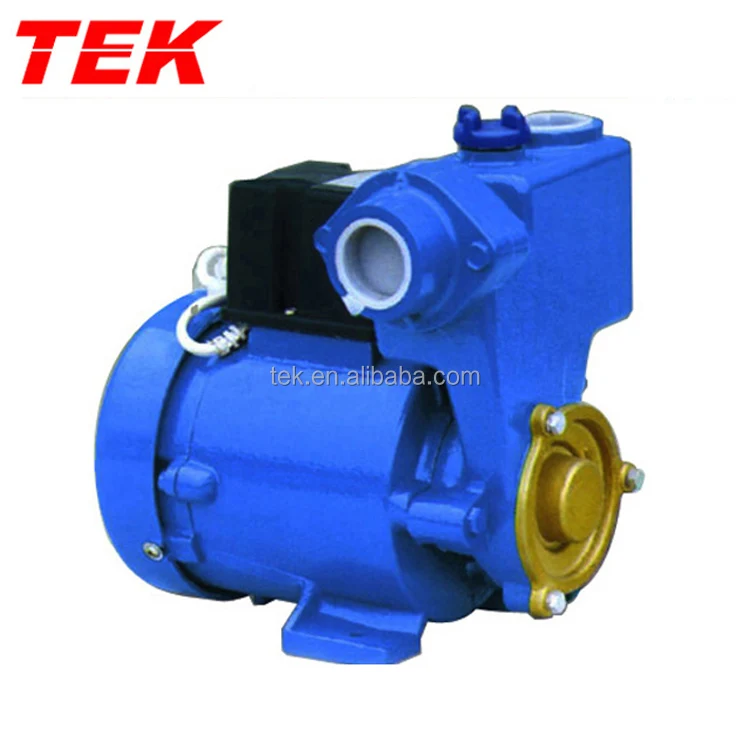

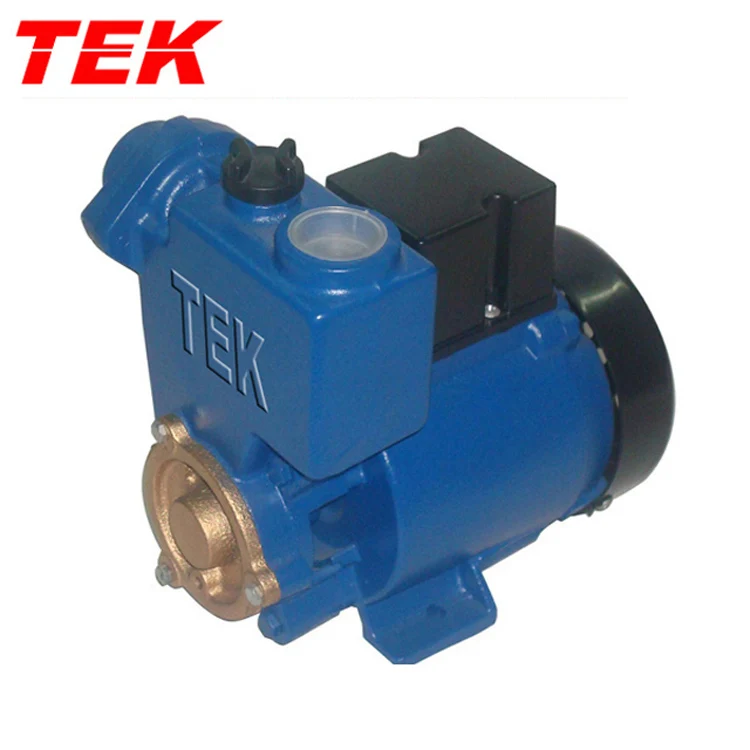

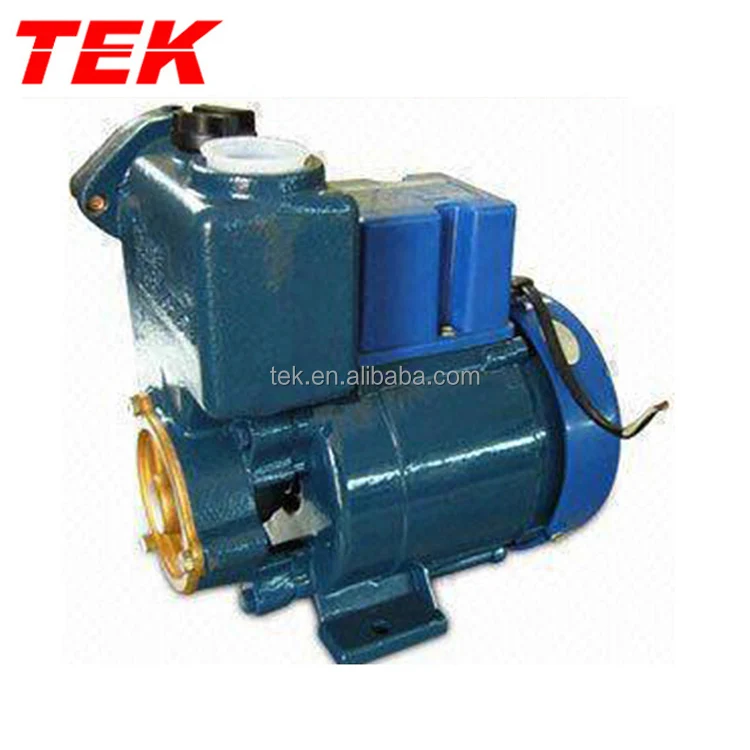

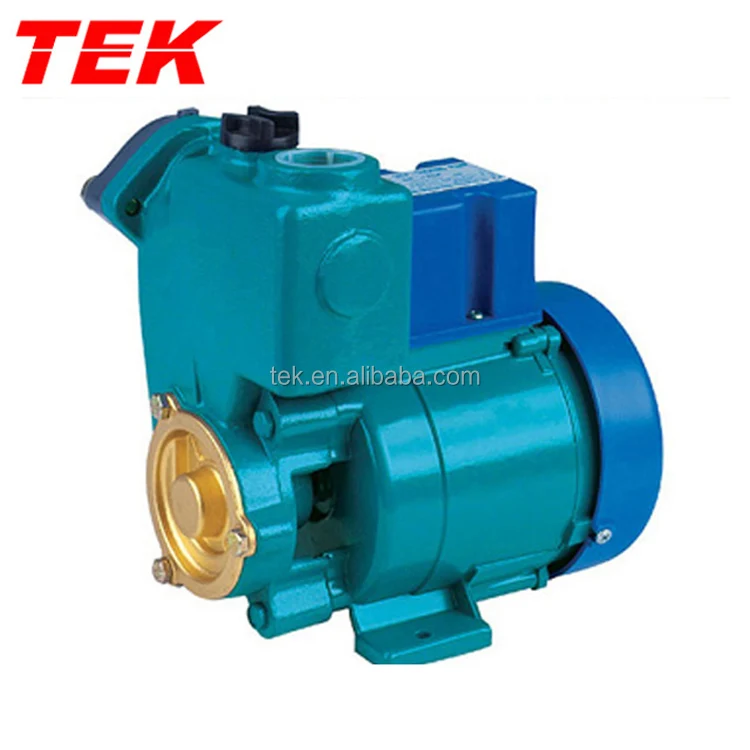

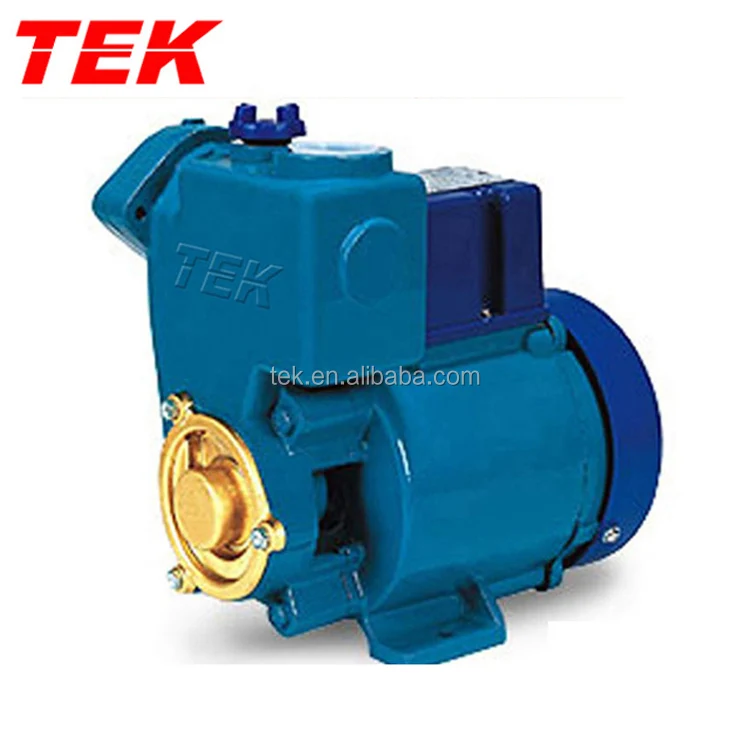

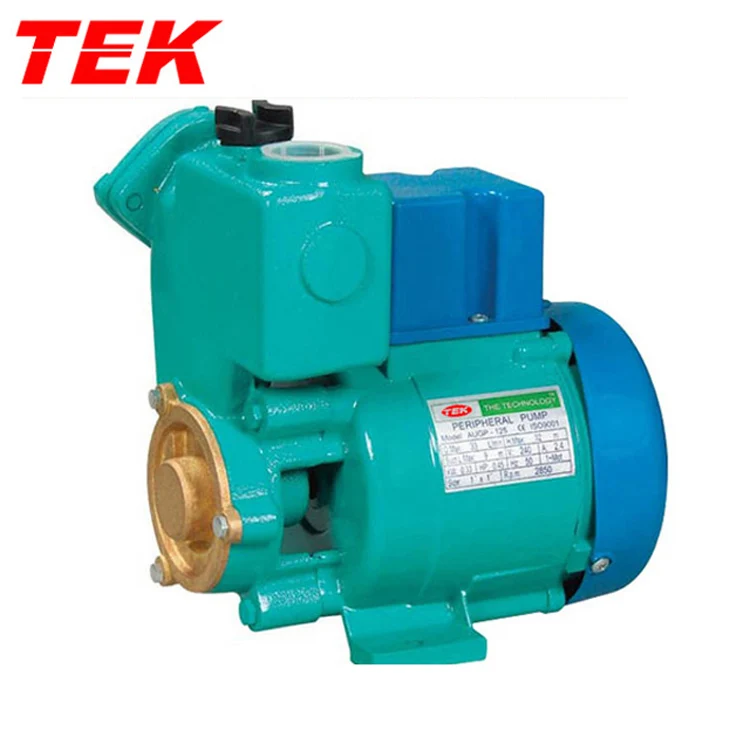

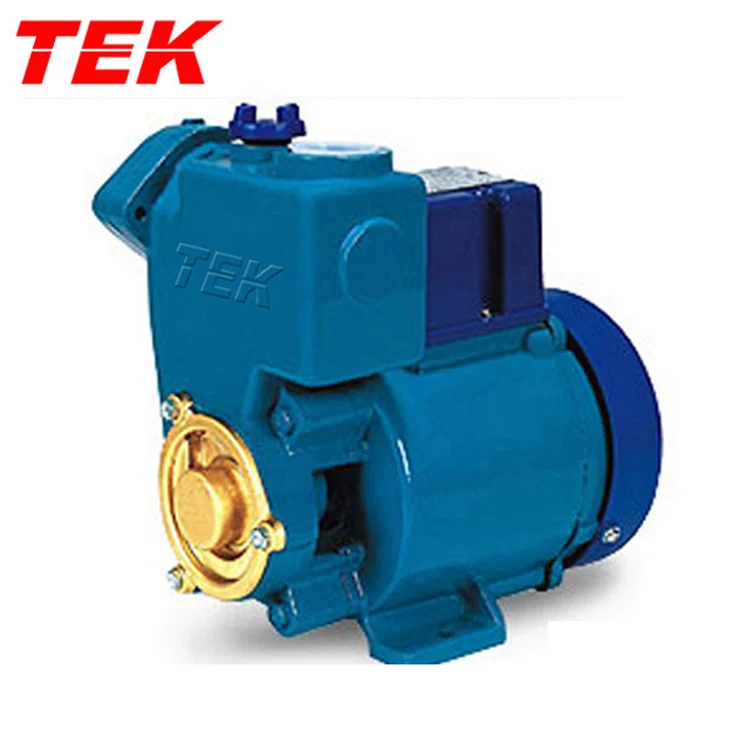

GP 250A GP250A GP 250 GP 250 Copper Wire Motor Cast Iron Self priming Peripheral GP Pump OEM

Product Overview

Description

GP-250A GP250A GP-250 GP-250 Copper Wire Motor Cast Iron Self-priming Peripheral GP Pump OEM



MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
INSULATION: class B (Class F)
PROTECTION: IP 44.
WARRANTY: 1 year

Product Power 0.45k

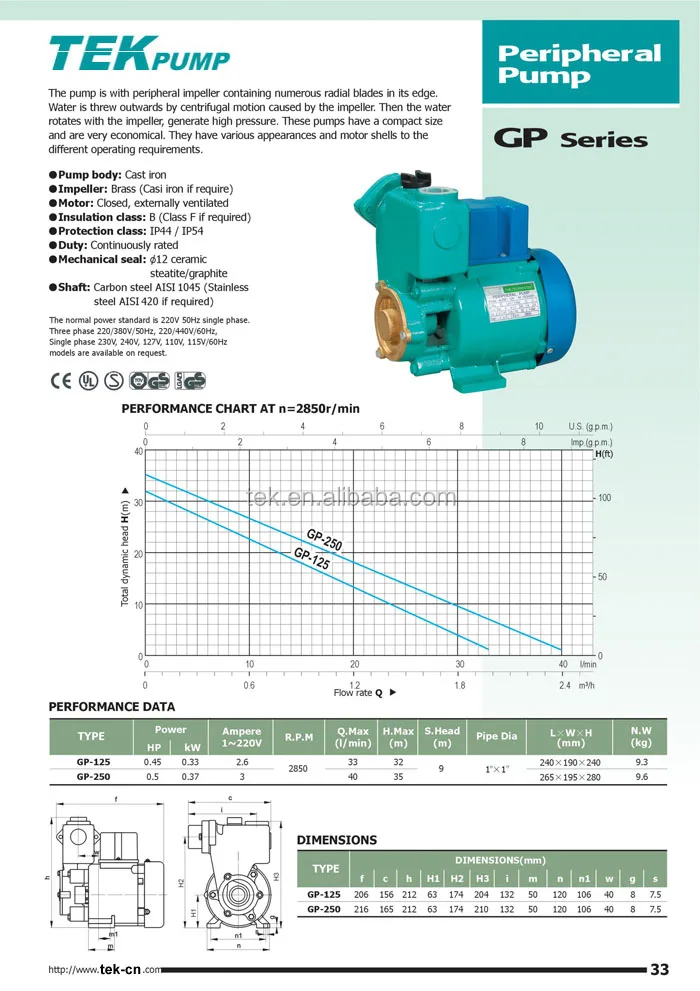

Model	Power	Max.Capacity	Max.Head	Max.Suct	Speed	Volt	Freq	Dia	N.W.	Overall Dim.
	(w)	(L/min)	(m)	(m)	(r.p.m)	(v)	(Hz)	(mm)	(kg)	(mm)
GP-125A	125	35	30	9	2850	220	50	25×25	8.8	208×154×220
GP-250A	250	40	35	9	2850	220	50	25×25	9.2	208×154×220
