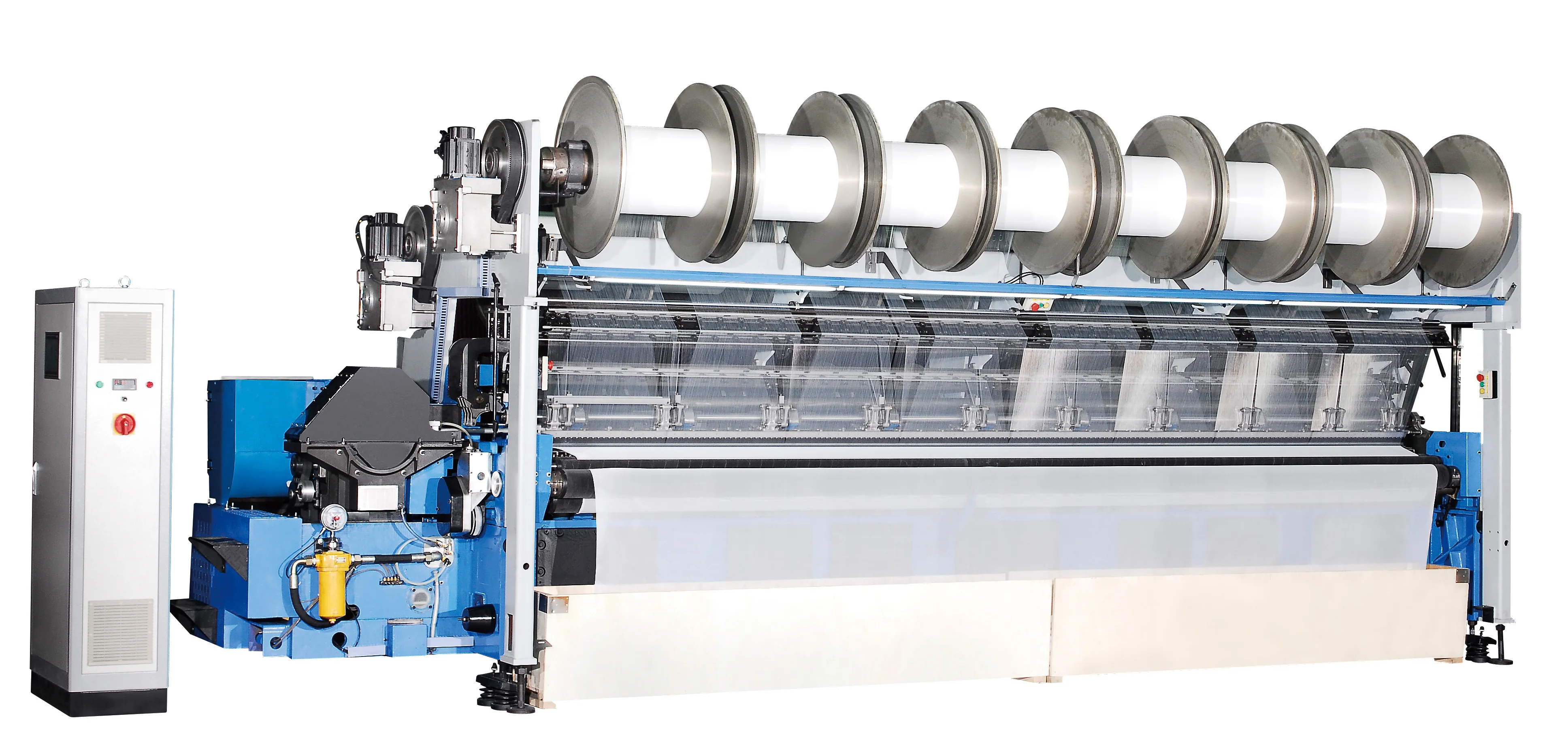

Warp Knitting Machine for Towel
It adopts nylon, acrylic, polyester filament yarn, cotton, superfine fiber etc to knit single -faced and two-faced terry fabric. Terry fabric that takes root in the base cloth of pillar stitch would not be laddering. The yarn will not drop when cut, the cloth surface is soft and smooth, the height of terry fabric is uniform, it is good for bedding and covering. The product is used widely as clean fabric medical fabric, Bathrobe, bath towel, sofa towel, bed sheets, bedspread, curtain, etc. With electronic moving control system(EF), the machine can make any change in quantity of horizontal and row, so it can make the large design mosquito fabric. The machine make automatic conversion in products when running, greatly satisfy the requirement for multi usage.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Needle | Compound Groove Needle |
2 | Needle Number | E24 |
3 | Machine Width | 136"/198"/220" |
4 | Guide bar | 4PCS |
5 | Max Speed(rpm) | 1500 |
6 | Moving System | N type pattern cam or EL electronic control system |
7 | Let-off System | EBC or EBA electronic let-off system |
8 | Mechanism | Cam type speed changeable by 4 roller draaw-off EWA electronic draw-off suitable for EBA EAC electronic draw*off suitable for EBC |
9 | Take-up System | Electronic brushing take-up |
10 | Beam Spec | φ535*535（φ21“*21”），φ765*535（φ30”*21”） |
11 | Main Motor power | 5.5KW/5.5KW/7.5KW |
12 | Let-off Motor Power | 1.5KW |
13 | Electronic Draw-off Motor Power | 1.5KW |
14 | Slow Moving Motor | 0.75KW |
15 | Brushing Motor Power | 1.5KW/1.5KW/2KW |

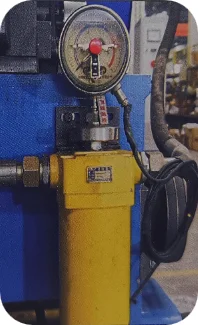

16 | Crankshaft connection Rod Lubrication | Initiative pressing lubrication and oil circulation constant temperature control system |
17 | Weight | 8000KG/8500KG/9000KG |

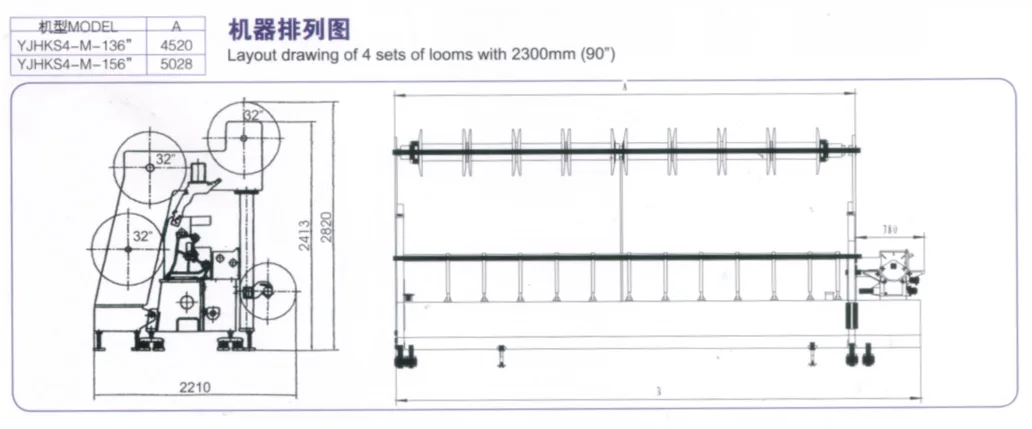

18 | Over Size(not include ding beam) | 5260*2070*2550mm(L*W*H) 5770*2070*2550mm(L*W*H) 5430*2070*2550mm(L*W*H) |
PRODUCT CONFIGURATION

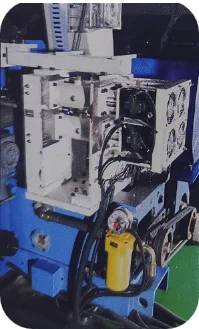

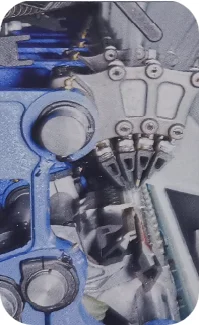

Carbon Fiber Bed Servo Electronic Draw-off Carbon Fiber Bed Servo Electronic Draw-off
SAMPLE SHOW

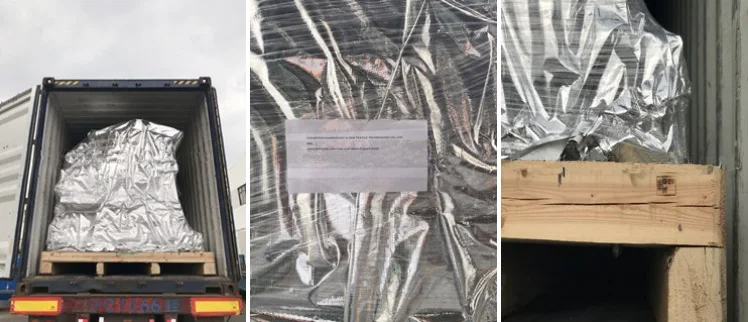

Product packaging
FAQ
Q1：Why Choose us?
A1：We have been doing textile machines for 20 years. Our tech are mature and our quality levels are industry leading.
Q2 ：Are you a factory?
Q2 ：Are you a factory?
A2 ：Yes. We have our own factory. Our factory located in Shaoxing, Zherjiang province. You are welcome to visit us.
Q3 ：How will you do the after sell service?
A3：We will offer online service. And the machine have one years's warranty. During this time, broken spare parts can be replaced(except human damage and consumable), you just bear the freight back and forth.
Q3 ：How will you do the after sell service?
A3：We will offer online service. And the machine have one years's warranty. During this time, broken spare parts can be replaced(except human damage and consumable), you just bear the freight back and forth.
