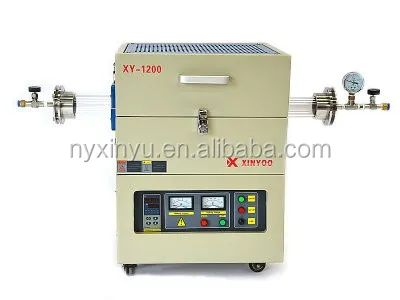

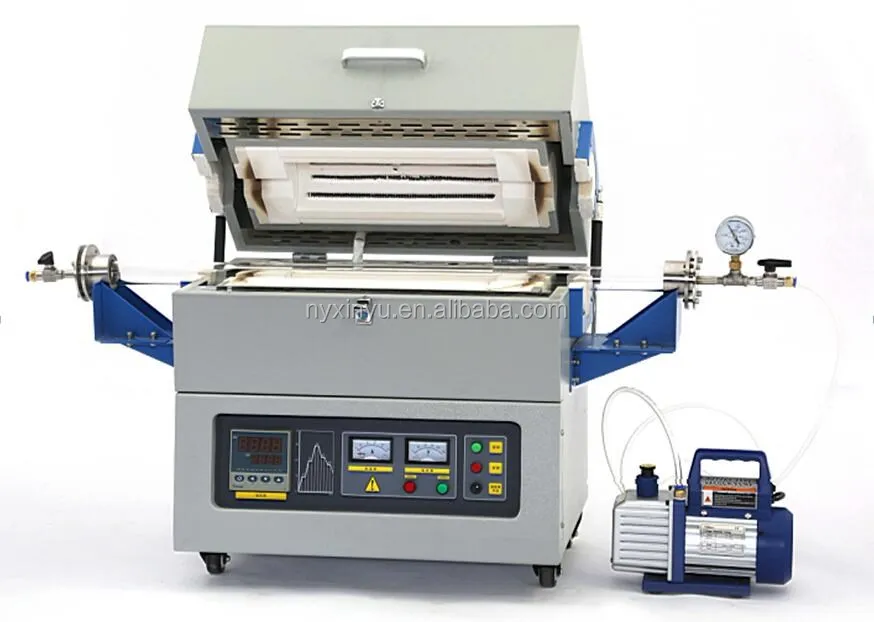

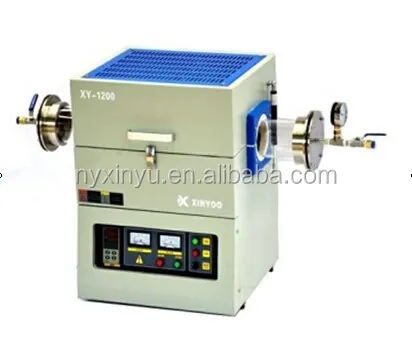

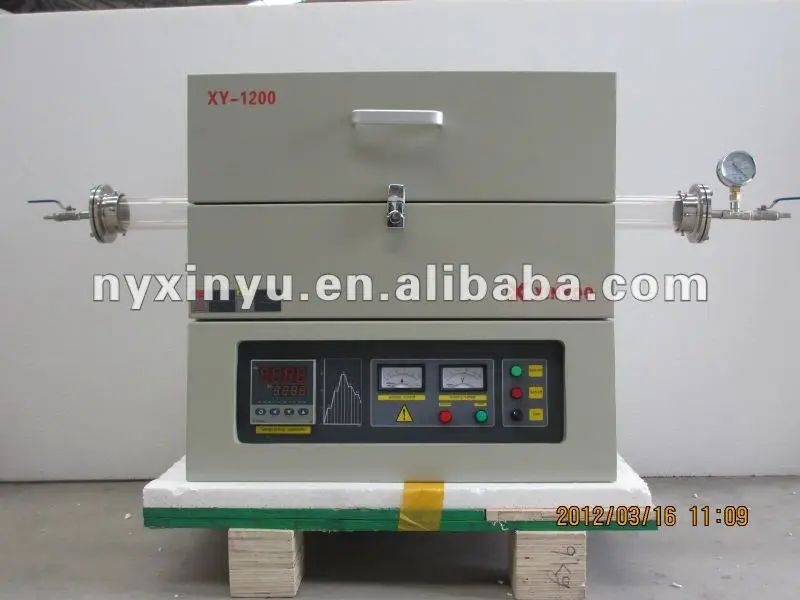

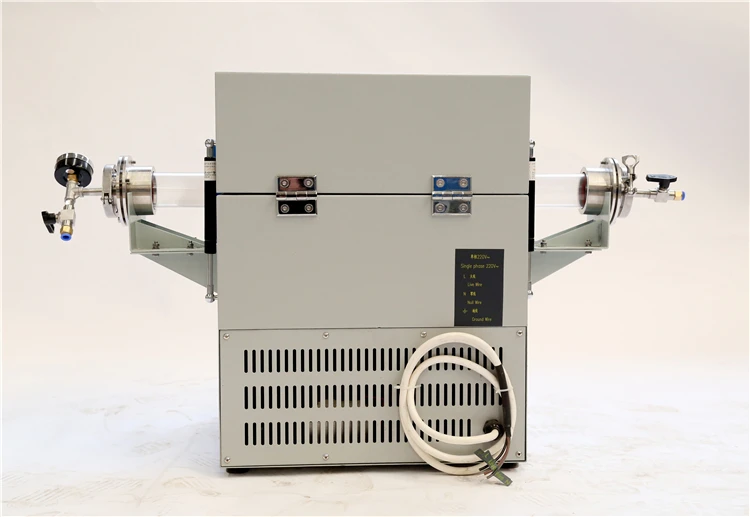

XINYU XY 1200VCB Vacuum Tube Furnace metal melting furnaces

Product Overview

Description

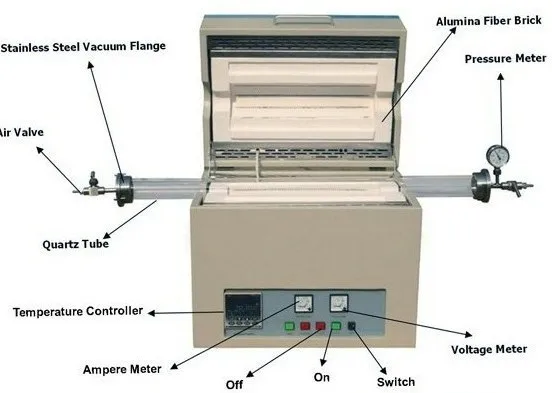

Brief Introduction	XY-1200VCB Vacuum crucible furnace is composed by quartz crucible and stainless steel flange, which is mainly used in sintering of high pure compound under vacuum or inert atmosphere, anneal or spread of semiconductor wafer; Roast or sinter of ceramic material.
Technical  Data	Chamber size	O. D. 205xI. D. 190xH340mm
	Standard Working Temperature	1100.C  ( continuous )
	Maximum Working Temperature	1200.C  ( < 3 hrs)
	Temperature Control	30 segments programmable and PID auto control
	Heating elements	Fe -Cr-Al-Mo wire
	Furnace chamber	Ceramic fiber
	Furnace structure	Double shell with fan cooling
	Thermocouple	K type
	Heating rate	0~20 oC/min.(suggestion:=/<10.C)
	Temperature accuracy:	+/-1oC
	Max. Vacuum	-0.1MPa
	Working Voltage	AC 220V  Single Phase  60/50 Hz (or according to your requirement)
	Power	3KW
Standard package included with the furnace	Part description	Quantity
	Thermal couple	1 pc
	Stainless steel hook	1 pc
	Thermal gloves	1 pair
	Operation manual	1 pc
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: L/C T/T, West union, etc.
Shipping and Delivery: By air, in 15 days after receiving the payment
Warranty: Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided and investigated.
