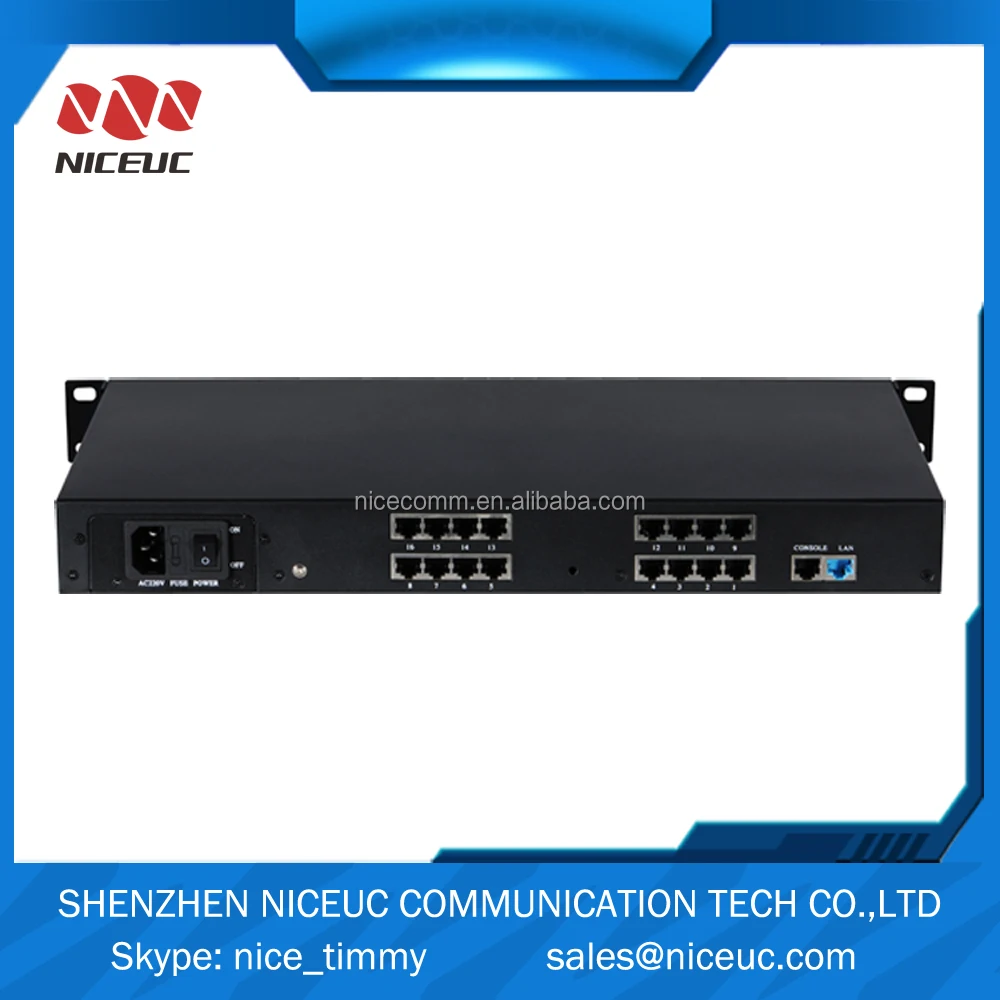

E1 PRI SS7 Signaling Gateway which convert any signaling among SS7, ISDN PRI, R2, V5.2, CAS, DPNSS
- Category: >>>
- Supplier: Shenzhen Niceuc Communication Tech Co. Ltd.
Share on (378035664):
Product Overview
Description
E1 PRI SS7 Signaling Gateway which convert any signaling among SS7, ISDN PRI, R2, V5.2, CAS, Q,SIG, DPNSS

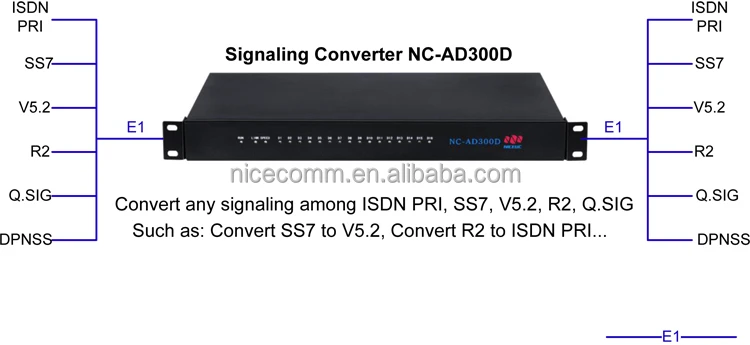

What is a Signaling Converter/gateway?
A Signaling Converter enables network connectivity by performing signaling conversion between various switches and equipment that use different signaling protocols
Product Description
Description:
NC-AD300D is designed and manufactured by NiceComm according to National Telecom Standard, solves any signalling inter-work issues between various switches and equipment through E1(T1), with its Imbedded AM9 CPU and Linux operation system, NC-AD300D is a cost effective, powerful, reliable and stable signalling converter.
Specialty:
* Signaling support: ITUT C7, SS7, ISDN PRI, ETSI ISDN, Q.SIG, R2, V5.2

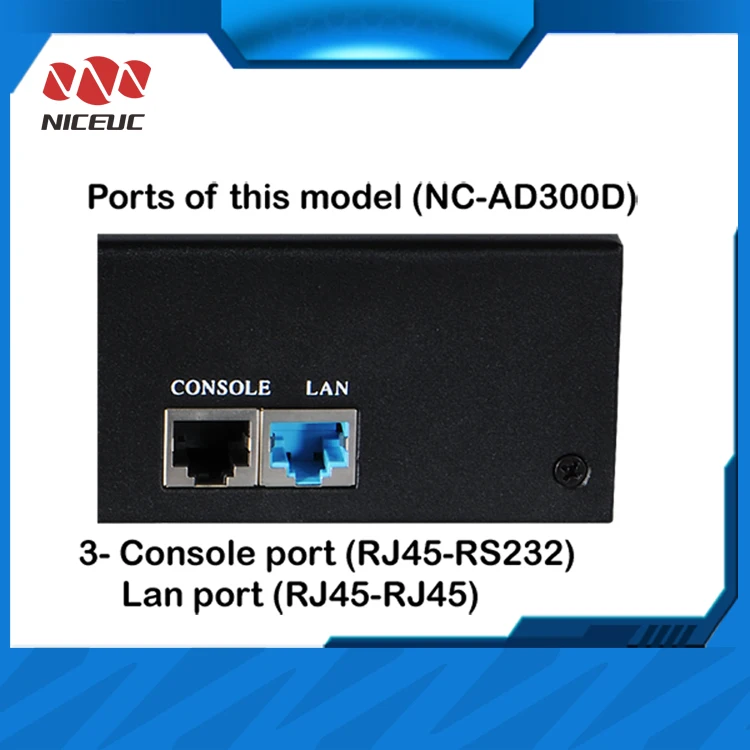

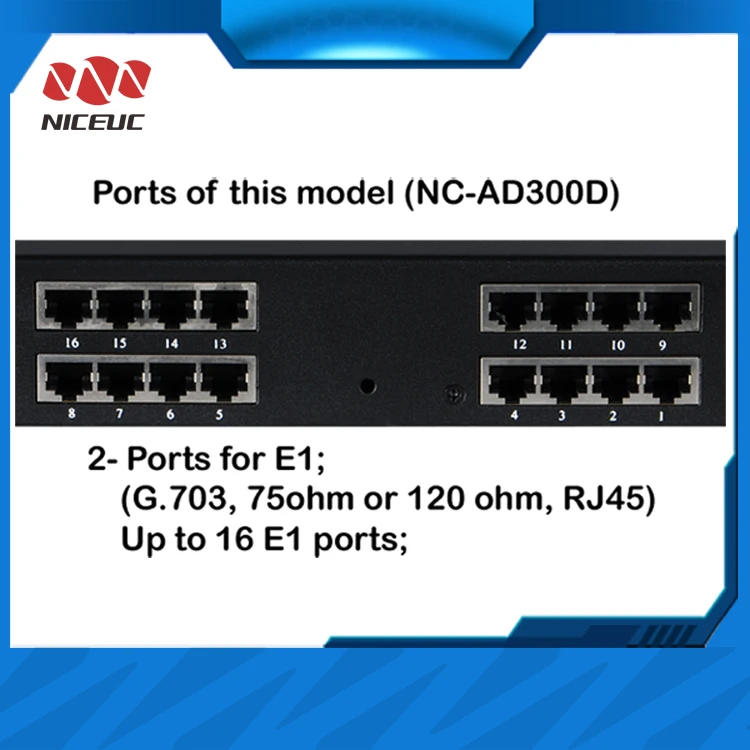

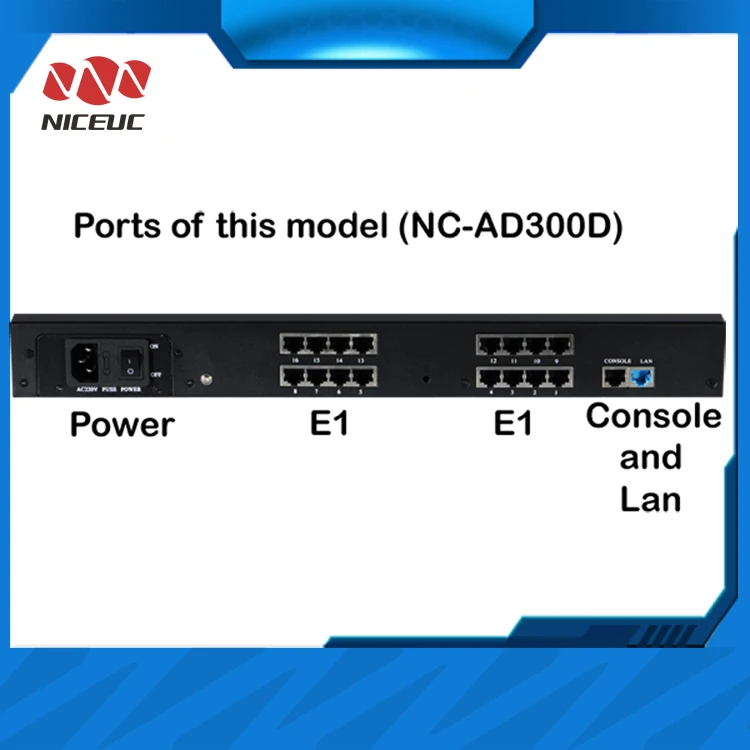

* Interface Connector: 16 E1 (8 spans), 10/100M network 1 port, RS232 console 1 port
* 16 SS7 links, 16 PRI
* Switching Volume: 2048 x 2048
* Clocking accuracystratum 3 Clock.
* Clocking Source from E1 or internal.
* Hard ware resource: 256 Voice channels,256 meeting channels,256 DTMF channels, FSK inspection and delivery.
Function:
* Convert any signaling between ITUT C7, ISDN PRI, ETSI ISDN, Q.SIG, V5.2, R2
* Multi router, inter-office management, Intelligent router distribute and telephone traffic sharing
* Grouping switching management
* User identifier, can provide black and white name list or connect to the database
* Powerful calling function to provide customize calling mode.
* Voice management function with voice record and voice play
* Meeting function
* Calling number and called number modification
* Real time telephone traffic monitor and handling
* Can expand the capacity through multi stack
* Provide CTI Link API interface for user program control
Specification
Physical Specification:
Item | Specification | ||
Input voltage | -48v DC or 200~240V AC | ||
Power | 30 W | ||

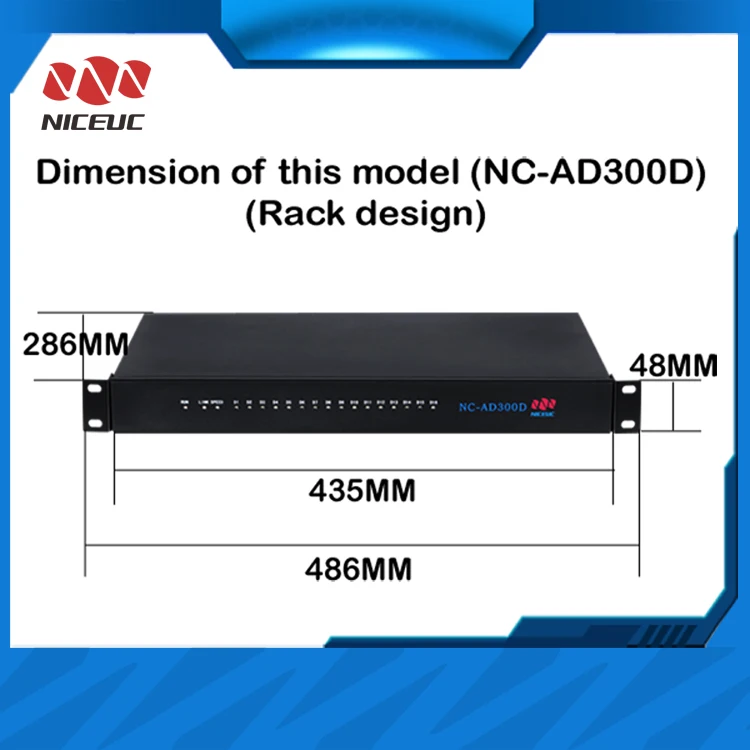

Dimension | width×depth×height | 480mm×290mm×40mm (1U) | |
Weight | 3 kgs | ||
Environment | Temperature | 0-50 | |
Rel Humidity | Less than 80 | ||

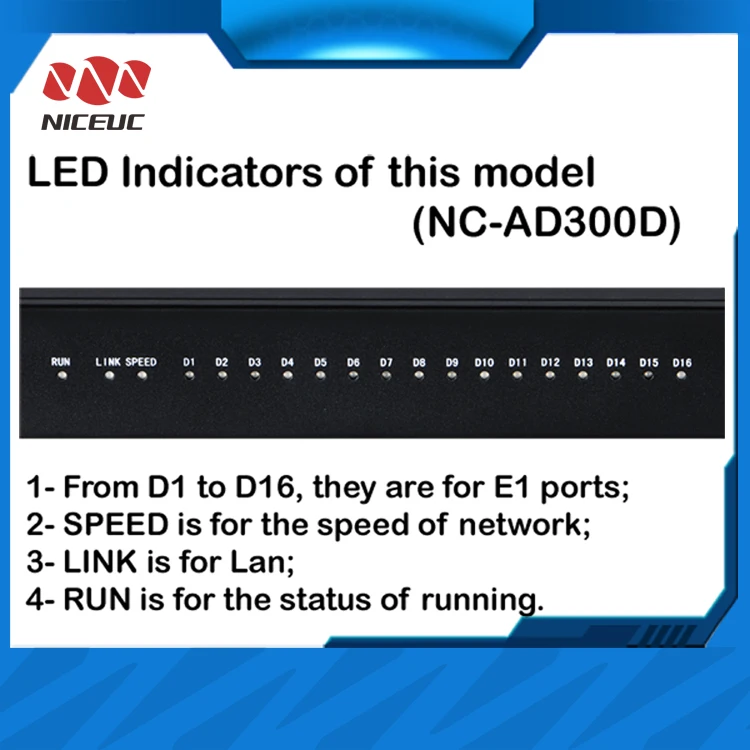

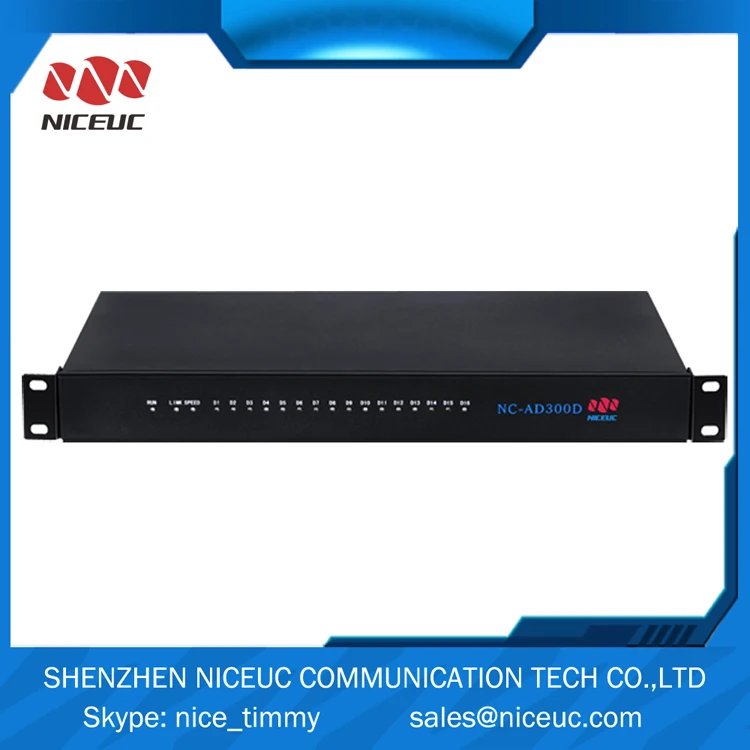

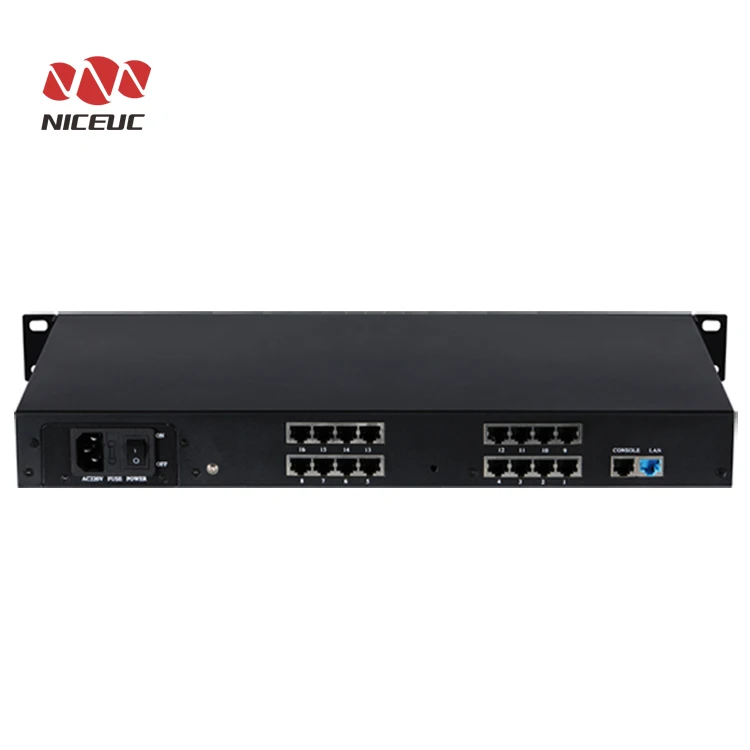

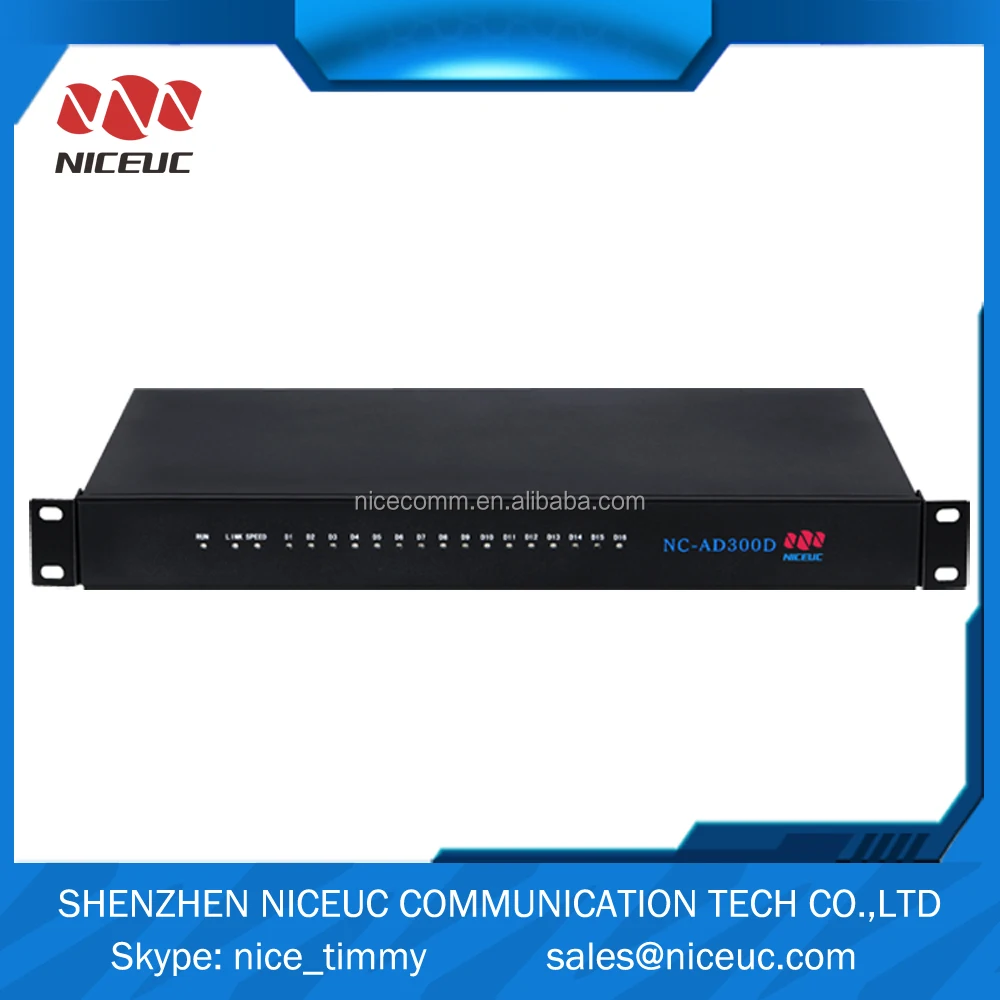

Details Picture

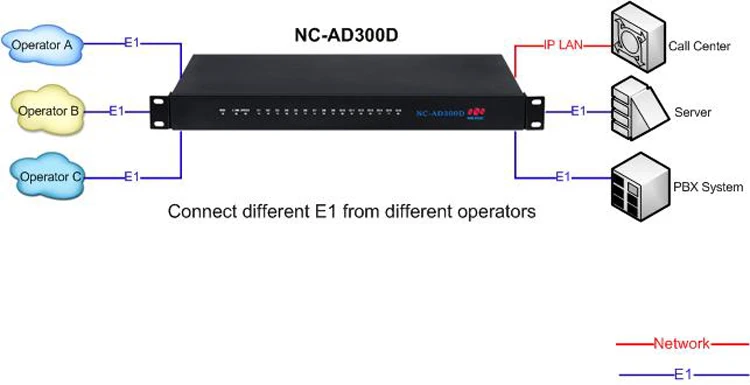

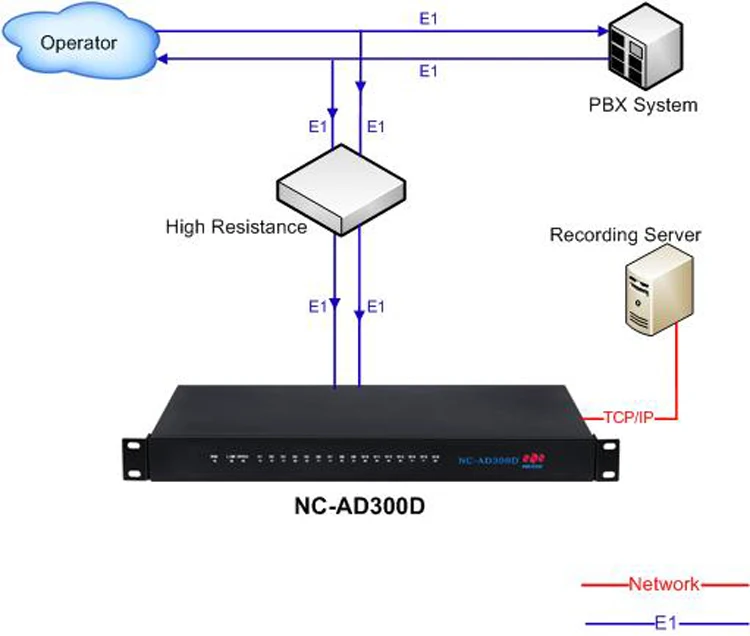

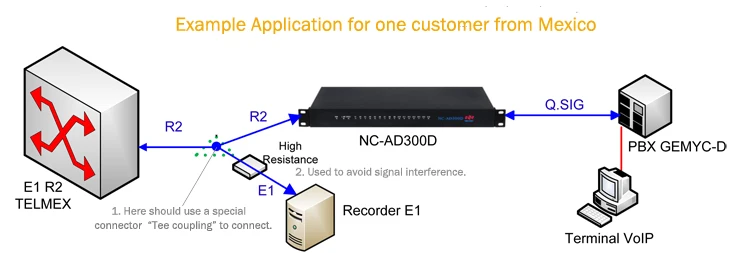

Application&Solution
1.
2.
3.
4.
5.
6.
Factory&Services
Company Information
Shenzhen Niceuc Communication Technology CO., LTD, in shenzhen of China.
Niceuc Communication CO., LTD, in HongKong.
A professional manufacturer in VoIP Products from 2000 year.
Now, our main products and services are as follows:
·Signaling Converter: convert any signaling between SS7, ISDN PRI, Q.SIG,V5.2, R2;
·VoIP Media Trunk Gateway: transform between SS7, ISDN PRI, V5.2, R2 and SIP, transfer PSTN to IP;
·IP-PBX: support CTI, SIP, FXO, FXS, E1, E&M, PTT, GSM/CDMA/WCDMA, Recording and Conference;
·PBX/PABX System: support E1, FXO, FXS, CTI, Recording and Conference;
·GSM Gateway: convert E1 to GSM, to save telephone expenses;
·Services: develop special customized service/software/features/products to customers with low cost.
As one supplier of Huawei, we will provide you with Huawei's quality by low price. Please feel free to contact us from now, thank you. (Skype: nice_timmy, What's APP: 0086-18682013896)
