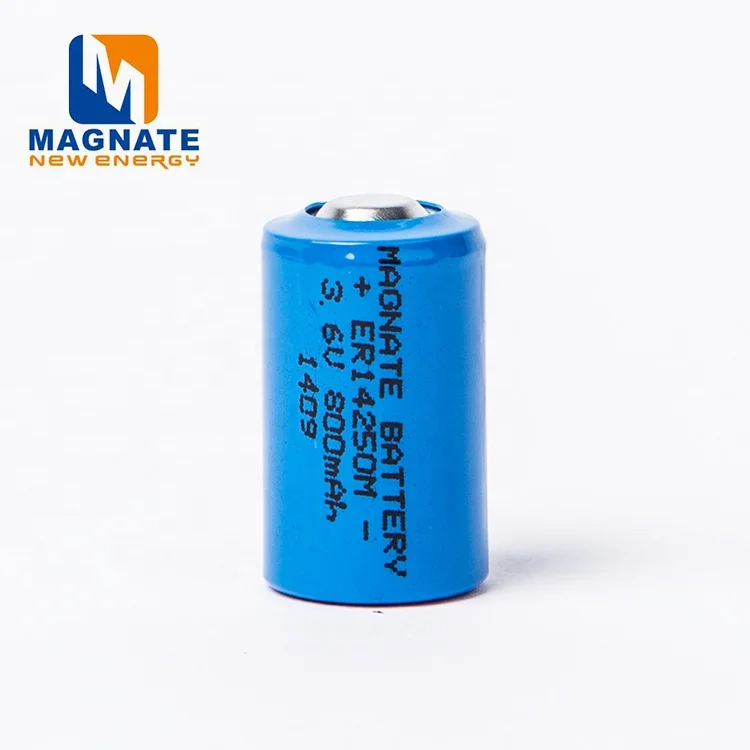

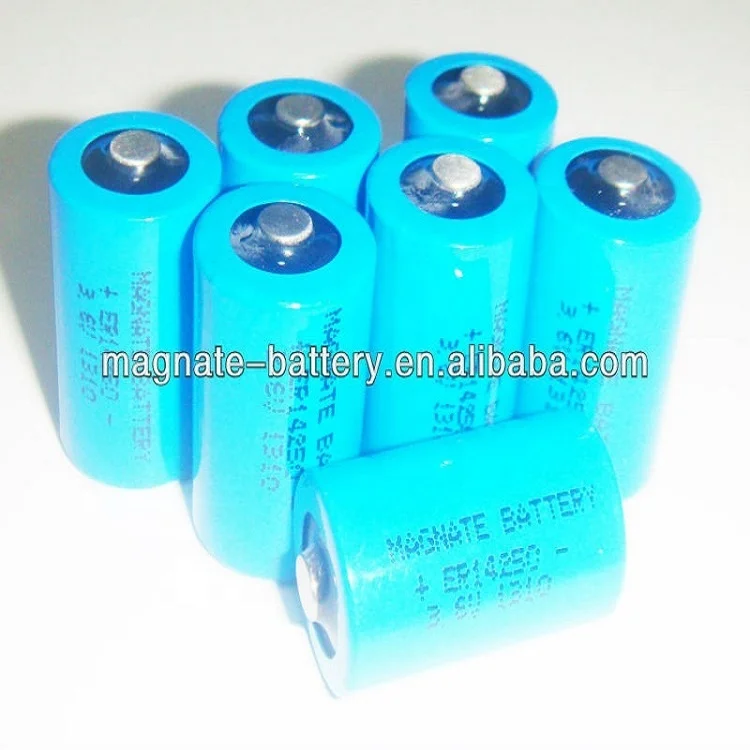

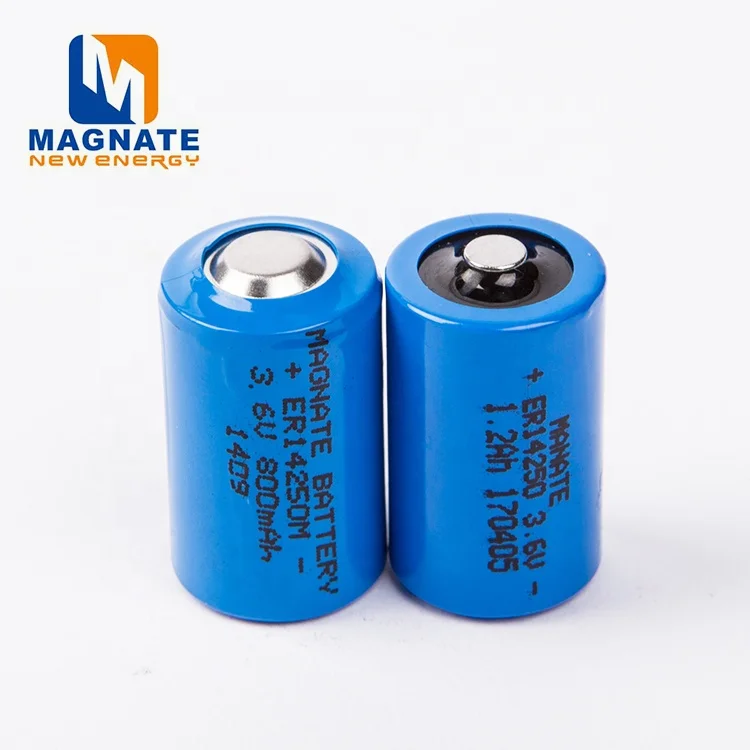

sl 350 Lithium Battery ER14250 3.6V 1200mah with terminals

Product Overview

Description

IEC: 1/2AA SIZE

Li/SoCl2 battery with solder tags/ pins

Lithium Thionyl Chloride Battery packs, lithium primary battery packs.



Characteristics:

Nominal capacity: (10mA -2.0V ) 1200mAh

Nominal voltage: 3.6V

Max. constant current: 300mA

Max. pulse current: 2000mA

Weight: 10g

Volume: φ14.5x25.0mm





Available Terninations:

-/P axialpins

-T/PT2 radial pins

-/PT/TP polarized tabs

Avaiable terminations can be made as requested.



Key Characteristics:

High and stable operating voltage

Low self-discharge rate (less than 3% after 10 year storage at 25 °C )

Operating temperature : -40 ~+60°C

Hermetically glass-to-metal sealing

Nickel-plated steel container

Organic electrolyte

Spiral type



Warning:

Fire, explosion and severe burn hazard.

Do not recharge, crush, disassemble, heat, above 212°F (100°C), Incinerate, short circuit or expose contents to water;

Do not reverse the positive and negative pole of battery while using it;

 Do not solder directly on the battery

Dispose of used batteries promptly.



Utility meters ( electricity meters, water meters, gas meters, AMR)

Security systems ( door lockers, smoke alarm sensors detectors)

CMOS memory and RTC backup

Vehicle tracking , Industrial clocks

Sea buoys, remote monitoring systems, industrial clocks,

Smart electronics and so on.
