Manual Hydraulic Press MSY

Product Overview

Description

MSY Manual Hydraulic Press

Product Performance:

1.    It adopts an elaborated steel-frame structure and a column with a work bench beam and a sliding rail.

2.    The good quality of the products is based on exquisite manufacturing process and durable parts and components.

3.    Its single-action or double-action cylinder,which is the original component of sound hydraulic systems,can stand wear and tear.

4.    Its pedal-operated oil pump driven by manual power controls the movement of the piston rod,which is very safe,convenient and durable.

5.    The lower workbench beam is equipped with a set of specialized sling and sliding rail,which is labor-saving,safe and convenient.

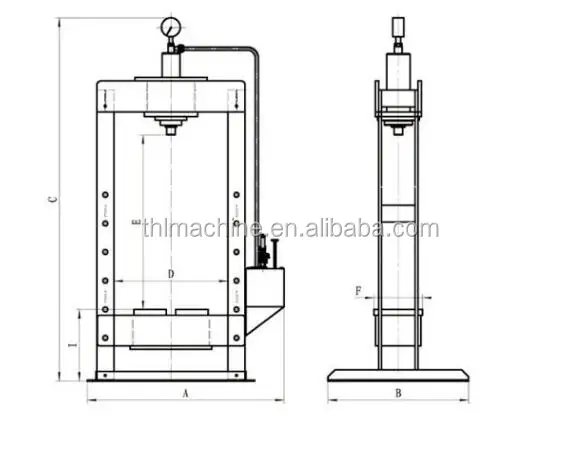

Model	Nominal pressure(KN)	Hydraulic pressure(Mpa)	Stroke of cylinder rod(mm)	Adujstment distance of worktable(mmxn)	size of worktable(mm)	Weight(kg)	A	B	C	D	E	F	I
MSY10/15	100	30	150	150x3	180x100x2	80	630	480	1320	430	600	180	195
MSY20/15	200	38	150	180x4	240x130x2	165	915	650	1880	500	944	240	400
MSY30/18	300	36	180	200x4	290x200x2	275	1015	680	2025	600	1080	290	332
MSY50/19	500	40	190	250x3	450x330/Φ80	420	1115	800	2040	700	1067	330	338
