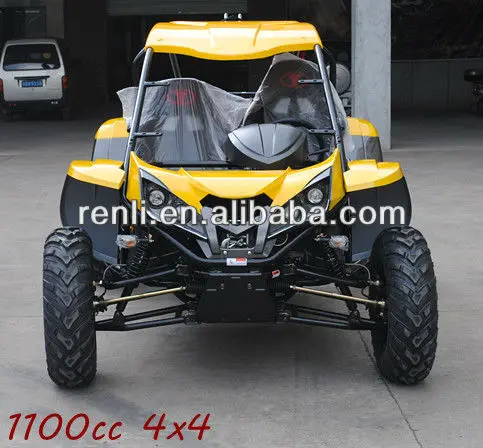

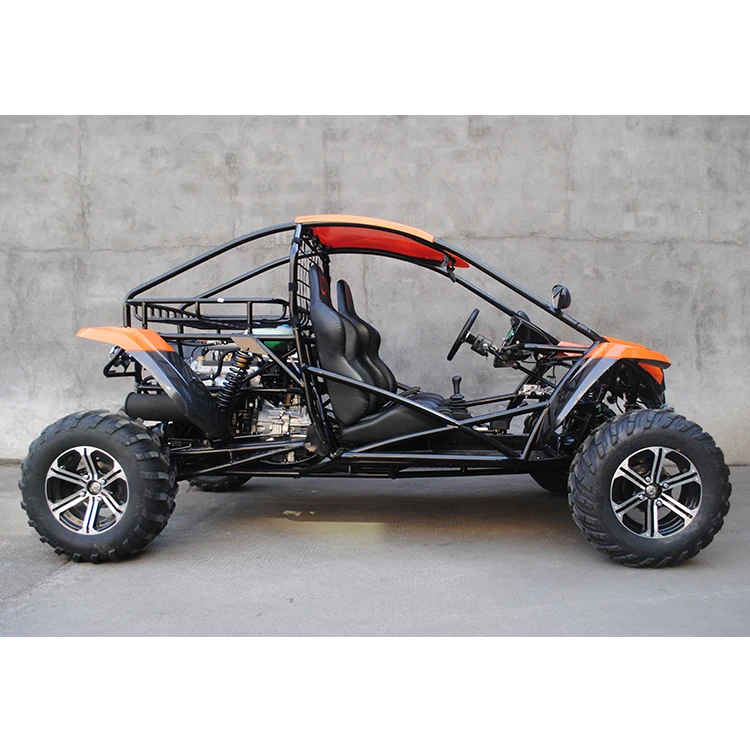

gasoline/pertrol kart 1100CC 4X4 Chery Engine beach bugguy /dune buggy

Product Overview

Description

DUNE BUGGY



1100CC  , 1100cc engine dune buggy
DIMENSIONS
Overall Length---------------------------------------------3035mm
Overall Width ---------------------------------------------1685mm
Overall Height --------------------------------------------1490mm
Wheelbase -------------------------------------------------2180mm
Front Track -----------------------------------------------1430mm
Rear Track ------------------------------------------------1430mm
Ground Clearance -------------------------------------------270mm
ENGINE
Type --------------------------------------------------------4 Cylinder,4-Strokes,water cooled
Bore x Stroke -----------------------------------------------71×66mm
Displacement ------------------------------------------------1051mL
Compression ratio --------------------------------------------9.0:1
Carburetor ------------------------------------------------ Electric Fuel Injection
Max Power ----------------------------------------------------38.5/5200kW/rpm
Maximum Torque -------------------------------------------------83/3500Nm/r/min
Fuel consumption-------------------------------------------------6L/100km
Starting ------------------------------------------------------ -Electric
Ignition ------------------------------------------------------- Electric Fuel Injection
Lubrication ---------------------------------------------------- Force & Splash
Transmission -------------------------------------------------- -Manual clutch, 4 shift/Reverse
Fuel type -------------------------------------------------------RQ93 (unleaded)
Engine oil --------------------------------------------------- --SAE-10W/30
Gear oil ------------------------------------------------------- GL-4 75W/90


CAPACITIES
Maximum load ------------------------------------------------250kg
Fuel tank ----------------------------------------------------- 23L
Engine oil -----------------------------------------------------3.5L
Gear oil -------------------------------------------------------2.0L
Starting -------------------------------------------------------≤15s
Climbing --------------------------------------------------- ---≥25°
Battery -------------------------------------------------------12V36Ah
Head Light --------------------------------------------------- 12V 55W/ 5W
Redirector Light ------------------------------------------- --12V 5W
Tail Light ----------------------------------------------------12V 21W/ 5W
Horn-----------------------------------------------------------12V3A
Fuse ----------------------------------------------------------30A
Brake Track -------------------------------------------------- < 7m @40 km/h
Top speed ----------------------------------------------------- 100km/h (or limited as customers require)
CHASSIS
Front, Rear brake --------------------------------------------- Hydraulic disc, right foot control
Front tire ---------------------------------------------------- 25×8-12
Rear tire ----------------------------------------------------- 25×10-12
Front Suspension --------------------------------------------- Independent Dual A-Arm
Rear Suspension ---------------------------------------------- Independent  Suspension
Final Drive -------------------------------------------------- shaft driven
TIRE PRESSURE
Front -------------------------------------------------------- 250kpa2.5kg/cm2 36psi
Rear --------------------------------------------------------- 250kpa2.5kg/cm2 36psi
WEIGHT
Net Weight ----------------------------------------------------484kg
G.W -----------------------------------------------------------572kg
CONVEYANCE
Container quantity---------------------------------------------20GP:4Units. 40HQ:12Units
Carton dimensions----------------------------------------------2870 mm×1660mm×850mm
