Product Overview
Description

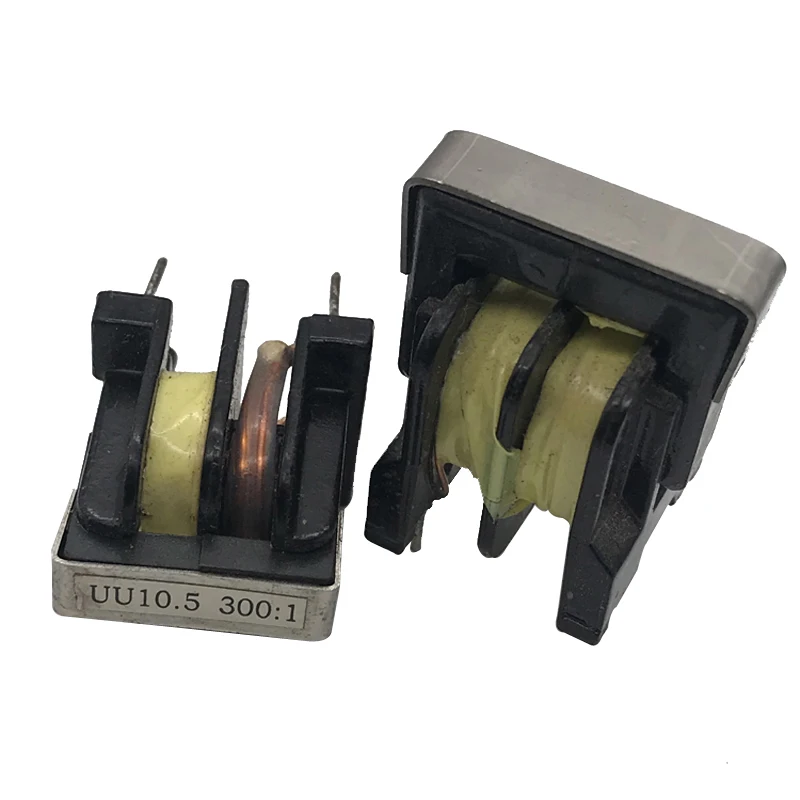

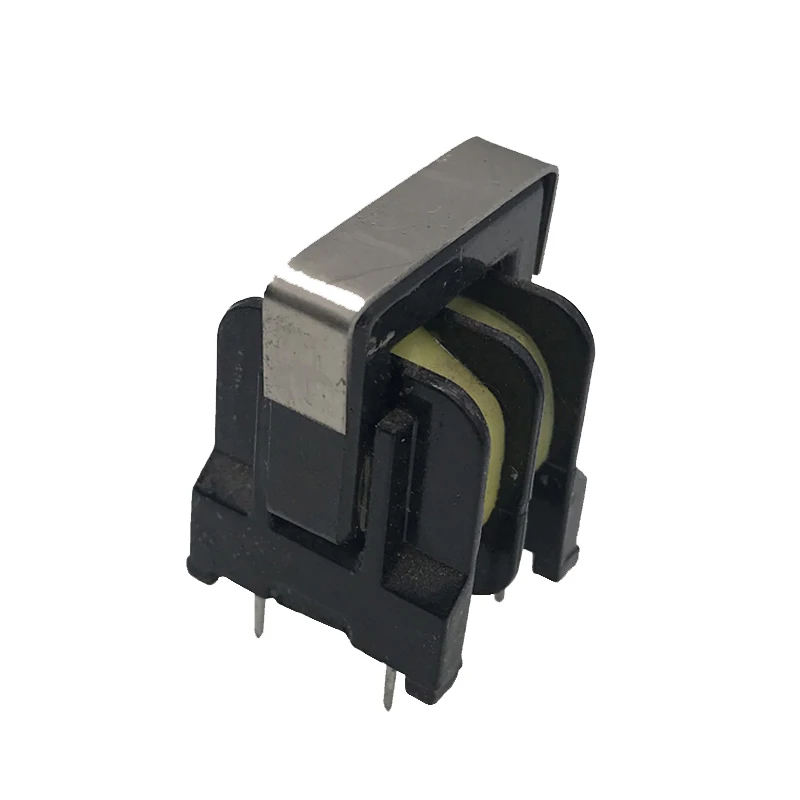

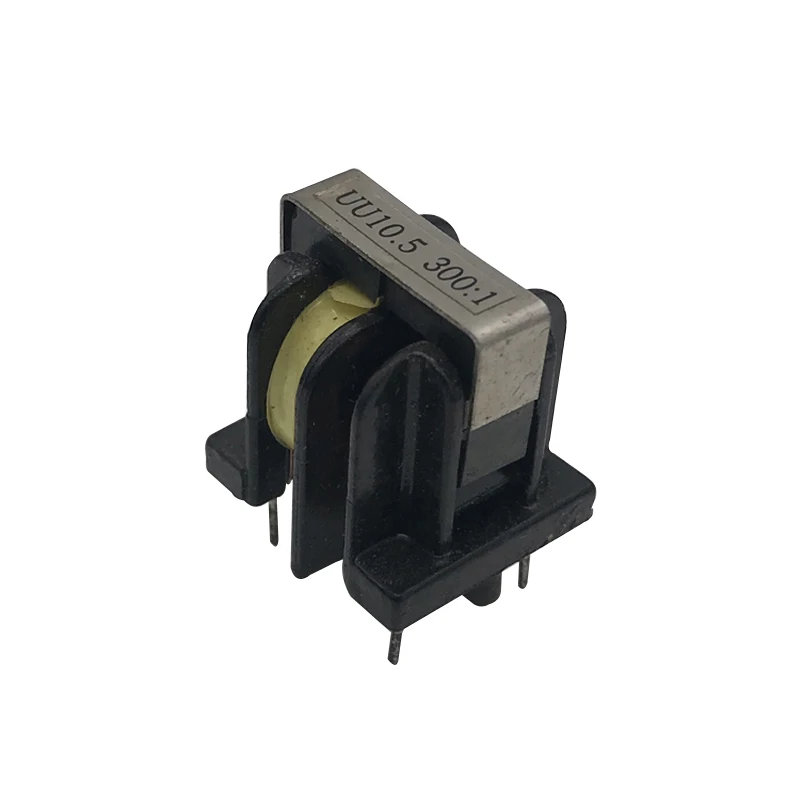

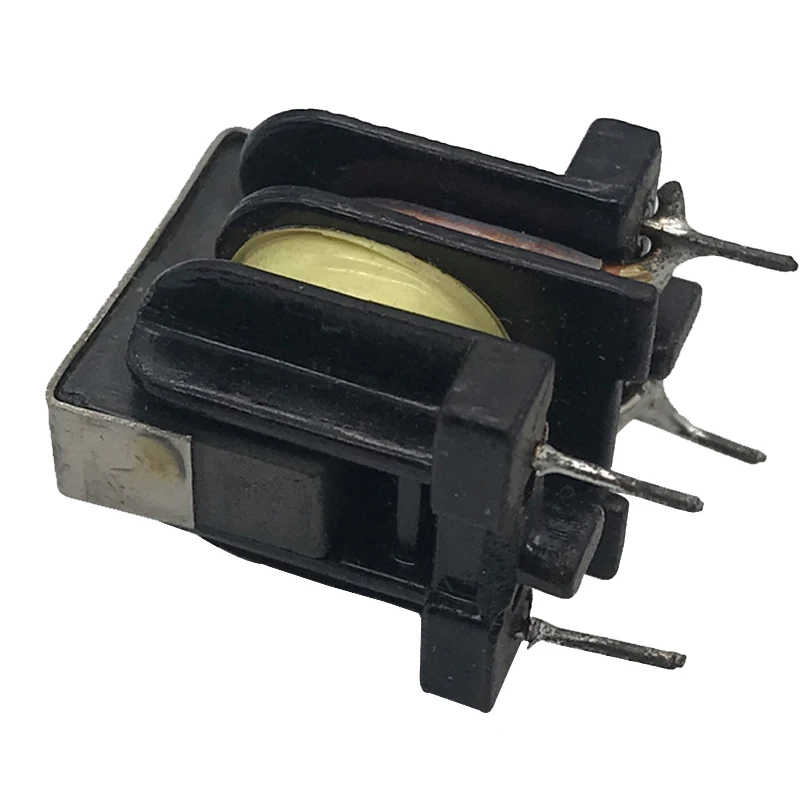

UU10.5 line filter high frequency electric Welding/welder transformer
Different turn ratio is available.

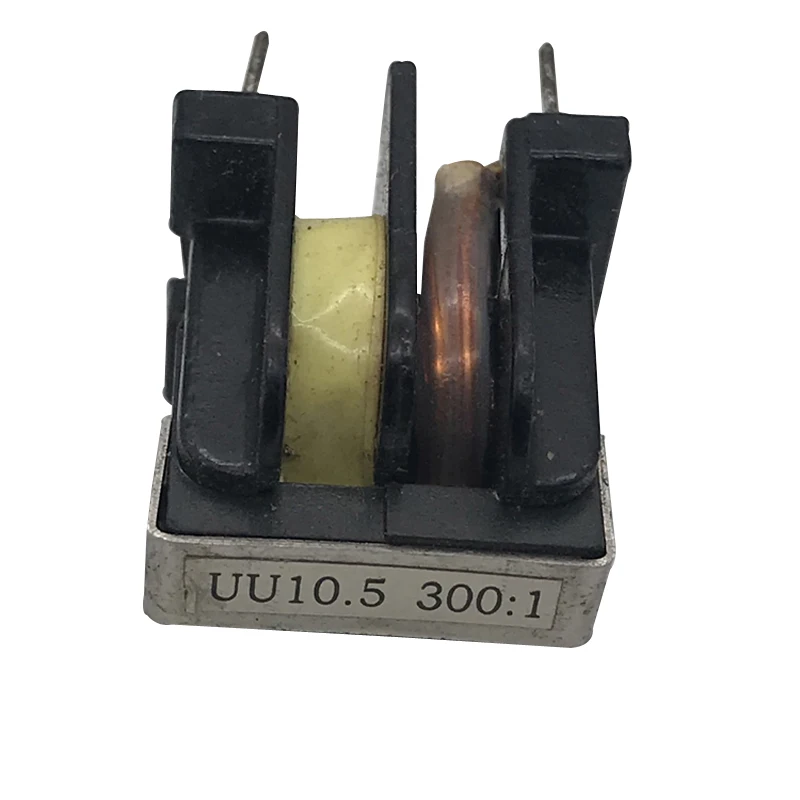

UU10.5 300:1
UU10.5 49:4
UU10.5 130:130
Line filter Applications:
1.Suppresses noise in DC circuits for switching regulators.
2.Protects primary AC side form being affected by a switching regulators.
3.Filters electorstic noise from power and signal lines.
4.Eliminates contact noise.
5.Filters incoming spike noise for Ics and equipment using microcomputers.
6.Minimizes noise emissions for conforming to FCC,VCCI,FTZ,CISPR,JTTC andVDE.
7.Minimizes noise emissions from inverters.
Line filter Electrical Characteristics:
1.Operating Temperature range:-20 to +45
2.Storage temperature: -40 to +70
3.Switching frequency:1KHz to 200KHz
4.Withstanding voltage:1500Vac for 1 minute between primary&secondary
5.Insulation resistance:500Vdc 100MΩ min.between primar&secondary.
Applications
1. VCRS, Copy machine, Audio equipment, Game machines.
2. TV sets, Microcomputer equipment, printers, Terminals
3. Communications control equipment
4. Switching power supply, chargers, alarm system
5. UPS, VCD/DVD players, audio and visual equipment
6. OA machines, inverters, chargers, alarm system
Specifications:
1. Low magnetic leakage, low loss
2. Small distributed capacity
3. Fine tuning inductance
Welding transformer use in welding machine, reliable and acceptable. Okerda transformers have reached the international popular standard on its safety and quality standard, which have been widely used in the line of electronic products, communication products, audio-visual devise, satellite broadcast television receiving apparatuses, medical equipment and electric power system and so on.

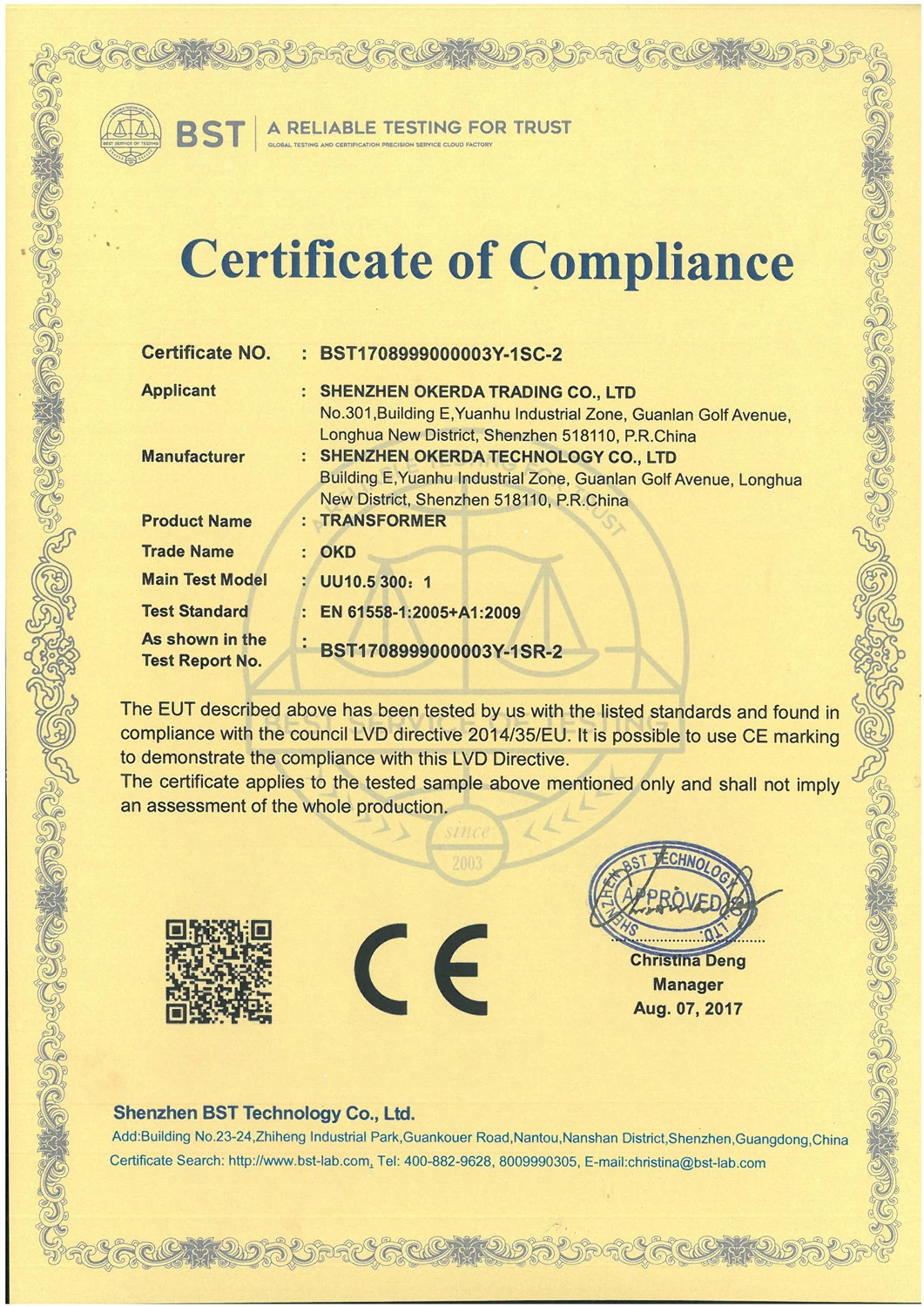

Certification
