Agricultural transmission reduction gearbox

Product Overview

Description

Agricultural transmission reduction gearbox

NOSEN offers a complete range of 90 Degree Gear Drive available for continuous applications for power transmission. Light, medium and heavy duty reducers are available.

* Configuration: Spiral bevel gears,bearings,oil seals,cast iron housing,heat treated drive shafts,etc.

* Materials: Spiral bevel gears is case-hardened with high rigidity and wear resistance,cast iron housing,S45C heat treated drive shafts.

* Compared to worm gear reducer,spiral bevel gearbox is of flexible operational capacity,high transmission torque and save more money.

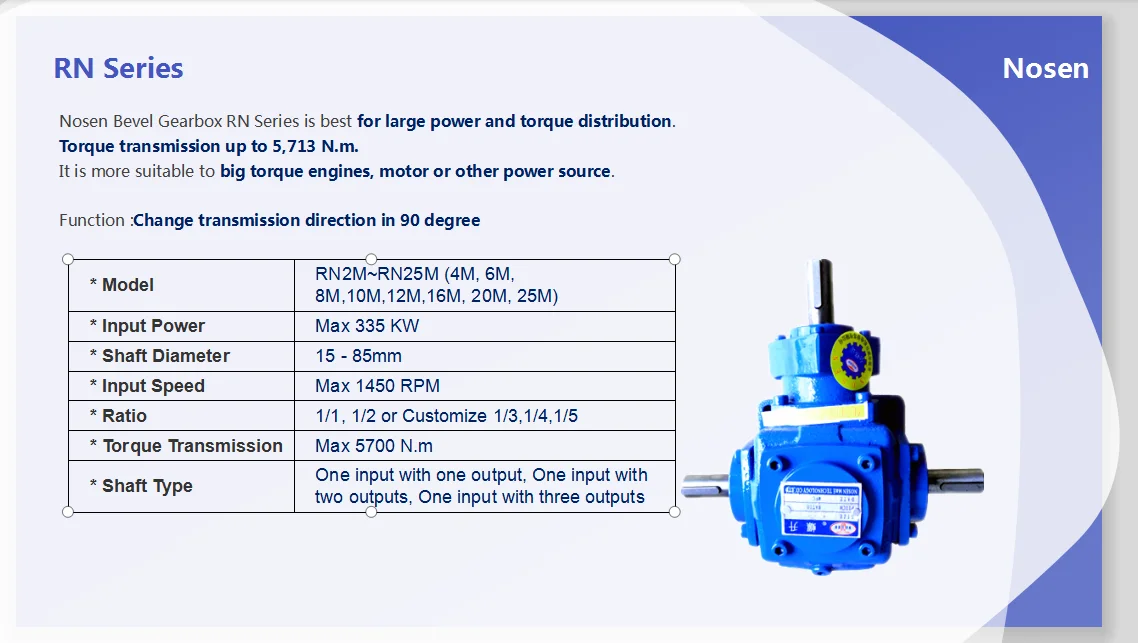

*  12 models are available,from RN2M~RN25M.

* 2 ways,3ways,4 ways gearbox are available.

* Speed reducer and speed increaser are available.

* Slow shafts; fast shafts and hollow shafts are available.

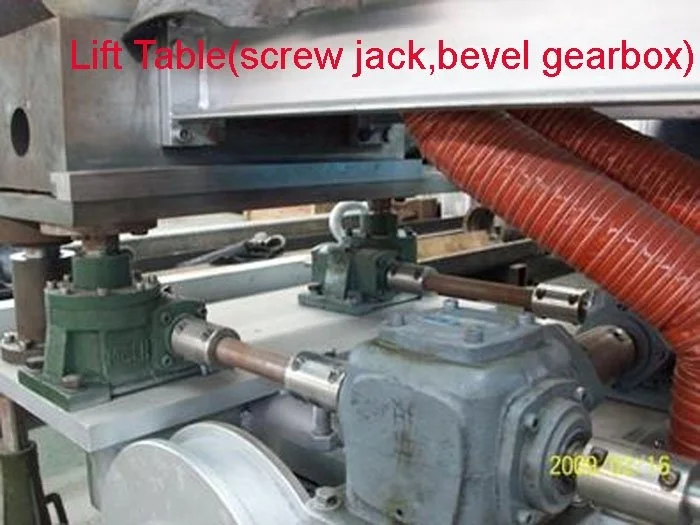

* Gear transmission ratio 1:1,we make it special for screw jack systems. Special gear ratio like 1.5:1,2:1,2.5:1,3:1,4:1,5:1,we can make them follow clients’ demand.

* Gear transmission efficiency up to 95%~98%.

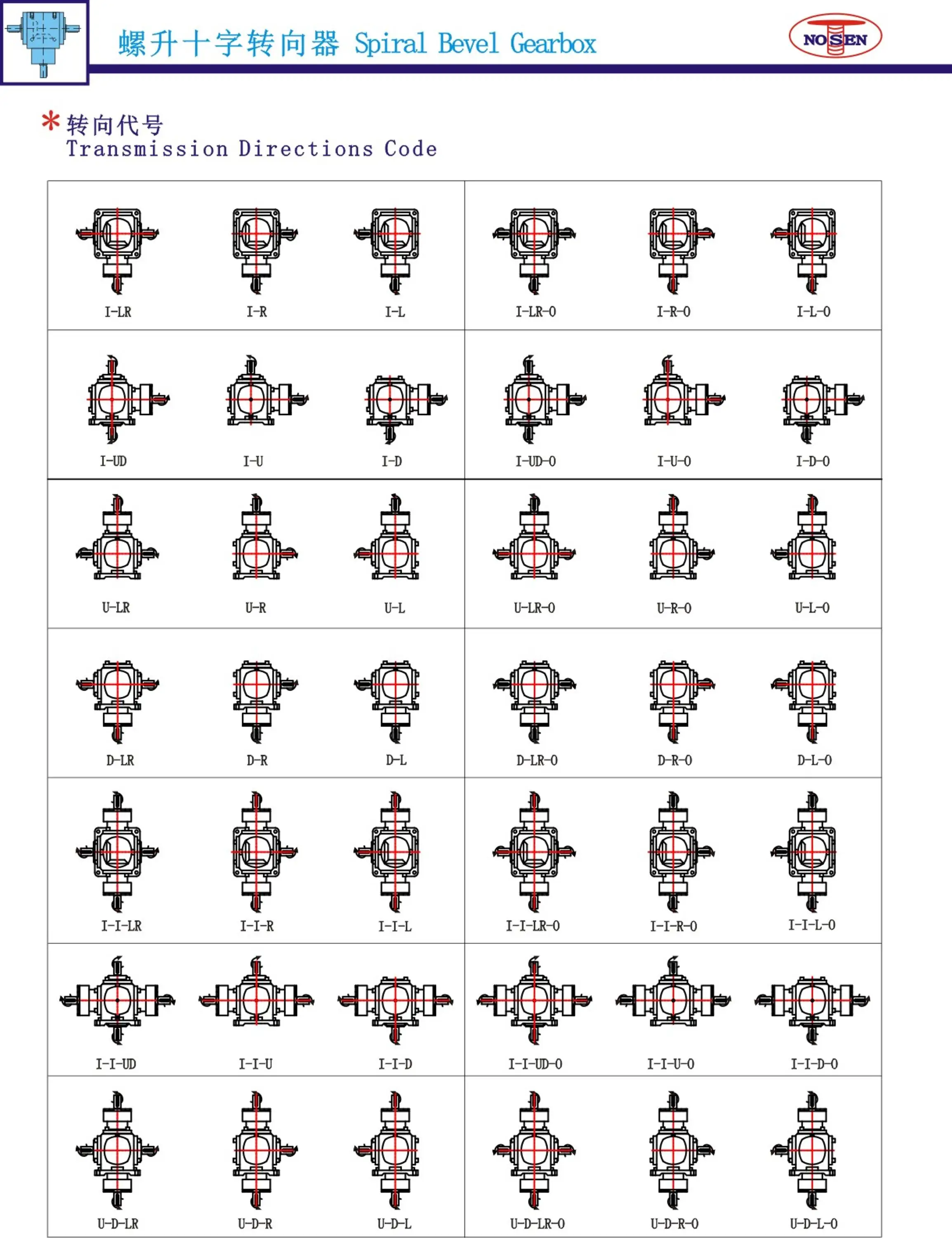

* 42 kinds of right angle rotation directions for clients chooses.

* Max input power 335 KW.

* Max torque 5713 N.m.

* Max input revolutions 2000 RPM.

* Compact design,small gearbox sizes,low weight,easy to install anywhere.

* Application industries:

diesel engine drive water pump,textile,food processing machine,medicine,rotary axis drives, conveyors, packaging equipment,material handling,automation and packaging.
