Interferential uses the principle of interference, hence its name Interferential Therapy devices use two separate electrical frequencies, which work together to stimulate nerve fibers.
How does IF work?
The Interferential stimulator is a dual-channel electronic unit. It incorporates a digital display that indicates the operational modes and the output. It is equipped with an 8-bit microcomputer for controlling the system. The intensity, duration, frequency and modulation of the electrical impulses can all be adjusted. The stimulator uses 4 electrodes producing deeper stimulation when compared to other types of electrical stimulation. The degree of pain relief varies from individual to individual and also depends on the type of pain. The stimulation may reduce the level of perceived pain or eliminate it altogether. Pain relief may only be felt during the stimulation period but in many patients the pain relief persists once the stimulator has been switched off.

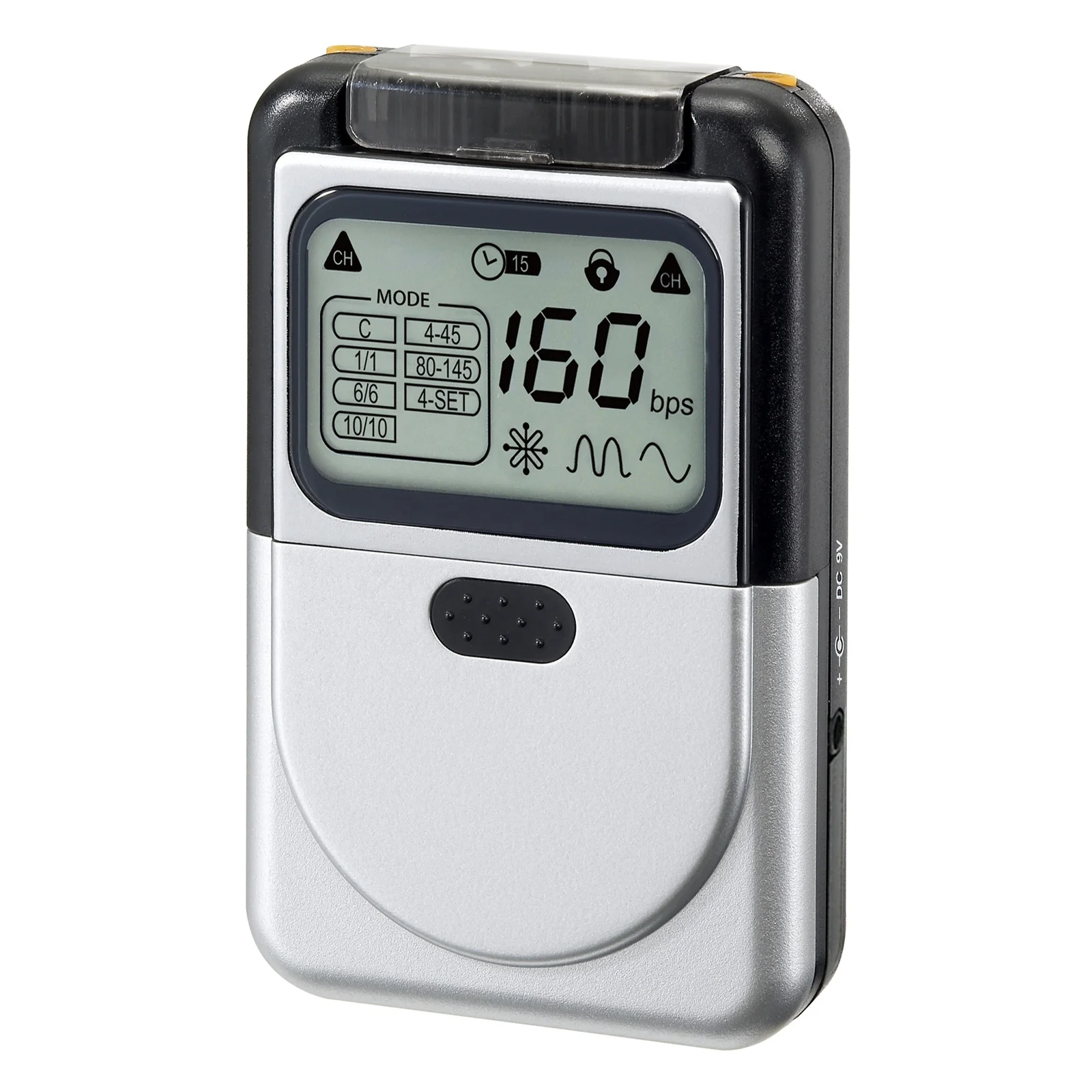

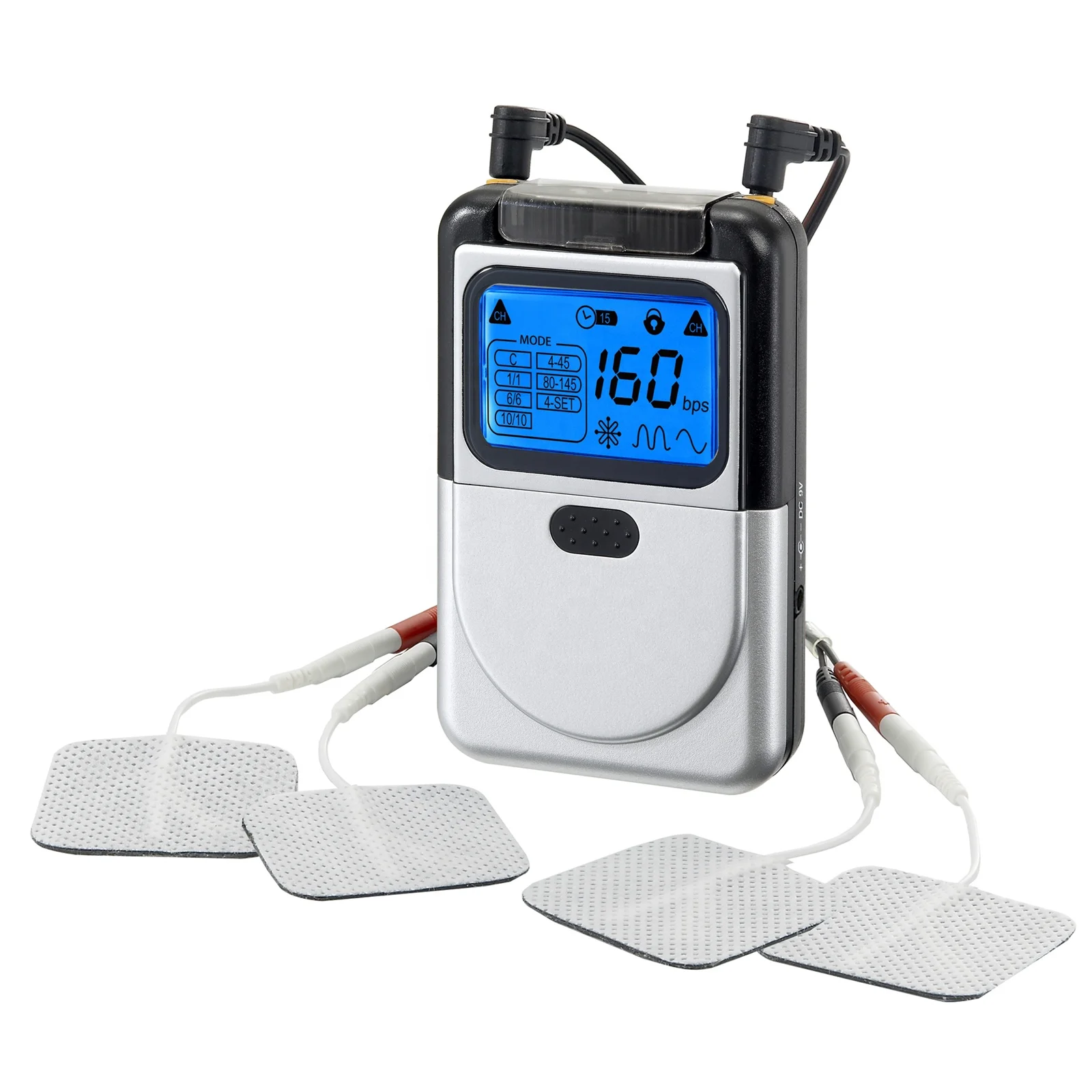

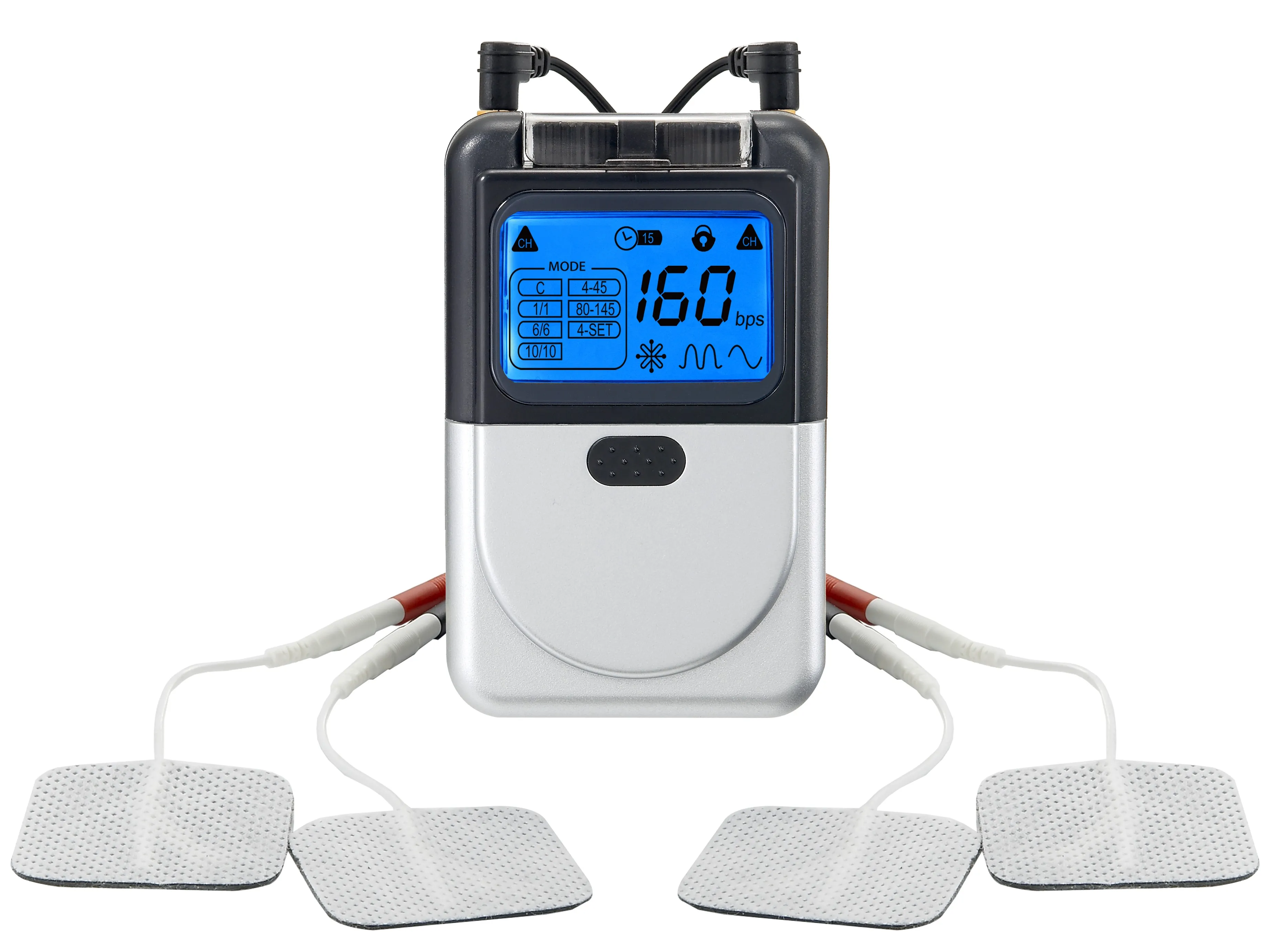

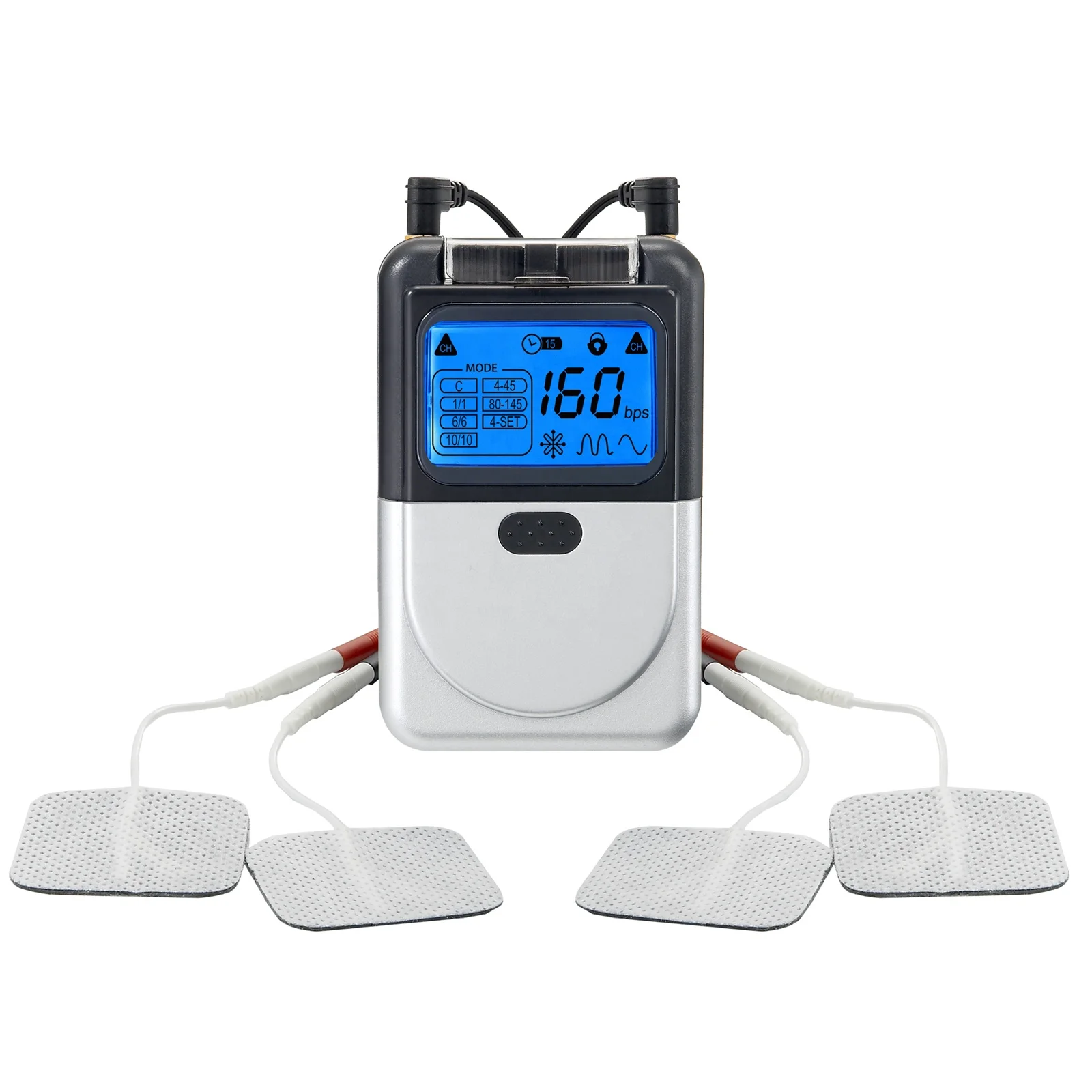

IF-908 Interferential Stimulator
IF-908 is the interferential stimulator (IF) device which is a battery operated device that includes two controllable output channels. Amplitude, mode and duration of the electrical impulses can be altered with the buttons or knobs. The biggest difference between TENS and IF is the rate. The pulse rate of IF is around 4000-4100 Hz which is much higher than TENS (2-150 Hz). This high frequency stimulation can easily pass through skin and reduce pain more effectively.
IF-908 provides effective interferential stimulation treatment for the relief of chronic pain, especially for aching muscles of the back, arms, or legs. The controls are protected by a cover in order to prevent accidental changes to the settings. With 9 IF modes and premium quality adhesive electrodes, IF-908 provides you the highly effective nerve stimulation for pain relief and pain management.
*FDA Approved for the pain relief product.
*510K approved for OTC use and safety regulations (IEC60601-1, IEC60601-1-2 EMC) certified.
*No prescription needed. Safe, All-Natural, Drug Free and Long-Lasting Pain Relief.
Key Features
High Frequency
The pulse rate of IF-908 is around 4000-4100 Hz. This high frequency stimulation can easily pass through skin and reduce pain more effectively.

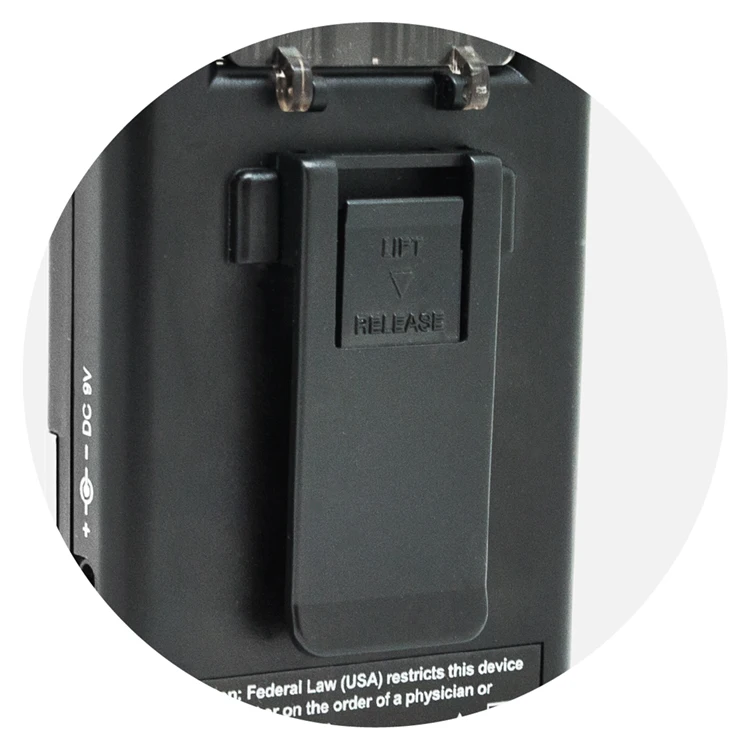

Belt Clip
Can easily use this clip to clip on your pants or clothes. Make the treatment portable and everywhere.

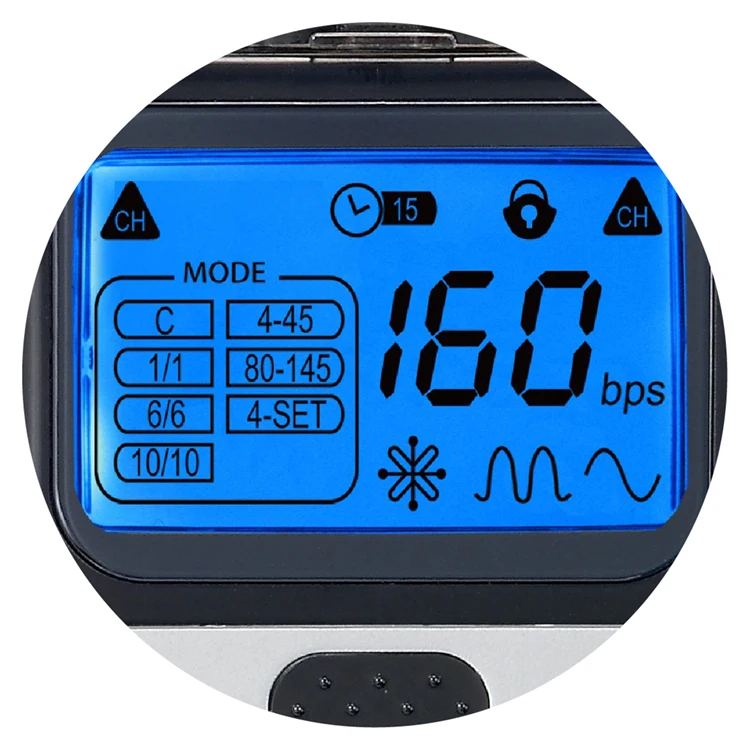

Backlit LCD
When the users press the buttons or operate the machine, the LCD Screen will turn to Backlit (Blue Light) mode which makes the users easily use it even in the dark night.
Specifications
IF-908
Channel
2 Channels
Amplitude
Adjustable 0-60mA peak into 500 ohm load each channel, constant current
Size
10.7cm(L) x 6.2cm(W) x 2.7cm(H)
Weight
Approximately 150 grams (battery included)
Carrier Frequency
4000Hz fixed (CH1)
Modulating Frequency
4004-4160Hz, Adjustable (CH2)
IF Frequency Modes
Constant Mode
Constant stimulation 4-160 bps, Adjustable
Auto Sweep
4-45 bps, 80-145 bps, 4 SET bps
Interference Pulse Frequency
4-160 bps, Adjustable, 4 bps/step
Output Configuration
Quad polar (4 electrodes)
Wave Form
Symmetrical Balanced Sine Wave
Sweep Time
15 seconds
Pulse Duration
125 us maximum
Patient Compliance Meter
Display total treatment time
Timer
15, 30 minute selectable
Max Charge Per Pulse
15 Micro-coulombs Maximum
LCD
Displays mode, bps rate, abrupt/ramp, timer, and channels
Low Battery Indicator
A low battery indicator will show when the battery is low
Power Source
9V Battery/ Adapter
Tolerance
There may be 10% tolerance of settings and 20% tolerance of output
Lock
Prevents the patient from accidentally changing any of the set parameters
Frequency Shift
Five modes, 1/1 abrupt shift, 6/6 abrupt shift, 6/6 ramped, 10/10 abrupt shift, 10/10 ramped, bps can be adjusted
Frequency Shift Percent
Frequency shifts from 30% below the set frequency to 60% above and then return to 30% below the set frequency
