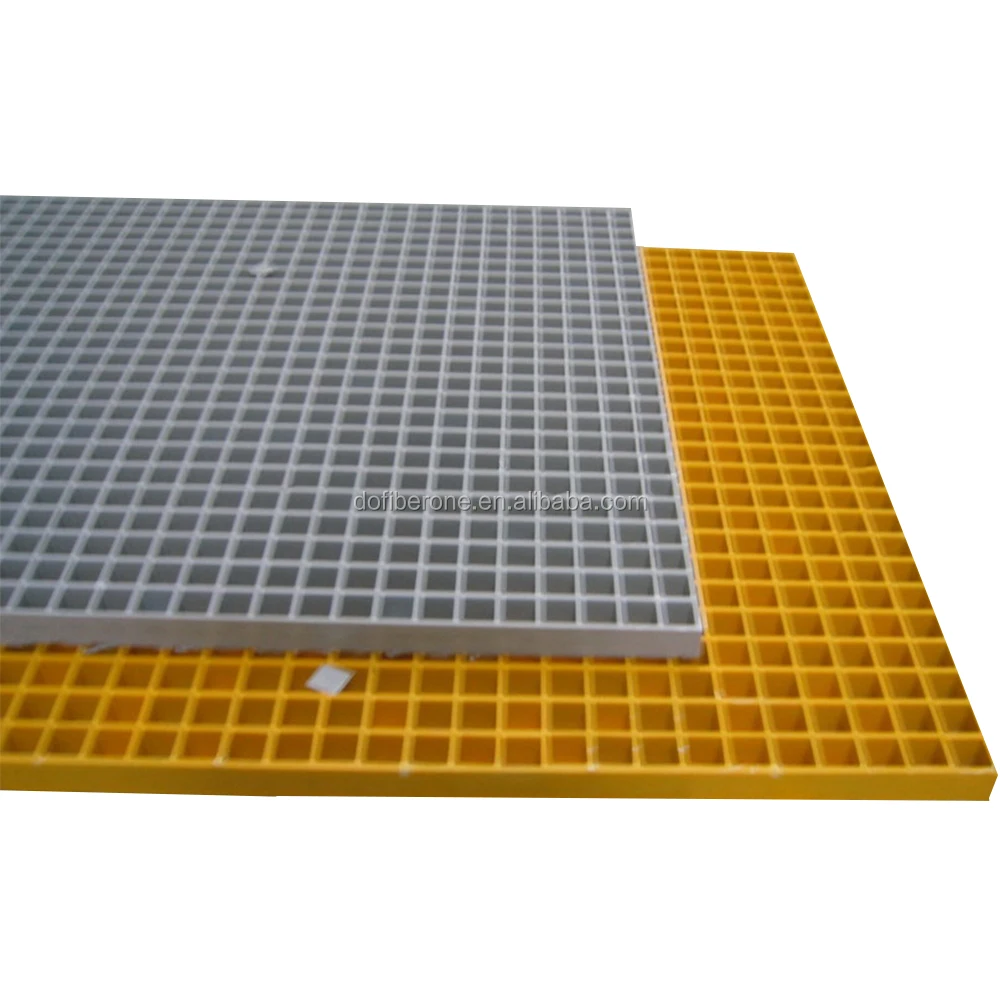

USA standard no fading no crack fire resistant long life outdoor fiberglass GRP FRP grids

Product Overview

Description

USA standard no fading no crack fire resistant long life outdoor fiberglass GRP FRP grids





About Our Products:

Resin:Ortho Polyester (GP), Iso polyester (ISO), Vinyl ester (VE), Phenolic

Thickness:25mm, 38mm, 50mm

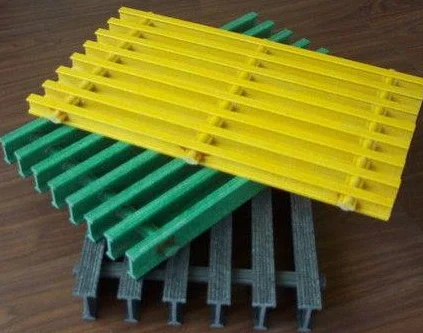

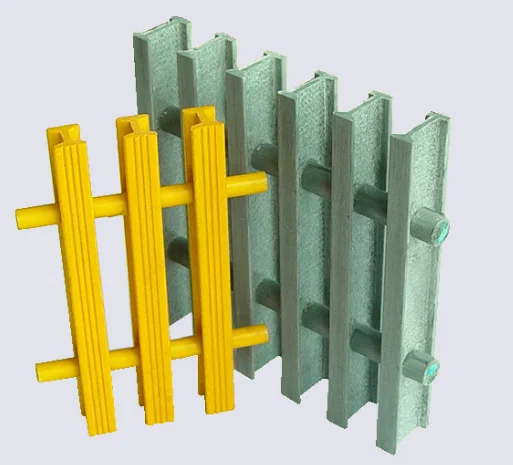

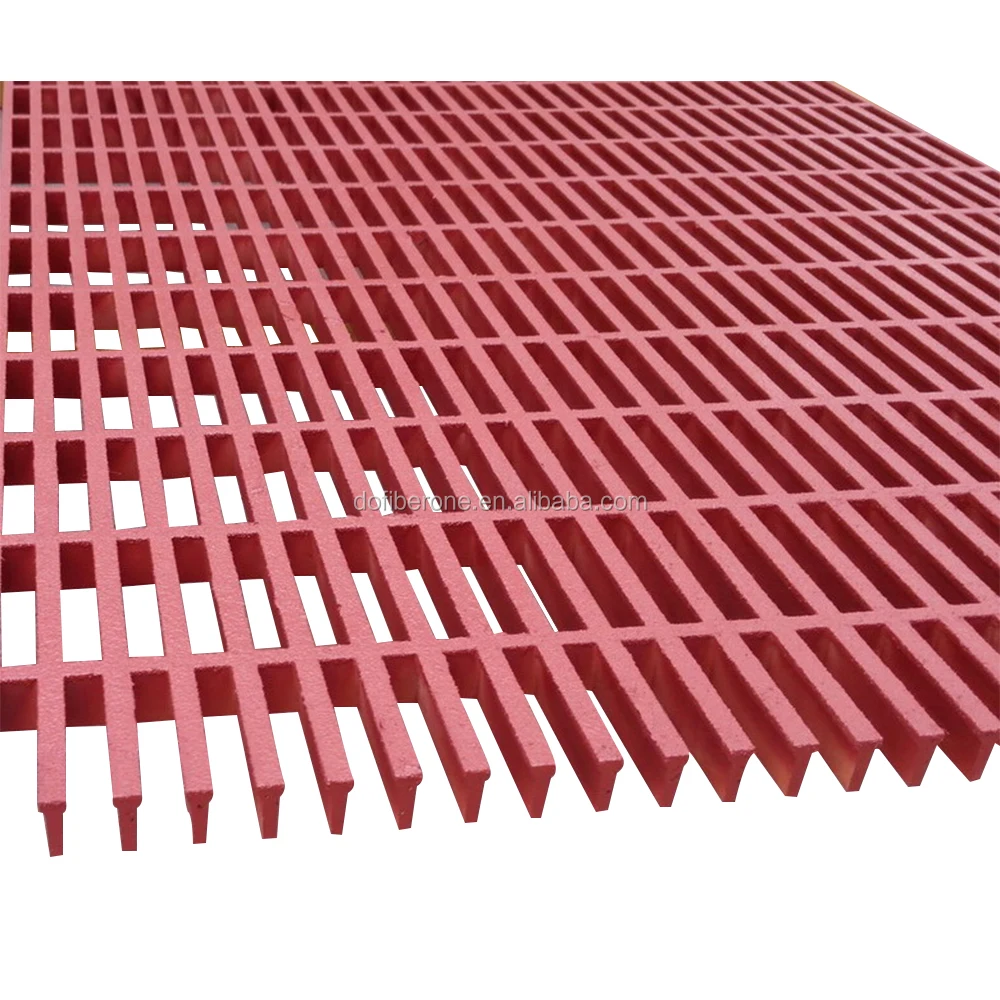

Loading Bar type: T-bar, I-bar

Open rate: 33%, 40%, 50%, 60%

Panel size: 1.2x6m or any size as your request.

Surface: Grit top, concave, smooth, covered.

Color: Green, yellow, grey, red, black, or any option to you.

Chemical Resistance: VE > ISO > GP

Fires resistant:  ASTM E84

Flame speed Index

= 15 for GP, Iso, resin,

= 10 for VE,

= 0 for phenolic,

Smoke development index:

= 310 for GP, ISO, VE,

= 0 for Phenolic

Covered grating: with 3-10mm FRP plate molded on the grating, top surface can be smooth, grit top, chequered plate (two design)

Special grating: Static conductive grating

Install clips: Type M from Stainless Steel 316L.

Other products: FRP profiles, handrail system, stair tread, stair nosing, anti-slip plate, tactile tiles, bracket for electrolysis anode and cathode film separation. Etc as your own design.

Package: by metal pallets



About factory:

Founded in 1992, Most of products are exported into USA, Europe, Australia, Middle East. ISO9001:2000 by since 1999. and ABS Certificate.

Our factory has about 20000sqm workshop and many machines. We have the longest experience for the production and exporting. Quality is No1 in China. And Scale is also No1-2 in China.



About Service: Professional exporting service from the Chemical Engineer sales manager (Master degree) in Shanghai, and designing engineer working for you. And the quality control engineers. We can produce it as your own design and technical request.





Item No.	Type	Height (mm)	Standard Panel Size (mm)		Open Area	Weight (kg/m2)
			Width	Length
1	T4025, T-bar	25	915 , 1220	2440 , 3050 , 3660 , 6100	40%	12
2	T5025, T-bar	25	915 , 1220	2440 , 3050 , 3660 , 6100	50%	10.5
3	T6025, T-bar	25	915 , 1220	2440 , 3050 , 3660 , 6100	60%	8.5
4	I4025, I bar	25	915 , 1220	2440 , 3050 , 3660 , 6100	40%	16
5	I5025, I bar	25	915 , 1220	2440 , 3050 , 3660 , 6100	50%	14
6	I6025, I bar	25	915 , 1220	2440 , 3050 , 3660 , 6100	60%	10.6
7	I4030, I bar	30	915 , 1220	2440 , 3050 , 3660 , 6100	40%	20.1
8	I5030, I bar	30	915 , 1220	2440 , 3050 , 3660 , 6100	50%	17
9	I6030, I bar	30	915 , 1220	2440 , 3050 , 3660 , 6100	60%	14.1
10	I4038, I bar	38	915 , 1220	2440 , 3050 , 3660 , 6100	40%	23.6
11	I5038, I bar	38	915 , 1220	2440 , 3050 , 3660 , 6100	50%	20
12	I6038, I bar	38	915 , 1220	2440 , 3050 , 3660 , 6100	60%	16.6
13	T3350, T bar	50	915 , 1220	2440 , 3050 , 3660 , 6100	33%	21
14	T5050, T bar	50	915 , 1220	2440 , 3050 , 3660 , 6100	50%	16.5
