●Cartridge area: 110 x 90 mm ●Adjustable dimming: DIN from 9 to 13
●Minimum darkening: DIN 4
●UV protection: 16 levels
●Adjustable delay (time from dark to light): 0.8 - 0.15 seconds
●Light to dark time: 1 / 30,000 seconds
●Work temperature: -5 ° C / 55 ° C (23 ° F / 131 ° F)
●Storage temperature: -20 ° C / 70 ° C (-4 ° F / 158 ° F)
●Sensors: 2
●Weight: 0.45 kg
●Meets Standards: EN 175: 1997 and EN 379: 2003 + A1: 2009
Content：
●It has an adjustable harness in adjustment and depth. ●It is powered by a replaceable 3V CR2032 lithium battery . In addition, it has photovoltaic cells to provide extra energy to the mask from the radiation emitted during welding , which considerably increases the useful life of the battery. ●92 x 42 mm viewfinder , for a greater field of view of the work area. ●It has a filter that protects the lens and can be replaced.
Applications

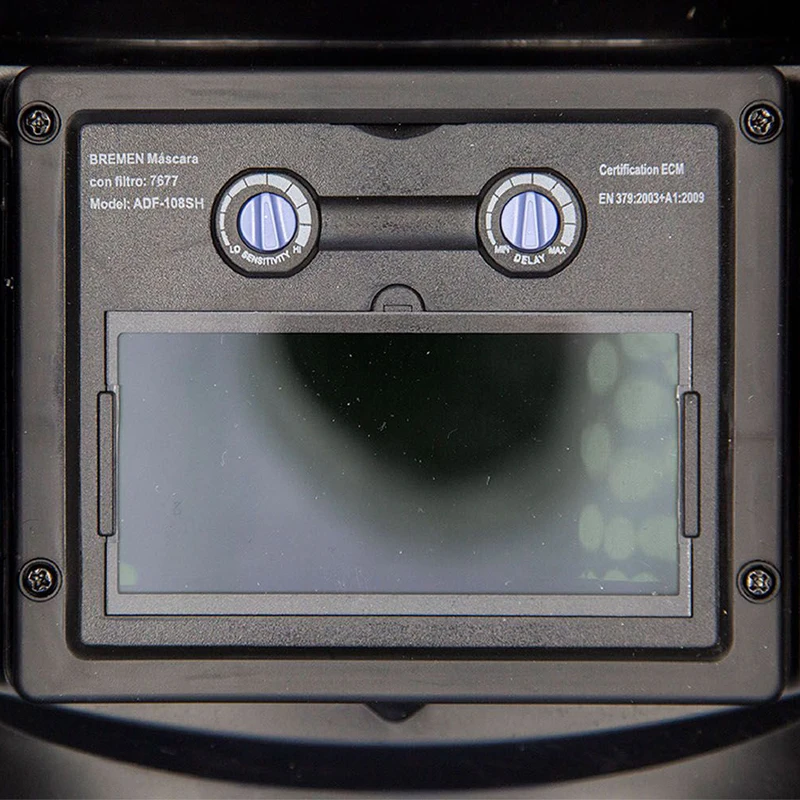

●Suitable for MMA, MIG MAG or TIGwelding . ●It has 3 regulations to adapt to any external and working conditions : 1) DELAY (or Delay) - Allows you to regulate the time during which the viewer remains dark after welding is completed, to avoid glare due to residual radiation. 2) SENSITIVITY - To activate the viewfinder dimming with light sources of greater or lesser intensity. This helps avoid unnecessary start-ups in situations where there are other welders working on site, or other strong light sources. 3) LEVEL OF DARKNESS -It allows working in very bright (outdoor) or poorly lit (indoor) environments. In addition, this same regulator has a grinding mode (GRIND) that prevents the viewfinder from darkening due to the brightness of the sparks generated. ●OPERATION TEST: In order to verify the correct operation of the viewfinder, it is forcibly darkened for an instant when changing from Grind mode to Welding mode (without the need to be exposed to a light source). ●OPERATING NOTE: The mask battery fulfills the function of guaranteeing the ignition of the mask almost instantaneously (1/30000 sec) as well as remaining in a "clear" state in the presence of low intensity light sources (daylight ). The absence of the battery or its wear, will make the mask not work properly. In situations where the mask performance is poor, check the condition of the battery and, if necessary, proceed to replace it.
Company Profile
FAQ
1. who are we? We are based in Jiangsu, China, start from 2002,sell to Eastern Europe(56.80%),Western Europe(22.27%),South America(20.93%). There are total about 11-50 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us? Diamond Saw Blade,TCT Saw Blade,Abrasive Disc,Drill Bits,Abrasive Tools
4. why should you buy from us not from other suppliers? Our History
After almost 20 years of developing and testing in different markets, we have streamlined our operation to meet local requirements. With strict internal control, we have the right formula that balances quality and price.
5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese
