catv digital headend multiplexer

Product Overview

Description

CATV digital headend multiplexer

Outline

NDS3107G Tuner Input Multiplexer is the latest demodulation and multiplexing device for digital TV broadcasting head-end system with TS output through IP port. It can multiplex up to 16 channels Tuner and 2 ASI input to IP (MPTS). This multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, and service filtering.

BISS function embedded will carefully descramble tuner input programs. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system.

Key Features

l  Support 16 FTA DVB- S/S2 (DVB-C/T/T2/ ISDB-T/ATSC optional )input, 2 ASI input

l  Support BISS descrambling, and each channel bit rate cannot exceed 80Mbps

l  Support DisEqc function

l  4 IP output (MPTS) over UDP, RTP/RTSP protocol

l  2 GE mirrored output, up to 850Mbps

l  Support PID filtering, re-mapping

l  Support PSI/SI rebuilding and editing

l  Support “Null PKT Filter” function

l  Support Web operation

Specifications

Input	16 tuners input +2 ASI input
Tuner Section	DVB-C	Standard		J.83A(DVB-C), J.83B, J.83C
		Frequency In		30 MHz~1000 MHz
		Constellation		16/32/64/128/256 QAM
	DVB-T/T2	Frequency In		30MHz ~999.999 MHz
		Bandwidth		6/7/8 M bandwidth
	DVB-S/S2	Input Frequency		950-2150MHz
		Symbol rate		DVB-S:QPSK 2~45Mbauds; DVB-S2:QPSK 1~45Mbauds, 8PSK 2~30Mbauds
		Code rate		1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
		Constellation		QPSK, 8PSK
	ISDB-T	Input Frequency		30 MHz~1000MHz
	ATSC	Bandwidth		6M
		Input Frequency		50MHz~960MHz
Re-multiplex	PID re-mapping
	PCR accurate adjusting
	Automatic generating PSI/SI table
PID	Output range				0x0000—0x1FFF
	PID transparent				Any PID transparent and mapping achievable
	Amount of output PID per input				128
BISS descrambling	Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
Output	4 IP (MPTS) output over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast
Miscellaneous	Dimension(W×L×H)		482mm×410mm×44mm
	Approx weight		3.6kg
	Environment		0~45℃(work);-20~80℃(Storage)
	Power requirements		100~240VAC,50/60Hz

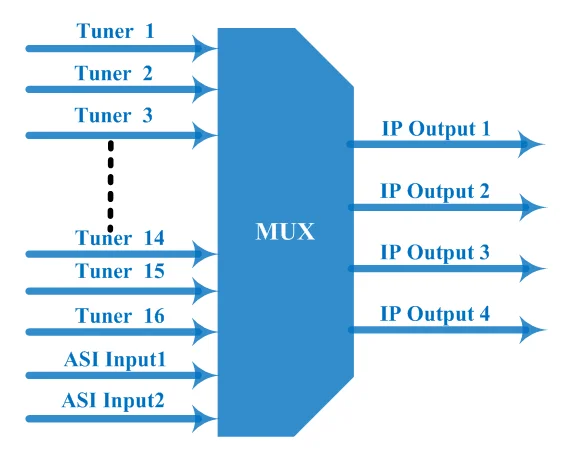

Working Principle
