High Pressure Hydraulic In line Suction Strainers
- Category: >>>
- Supplier: Xinxiang Tianrui Hydraulic Equipment Co. Ltd.
Share on (381856316):
Product Overview
Description

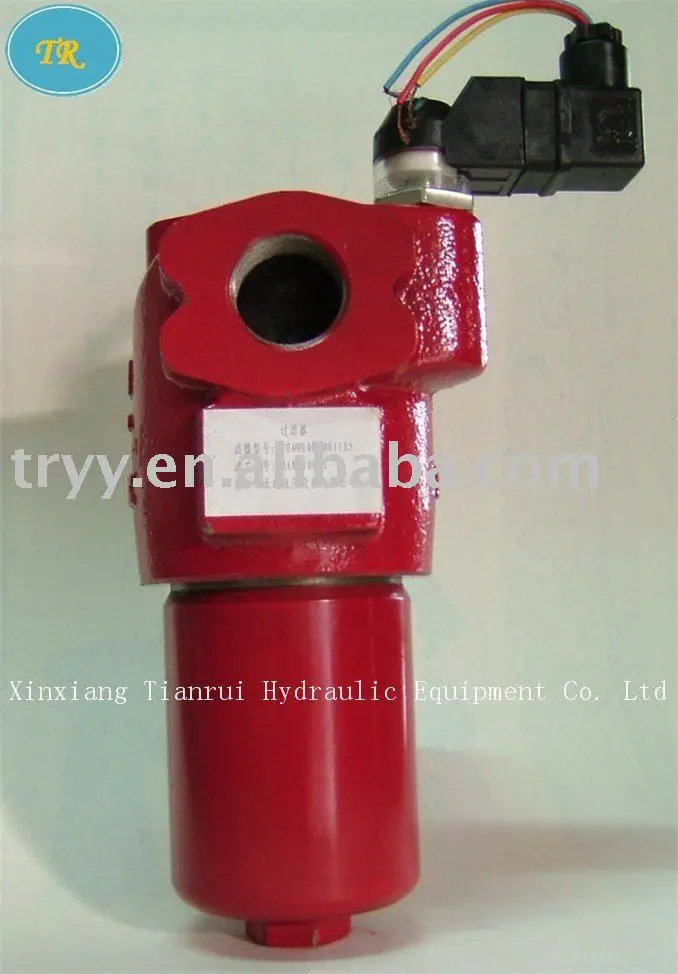

High Pressure Hydraulic In-line Suction Strainers
1) DESCRIPTION
It is installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.
Its configuration and connect form convenient for other hydraulic pressure element integration assemblage.
Differential pressure indicator and by-pass valve can be assembled according to actual requirement.

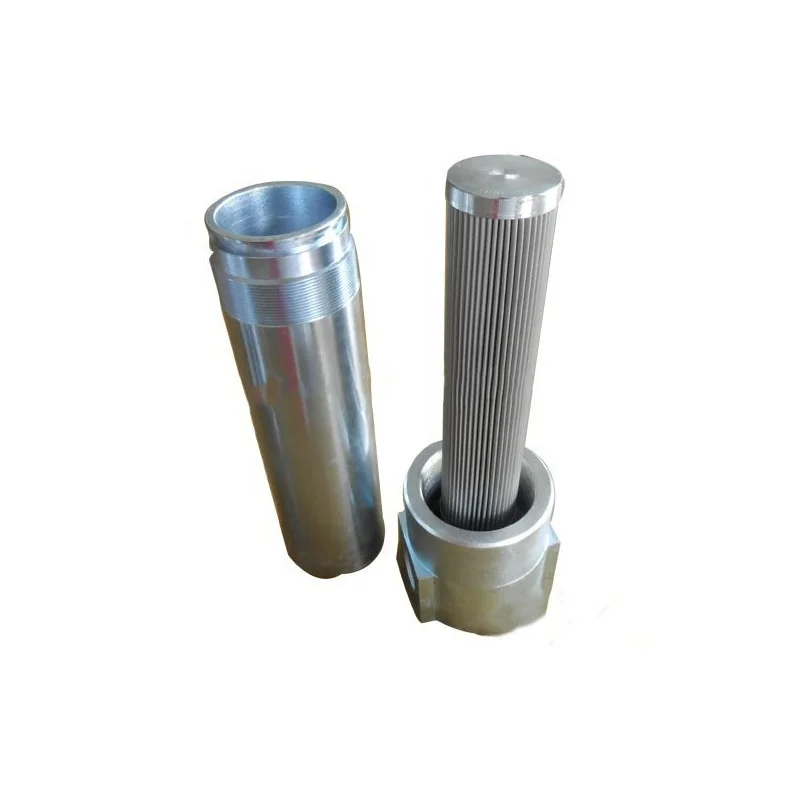

Filter element adopts many kinds of materials, such as inorganic fiber, resin-impregnated paper, stainless steel sinter fiber web, stainless steel wire mesh.
Filter vessel is made of steel-stick, and has nice looking figure.
2) TECHNICAL DATA
Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)
Operating pressure (max): 42MPa
Operating temperature:- 25℃~110℃
Indicating pressure drop: 0. 5MPa
By-pass valve unlocking pressure: 0.6MPa
Related Filters
 |  |
 |  |
more filter housing
1. Low Pressure Fuel Filter -RYL,RYLA Series
2. Pressure Line Filter -YPH Series
3. Pressure Line Filter -PHA/B/C/D
4. Pressure Line Filter -YPM Series
5. Pressure Line Filter -PMA Series
6. Low Pressure Return Filter -YPL Series
7. Low Pressure Line Filter -PLA Series
8. Tank Suction Filter -WU Series
9. The core pulling pressure line filter-FMQ series
If you need pressure line filter, following data need to be noted:
A.Working media.
B.Working flow .
C.Working pressure.
D.Filtration rating
Proper line strainer will be suggested to you or design according to your request.
Other related filter housing
Standard test
Standard test
Filter fracture resistance verification by ISO 2941
Structural integrity of the filter according to ISO 2943
Cartridge compatibility verification by ISO 2943
Filter characteristics according to ISO 4572
Filter pressure characteristics according to ISO 3968
Flow - pressure characteristic tested according to ISO 3968
Certifications
Packaging & Shipping
Our hydraulic filter element is packed with inner paper carton individually ,then packed with big carton outside.
Filter strainer and filter elements with large amount is packed with wood carton outside.
Labels can be provided as your company logo.
We've partner with DHL,UPS,TNT,Fedex World's largest express company in Xinxiang.
By sea,by air, any is OK. Will quote cheap freight to you.
