fixed winch mounted on ground moveable pulley steel wire ropes pull stone rock oil field

Product Overview

Description

electric winch fixed winch mounted on ground with double/single failsafe brake for construction, lifting, traction, more safety, worth your trust..

Speed:10m/min, rope capacity made by order (0-1000meter)

The winch is mainly applied to lifting, pulling and loading or unloading the weight. For example, it can be used to mount and dismount large and medium-sized concrete and steel structure and machinery equipment. Also, it could be utilized as the lifting mechanism of hoisting machinery. This product features orderly-arranged steel wire ropes, safe slinging, smooth transmission and convenient maintenance. This product can be used for the equipment installation in bridge building, port construction, wharf construction, shipyard building and other large-scale factories and mines projects.

fixed winch

Also we can design other type brake for electric winch, for example hand(foot) brake, disk brake, hydraulic belt brake, electromagnetism brake and so on. Welcome client supply your idea, we are pleased to make your idea to a true-machinery..

Model		JM2	JM3	JM5	JM8	JM10
Line pull capacity (kg)		2000	3000	5000	8000	10000
average speed (m/min)		12	10	10	10	9
Wire rope(mm):		12.5	15.5	21.5	26	30
Reduction box	Type	JZQ350	JZQ350	JZQ400	JZQ500	JZQ650
	Transmission ratio	23.34	31.5	23.34	31.5	40.17
Drum (mm)	Diameter(mm)	273	325	406	500	550
	Length	480	520	645	900	1000
Capacity(m)		150	180	250	300	450
motor	Type	YZ160M2-6	YZ160M2-6	YZ160L-6	YZR225M-8	YZR250M1-8
	Power(kW)	7.5	7.5	11	22	30
	Rotate speed(r/min)	948	948	953	720	720
Hydraulic Brake		YWZ-200/25	YWZ-200/25	YWZ-300/45	YWZ-300/45	YWZ-300
Equipment Dimension (mm)		1060x1500x750	1600x1100x820	1400x1910x950	2050x1640x1000	2470x2280x1180
Weight(kg)		630	680	1400	3000	4000

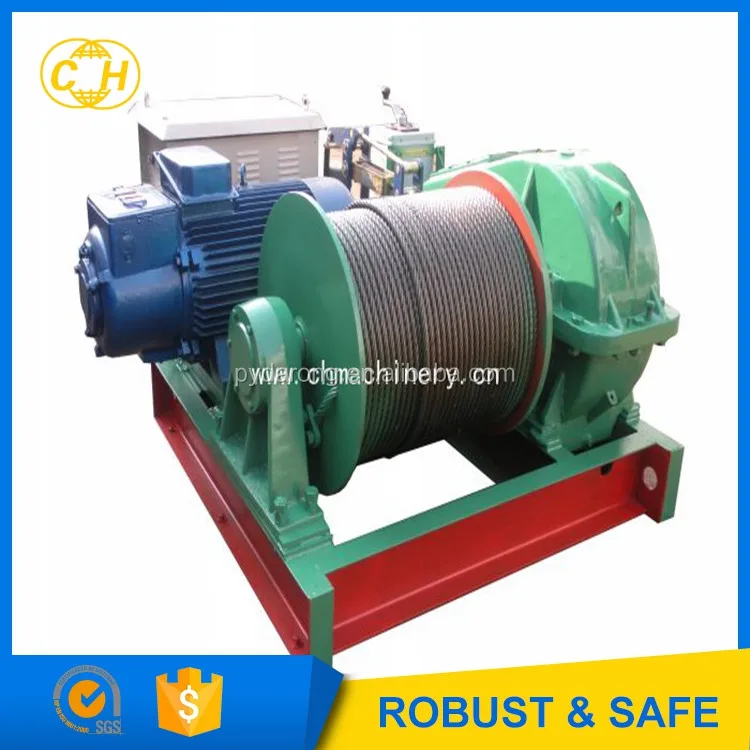

The JM-3T picture as follow
