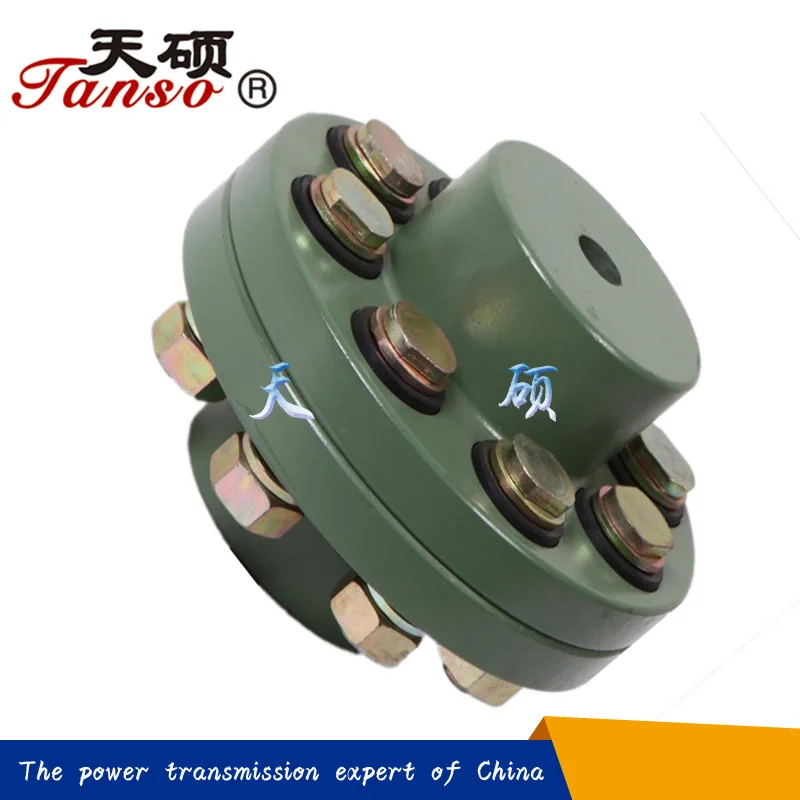

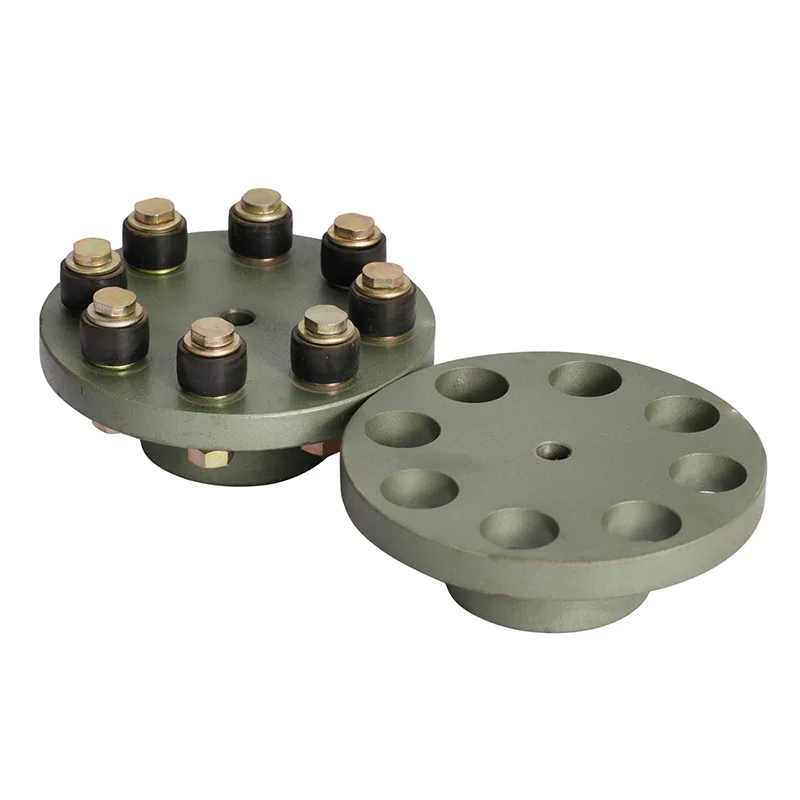

FCL flange coupling/ flexible pin and bush coupling

Product Overview

Description

Features of FCL elastic pin coupling:

1. FCL flexible coupling is widely used for its compact design, easy installation, convenient maintenance, small size and light weight.



2. As long as the relative displacement between shafts are kept within the specified tolerance, couplings will operate the best function and have a longer working life.



3. It's greatly demanded in medium and miner power transmission system driven by moter, such as speed reducer, hoist, compress, conveyor, spinning and weaving and ball mill.





Specification	A	pilot bore	Max Speed	Acrot orque	Weight	Max OD		B	Max OH
			rpm	N.m	kg	C1	C2		D1	D2
FCL- 90	90	-	4000	4	1.54	35.5	35.5	60	20	20
FCL- 100	100	-	4000	10	2.32	42.5	42.5	67	25	25
FCL- 112	112	-	4000	16	3.09	50	50	75	28	28
FCL- 125	125	-	4000	25	4.18	56	50	85	32	28
FCL- 140	140	-	4000	50	5.81	71	63	100	38	35
FCL- 160	160	-	4000	110	8.24	80	80	115	45	45
FCL- 180	180	-	3500	157	11.10	90	90	132	50	50
FCL- 200	200	18	3200	245	16.60	100	100	145	56	56
FCL- 224	224	18	2850	392	22.00	112	112	170	63	63
FCL- 250	250	20	2550	618	32.40	125	125	180	71	71
FCL- 280	280	30	2300	980	45.00	140	140	200	80	80
FCL-315	315	32	2050	1568	58.00	160	160	236	90	90
