Product Overview
Description

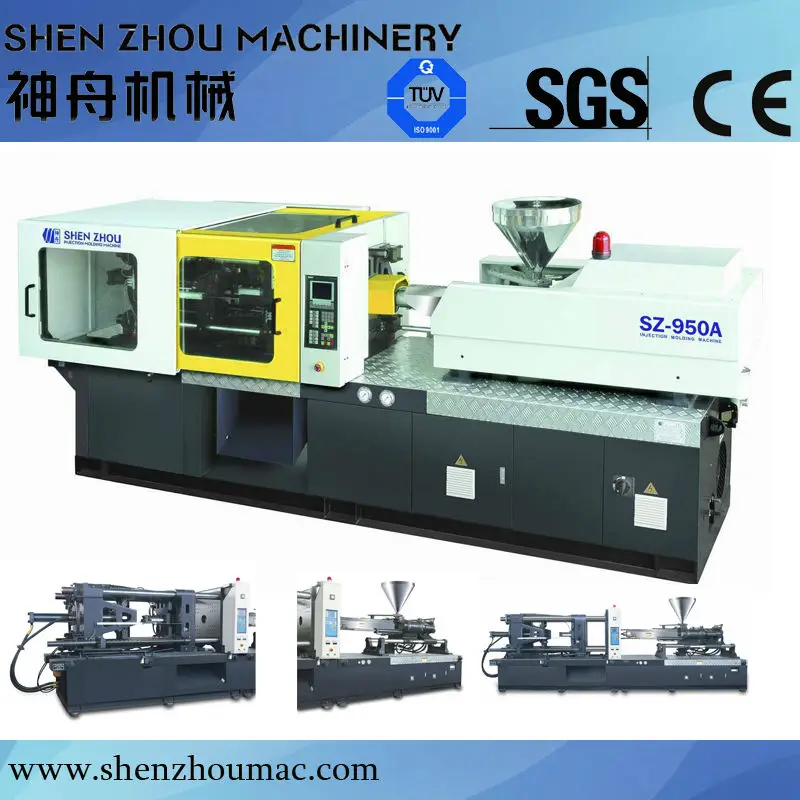

Injection Molding Machine SZ-950A, plastic injection machine
5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, to meet the strict clamping condition.....
Technical Parameter | ||||
Item | Unit | Parameter | ||
INJECTION UNIT |
|
| ||
screw diameter | mm | 30 | 35 | 40 |
screw L/D ratio | L/D | 24.5 | 21 | 18.4 |
theoretical shot volume | cm*3 | 113 | 154 | 201 |
shot weight(ps) | g | 103 | 140 | 183 |
injection pressure | Mpa | 249 | 183 | 140 |
Theoretical injection rate | g/s | 67.5 | 91.8 | 120 |
plastic capacity | g/s | 8.3 | 12.5 | 18 |
injection stroke | mm | 160 | ||
CLAMPING UNIT |
|
| ||
max.clamping force | KN | 950 | ||
max.opening stroke | mm | 340 | ||
space between tie bars | mm | 360x360 | ||
mould height | mm | 135-380 | ||
max.daylight | mm | 720 | ||
OTHER |
|
| ||
pump motor power | KW | 11 | ||
pump pressure | Mpa | 16 | ||
heating power | KW | 7.3 | ||
size | m | 4.25x1.2x1.8 | ||
net weight | t | 3.2 | ||
oil tank capacity | L | 260 | ||
international designation |
| 950-280 | ||
