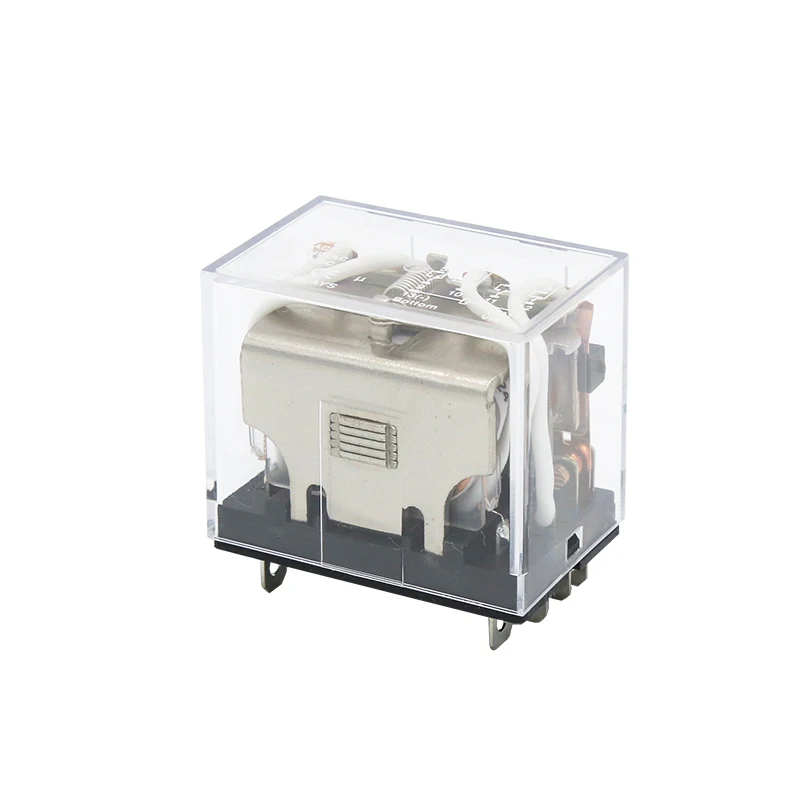

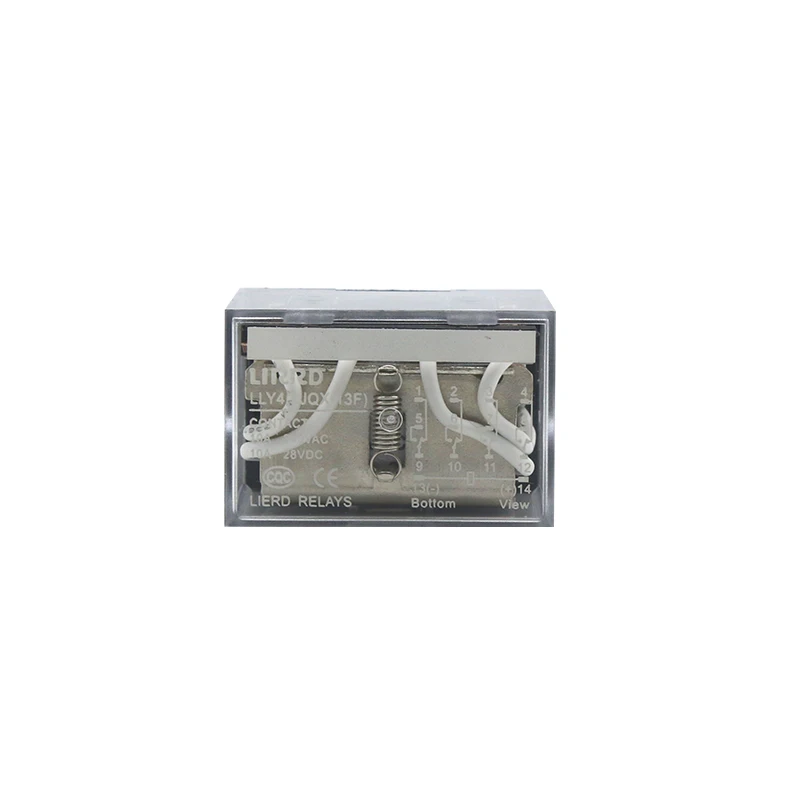

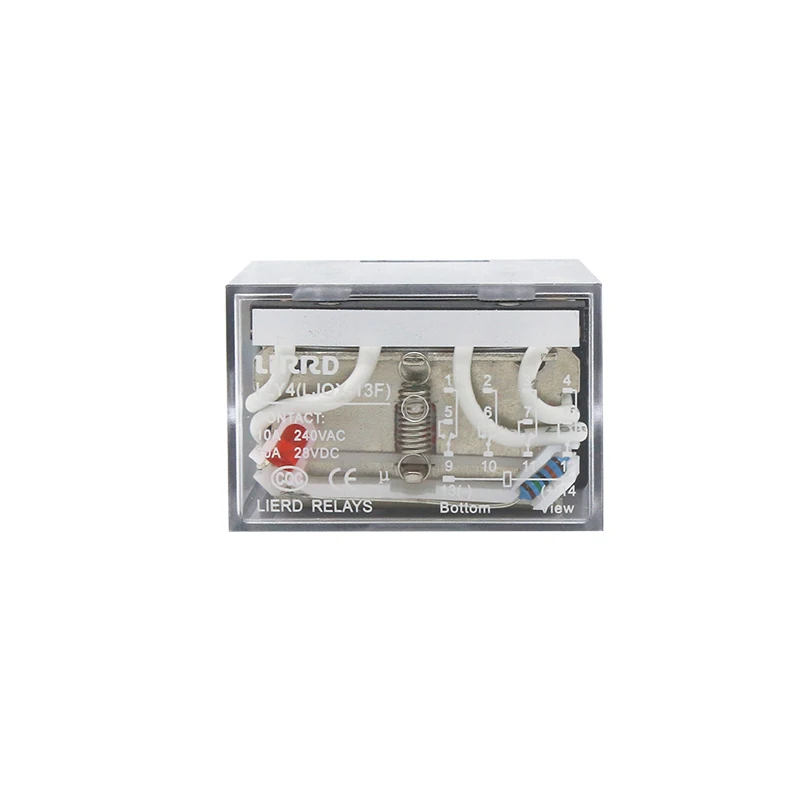

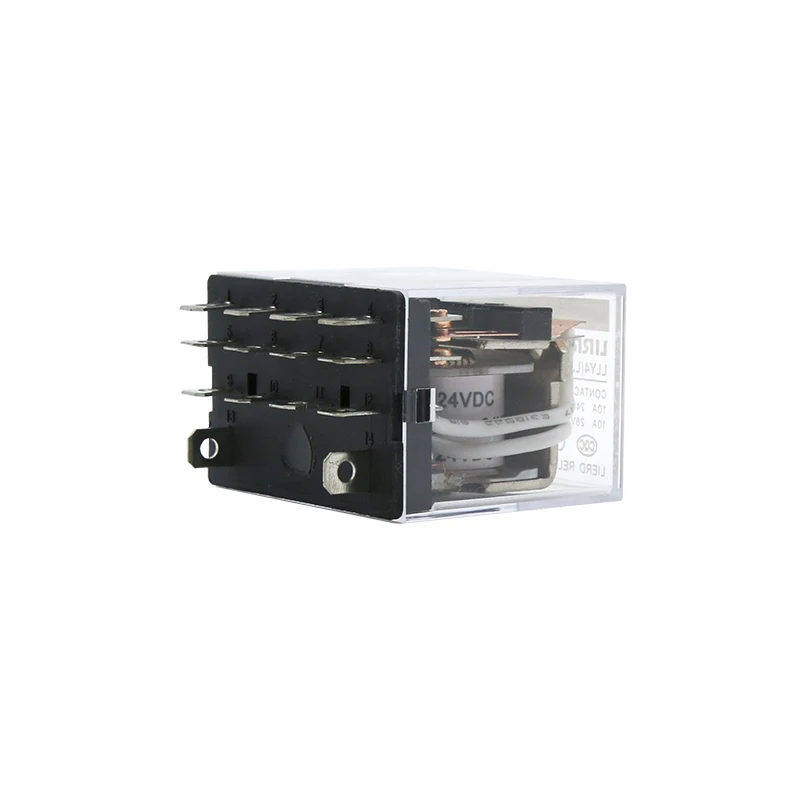

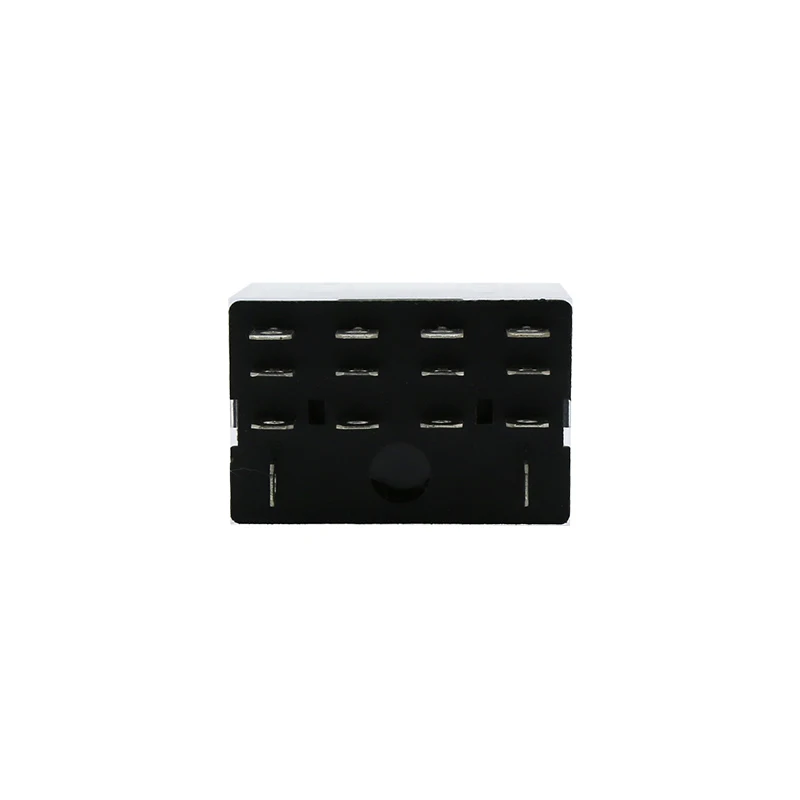

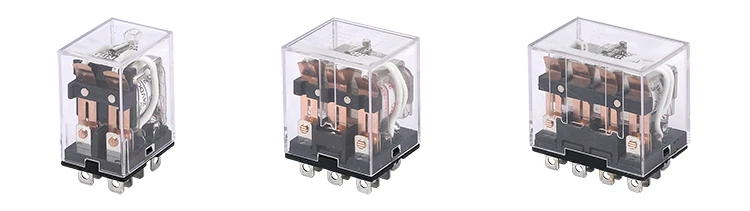

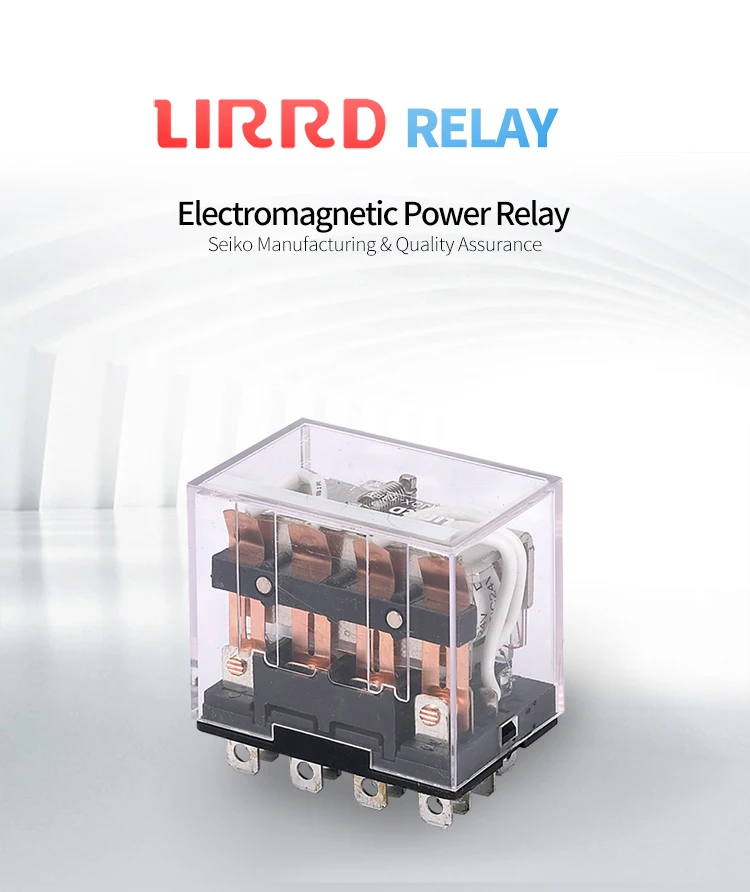

24v/12v/220v 10A 14pins general purpose electromagnetic power relay LJQX 13F 4Z/HH64P/LY4
- Category: >>>
- Supplier: Zhejiang Lierd Relays Enterprise Co. Ltd.
Share on (384369059):
Product Overview
Description
Application
General Specifications
| Model | LJQX-13F-2Z | LJQX-13F-3Z | LJQX-13F-4Z | |
| Dimention(mm) | 27.3*21*35.2 | 30.8*27.3*35.2 | 41*27.3*35.2 | |
| Contact Form | 2Z 2H 2D | 3Z 3H 3D | 4Z 4H 4D | |
| Contact Material | Silver Alloy | |||
| Resistance Performance Of Contactor Capacity | 10A/28VDC 10A/240VAC | |||
| Coil Power at 23°C | DC(W) | 1Z 2Z≤0.9W, 3Z≤1.5W, 4Z≤1.6W | ||
| AC(VA) | 1Z 2Z≤1.2VA, 3Z≤2VA, 4Z≤2.5VA | |||
| Coil Voltage | DC(V) | 6~220V | ||
| AC(V) | 6~380V | |||
| Pick-up Voltage at 23°C | DC≤75% AC≤80% | |||
| Drop-out Voltage at 23°C | DC≥10% AC≥30% | |||
| Max Voltage at 23°C | 110% | |||
| Contact Resistance(at 6VDC 1A) | ≤100mΩ | |||
| Dielectric Strength | Between Open Contacts | ≥1200VAC 50Hz/1min Leakage Current 1mA | ||
| Contacts Pieces | ≥1500VAC 50Hz/1min Leakage Current 1mA | |||
| Between Coil & Contacts | ≥1500VAC 50Hz/1min Leakage Current 1mA | |||
| Insulation Resistance(MΩ) at 500VDC | ≥500MΩ | |||
| Service Life | Electrical | 10^5 Times(Frequency:On 1 Time/1S,Off Time/1S) | ||
| Mechanical | 10^6 Times(Frequency:300 Times/1min) | |||
| Ambient Temperature | -25°C ~ +55°C | |||
| Teminal Type | Insert Type, Welding Type | |||
| Suitable Socket | LPTF08A | LPTF11A | LPTF14A | |
| Product Weight | 40g | 50g | 60g | |
| Same Reference | HH62P, LY2 | HH63P, LY3 | HH64P, LY4 | |

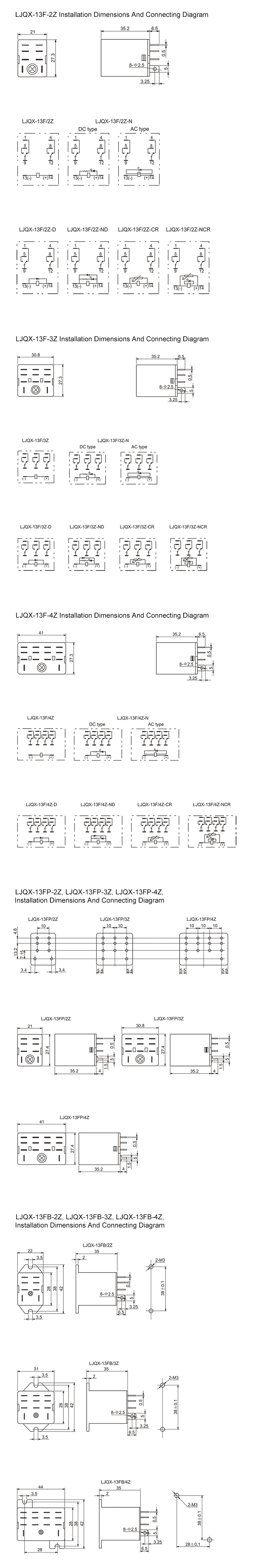

Installation Dimensions And Connecting Diagram
