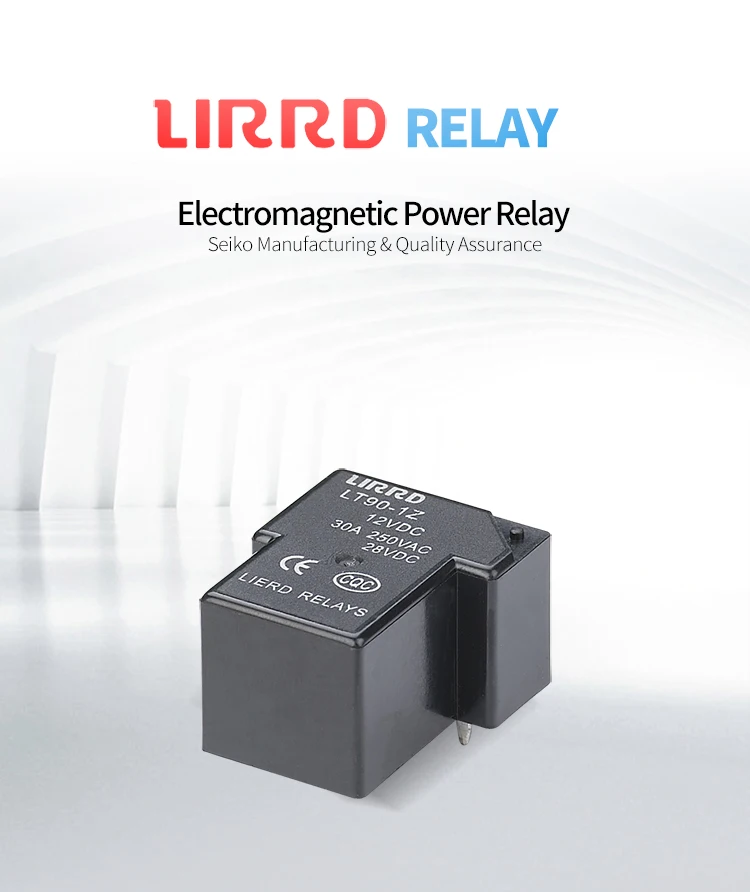

5pins 40A general purpose PCB electromagnetic relay LJQX 15F/T90 dc12v/dc24v/ac220v
- Category: >>>
- Supplier: Zhejiang Lierd Relays Enterprise Co. Ltd.
Share on (384413988):
Product Overview
Description
Application
General Specifications
| Model | LJQX-15F(T90) | |
| Dimention(mm) | 32*26.5*18.7 | |
| Contact Form | 1Z 1H 1D | |
| Contact Material | Silver Alloy | |
| Resistance Performance Of Contactor Capacity | 30A/40A/28VDC, 30A/40A/250VAC | |
| Coil Power at 23°C | DC(W) | ≤0.9W |
| AC(VA) | / | |
| Coil Voltage | DC(V) | 6~48V |
| AC(V) | / | |
| Pick-up Voltage at 23°C | DC≤75% | |
| Drop-out Voltage at 23°C | DC≥10% | |
| Max Voltage at 23°C | 110% | |
| Contact Resistance(at 6VDC 1A) | ≤100mΩ | |
| Dielectric Strength | Between Open Contacts | ≥1200VAC 50Hz/1min Leakage Current 1mA |
| Contacts Pieces | / | |
| Between Coil & Contacts | ≥1500VAC 50Hz/1min Leakage Current 1mA | |
| Insulation Resistance(MΩ) at 500VDC | ≥100MΩ | |
| Service Life | Electrical | 10^5 Times(Frequency:On 1 Time/1S,Off 1 Time/1S) |
| Mechanical | 10^6 Times(Frequency:300 Times/1min) | |
| Ambient Temperature | -25°C ~ +55°C | |
| Teminal Type | Welding Type | |
| Suitable Socket | / | |
| Product Weight | 25g | |
| Same Reference | T90 | |
Installation Dimensions And Connecting Diagram
Symbol Of Power Relay
