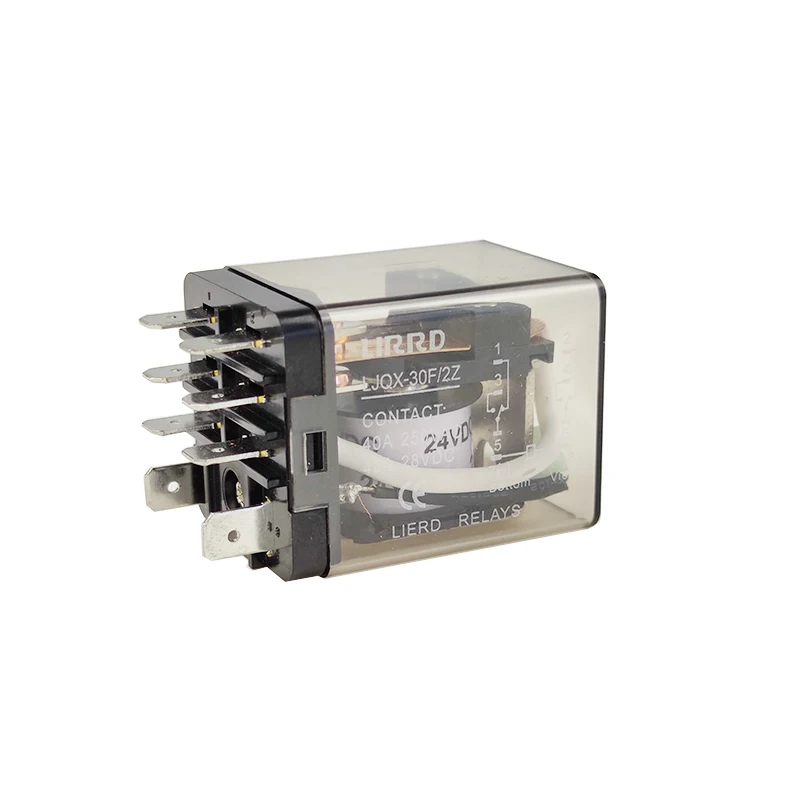

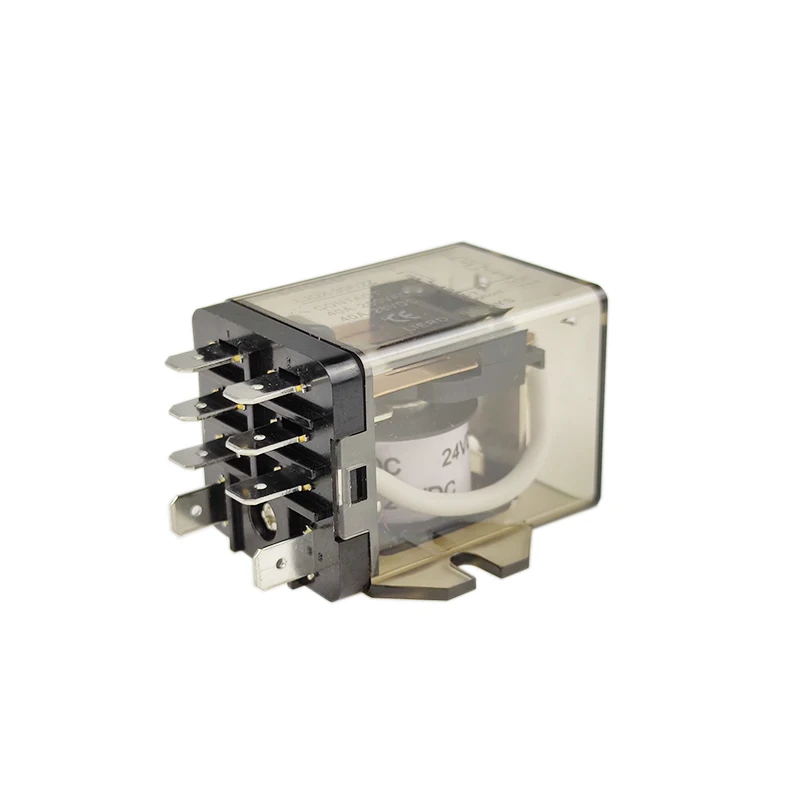

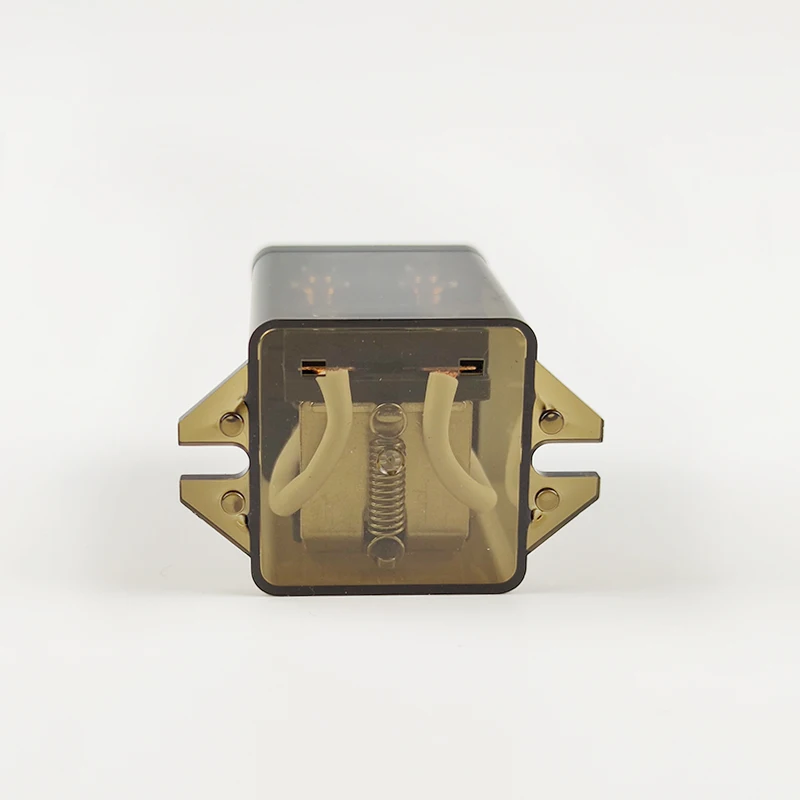

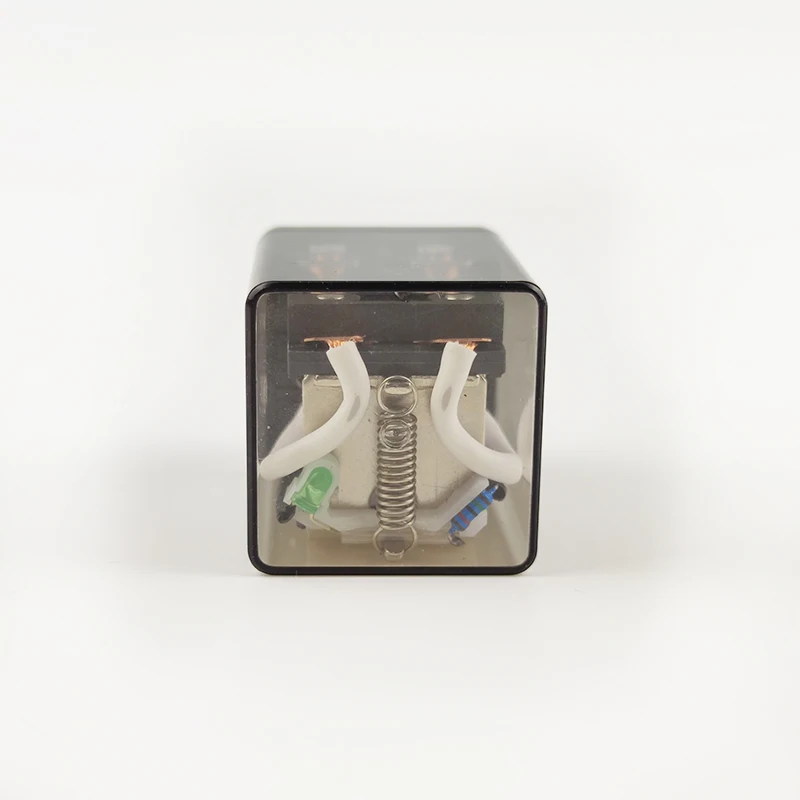

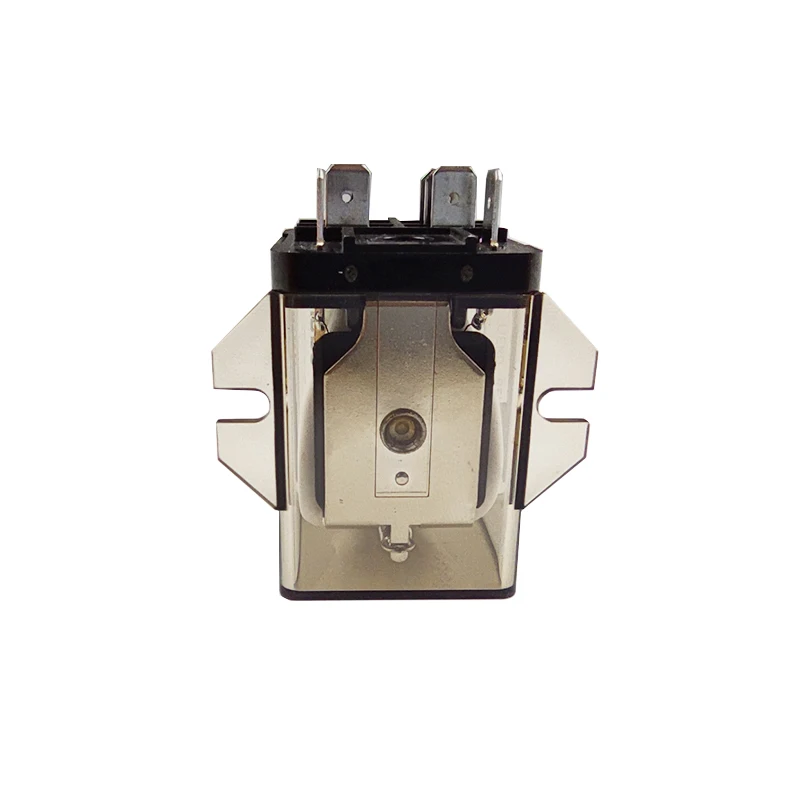

JQX 30F 2Pole 8 Pins Plug In Electromagnetic High Power Relay
- Category: >>>
- Supplier: Zhejiang Lierd Relays Enterprise Co. Ltd.
Share on (384416475):
Product Overview
Description
Application
General Specifications
| Model | LJQX-30F/1Z | LJQX-30F/2Z | |
| Dimention(mm) | 55.7*46.5*40.4 | ||
| Contact Form | 1Z 1H 1D | 2Z 2H 2D | |
| Contact Material | Silver Alloy | ||
| Resistance Performance Of Contactor Capacity | 40A/28VDC, 40A/250VAC | ||
| Coil Power at 23°C | DC(W) | <2.5W | |
| AC(VA) | <5.5VA | ||
| Coil Voltage | DC(V) | 6~220V | |
| AC(V) | 6~380V | ||
| Pick-up Voltage at 23°C | DC≤75% AC≤80% | ||
| Drop-out Voltage at 23°C | DC≥10% AC≥30% | ||
| Max Voltage at 23°C | 110% | ||
| Contact Resistance(at 6VDC 1A) | ≤100mΩ | ||
| Dielectric Strength | Between Open Contacts | ≥1000VAC 50Hz/1min Leakage Current 1mA | |
| Contacts Pieces | ≥1500VAC 50Hz/1min Leakage Current 1mA | ||
| Between Coil & Contacts | ≥1500VAC 50Hz/1min Leakage Current 1mA | ||
| Insulation Resistance(MΩ) at 500VDC | ≥1000MΩ | ||
| Service Life | Electrical | 10^5 Times(Frequency:On 1 Time/1S,Off 1 Time/1S) | |
| Mechanical | 10^6 Times(Frequency:300 Times/1min) | ||
| Ambient Temperature | -25°C ~ +55°C | ||
| Teminal Type | Screw Mounting | Welding Type | |
| Suitable Socket | / | ||
| Product Weight | 100g | 105g | |
| Same Reference | |||
Installation Dimensions And Connecting Diagram
Symbol Of Power Relay
Company Information
Established in 1995, Zhejiang Lierd Relays Enterprise Co., Ltd has been focusing on the relays for industrial control for 24 years.
Main products are electromagnetic relay, solid state relay, time relay, relay socket, ampere/voltage meter, time switch, counter and so on.
The application covers deomestic appliances, automatic control equipments, powering generating facilities and power grids, vehicle appliances, instruments, electronic equipments, communication equipments, machine equipments, office facilities, etc.
LIRRD(our brand name) has been cooperating with one of a leading company in industrial control in Northeast Asia for about twenty years. Quality is always our first resonsibility in business.
LIRRD has passed the management system certifications ISO9001:2015, ISO14001:2015. Quality certificates CCC, CQC are approved for domestic market. CE, UL are qualified for export market.
