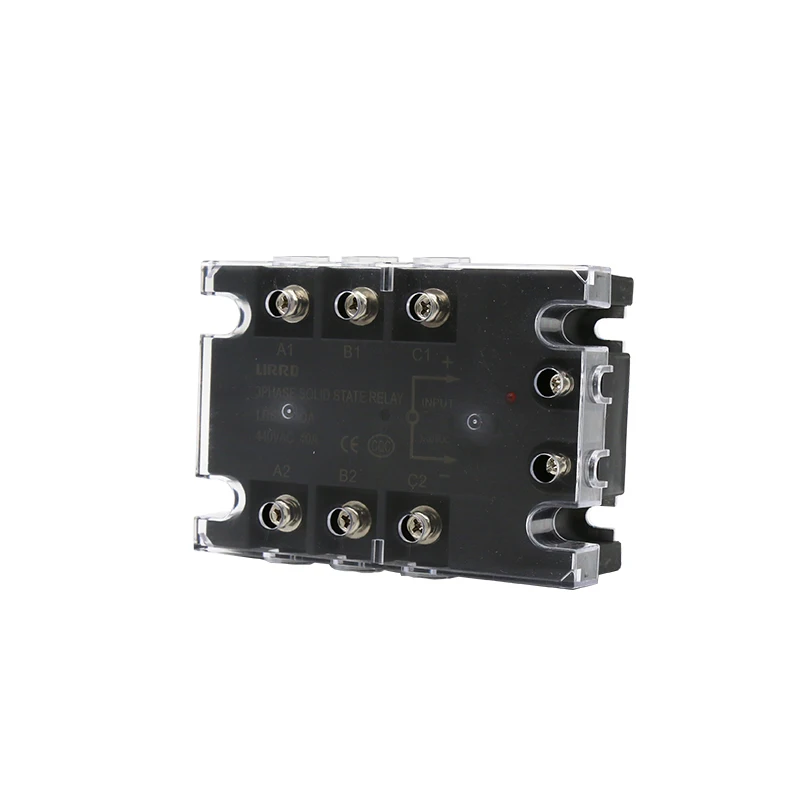

high quality 60a 220VAC solid state relay SSR
- Category: >>>
- Supplier: Zhejiang Lierd Relays Enterprise Co. Ltd.
Share on (384434253):
Product Overview
Description
Application
General Specifications

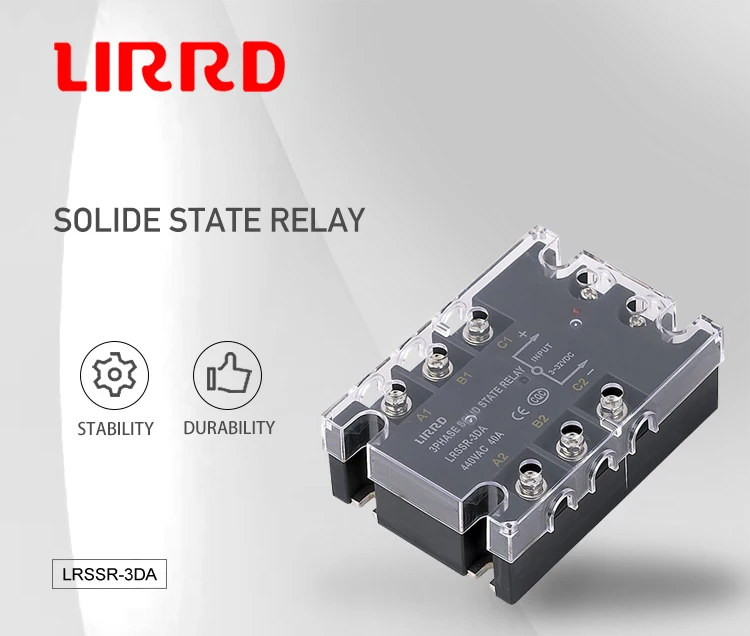

| Model | LRSSR-3AA | LRSSR-3DA |
| Load Voltage(V) | 24~440, 48~480, 90~660 | |
| Load Current(A) | 5, 10, 20, 30, 40, 50, 60, 80, 100 | |
| Dielectric Strength(Vac) | 2500 | |
| Insulation Resistance(MΩ) | 100 | |
| Control Voltage(Vdc) | 90-280/280-440 | 3-32 |
| Control Current(mA) | ≤10 | ≤25 |
| On Voltage Drop(V) | ≤1.5 | |
| Off Leakage Current(mA) | ≤10 | |
| Frequency Range(Hz) | 47~63 | |
| on-off Time(ms) | 1/2 Cycle | |
| Action State Indication | LED | |
| Ambient Temperature | -30℃~+75℃ | |
| Mounting Method | Bolt Fixation | |
| Same Reference | SSR, JG-2FA, JG2FB, JG-2FC, JGX | |
| Directions | Load Current Resistance above DC 5A Must Be Set Radiator | |

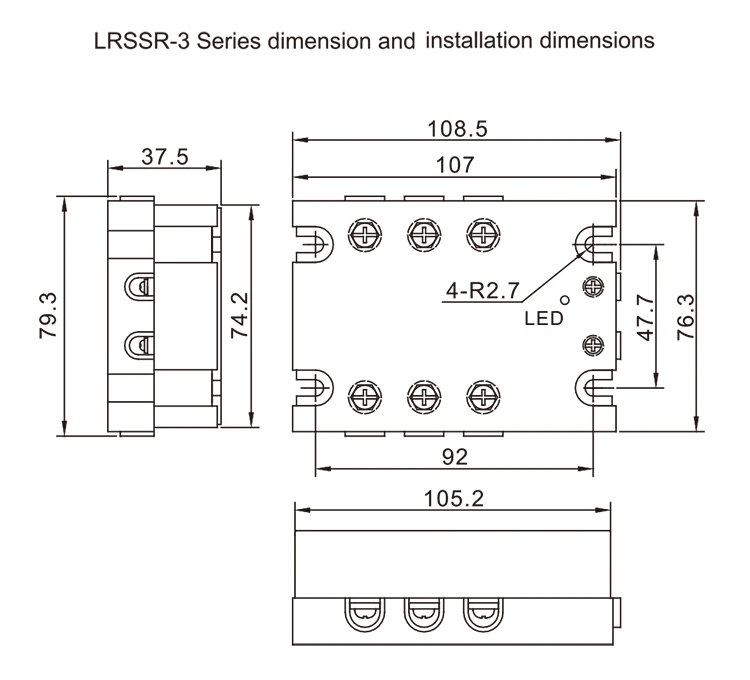

Dimension
Connection Diagram
Equipped Radiator
Symbol of Solid State Relay
Related Products
Company Information
Established in 1992, ZHEJIANG LIERD RELAYS ENTERPRISE CO., LTD. is a member of Chinese Relay Industry Association. It locates at Xinguang lndustrial Zone, Liushi town (which has been known as “China's Capital of Electrical Equipment”), Wenzhou City, Zhejiang Province. The traffic here is quite convenient, only 35kms away for the Wenzhou airport, and 10kms from the railway station.
We are a professional manufacturer in producing, selling, designing and developing of time relay, solid-state relay, miniature high power relay, switching power supply, ampere-voltage meter, counter, photoelectric switch and relay sockets. All these products have been widely applied to domestic appliances, automatic control equipments, powering generating facilities and power grids, vehicle appliances, instruments, electronic equipments, communication equipments, machine equipments, office facilities, etc.
Shipment&Payment
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: What is your delivery time?
A: Generally within 3 days if the goods are in stock. Or need 15-20 days for producing according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Terms of payment?
A: Payment<1000USD, 100% in advance via PayPal or Escrow. Payment>1000USD, 30% T/T in advance, balance before shipping.
If you have another question, please be free to contact us as.
