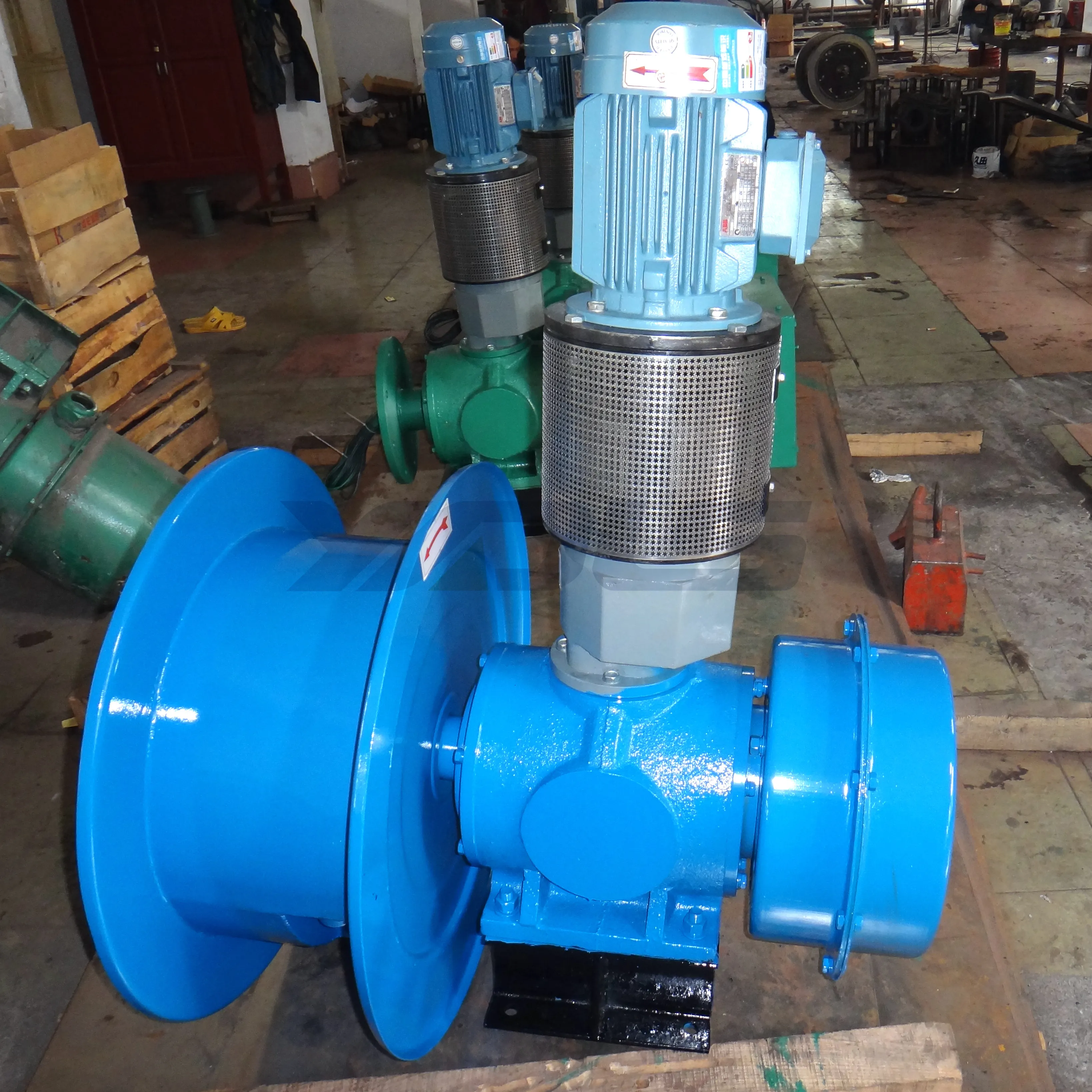

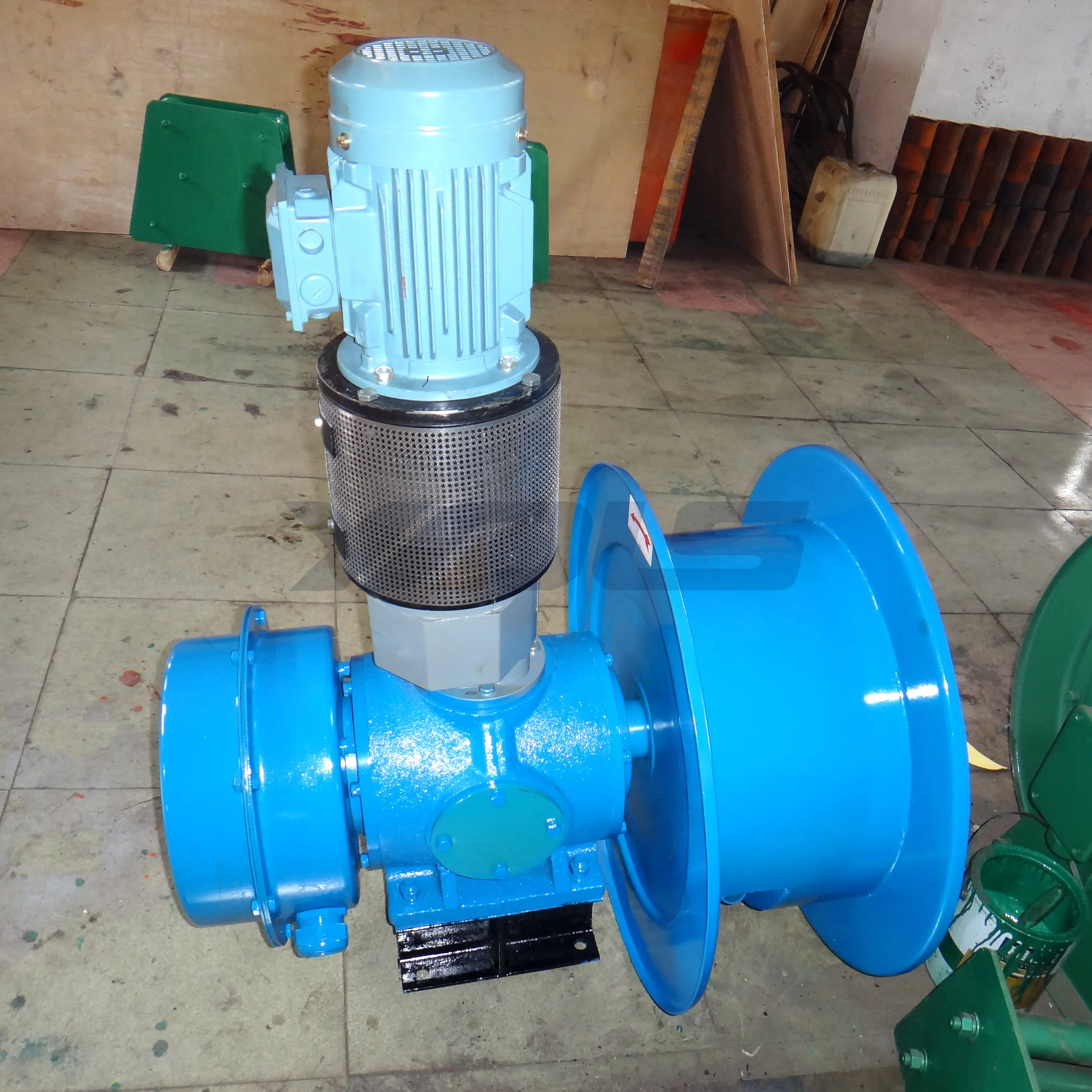

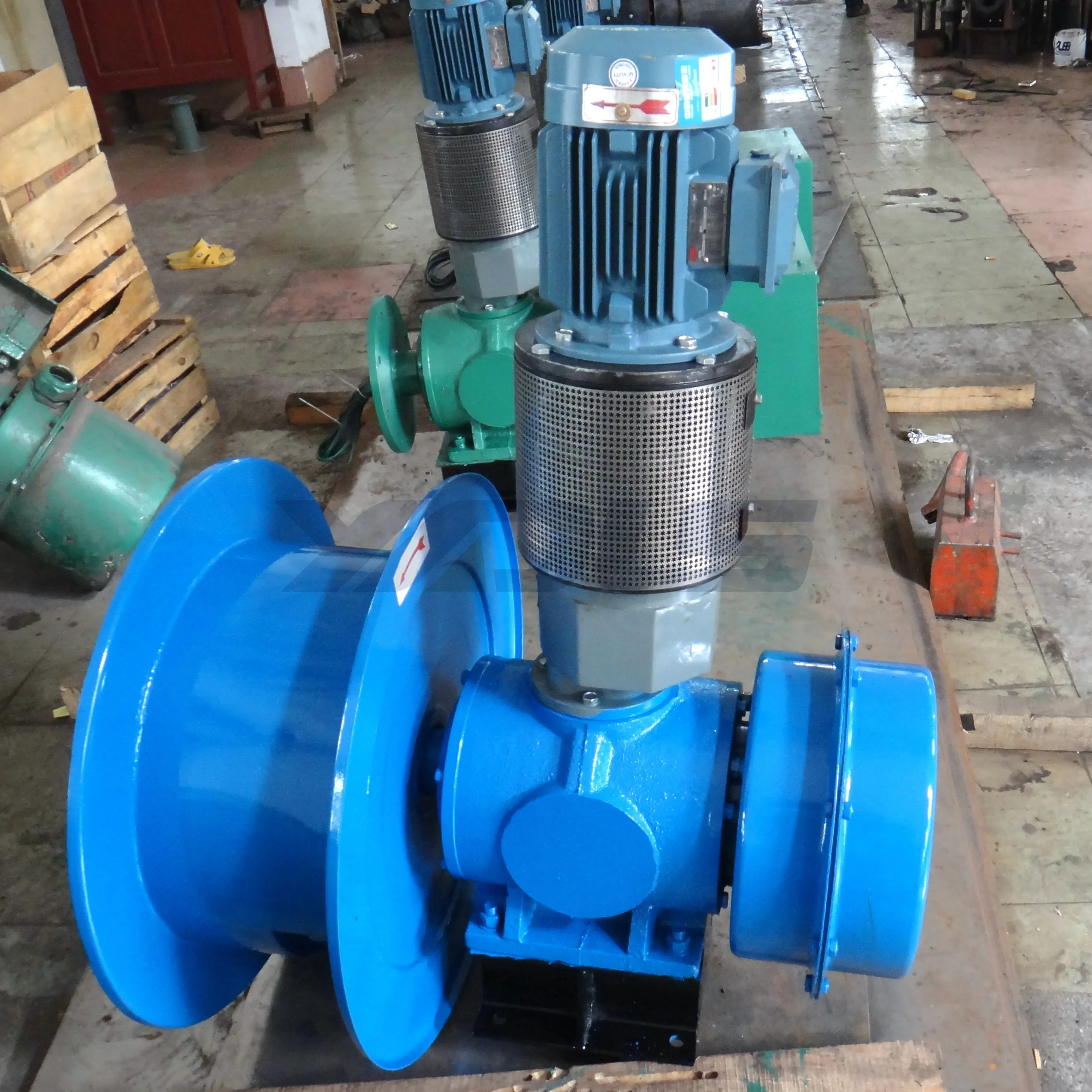

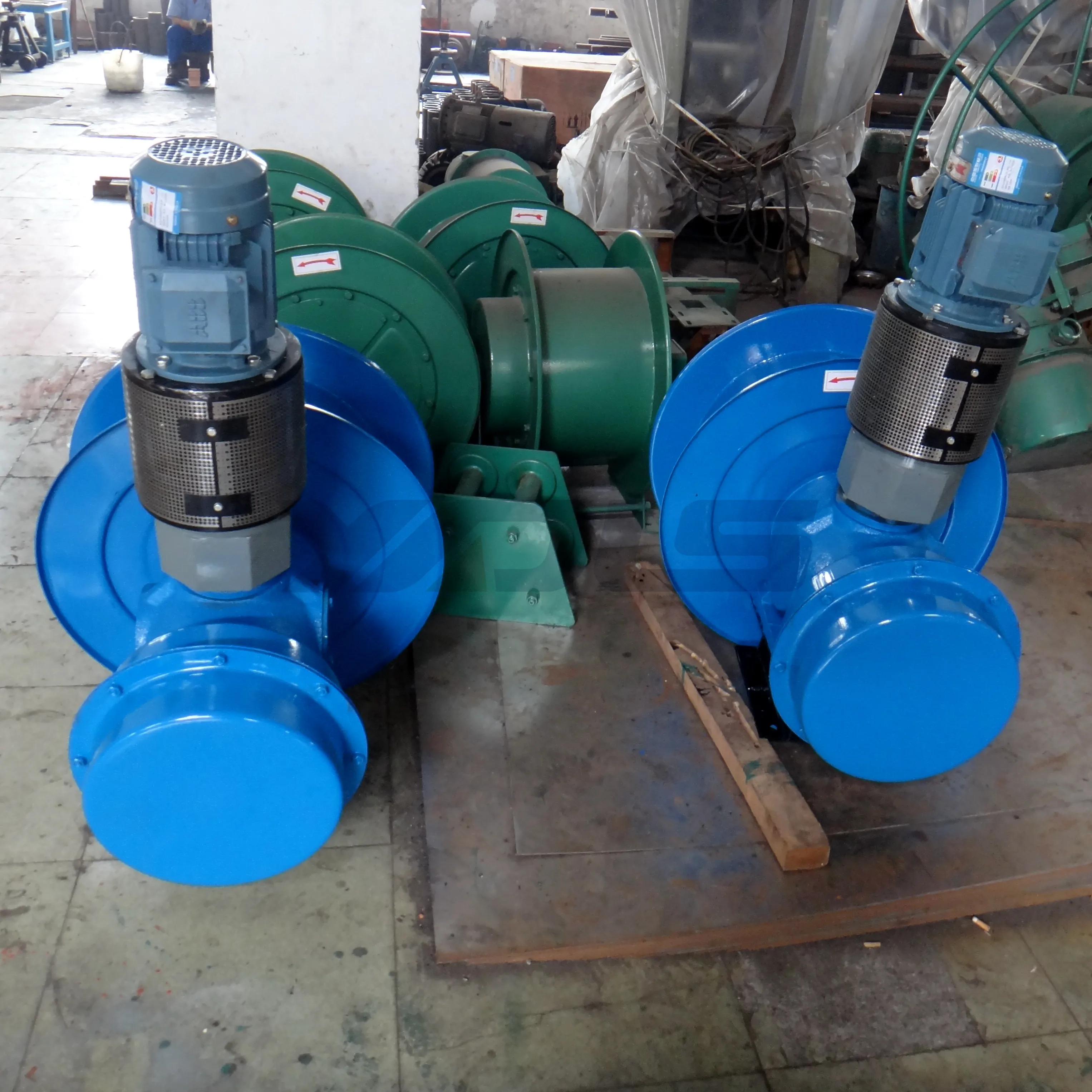

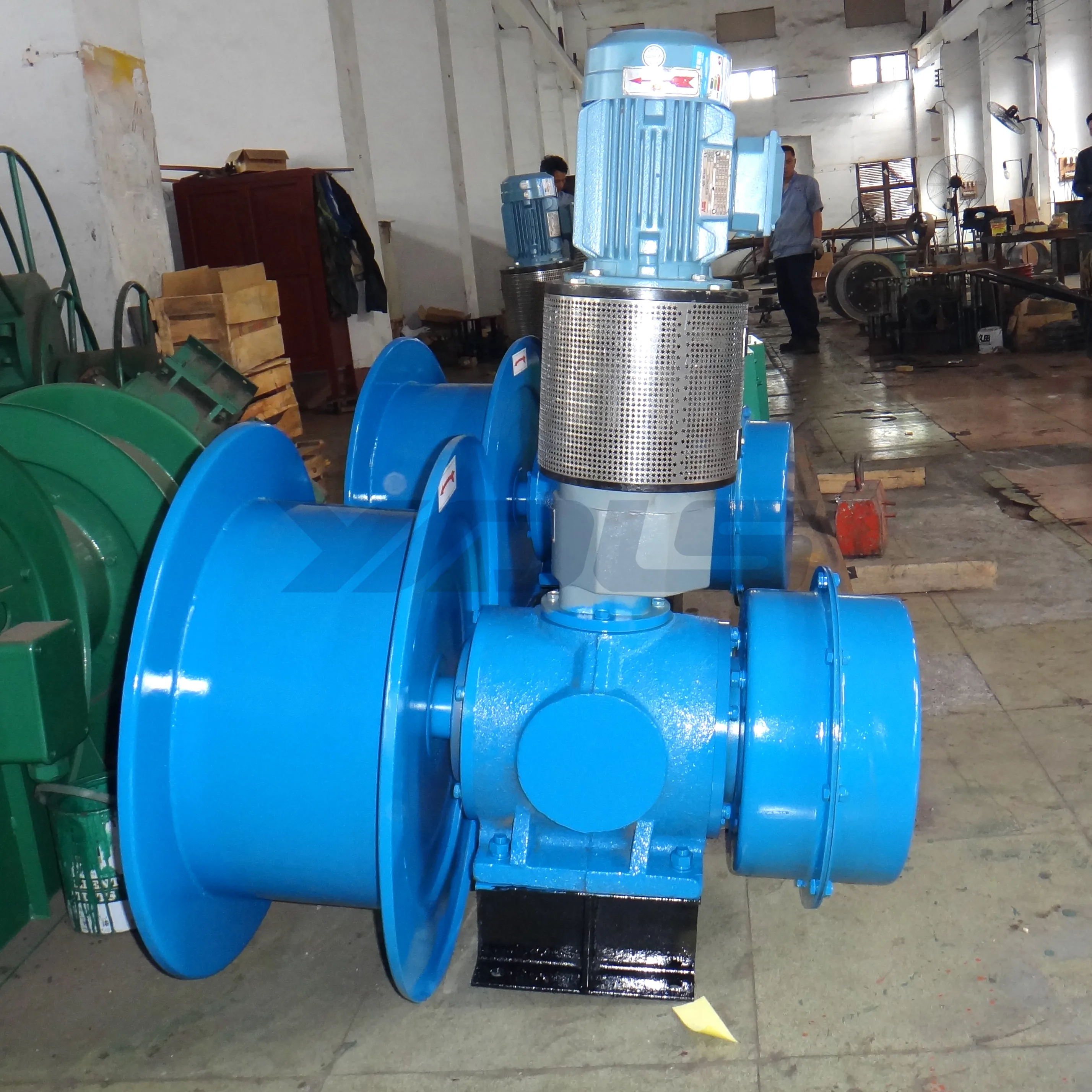

Motor Driven Type Cable Reel
- Category: >>>
- Supplier: Yueyang Dalishen Electromagnetic Machinery Co. Ltd.
Share on (386226143):
Product Overview
Description
Hysteresis type cable reel employs magnetic field to pass motor moment so as to wind or release the cable. It uses hysteresis disk slip device to synchronize moving of equipment and winding/releasing of cable. It features compact constructure, small size, constant tension, and is widely used for electrical power supply power of the electric apparatus on large-scale mobile devices.
Main technical data
Cable model | Enable current | 50m Series | Contour Item | 100m Series | Contour Item | 150m Series | Contour Item | 200m Series | Contour Item | |
Continuously | 1min. On/Off | |||||||||
YC 3 × 35+1 × 10 | 110 | 150 |
|
| JYD110-100-4 | 1 | JYD110-150-4 | 2 | JYD110-200-4 | 4 |
YC 3 × 50+1 × 16 | 140 | 180 | JYD140-50-4 | 1 | JYD140-100-4 | 2 | JYD140-150-4 | 4 | JYD140-200-4 | 5 |
YC 3 × 70+1 × 25 | 180 | 220 | JYD180-50-4 | 1 | JYD180-100-4 | 2 | JYD180-150-4 | 4 | JYD180-200-4 | 5 |
YC 3 × 95+1 × 35 | 210 | 270 | JYD210-50-4 | 2 | JYD210-100-4 | 3 | JYD210-150-4 | 5 | JYD210-200-4 | 6 |
YC 3 × 120+1 × 35 | 250 | 320 | JYD250-50-4 | 2 | JYD250-100-4 | 3 | JYD250-150-4 | 5 | JYD250-200-4 | 6 |
