NDS356X DVB C/T/(T) tuner input CI slot SD IRD

  NDS356X DVB-(T)/T  tuner input SD IRD with CI slot

1.1 Outline

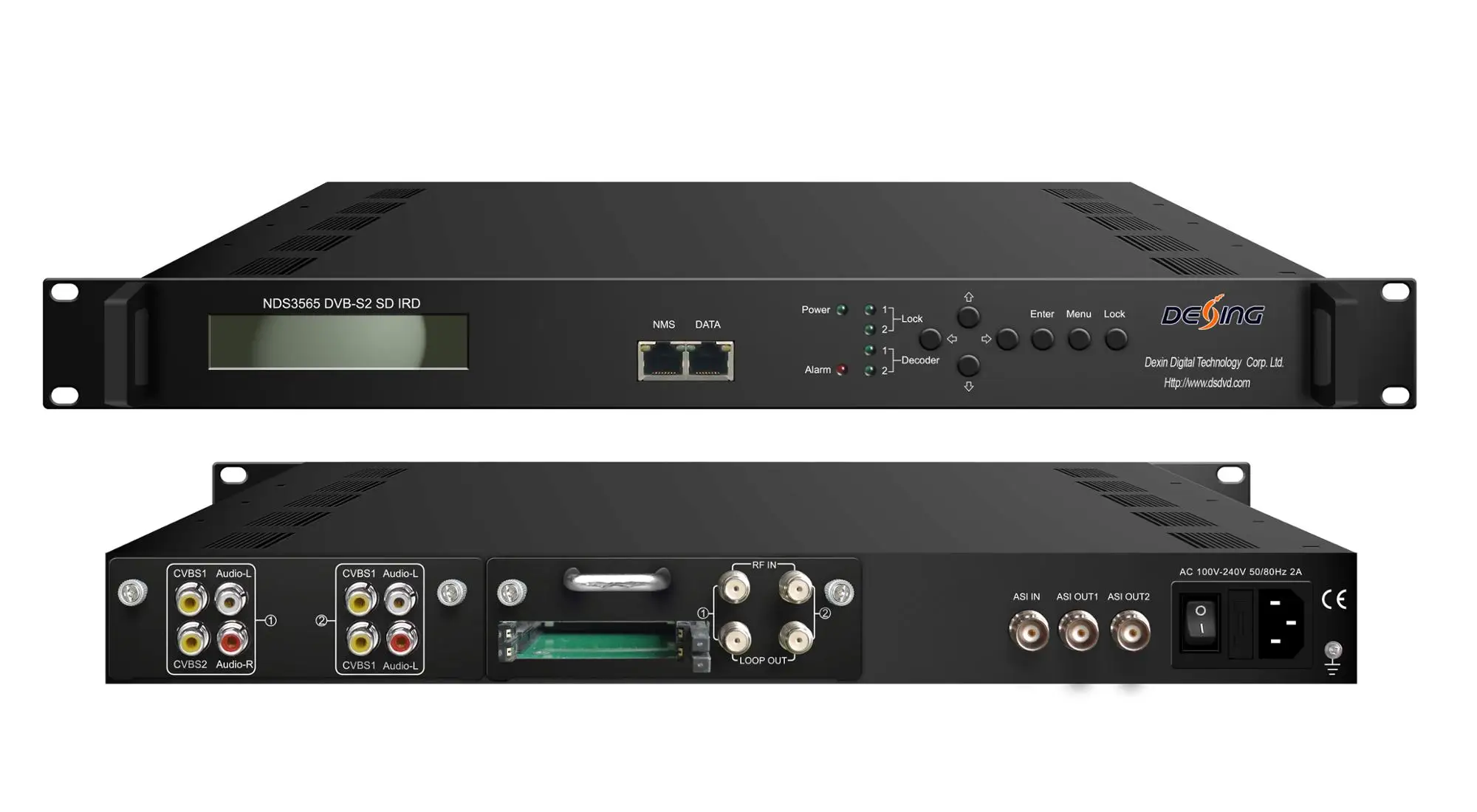

NDS356X Series SD IRD is DEXIN’s all-in-one device which integrates demodulation, de-scrambler and decoding (DVB-C, T/(T), S/S2 optional) in one case to convert RF signals into analogue video (CVBS) output.

It is a 1-U case which supports 2 tuner inputs. The two CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.

BISS function is also embedded to descramble programs from any input.

Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.

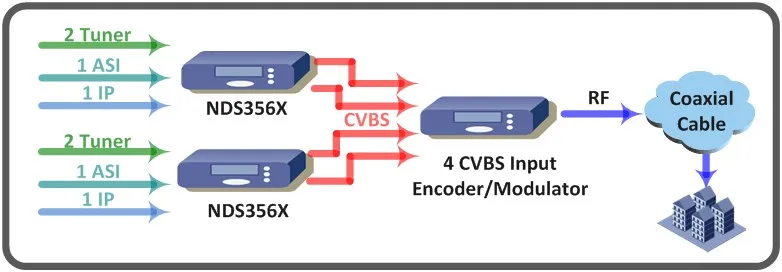

To meet customers’ various requirements, NDS356X Series is also equipped with 1 ASI input, and output with 2 ASI out ports and IP port.

1.2 Features

*  Demodulation + descrambler + decoder modules in one box

*  2 Tuner inputs (DVB-C, T/(T), S/S2 Optional)

*  1 ASI & 1 IP (UDP) input for re-mux

*  One CAM can decrypt multiple programs from Tuners/ASI/IP

*  Separate 2*CVBS(4*CVBS optional) video output

*  IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out

*  Support maximum 128 PID mapping per input

*  Pluggable and changeable demodulator and decoder modules

*  Support BISS descrambling(Up to 120Mbps)

*  LCD display, Remote control and Firmware, web NMS management

*  Updates via web

*  Best quality and breakthrough price

1.3 Specifications

nput

Tuner Section

DVB-S

Output

System

General
