Dry inorganic powder clay potassic fertilizer hydraulic double roller compaction dry powder granulator

Product Overview

Description

Clay granules

Dry inorganic powder compaction granulating

1. Applications

Our dry granulators are suitable for granulating and pelleting dry material whose humidity is below 10%.

1.1 Fertilizers: potassium sulphate (SOP), NPK compound fertilizers etc.

1.2 Chemical material: snow melt agent, antioxidant, fire retardant, cement retarder etc.

1.3 Construction material: all kinds of gypsum, e.g. desulfurized gypsum, phosphogysum etc. Gypsum granulating/briquetting machine is our featured machine.

1.4 Ore: phophate rock, ulexite, rock salt, dolomite, etc.

2. Output, size and shape

2.1 Small size and irregular shape: output is between 200 kgs/h and  5,000 kgs/h, granules size is on request.

2.2 Big size and oblate, square, oval shape: output is between 3,000 kgs/h and 12,000 kgs/h, pellet size is on request.

Please note that size is bigger, output is higher.

3. Granulating/pelleting theory

Two rollers rotate in reverse, materials between rollers are extruded. They are not smooth surface rollers.

4. Components

4.1 Main component

screw feeder, roll extrusion machine, grinding machine, granulating machine,electrical panel

4.2 Optional components

bucket conveyor, feedstock silo, ration charging machine,  vibration screen, , screw conveyor.

Final granules

Dry inorganic powder compaction granulator specs.and models

Dry inorganic powder compaction granulator applications

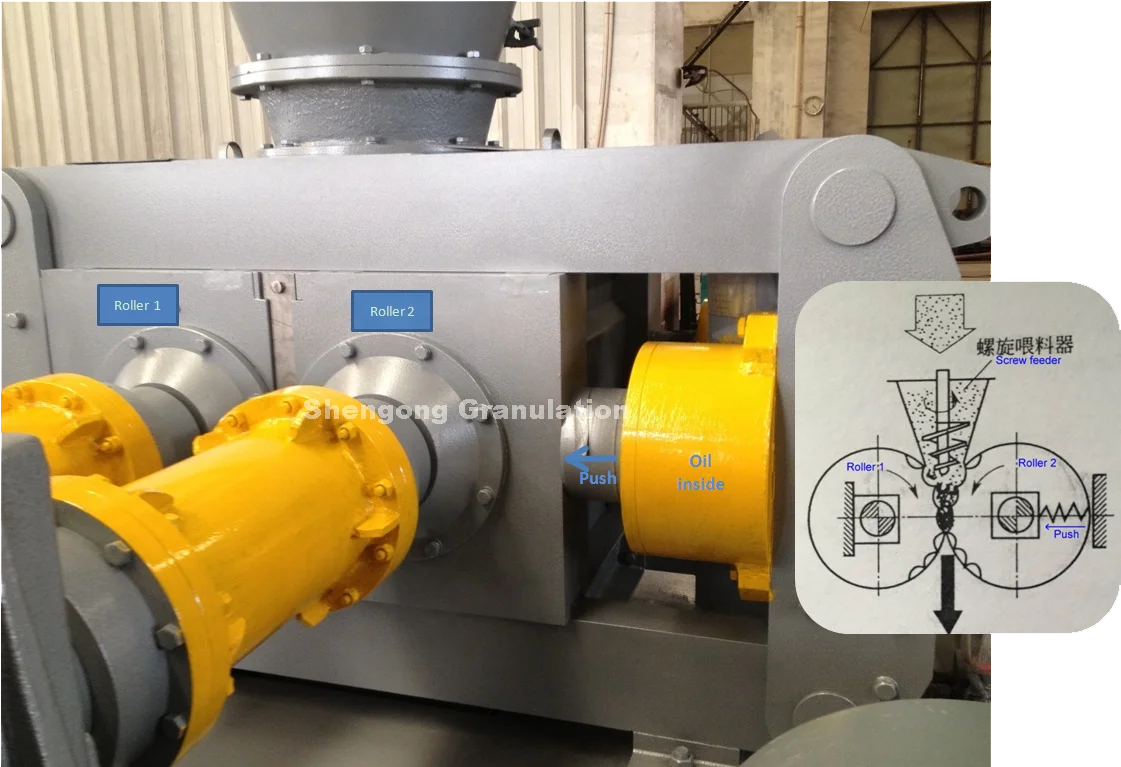

Dry inorganic powder compaction principle

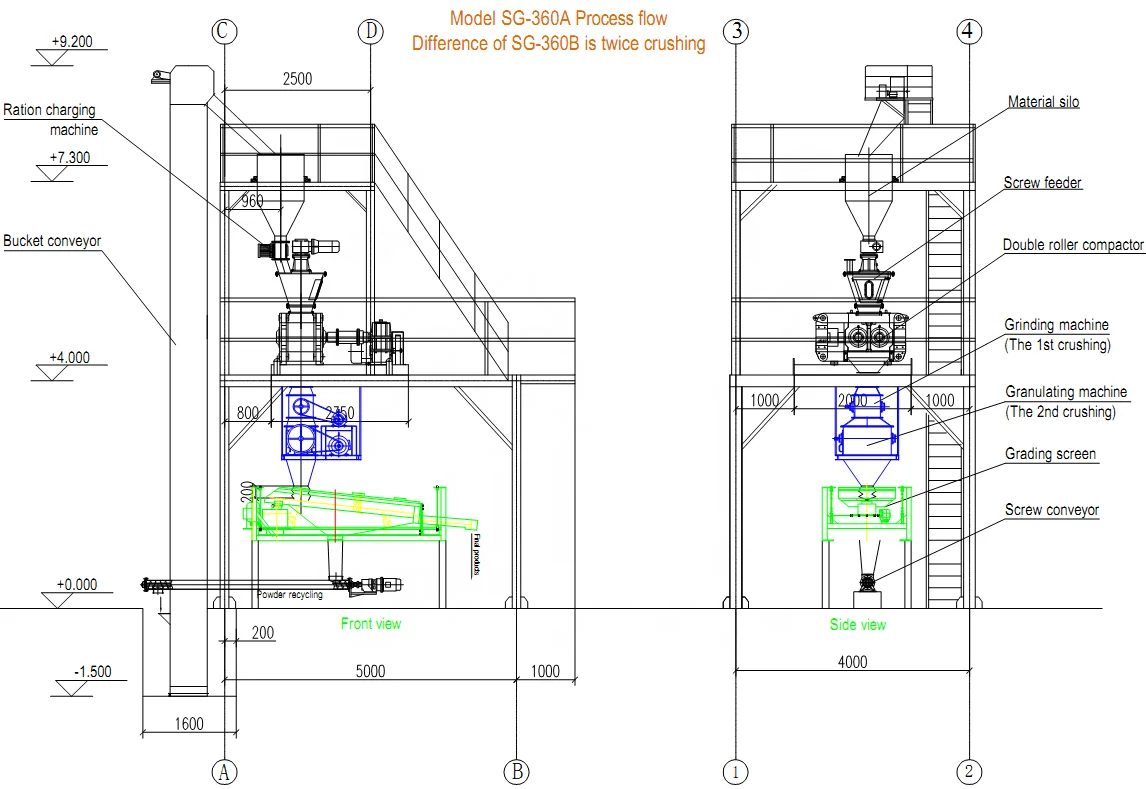

Difference between Dry inorganic powder compaction granulator Model A and Model B

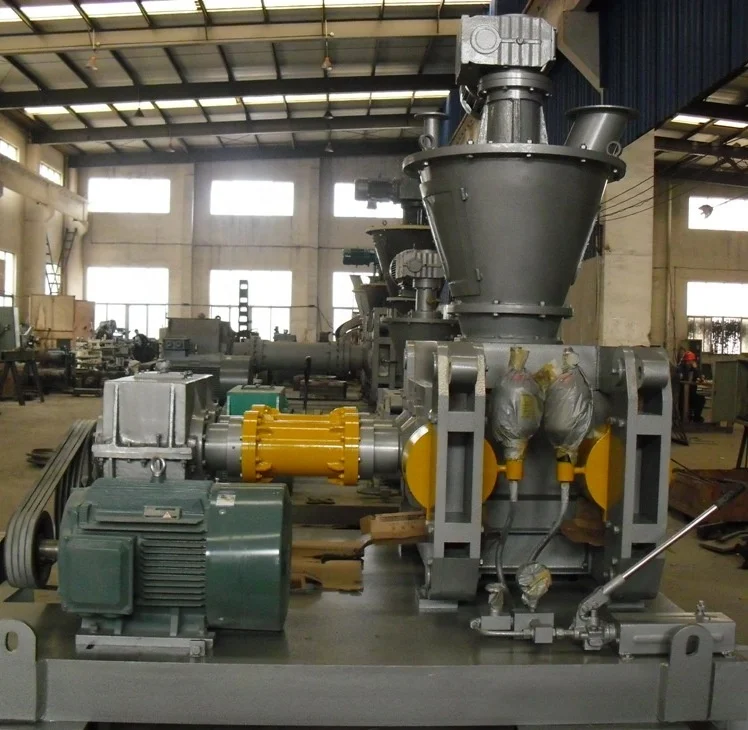

Dry inorganic powder compaction granulator consists of screw feeder and double counter-rotating rollers

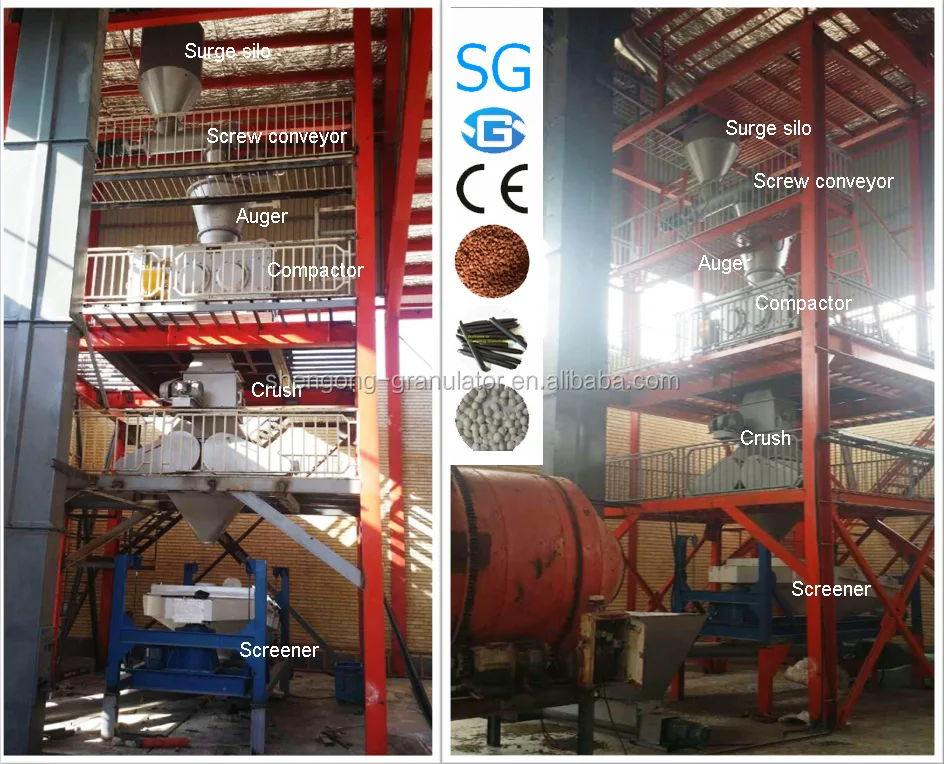

Dry inorganic powder ecompaction granulator's peripheral equipments

Dry inorganic powder compaction granulator's rollers and final products' shapes

Dry inorganic powder compaction granulator's products variable shapes

Dry inorganic powder compaction granulator and its peripheral equipments are being loaded in one 40ft. container
