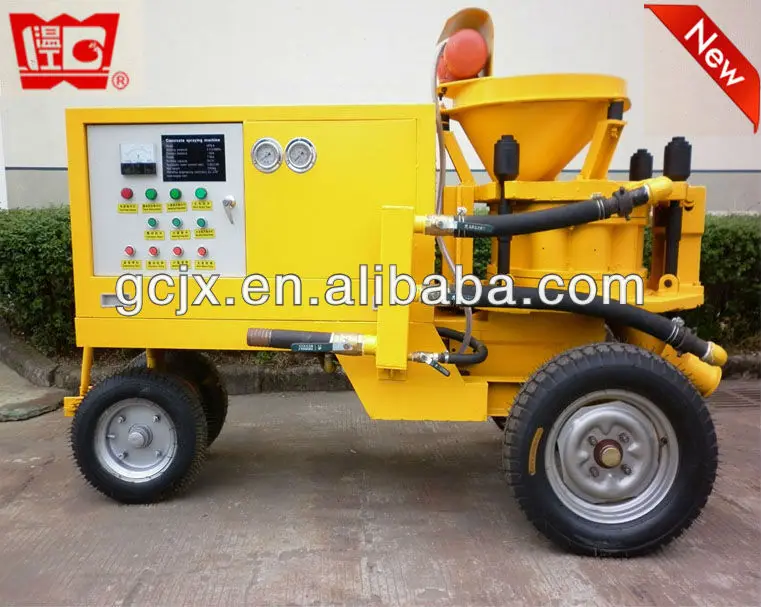

CE approved! 9m3/h concrete wet mix shotcrete machine

Product Overview

Description

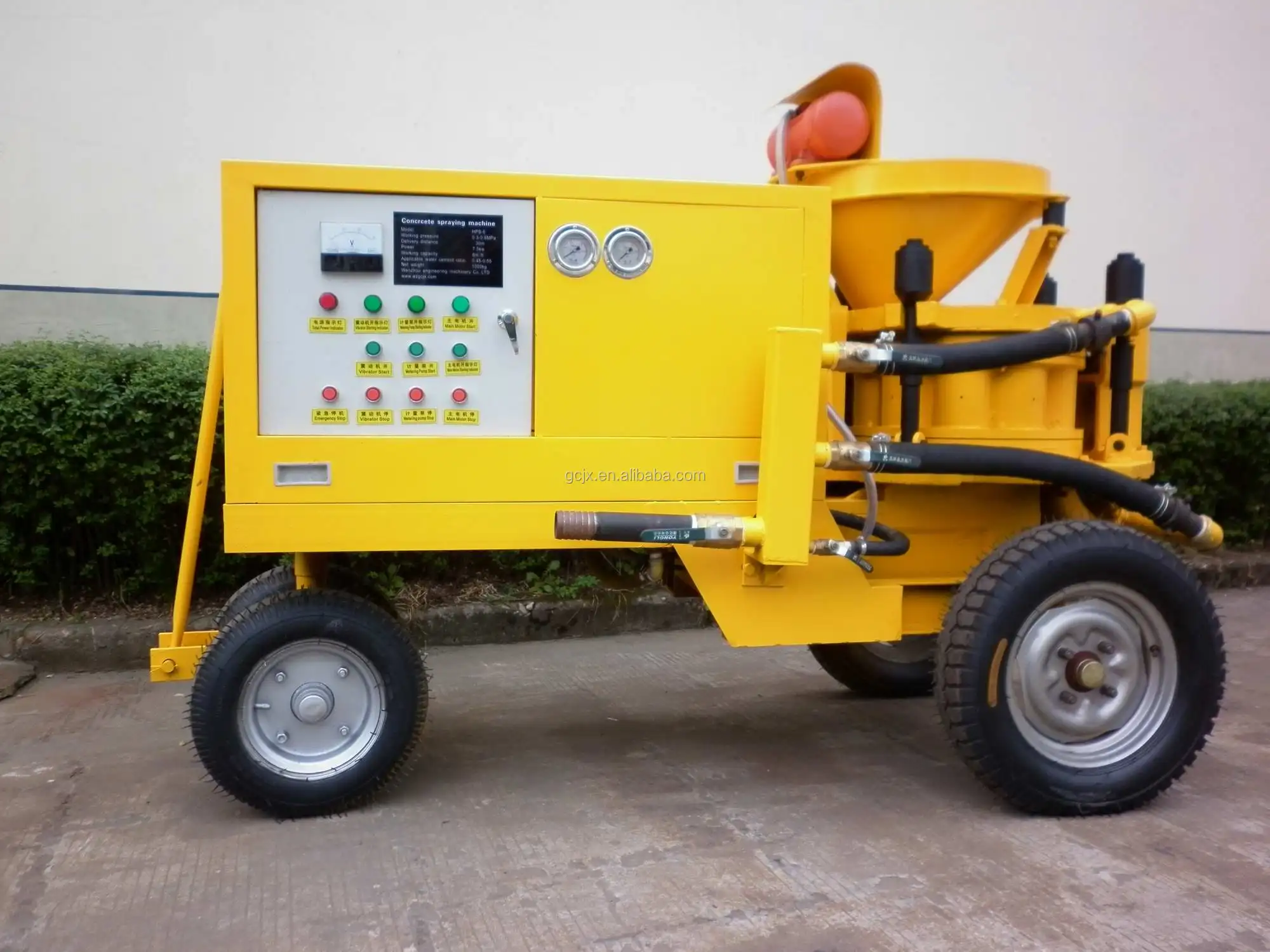

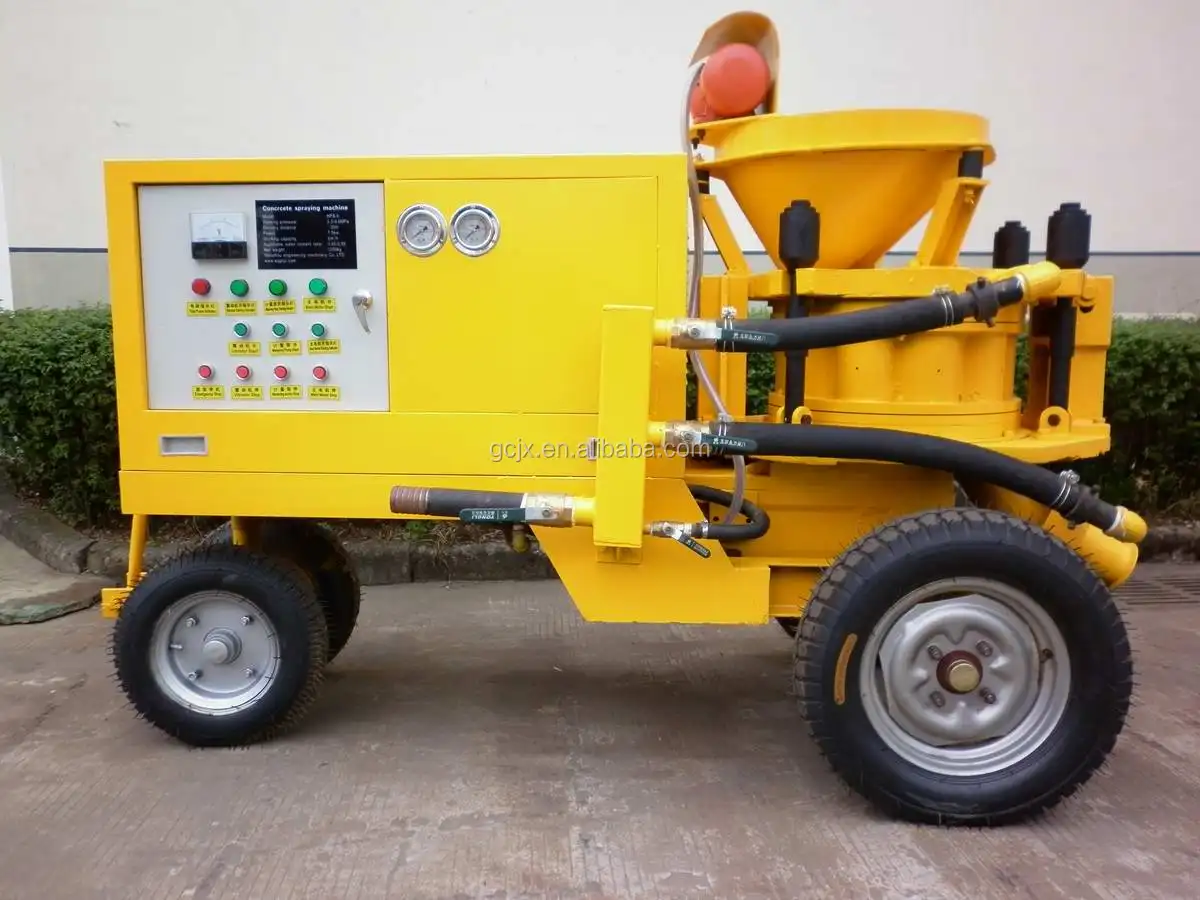

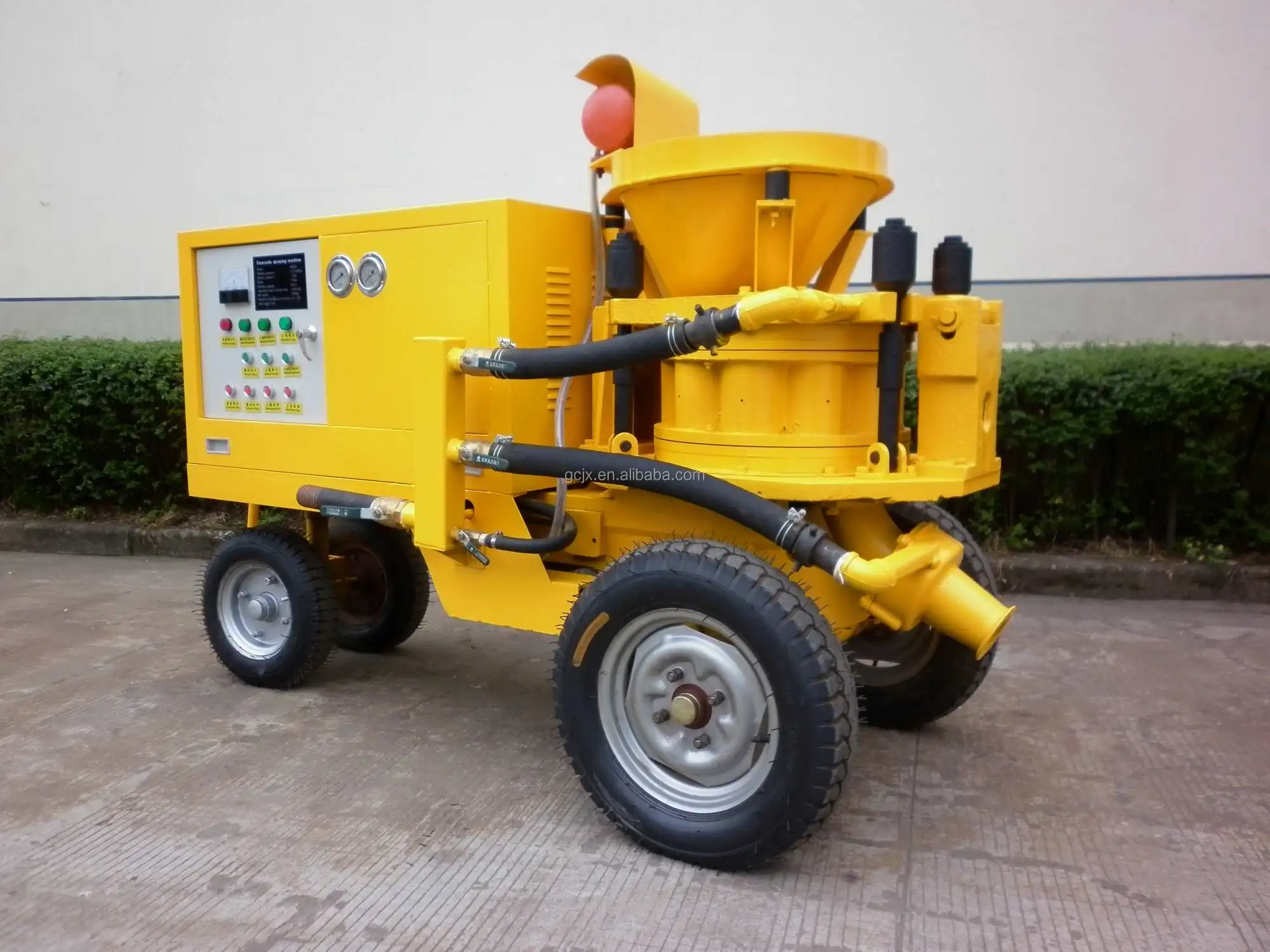

PS-9 wet-mix shotcrete machine





Wet-mix shotcrete machine is a Duplo-Concrete spraying machine for spraying with spraying boom. It's the most ideal device for the concrete anchor spray construction.



The conveying output is 8.0-9.0 m3/h and conveying distance is 200M for dry horizontal, 40M for wet horizontal, 30M for wet horizontal and 15M for wet vertical. The 18L rotor has a maximum grain size of 20mm.



And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects. The accelerating admixture conveying system in the machine is independent measured precisely by standard metering pump which is freely adjusted. And uniquely-made rubber bushing block on the swirler benefits mixture delivery.











Technical parameters of PS series wet concrete shotcrete machine



Model	-	PS-7	PS-9
Motor power	kw	7.5	11
Production capacity	m3/h	7	9
Cement-sand ratio	-	1 : 3-5	1 : 3-5
Water-cement ratio	-	≤0.55-0.65	≤0.55-0.65
Maximum horizontal delivery distance	m	30	30
Maximum vertical delivery distance	m	15	15
Vibration motor power	kw	0.25	0.25
Maximum aggregate size	mm	15	15
Inner diameter of delivery hose	mm	51, 64	51, 64
Working air pressure	Mpa	0.4-0.6	0.3-0.6
Air consumption	m3/h	≥10	≥10
Net weight	kg	900	1000
Dimension (L×W×H)	mm	2000×800×1100	1950×1050×1300



Note: The products are improved without notice!

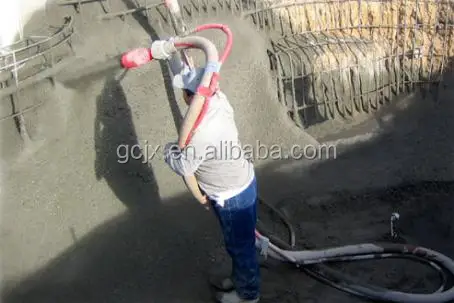

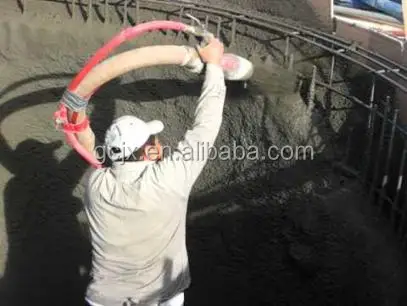

1. PS-7 concrete shotcrete machine can be used for swimmingpool shotcrete, Civil engineering, rock shocrete
