One.Features of ZNC-350 High precision CNC controlling mode edm sinking machine edm sparking electrical discharge machine:
1.Machine body structure with advanced castings of resin sand stress relieving.
2.Adopting precision CAD design and high precision frame structure.
3.X,Y axles movement surface with "TURCITE" and ball screw.
4.X,Y axles are made up V-shape and plane structure,ensuring the precision life of mechanical.
5.Adopting Japan SANYO DC servo motor,linear bearing and high strength and precision of integral castings.
6.Using high frequency induction hardening heating treatment.
7.The table which is precision grinded work table.
8.Using centrifugal high pressure oil pump of WALRUS and 10u filter system.
9.The castings are stress relieving cast iron.
10.The desktop uses high frequency quenching.
11.X,Y axles adopts the screw nuts of "model steel "which is produced by Taiwan.That may install ball screw optionally.
12.With functions of large area process and deep holes process.
13.X,Y axles adopt imported or the same level of ball screw.
14.Import accessories including electrode tip,automatic fire extinguisher,lamps,hand pull pump,page switch,gasket and centimeter bring up competitive machine tools.
two.Functions of ZNC-350 High precision CNC controlling mode edm sinking machine edm sparking electrical discharge machine:
1.Intelligent compile:depending on experience or input electric current and depth of processing.
2.Sectioned automatically from thick to thin.The steps which may complete the processing at one time from thick→middle→thin to sleek.
3.Setting copper pairs with steel,graphite pairs with steel and copper pairs with hard alloy according to the electrodes and materials.
4.Multiple set selections to process the thin slice and large-sized workpieces.
5.Anti-carbon automatically detection.
6.Fire prevention and liquid level control automatically.
7.Translating between Chinese and English,metric and imperial.
8.Conform to the CE safety standard of power box.
three.Specifications of ZNC-350 High precision CNC controlling mode edm sinking machine edm sparking electrical discharge machine:
Item
Unit
SW-ZNC-350
Table size(L×W)
mm
600×350
Travel(X,Y,Z)
mm
350×250×180+180
Oil tank inside diameter dimension(standard)
mm
880×570×350
Size of oil box(standard)
mm
1300×1000×460
Spindle's bearing
kg
50
Working table's bearing
kg
350
Max distance from plate electrode to table surface
mm
560
Machine weight
kg
1600
four.Power Supply Unit of ZNC-350 High precision CNC controlling mode edm sinking machine edm sparking electrical discharge machine:
Current/Type
Max machining rate
Min electrode wear rate
Optimal surface accuracy
Max input power
60A
400
0.3
0.3
5KVA
90A
800
0.3
0.3
8KVA
five.Accessories of ZNC-350 High precision CNC controlling mode edm sinking machine edm sparking electrical discharge machine:
Model
Standard Accessories
Optional Accessories
SW-ZNC-350
Permanent-magnet chuck
Precise orbital head
Special fire extinguisher
ER special clamp
Electrode tip
Clamping sets
3 Axis optical scale
Filter net
Quartz work lamp
Toolbox

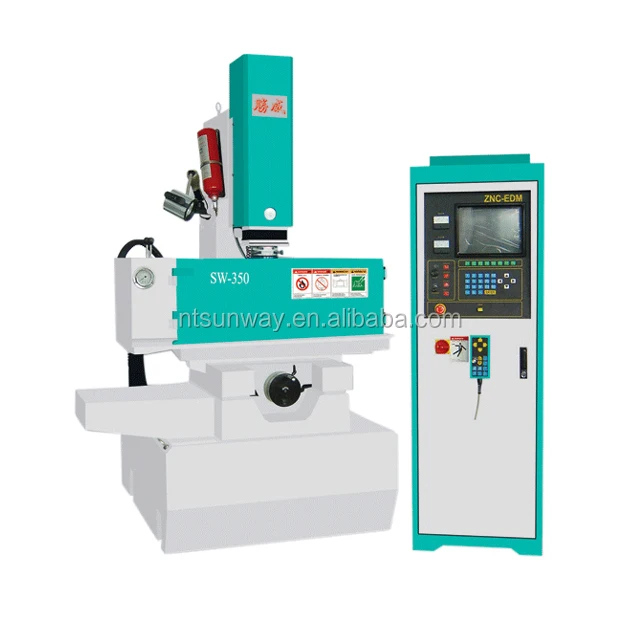

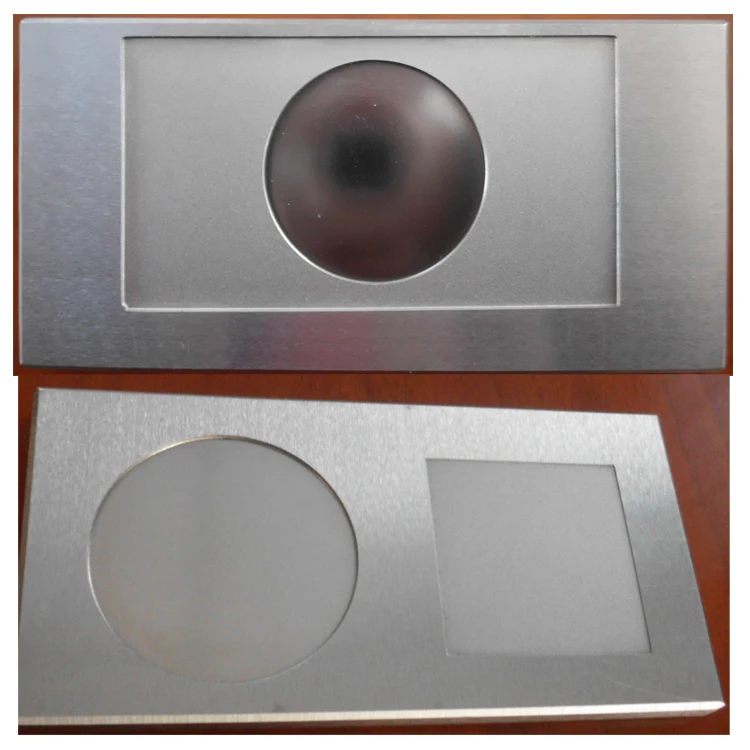

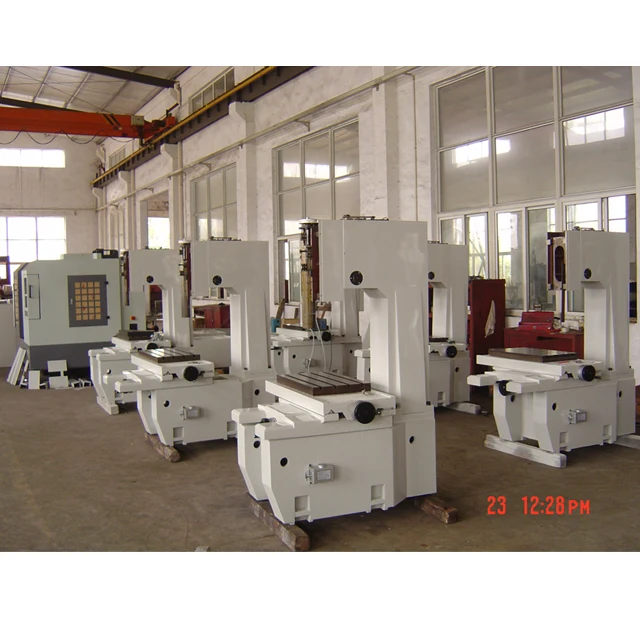

six.photos of High precision CNC controlling mode edm sparking electrical discharge machine
Product Description
For hard rail type vertical machining center,the guide rails of machine tool are double-deck. machine base is box type design, coordinate with large span stand column, it is more wider 40% than other same type machine tool, the design is conform to mechanics principle.
Use C3 grade high precision ball screw and pre-pull treatment bearing to ensured the rigidity and precision.
The casting of machine tool which exported to DMG is high-grade, high quality gray casting iron with aging treatment, the TURCITE is from USA RULON, with hand scraping, the line rail is from Taiwan famous brand, ensure the precision and lengthen the working life of machine tool.
Use Japan Mitsubishi,Fanuc or other international brand control system
Use Taiwan Royal or Puson Spindle
Use Taiwan Hiwin or PMI guide rail and ballscrew, Japan NSK or NARCH bearing to ensure the precision of machine tool
Use Taiwan Deta 24 arm type tool changer
The forth axis and Chip conveyor, Renishaw tool guage are optional
