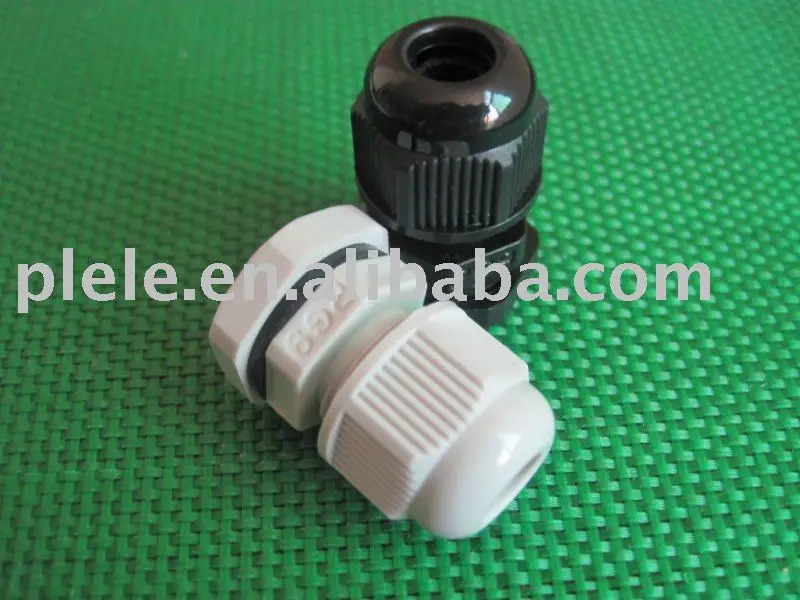

PG Size Cable shroud connector (IP68) PG9 7.5
- Category: Cable Glands >>>
- Supplier: Dongguan Pengli Electronic And Technological Co. Ltd.
Share on (392992057):
Product Overview
Description
PG Size Cable Gland
Thread:Metric, PG, G(PF/BSP/PS) and NPT thread

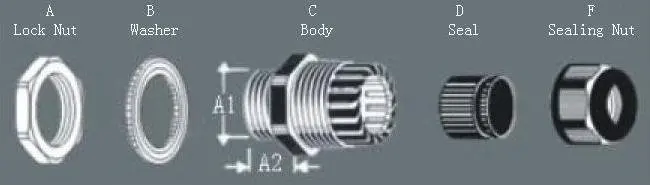

Materials: Nylon PA66(Flammability 94V-2) for A, C, F parts(Accept to make flammability 94V-0); EPDM rubber for B,D parts( also accept to make super rubber resisit high temperature rubber, resist strong acid/ alkali, etc.
Protection degree: IP68-10
Working temperature: Static: -40°c to 100°c, short time can heat to 120°c
Dynamic:-20°c to 80°c, or short time can heat to 100°c
Feature:
1. The claws and clampring of excellent design,.
2. The sealing nut have a “click” sound and it can be re-open and hold the cable fimly with a wider cable range.
3. Resistant to salt water, weak acid, alcohol, oil,grease and common solvency.
Color: Black, gray and other color avaliable upon request.
Usage: To fix and protect the wire from break
| Thread | Item No. | Cable Range | Thread O.D A1(mm) | Thread Length | Spanner Size | Std. Packing (pcs) |
| PG7 | PG7S -6 | 2—6 | 12.5 | 8 | 17/15 | 50 |
| PG7 -5 | 2—5 | 12.5 | 8 | 17/19 | 50 | |
| PG7 -7 | 3—7 | 12.5 | 8 | 17/19 | 50 | |
| PG9 | PG9 -5.5 | 2—5.5 | 15.2 | 8.2 | 22/19 | 50 |
| PG9 -7.5 | 3—7.5 | 15.2 | 8.2 | 22/19 | 50 | |
| PG11 | PG11 -7 | 3—7 | 18.6 | 10 | 24/22 | 50 |
| PG11 -10 | 4—10 | 18.6 | 10 | 24/22 | 50 | |
| PG13.5 | PG13.5 -9 | 3—9 | 20.4 | 10 | 27/24 | 50 |
| PG13.5-12.5 | 5—12.5 | 20.4 | 10 | 27/24 | 50 | |
| PG16 | PG16 -11 | 5—11 | 22.5 | 10.8 | 30/27 | 50 |
| PG16 -14 | 6—14 | 22.5 | 10.8 | 30/27 | 50 | |
| PG19 | PG19 -11 | 5—11 | 23.5 | 11 | 30/27 | 50 |
| PG19 -14 | 6—14 | 23.5 | 11 | 30/27 | 50 | |
| PG21 | PG21 -15.5 | 8—15.5 | 28.3 | 12 | 36/33 | 50 |
| PG21 -17.5 | 10—17.5 | 28.3 | 12 | 36/33 | 50 | |
| PG25 | PG25 -20 | 10—20 | 30 | 13 | 36/37 | 50 |
| PG29 | PG29 -21 | 14—21 | 30 | 12 | 46/41 | 20 |
| PG21 -24 | 16—24 | 37 | 12 | 46/41 | 20 | |
| PG36 | PG36 -25.5 | 15—25.5 | 47 | 14 | 57/52 | 10 |
| PG36 -31 | 18—31 | 47 | 14 | 57/52 | 10 | |
| PG42 | PG42 -32 | 21—32 | 54 | 15 | 64/62 | 10 |
| PG42 -41 | 26—41 | 54 | 15 | 64/62 | 10 | |
| PG48 | PG48 -38 | 25—38 | 59.3 | 15.5 | 70/65 | 10 |
| PG48 -45.5 | 30—45.5 | 59.3 | 15.5 | 70/65 | 10 |
