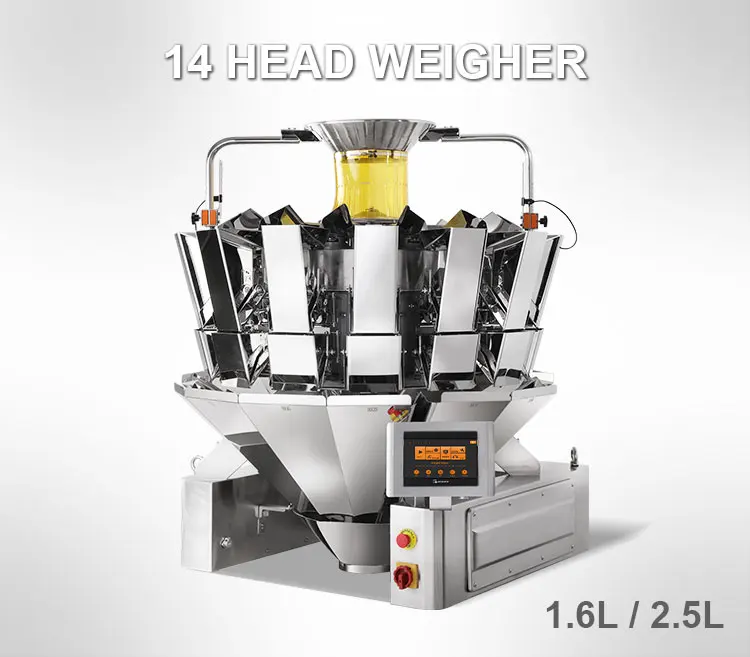

PLC control 14 head multihead weigher weighing sesames,dates,spices,lentils,fries,candies,seeds,beans,tea,pistachio,etc.

Product Overview

Description











 Application:

It is suitable for weighing of granule, slice shape such as cereal, pasta, candy, seed, chips, coffee bean, nut, puffy food, biscuit, chocolate, pet food, frozen foods, etc. It is also suitable for non-food industry such as screws, bolts and plastic components.



Main Features:

1,Original program can be restored.

2,Easy cleaning and maintenance with clean function, all hoppers can stay open.

3,Piece counting function.

4,IP65 certificate.

5,Unqualified weight reject.

6,Step motor angle can be set according to different product.

7,99 program can be preset.

8,Stagger dump prevents products blockage.



Special Features:

1,Modular electronic system makes function expanding and maintenance easier and at lowest cost.

2,Professional A/D card with high accuracy and stability. Interchange is available.

3,HMI program with different authority management more user-friendly.

4,HMI program can be upgraded by U-disk.

5,PLC control system applied in the weigher and it makes machine more stable and low fault rate. Makes machine more stable and low fault rate.Funtions expanding more easier.

6,Application software can be upgraded by memory card.

7,Remote control is available



Technical Parameters:

Model	TY-P14L1.6	TY-P14L2.5
Weighing Range	10~1500g	10~3000g
Weighing Accuracy	±0.1~1.5g	±0.1~2g
Max.Weighing Speed	120WPM	120WPM
Hopper Capacity	1.6L	2.5L
Operation Panel	7 Inch touch screen
Control system	PLC
Power Supply	AC220V±10% 50HZ/60HZ   2KW
Packing Dimension	1100(L)*1100(W)*1780(H) mm
Net Weight	366KGS
Packing Weight	495KGS

















 Q1.How can I turst you for the first time business?
A:We are the first company in China that developed and utilized Siemens/Allen-Bradley PLC on multihead weighers,filling the gap in
the field, and we participate in many interantaional famous exhibitions every year, such as Interpack,
Allpack, Propak, Packexpo etc.
Q2.What is the payment methods?
A:T/T or L/C by our bank account directly, or by alibaba trade assurance service.
Q3. MOQ ?
A:Our MOQ is 1 set machine.
Q4: Can you send me the video of this machine in operating mode?
A:Yes, please check the link for this video https://www.youtube.com/channel/UCBFr5MEq7wt-Bl4SIv8uYug
Q5: What is the material of food contact parts?
A:Food contact parts are 304# stainless steel or 316# stainless steel as option.
Q6: Do you accept OEM?
A: Yes, we have a professional design and technical team to accept customization.
Q7: How about the lead time?
A:25-35 working days after deposit arranged. If it’s production line, will be longer.
Q8: How about your warranty?
A: One year warranty, lifelong online after service and charged on-site service
Q9. How about the after sale service?
A:1.One year warranty
2.All spare parts in stock
3.24x7 hours Online service
4. On-site service is available
