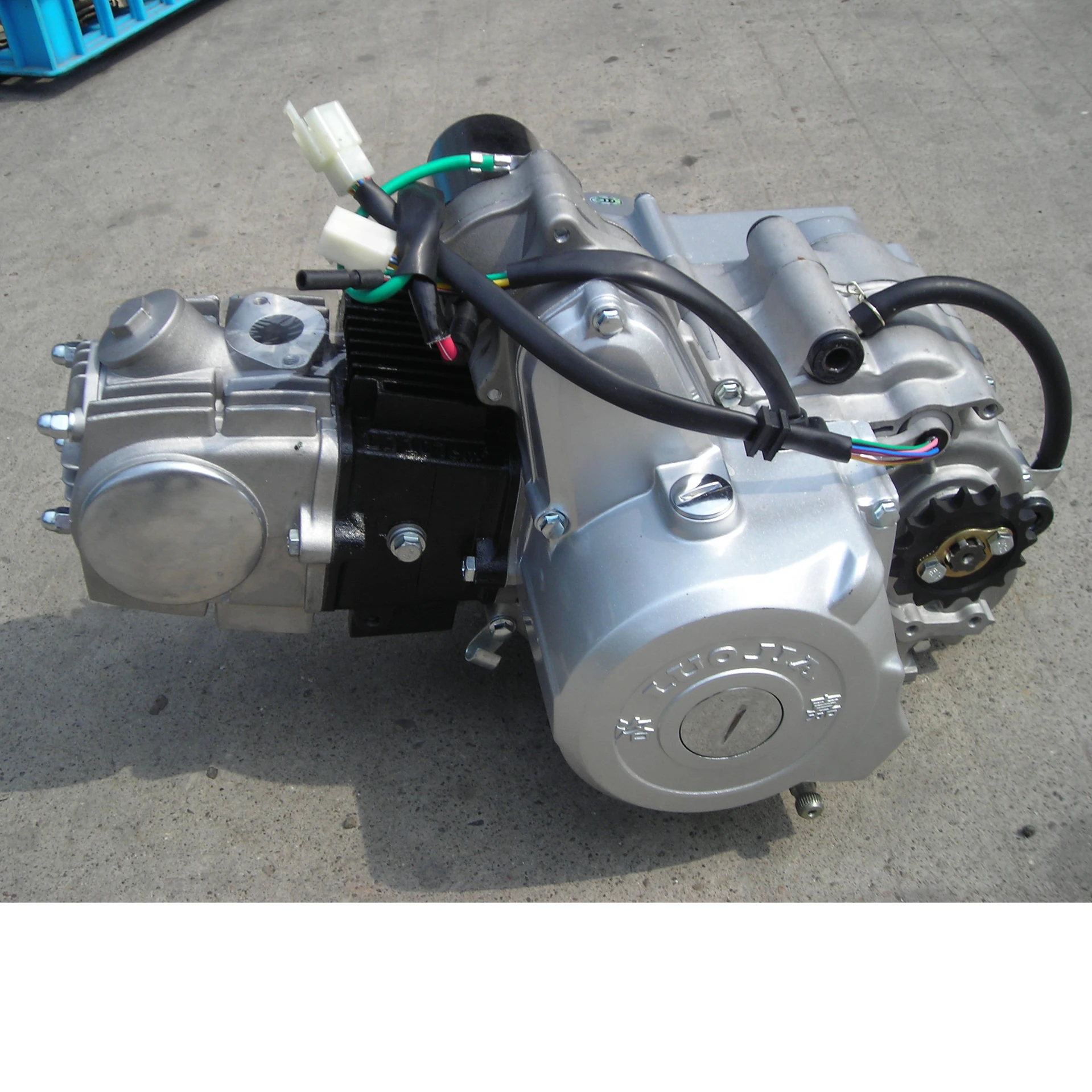

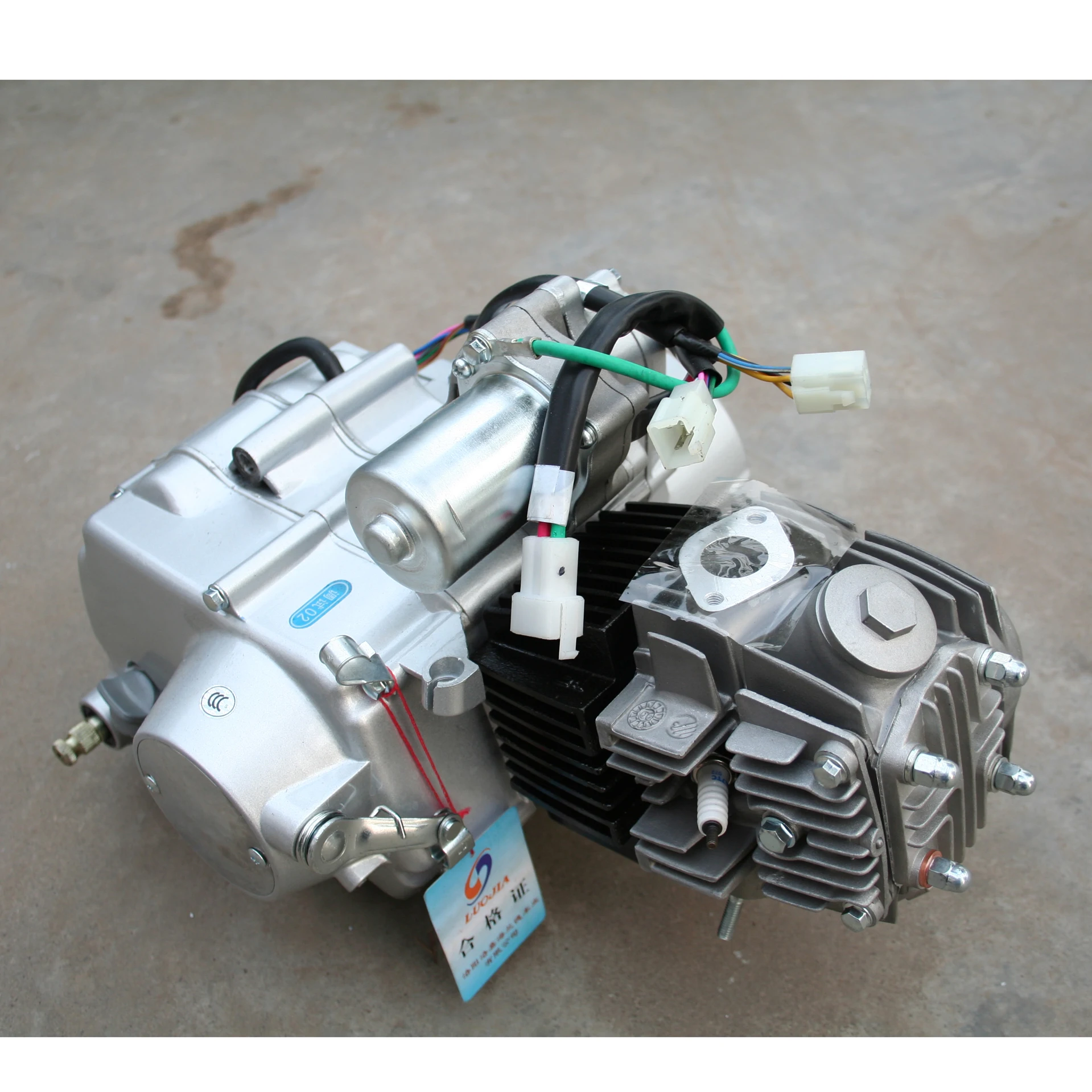

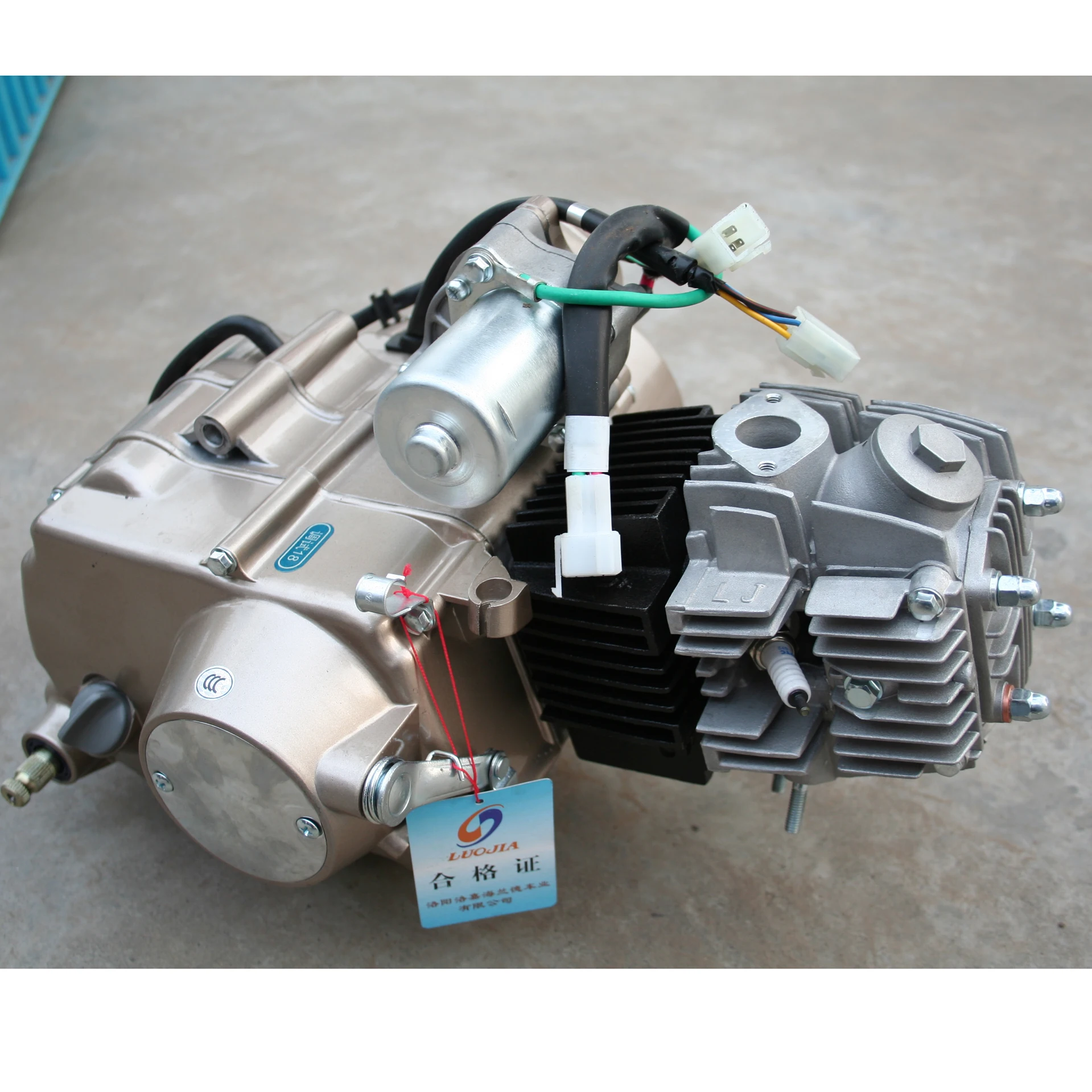

Cub 100cc 110cc Horizontal Motorcycle engine

Product Overview

Description

General Features

Styling And Superb Ride Qualities.

40 years motorcycle manufacture history
ISO9001 and ISO14001 certified

100cc Horizontal  Motorcycle Cub engine

Good accelerating performance



 Specification

         Types  :   Single-cylinder, horizontal,air cooled,4-stroke
         Displacement(ml) :     97
         Dimission(LxWxH)(mm) :     450 x 310 x 260
         Net Weight(kg) :     20.5

         Rated power:(Kw/r/Min) :  4.9/7500r/min
         Max.power(Kw/r/Min) :     5.2/8000r/min
         Max.torque(N.m/r/min):      6.9/6500r/min
         Compression Ratio :     8.6:1(8.8:1)
         Cylinder diameter x stroke(mm):      50.0 x 49.5
         Ignition type :     CDI
         Lubrication type :     Pressure,splash combined type
         Min Fuel consumption(g/km.h):      ≤367
         Starting type:      Electric/Kick
         Clutch mode :     Wet-multi-plated
         Gearshift type :     N←→1←→2←→3←→4←→N

         Transmission ratio: primary:4.058;  last:2.571
                                 I gear:2.833  II gear:1.706  III gear:1.238  IV gear:0.958







Performance  description

The 100cc air cooled engine power output of 5.2KW provides smooth sailing on major roads with a max speed of approx 85KMH.  the 100cc motorcycle engine 4 stroke air cooled engine is responsive and gives lots of power.



Powered by a 4 stroke 110cc engine: the  100 is extremely fuel efficient and very environmentally friendly. Responsive Air-cooled engine provides a lively rush of power while ensuring clean emissions and low fuel costs.



The  100 has the grunt to outpace the rest of the traffic off the mark, and allows you to maintain the advantage to a comfortable



top speed of  85KMH. With an electric start (kick start backup) and CVT Automatic Transmission this  100 is incredibly easy to ride.



Factory View and Certificates

We are one of professional manufacturers in China specialized in research, manufacture and selling motorcycles, engines and spare parts. We strictly implement the ISO9001:2000 quality management system, ISO 14001:2004 environment management system, and the state CCC certification. With 40 years experience in motorcycles manufacturing and cooperation with high quality HONDA C100-H technology, our products are both excellent in quality and reasonable in price.



 Warranty
We offer a six months warranty on Motor and frame. Buyers are required basic repair skills such as using general tools; replacing nuts and bolts, filters, light bulbs, fluids, etc.
