73ZY12 102WJ 12V, 24V, 180W~320W Permanent Magnet DC Worm and Wheel Gear Motor
- Category: >>>
- Supplier: Zhejiang Dongzheng Motor Co. Ltd.
Share on (395216374):
Product Overview
Description
Product Description

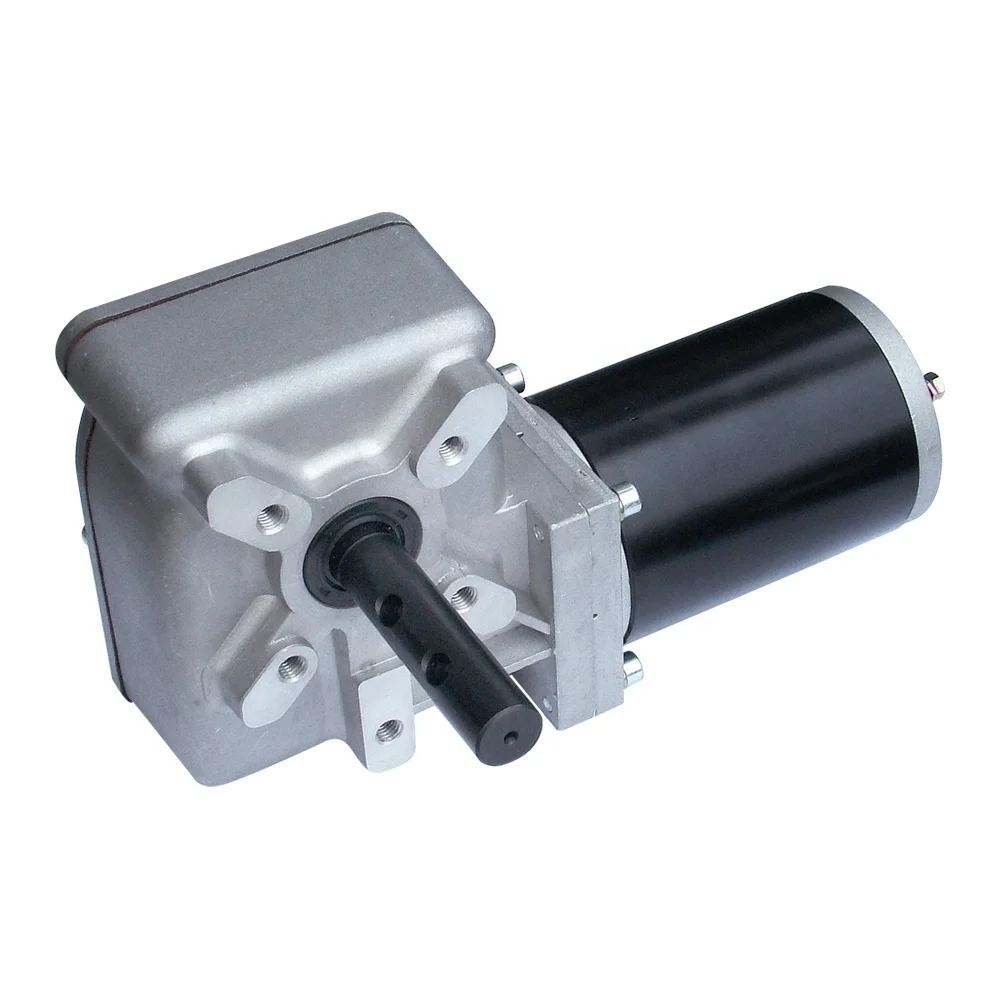

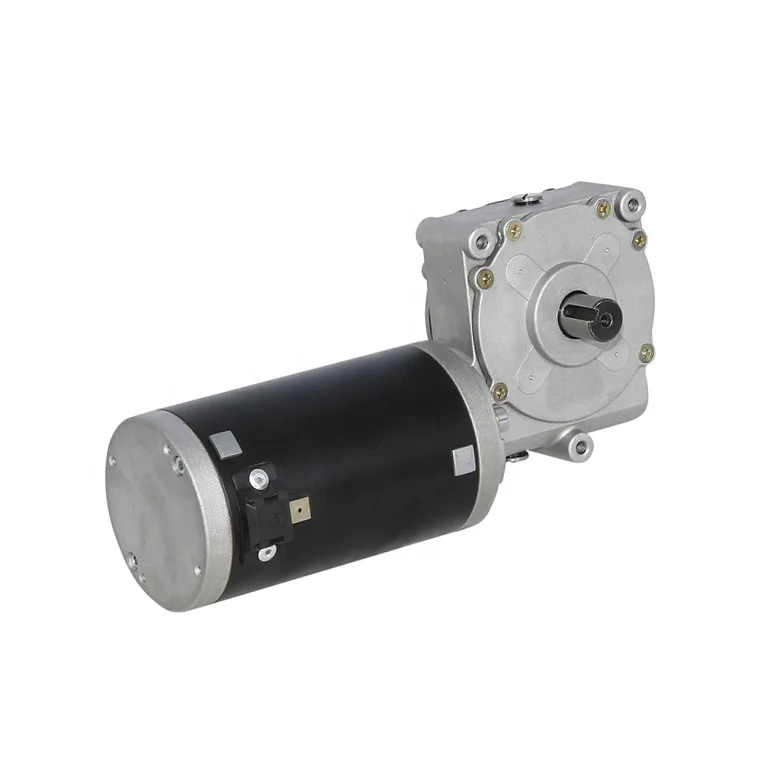

Permanent Magnet DC Worm and Wheel Gear Motor
Model: 73ZY-102WJ TYPICAL SPECS.:
1)Voltage 12V DC
Current approx. 20A
Motor Output Power 180W
Rated Speed 136rpm
Rated Torque 5.3N.m
Gearbox Reduction Ratio 25 : 1
2)Voltage 12V DC
Current approx. 90A
Motor Output Power 320W
Rated Speed 20rpm
Rated Torque 62N.m
Gearbox Reduction Ratio 50 : 1
Model: 73ZY-102WJ TYPICAL SPECS.:
1)Voltage 12V DC
Current approx. 20A
Motor Output Power 180W
Rated Speed 136rpm
Rated Torque 5.3N.m
Gearbox Reduction Ratio 25 : 1
2)Voltage 12V DC
Current approx. 90A
Motor Output Power 320W
Rated Speed 20rpm
Rated Torque 62N.m
Gearbox Reduction Ratio 50 : 1
Customized Gear Motors for Typical Applications | ||||||||
Tarp Gear Motors | Slow Juicer Motors | |||||||
Curtain & Window Motors | Robot Pool Cleaner Motors | |||||||
Door & Gate Motors | Robot Lawn Mower Motors | |||||||
Automatic Pool Cover Motors | Solar Tracking System Motors | |||||||
Certifications
FAQ
Q1: Are you a trading company or manufacturer?
A1: We are a professional OEM manufacturer.
Q2: What is your main product range?
A2: We manufacture both motors and gearboxes. Our main products are various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
Q3: How about the MOQ of your motors?
A3: Customized testing samples are available before serial production.
Q4: What is the warranty period of your motors?
A4: We offer free maintenance in warranty period of one year.
Q5: Which shipping ways are available?
A5: DHL, UPS, FedEx, TNT are available for sample shipment. Sea/air/train shipments are available for serial production.
