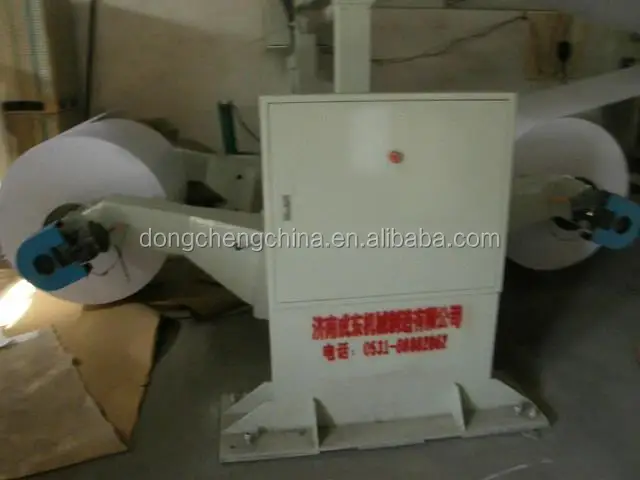

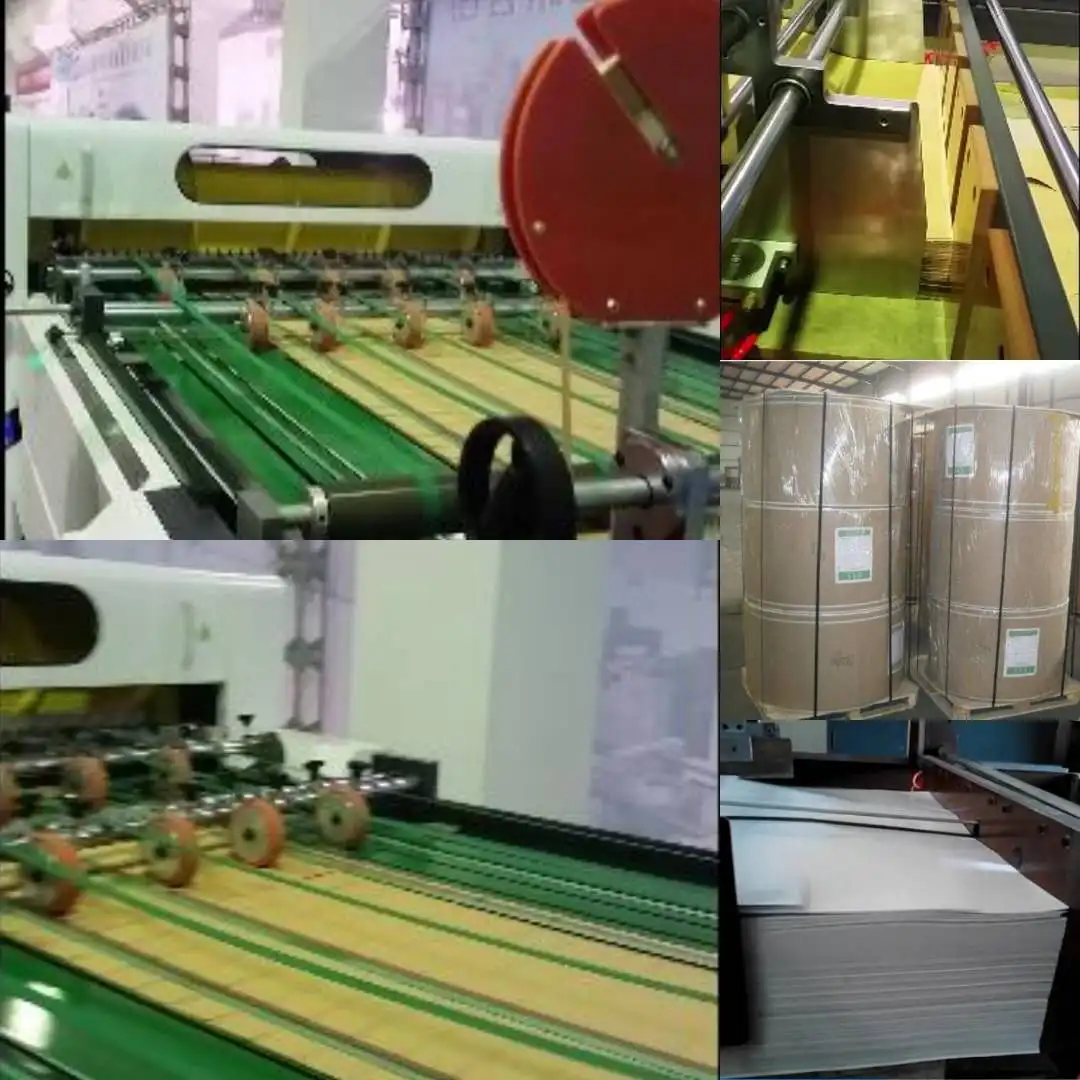

DC 1400 High speed Rotary Paper Sheeter Cutting Machine
- Category: >>>
- Supplier: Jinan Chengdong Machinery Manufacture Co. Ltd.
Share on (397687717):
Product Overview
Description
We are a Gold Verified supplier. The certification logo and the certification website link are as follow:
1.
2.https://dongchengchina.en.alibaba.com/company_profile.html?spm=a2700.icbuShop.88.40.1d832b07FzGPqU
3.
DC -1400 High-speed Rotary slitting Machine Used for all kinds of web into special equipment flat piece of paper series of high
DC Series of high-speed cutting machine
Parameter / model | DC-1400 | DC-1700 | DC-1900 |
Jumbo roll width | MAX1400mm | MAX1700mm | MAX1900mm |
Jumbo roll diameter | Max1800mm(71”) | Max1800mm(71”) | Max1800mm(71”) |
cutting precision | ±0.5mm | ±0.5mm | ±0.5mm |
Cutting speed | 300m/min | 300m/min | 300m/min |
Cutting length | 450-1450mm | 450-1450mm | 450-1450mm |
Paper range | 60-510g | 60-510g | 60-510g |
Stack height | 1300mm | 1300mm | 1300mm |
Power | Main24KW | main27.5KW | main31.5KW |
Slitting knife number | Standard 2sets
| Standard 3sets
| Standard 3sets
|

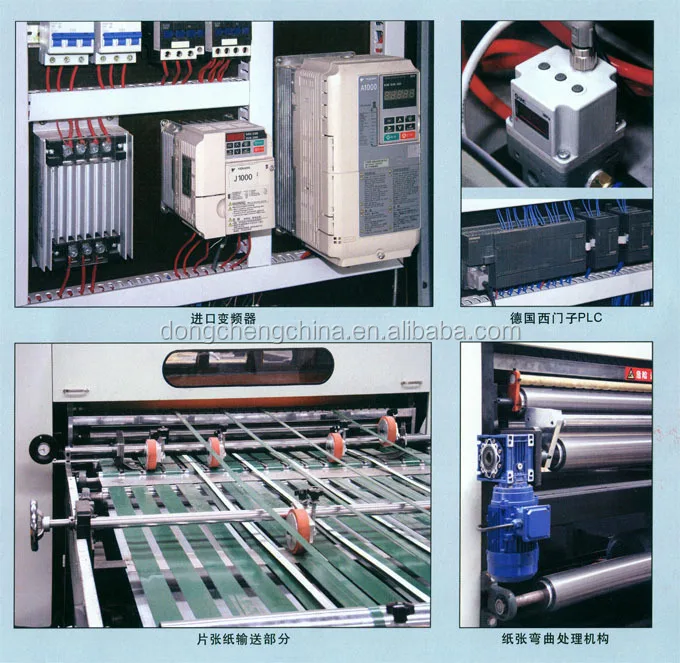

Traction motor | Frequency conversion motor | Frequency conversion motor | Frequency conversion motor |
crosscutting motor | Servo motor | Servo motor | Servo motor |
interface | Vinylon touch screen | Vinylon touch screen | Vinylon touch screen |
general control system | siemens PLC | siemens PLC | siemens PLC |
Brake way | pneumatic brake | pneumatic brake | pneumatic brake |
Speed way | frequency control | frequency control | frequency control |
Tension way | Automatic tension control | Automatic tension control | Automatic tension control |
Load way | Hydraulic shaft paper | Hydraulic shaft paper | Hydraulic shaft paper |
weight | 12T | 13T | 15T |
size | 12000*4200*1800mm | 12500*4500*1800mm | 12500*4700*1800mm |
sales performance
INPAK ALEX
ROSIZOLIT LTD
HANDELSAGENTUR NOLL GBR
LUIS MARCELO ESQUER
AI SAFWA GROUP
INPAK ALEX
UNION TOBACCO & CIGARETTE INDUSTRIES CO.- MADABA
CANPACK PACKAING INDUSTRIES L.L.C
STANISLAV NIKOLAYEVICH PISKUNOV
ENVASEA EMPLACADOS LTDA
Related Products
ABOUT US
EXHIBITION
PRODUCTION
CERTIFICATION
PACKAGE
FAQ
6. if the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
