Construction Equipment Quanzhou Asphalt Mixing plant Bitumen Mixing Plant
- Category: Asphalt Mixers >>>
- Supplier: Quanzhou Hengxing Industry Machinery Co. Ltd.
Share on (398282447):
Product Overview
Description
Product Description
LB1500 Series Quanzhou Asphalt Mixing Plant Hot Bitumen Plant with Water Filter System
Features:
- Special designs of drying drum and blade supporting high heating efficiency.
- Using imported diesel or heavy oil burner device to ensure the combustion is complete.
- Cold aggregate supplying using alternating current-frequency conversion belt feeder. The adjustment is easy and precise.
- Using vibrating screen to realize the high effience and reduce the vibration of frame.
- Powder supplying system mineral powder smoothly, no arch camber. Poweder weighing is in high precision, weighing hopper discharge quickly&uniformly.
- With electronic-stable sensor, large and small door can control coarse and fine weighing respectively, and make up the balance. There are accurate measurement and reliable system.
- The new twin-shaft mixer has the advantages with high-speed, strong power and uniform mixing. The quality of asphalt product is good.
- Computer control system can save formula data, print report from, malfuntion monitoring. The modem operation make you much comfortable convenient.

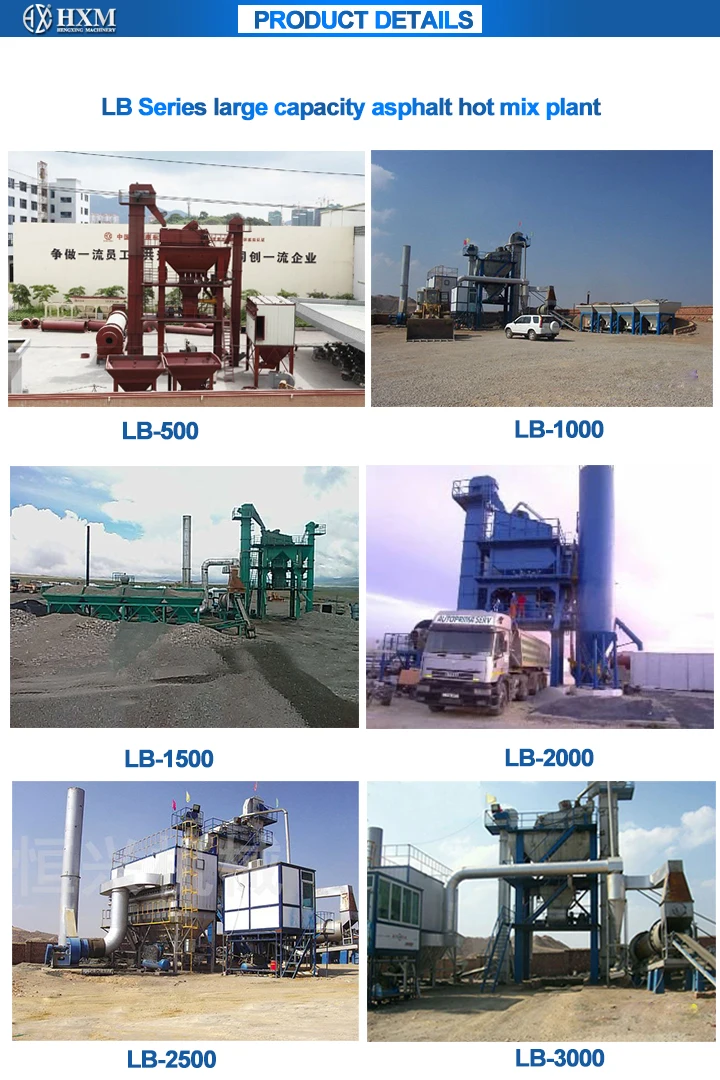

LB500 Series Quanzhou Asphalt Mixing Plant Hot Bitumen Plant with Water Filter System Parameters:
Type | LB500 | LB1000 | LB1500 | LB2000 | LB2500 | LB3000 |
Capacity | 40t/h | 80t/h | 120t/h | 160 t/h | 200 t/h | 240 t/h |
Cold aggregate device | Frequency adjustment control | Frequency adjustment control | Frequency adjustment control | Frequency adjustment control | Frequency adjustment control | Frequency adjustment control |
MAX capacity | 3*40 t/h | 4*80 t/h | 6*200 t/h | 6*200 t/h | 6*200 t/h | 6*200 t/h |
Dry cylinder | 1200*6250mm | 1540*6500mm | 1800*7450mm | 2360*8260m | 2500*9000mm | 2.5m×10m |
Bag dust-remover | Water removoal | JTFC-35000/24 | JTFC-50000/24 | JTFC-35000/24 | JTFC-82500/18 | JTFC-90000/48 |
Mode of Dust Catching |
| Mechinal air cleaning | Mechinal air cleaning | Mechinal air cleaning | Mechinal air cleaning | Mechinal air cleaning |
Hot aggregate container | Confined three separate/single discharge, the flash | Confined four separate/single discharge, the flash | Confined four separate/single discharge, the flash | Confined four separate/single discharge, the flash | Confined four separate/single discharge, the flash | Confined four separate/single discharge, the flash |
Filter area |
| 432 square | 510 square | 630 square | 825 square | 1100 square |
Mineral powder tank volume | Two-position vertical cylinder/single | Two-position vertical cylinder/single | Two-position vertical cylinder | Two-position vertical cylinder | Two-position vertical cylinder | Two-position vertical cylinder |
Silo volume | 20.5 / single wraehouse | 24.5 / single wraehouse | 24.5 / single wraehouse | 30.5 / single wraehouse | 50 / single wraehouse | 50 / single wraehouse |
Heat conduction oil stove | 300,000 kcal/h | 500,000 kcol/h | 500,000 kcol/h | 750,000 kcol/h | 750,000 kcol/h | 750,000 kcol/h |
End-product container volume | 50t | 90t | 90t | 110t | 110t | 200t |
Installed general power | Powder material | ≤±0.3% | ≤±0.3% | ≤±0.3% | ≤±0.3% | ≤±0.3% |

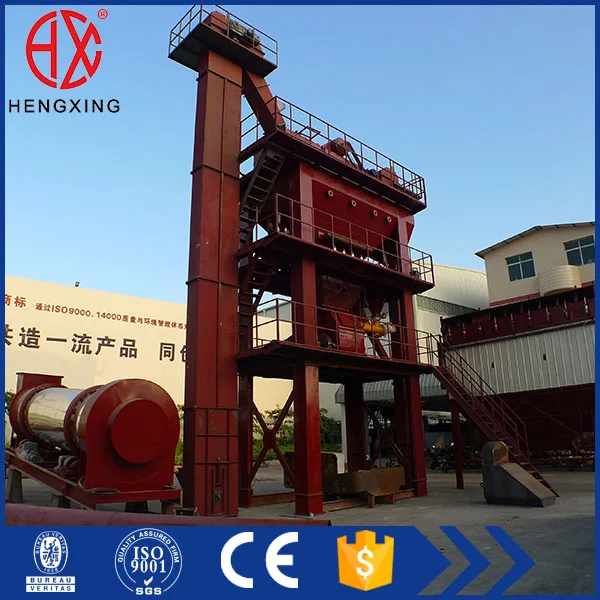

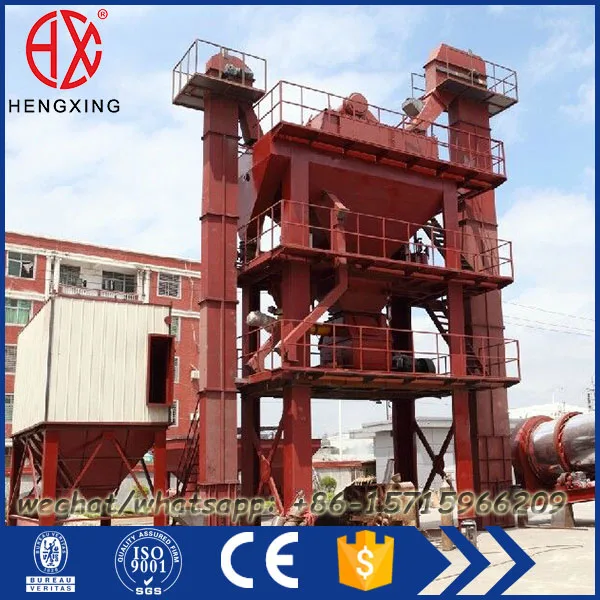

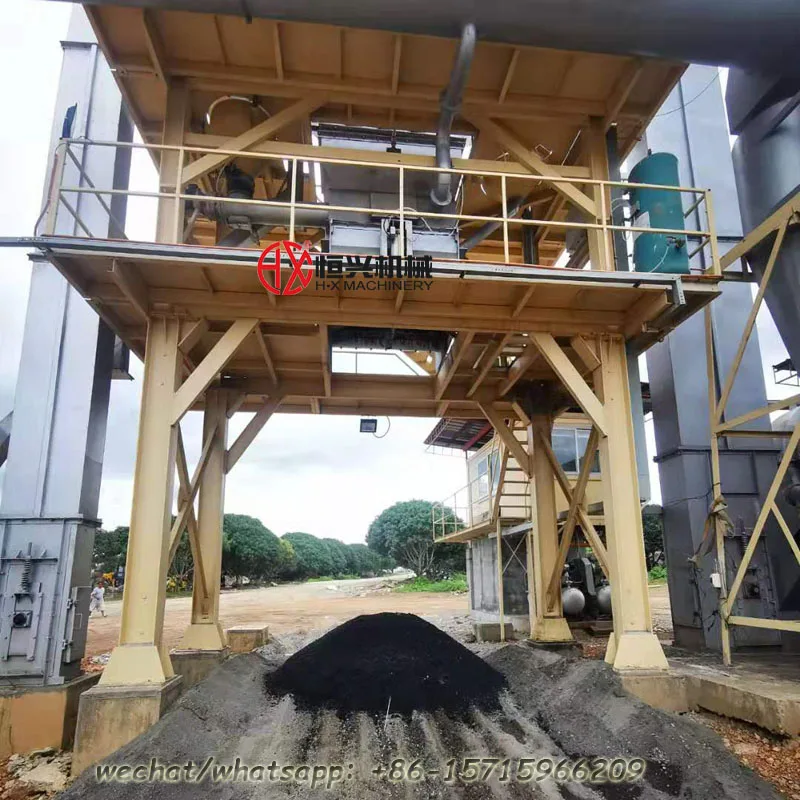

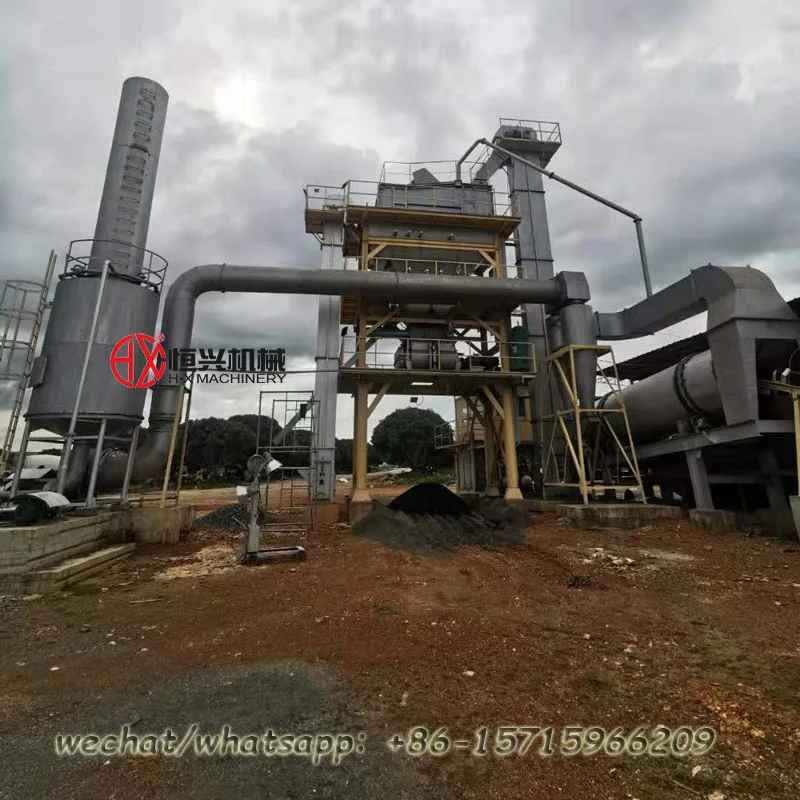

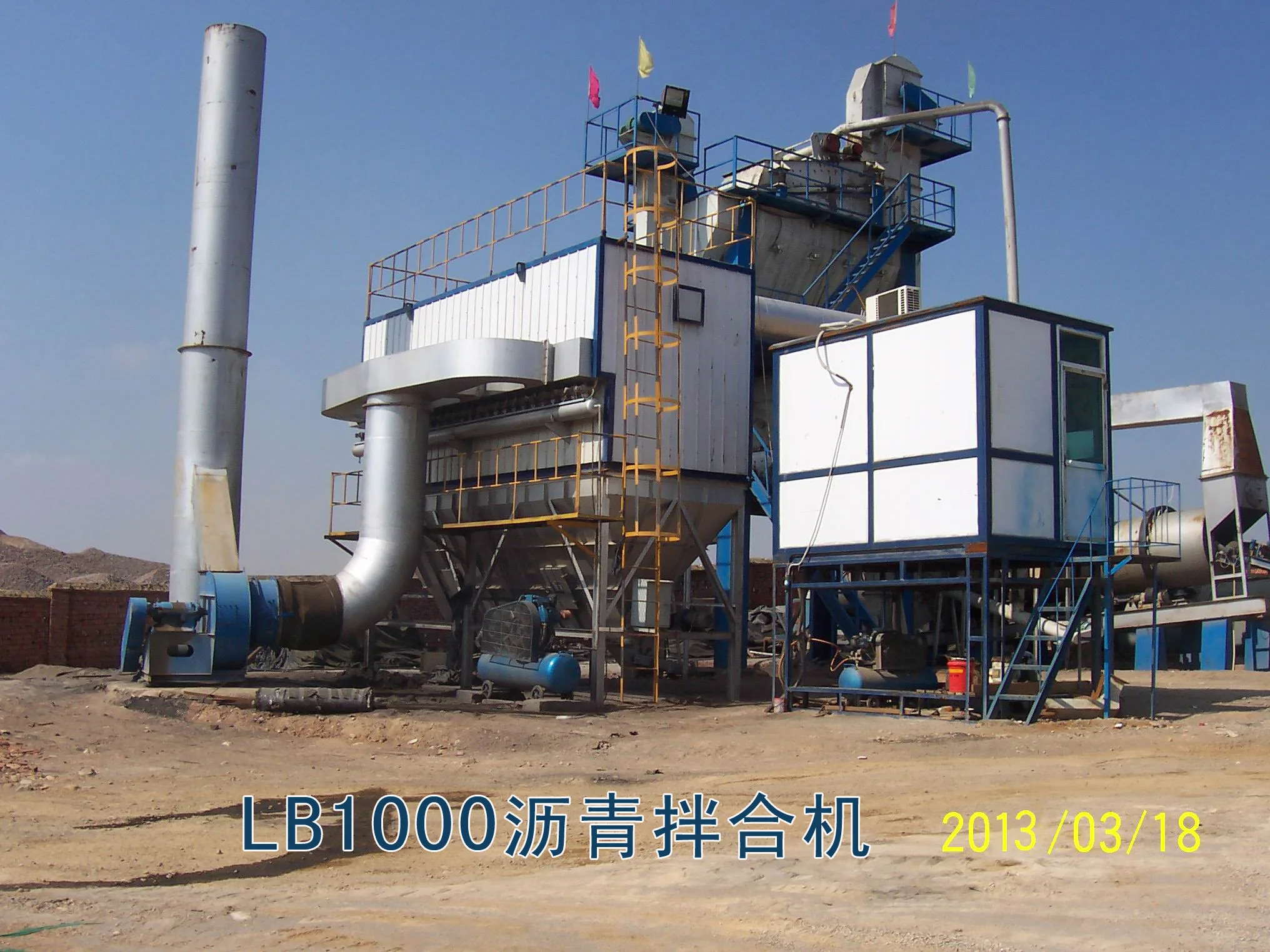

Quanzhou Asphalt Mixing Plant Photo:
Our Services
Concrete Block Machine Factory Service:
1.Pre-sale service: factory visit, plant/site plan, solving technical problems, giving configuration advice,and supporting revenue analysis.
2.Sale service: door-to-door installation, on-site training operation technology, user training mechanical and electrical maintenance personnel free of charge.
3.After-sales service, guarantee the supply of spare parts, one year warranty, life-long after-sales service.
Company Information
FAQ
Machine We Manufacturing
1.Concrete Block Machine;
2.Concrete mixing plant and concrete batching plant;
3.Asphalt mixing plant;
4.Hydraulic double press block making plant;
5.Autoclaved Aerated concrete Brick making plant;
6. Foam Concrete Brick Plant (CLC plant).
Terms of Payment
Payment: 30% by T/T as initial payment; the balance 70% pay off before delivery.
Delivery Way: FOB Xiamen Port. (CIF Port available on customized).
Delivery Time: 35-40 days after receiving your 30% initial payment.
Warranty: within one year from delivery.
Quality Guarantee
1. it used the high quality Q235 steel for fixture positioning welding;
2. imported combination of sealing system for excellent protection machine;
3. Schneider electric for stable performance, save power as well. Germany technology, European standard.
4. Siemens PLC with excellent protection of control system.
Certifications
