Car body bench repair equipment for car service workshop 4000KG

Product Overview

Description

Car body bench repair equipment for car service workshop 4000KG



Technology Parameters:

Length:5600mm/6000mm/6500mm

Width:2260mm

Height:0-380-1080mm

Pulling  Capacity:100KN

Air Supply Required:0.8Mpa

Radius of  Pulling:360º

Max Load:4000kg

Total Weight:2650kg

Features:

1.Parallel self-locking hydraulic lifting platform, 300-1100mm in accordance with the maintenance of the use of arbitrary adjustment requirements, and allocation of mechanical locking devices, safe and convenient operation.
2. Flat plate and square hole working platform, the entire platform assembled by the large cutting CNC machining equipment result of the high intensity of the plane. No work blind spot.
3. Pneumatic device controlled by the mechanical self-lock part, the platform movement’s safe, and operated by high-power electric pump station.
4. The pulling towers can work platform along the track for 360-degree rotation, unique wheel rotation, the pulling towers move more stable, more flexible.
5. The unique design of the main clamps spiral movements, in the jaw to maintain the level of state, the upper and lower pole vertically movements, fine-tuning the level of all kinds of different vehicle chassis height of rapid adjustment.
6.The jaws of main clamps unique adjustable design, only two screws, the thimble jaws, a variety of auto models that the rapid clamping firm to improve work efficiency.

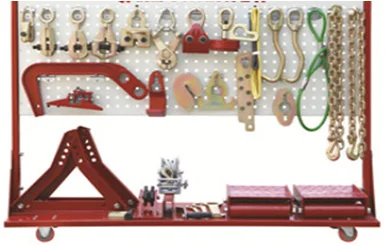

7. The tools mechanical streamline design, after metal, heat treatment process, long service life and high-intensity, almost considered all deformation correction.
8. Two-dimensional coordinate measuring bridge (PTP) Measurement of the world's most advanced, seamless breakpoint, convenient operation.
9. The global data synchronization by Mitchell and the major automotive companies to provide and maintain the latest data models.
10.Hydraulic systems by and the ENERPAC and POWERTEAM companies in the United States.
11. Second pneumatic lifting devices ensure that different vehicle chassis height fixed at more convenient
