telescopic camera mast on Small monitoring car telescopic mast camera pole

Product Overview

Description

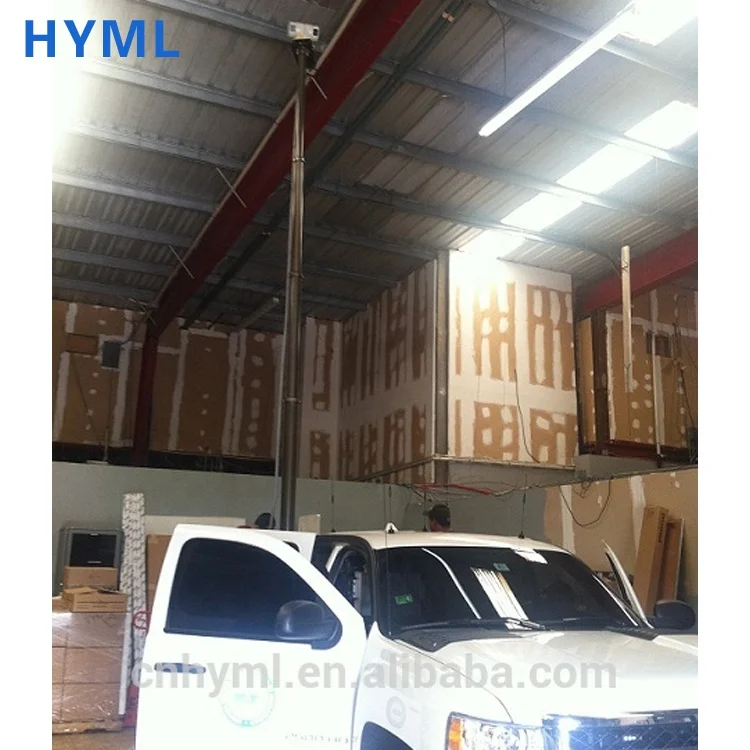

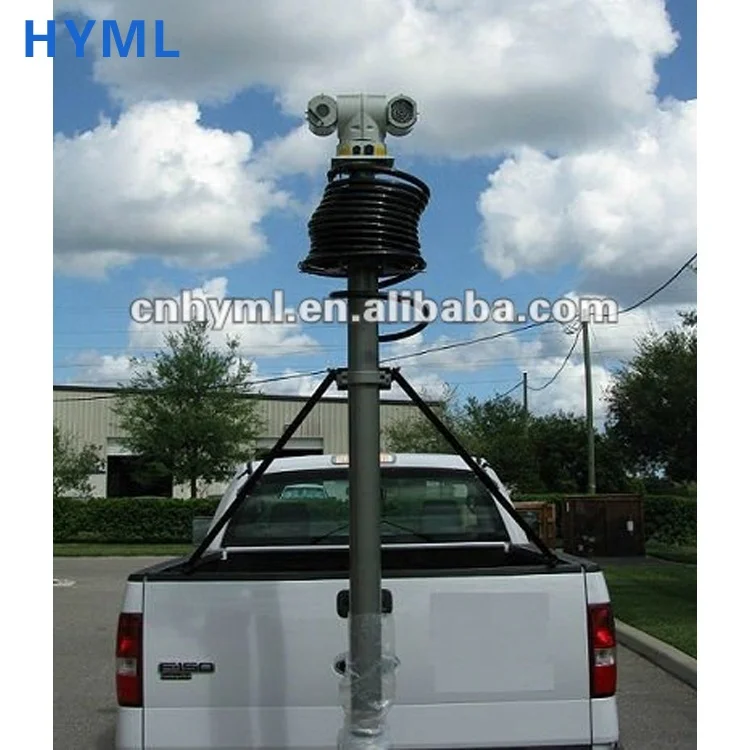

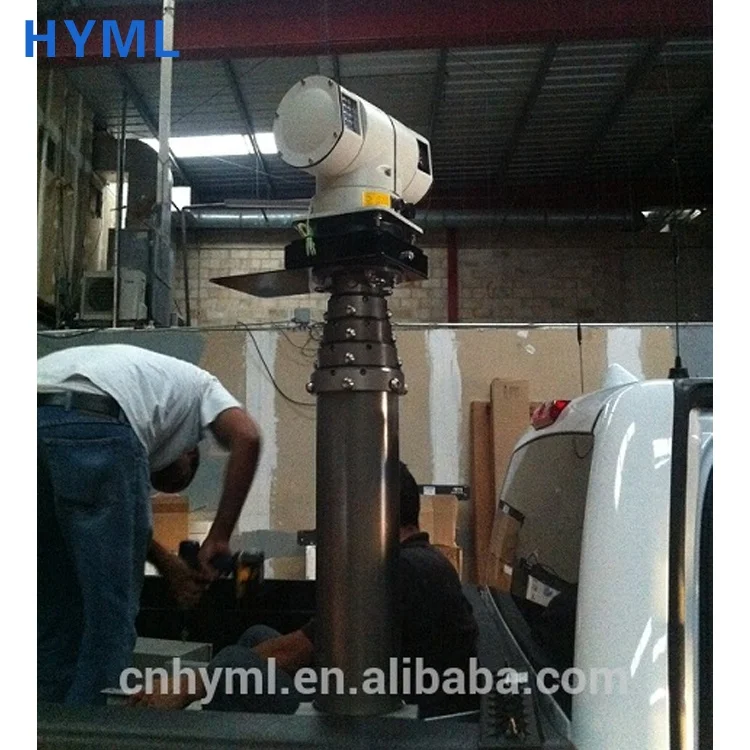

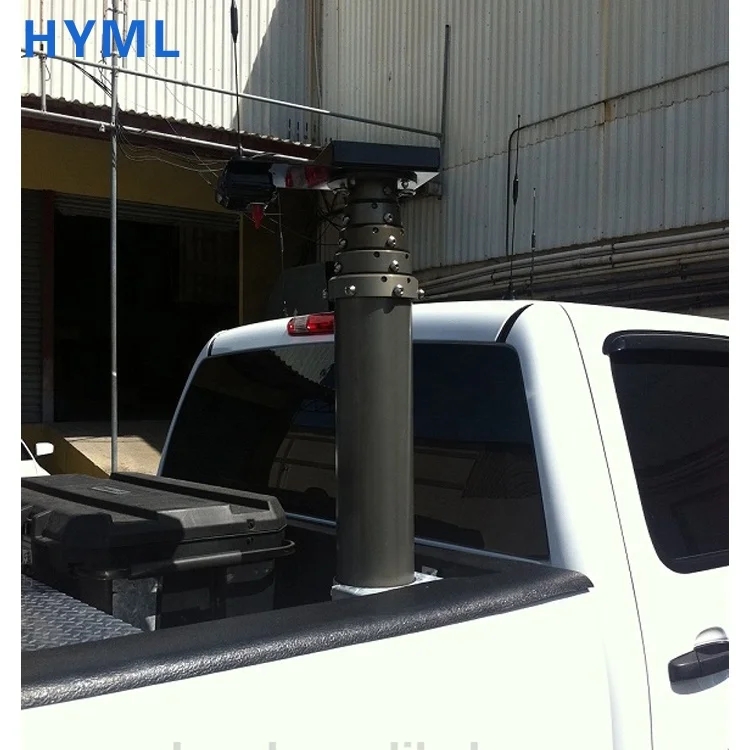

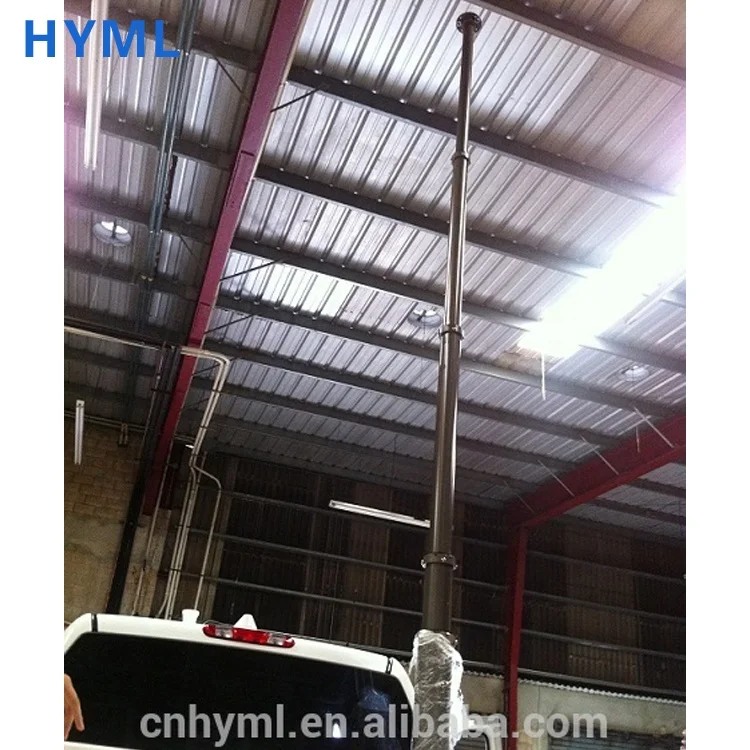

This is a small telescopic monitoring equipment which is installed in a Pick-up. The telescopic mast is mounted outside of the vehicle compartment, or mounted inside the vehicle. The vehicle compartment should be strengthened. The mast top is generally mounted a camera with its rotating head.


Common Mast
DATE:2016.1
Model	nested height (m)	extended height (m)	outer Dia. (mm)	inner Dia. (mm)	theoretical top load (Kg)
A4-110	1.2	3.5	118	60	50
A4-110	1.3	4	118	60	50
A4-110	1.5	4.5	118	60	50
A4-110	1.6	5	118	60	50
A4-110	1.7	5.5	118	60	50
A4-110	1.8	6	118	60	50
A6-110	1.2	4.5	118	30	20
A6-110	1.3	5	118	30	20
A6-110	1.4	5.5	118	30	20
A6-110	1.5	6	118	30	20
A6-110	1.6	7	118	30	20
A6-110	1.7	7.5	118	30	20
A6-110	1.8	8	118	30	20





Built-in Cable Mast
DATE:2016.1
Model	nested height (m)	extended height (m)	outer Dia. (mm)	inner Dia. (mm)	theoretical top load (Kg)
AN5-150	1.4	4.5	160	75	70
AN5-150	1.5	5	160	75	70
AN5-150	1.6	5.5	160	75	70
AN5-150	1.7	6	160	75	70
AN5-150	1.8	6.5	160	75	70
AN5-150	1.9	7	160	75	70
AN5-150	2	7.5	160	75	70
AN4-130	1.4	4	140	75	70
AN4-130	1.5	4.5	140	75	70
AN4-130	1.6	5	140	75	70
AN4-130	1.8	5.5	140	75	70
AN4-130	1.9	6	140	75	70
AN4-130	2	6.5	140	75	70
AN3-110	1.4	3	118	75	70
AN3-110	1.5	3.5	118	75	70
AN3-110	1.6	4	118	75	70
AN3-110	1.8	4.5	118	75	70
AN3-110	2	5	118	75	70
