Pneumatic telescopic mast and military shelter

Product Overview

Description

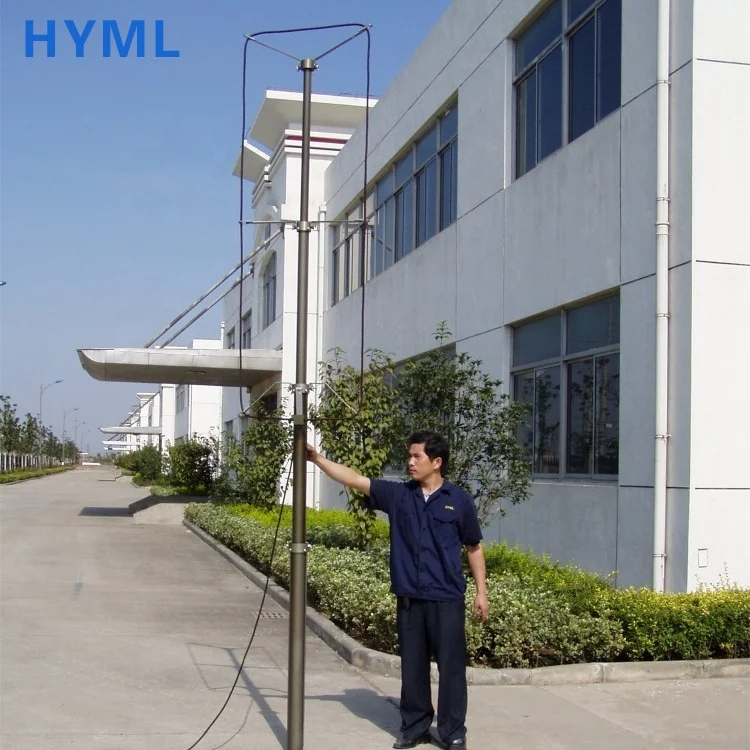

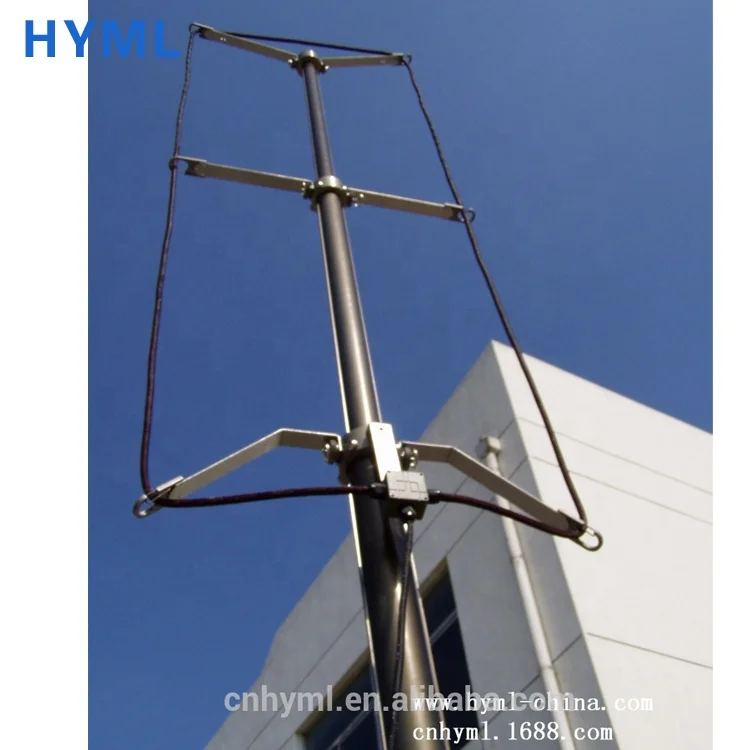

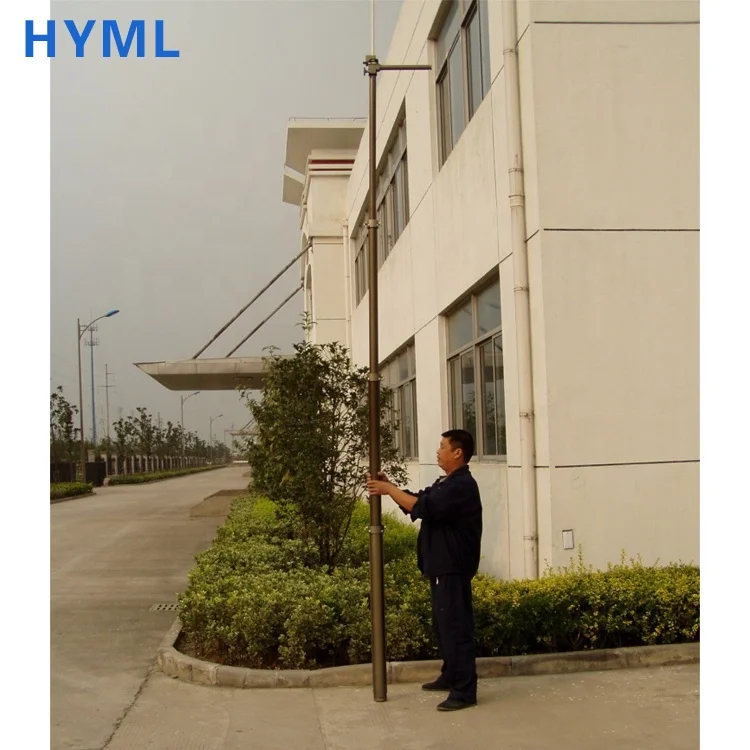

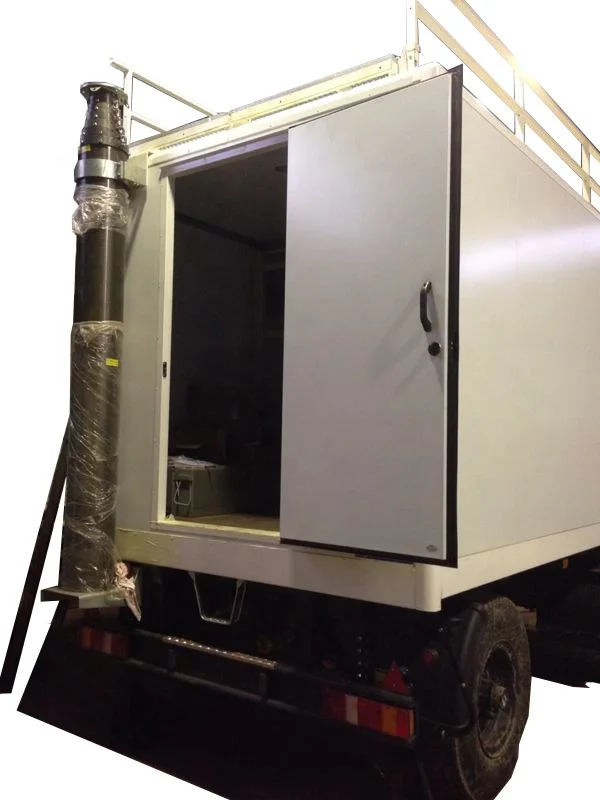

This shelter of photo provides a good working and living condition for military camping. The telescopic mast with the antenna on the shelter solves the communication problems between the camps. The shelter need the truck to transport.The telescopic mast is mounted on the shelter wall side. The mast top can be mounted many types of antenna. See Pictures.



Common Mast
DATE:2016.1
Model	h	H	D	d	L	h:nested height H:extended height D:outer diameter d:inner diameter L:top payload        If you do not find the suitable  specifications in the table,  please contact with us, we can design for you.
	(m)	(m)	(mm)	(mm)	(Kg)
A4-110	1.7	5	118	60	30-60
A4-110	1.8	6	118	60	30-60
A4-110	2.2	7	118	60	30-60
A4-110	2.4	8	118	60	30-60
A6-110	1.6	7	118	30	20
A6-110	1.7	7.5	118	30	20
A6-110	1.8	8	118	30	20
A6-110	2	9	118	30	20
A6-150	1.5	6	160	60	30-60
A6-150	1.6	7	160	60	30-60
A6-150	1.8	8	160	60	30-60
A6-150	2	9	160	60	30-60
A6-150	2.2	10	160	60	30-60
A6-150	2.5	12	160	60	30-60
A8-150	1.6	8	160	30	20
A8-150	1.8	9.5	160	30	20
A8-150	2	11	160	30	20
A8-150	2.2	12.5	160	30	20
A8-150	2.5	15	160	30	20
