overspeed elevator limit switches
- Category: >>>
- Supplier: Suns Electric (zhangzhou) Co. Ltd.
Share on (401659906):
Product Overview
Description
| Features SND4118 Elevator parts overspeed elevator limit switches | |
| 1)Glass-fiber reinforced plastic enclosure | |
| 2)Easily interchangeable contact block | |
| 3)Galvanically separated contacts | |
| 4)Screw terminal self-lifting clamps for easy wiring | |
| 5)Positive Opening of NC contacts | |
| 6)4x90°actuator positive | |
| 7)Cable entry available: M20,PG13.5 and 1/2’NPT | |
8)Conform to EN 50047 standard | |
| Specifications: SND4118 Elevator parts overspeed elevator limit switches | |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency: | Mechanical:120ops/min Electrical: 30ops/min |
| Insulation Resistance: | >100mΩ@500VDC |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage | 10A/600V AC(EN60947-5-1) |
| UL/CUL Listed(E216958)for AC15 A600/DC 13 Q300 | |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts |
| 2500VAC for 1 min between non-current carrying parts | |
| Service Life: | Mechanically 1.5×107 (operations) |
| Electrically 5×105 (operations) | |
| Operating Temperature: | -25~+80 (-13~+176) without formation of ice |
| Humidity: | <95%RH |
Weight: | ~70g |
| Degree of Protection: | IP67 |
SND4118 Elevator parts overspeed elevator limit switches Detailed IMAGES

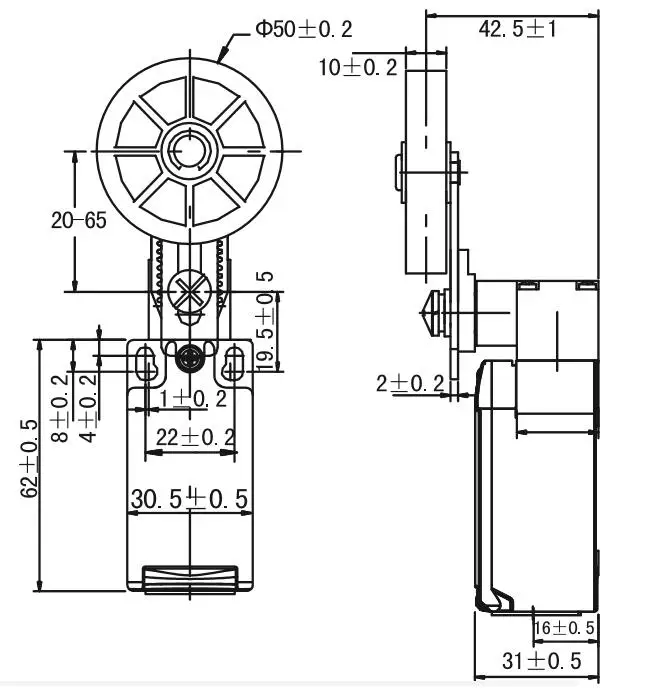

SND4118 Elevator parts overspeed elevator limit switches Drawing
Delivery Details:
FOB PortXIAMEN
Payment Terms:
TT or L/C
Minimum Order Quantity:
100 Piece/Pieces
Delivery Time:
2-4weeks
Company Information
For over 25 years, SUNS has been delivering world-class electromechanical and electric components to customers around the globe. We offer n extensive line of products critical to your application. Our focus revolves around our customers receiving precise and reliable components and the most competitive price.Our manufacturing facilities are compliant under ISO9001:2008 and all of our products are certified by UL.CSA,CE and CCC standards
FAQ
1. A:Where is your company?
Q:We are a USA company and have our own manufacture factory in Fujian China.
2. A:Do you have any certifications?
Q: We have TUV, CSA, UL, UR, CE, CCC approved, and RoHs, REACH compliance
3. A:What is your payment term ?
Q:T/T, L/C
4. A:Could I have some samples for testing ?
Q:Samples(Depends) can be sent per request on your express cost.
5. A:What is your delivery time ?
Q:Delivery lead time 2-4 weeks normally
Our Services
Our Service
· Provide wide variety of Limit Switch, Foot Switch, Micro Switch, Industrial Switch,etc.
· Offer customized solution to clients based on various situations
· Satisfactory delivery service to domestic and international clients
· Promote extended after-sale service
Advantage
· Reliable supplier/partner for dozens of world leading manufacturers
· Provide value added service and flexible
· Maintain leading-edge technology through continuous innovation
· Provide most reliable products and services
· Offer the most complete switch portfolio
· Stable work force with people-oriented management style
