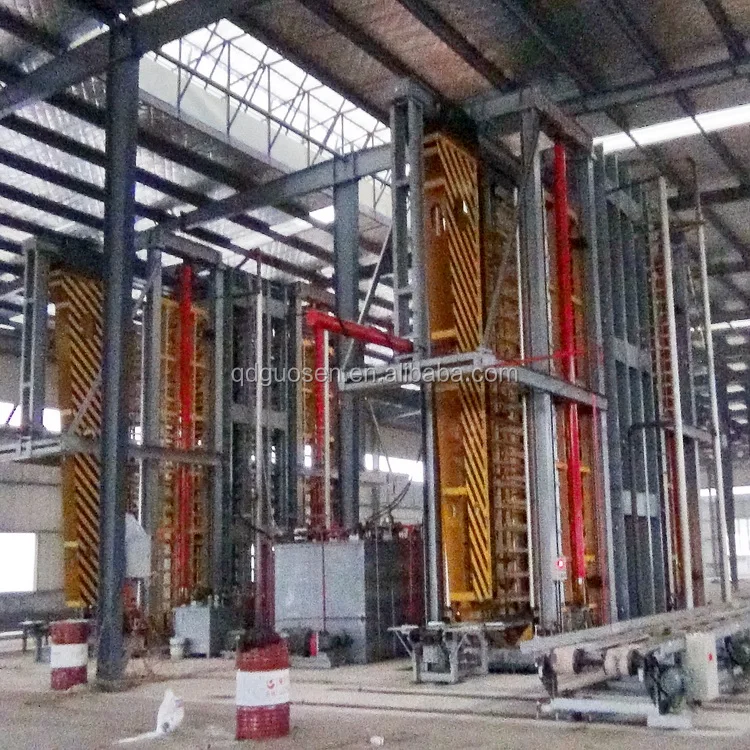

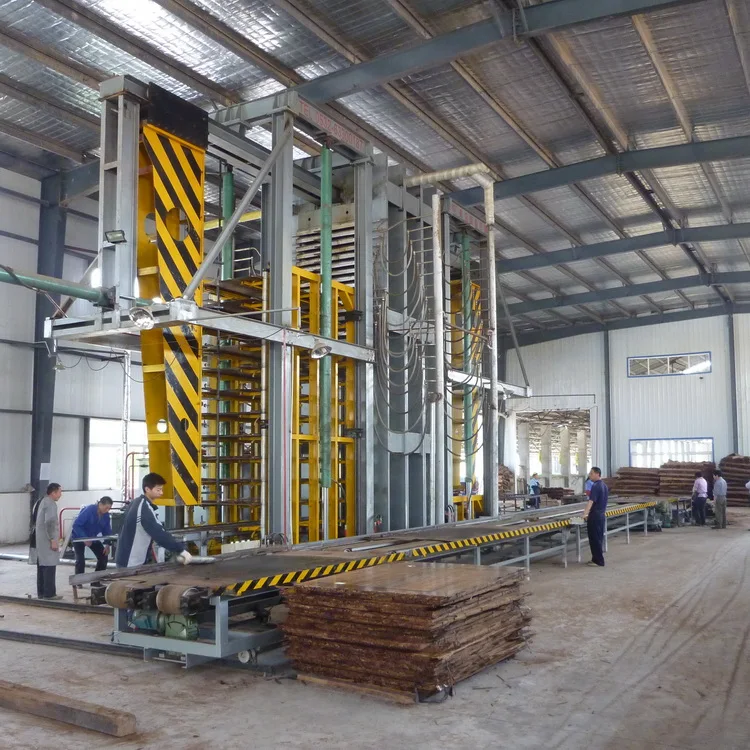

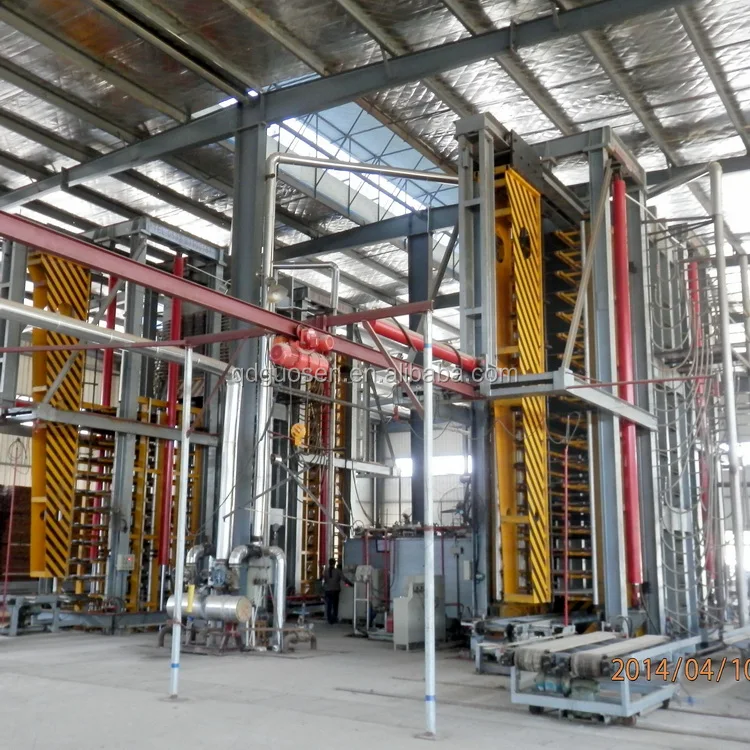

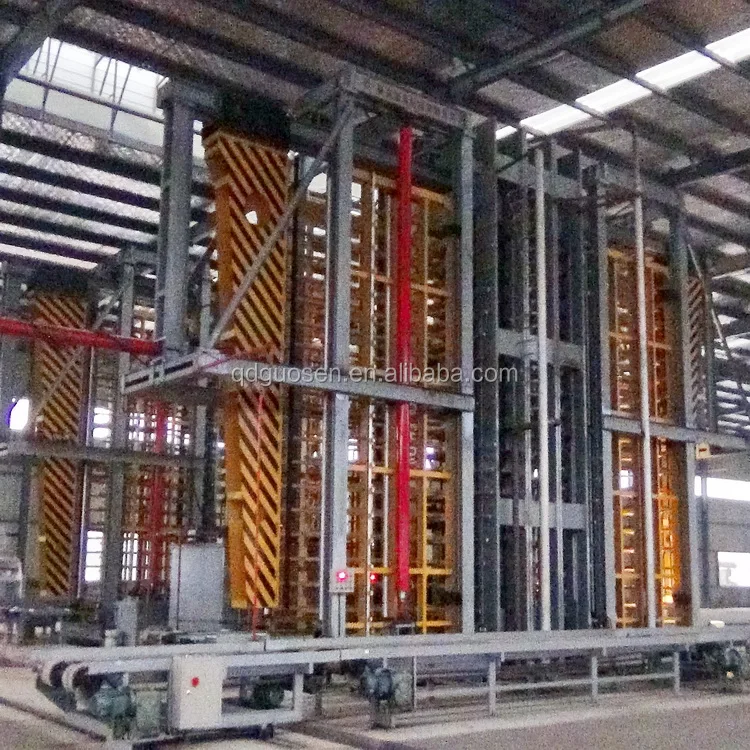

Hydraulic Hot Press for Bamboo Strand Woven Board

Product Overview

Description

Feature of the Press for Strand Woven Bamboo board (SWB):

1. The Press for SWB is of high utilization rate for bamboo material.

2. The SWB has superior  physical property and well to be processed.

3. The production process  is simple with  low  cost.

4. The SWB is friendly new material containing potentiality in development, consistent availability.

5. The SWB is applied for structure material for construction project, decoration material,

    material for furniture, flooring and etc., and even for various special application after

    mould processed.

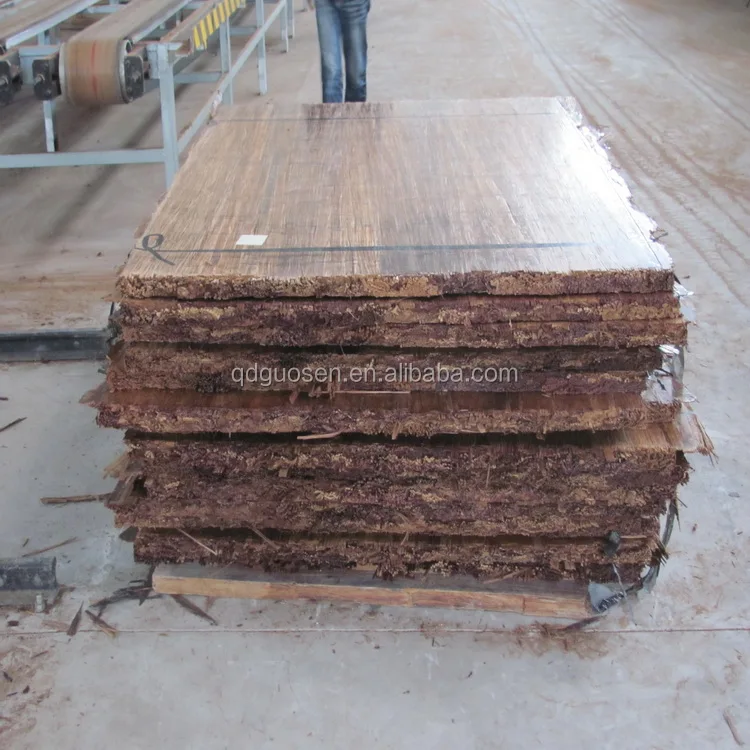

Character of hot-pressed strand woven bamboo:

1. Processes including pressing, heating and consolidation are performed at a time.

2. Blank bamboo is heated up and shaped under tremendous pressure resulting in even and

    average density distribution and no loosened edge or disorder of bamboo strand.

3. The product is suitable for outdoor application.

4. There are two heating ways, namely, fluid conduction heating and high efficiency heating.



Parameter:

model number	principal pressure in Tonnage	layers	hot platen L*W in mm	daylight opening
BY265*14-240/10	2400	10	2650*1400	250
BY265*14-240/15	2400	15	2650*1400	250
BY265*14-240/20	2400	20	2650*1400	250
GBY265*8-180/2	1800	2	2650*800	400
