Product Overview
Description

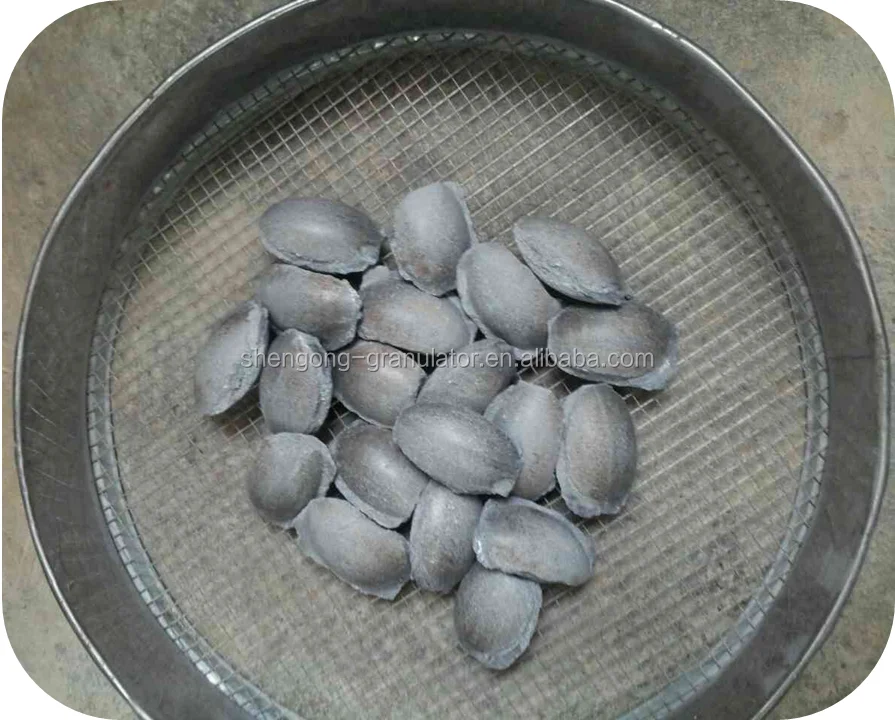

Final briquettes
Briquette machine application
We are a small factory but dedicated in only roller compactor for granulating and briquetting
Briquette machine (below parameters take FGD gypsum for instance)
Type Item | SG-360B | SG-500B | SG-600B | SG-650B |
Roller dia. (mm) | Φ360 | Φ504 | Φ600 | 650 |
Effective width (mm) | 180 | 300 | 310 | 330 |
Roller rotating speed (r/min) | 16 to 22 | 14 to 20 | 12 to 18 | 10 to 16 |
Power of feeder (kw) | 7.5 | 11 | 11 | 15 |
Pre-pressure of accumulator (Mpa) | 5 to 6 | 6 to 10 | 8 to 10 | 8 to 12 |
Max. pressure rate (kN/cm) | 55 | 55 | 55 | 55 |
Briquette's size and shape(mm) | On request | On request | On request | On request |
Briquette output (kg/h) | 3,000 to 5,000 | 6,000 to 8,000 | 8,000 to 10,000 | 10,000 to 12,000 |
Power of compacting machine (kw) | 30 | 75 | 90 | 110 |
Installed capacity (kw) | 42 | 88 | 104 | 129 |
Dimension (l*w*h) (mm) | 1,850*1,5000*1,650 | 3,650*2,250*2,500 | 3,660*2,450*2,700 | 4,000*2,600*3,300 |
Weight of feeder and compacting machine (kg) | 6,000 | 15,000 | 20,000 | 25,000 |
Production time(d) | 30 | 45 | 60 | 60 |

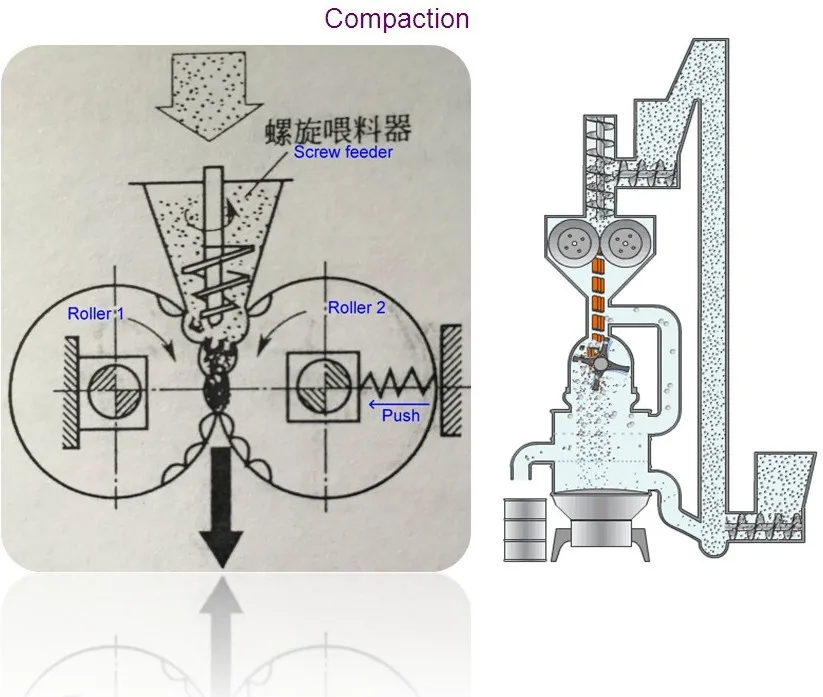

Briquette machine line principle
Difference of briquette machine type A and type B.
Briquette machine consists of screw feeder (upper taper) and double roller compactor
Briquette machine's peripheral equipments

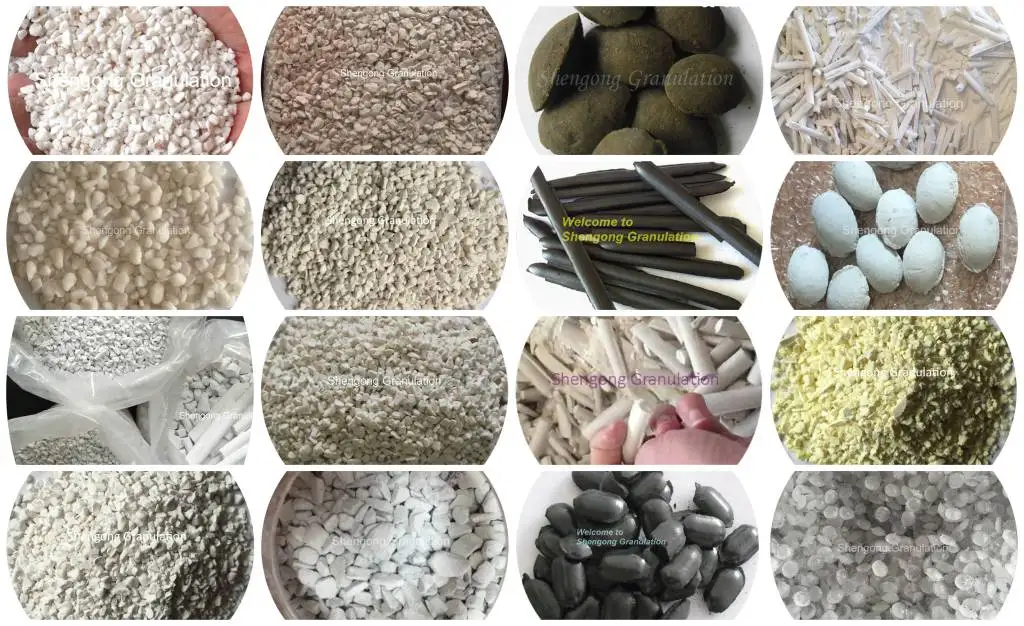

Briquette vairable shape

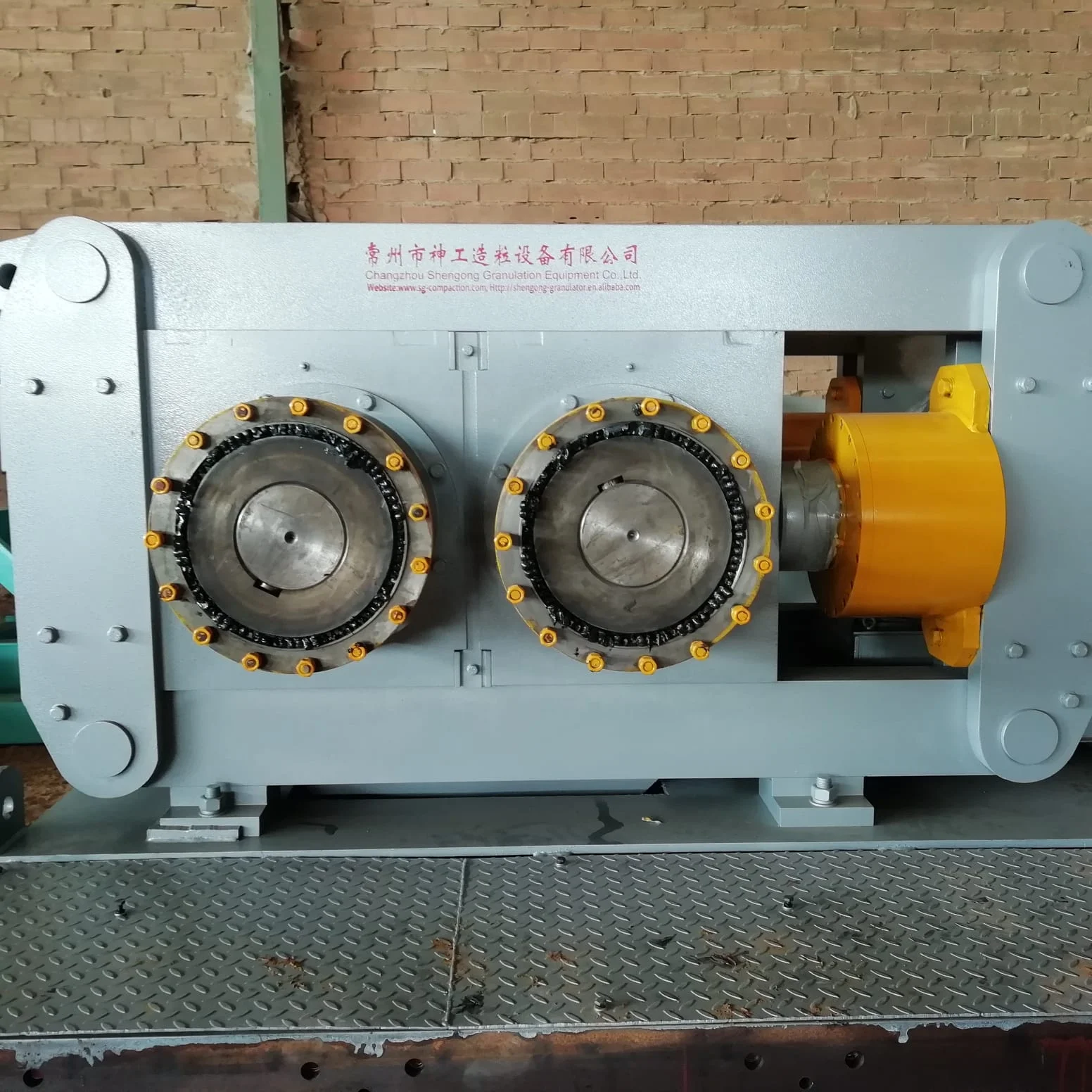

Briquette and its rollers
Briquette machine and its peripheral equipments are being loaded in one 40ft. container
