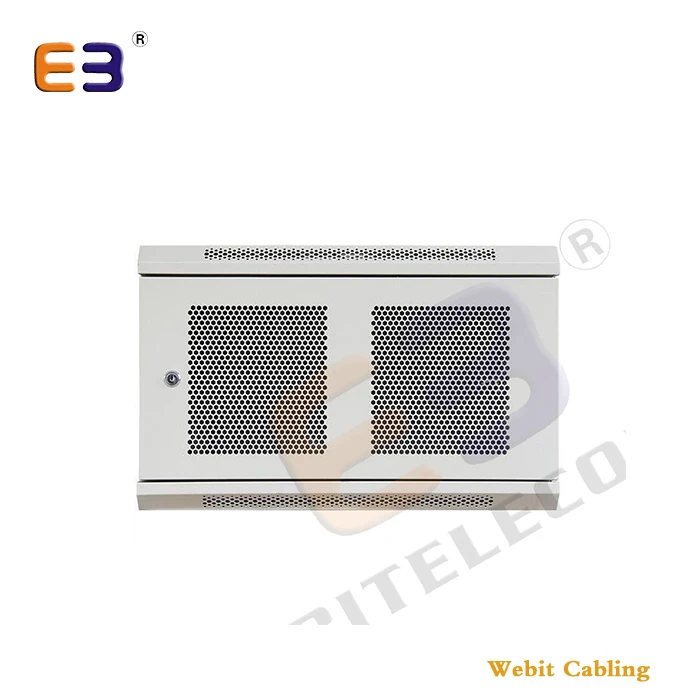

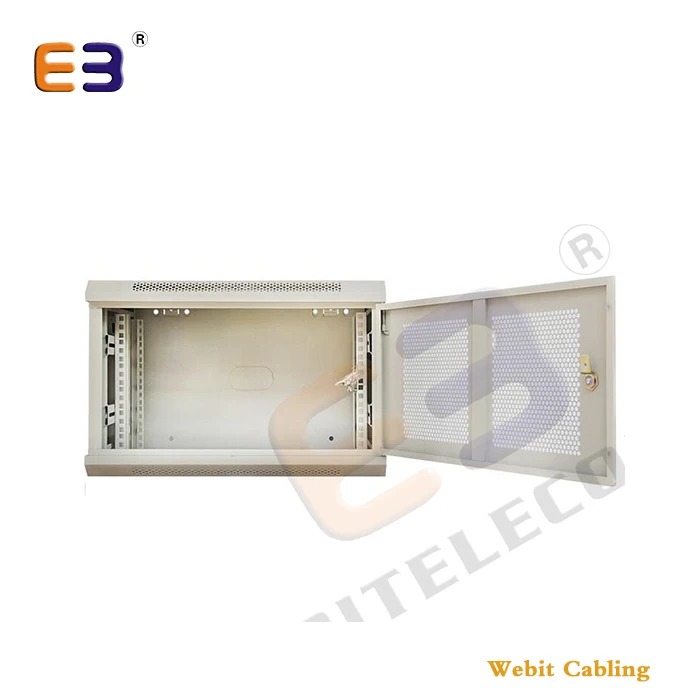

Single Section,Floor/Wall Mount Perforated Door,19' Network Wall Mount 9U Cabinet

 Single Section,Floor/Wall Mount Perforated Door,19'' Network Wall Mount 9U Rack

Features

WB-SS66095NB cabinet is intended for installation data and telecommunication devices and their distribution systems.

19" rack mountable, Single section structure - possible of max the load capacity up to 60KG.

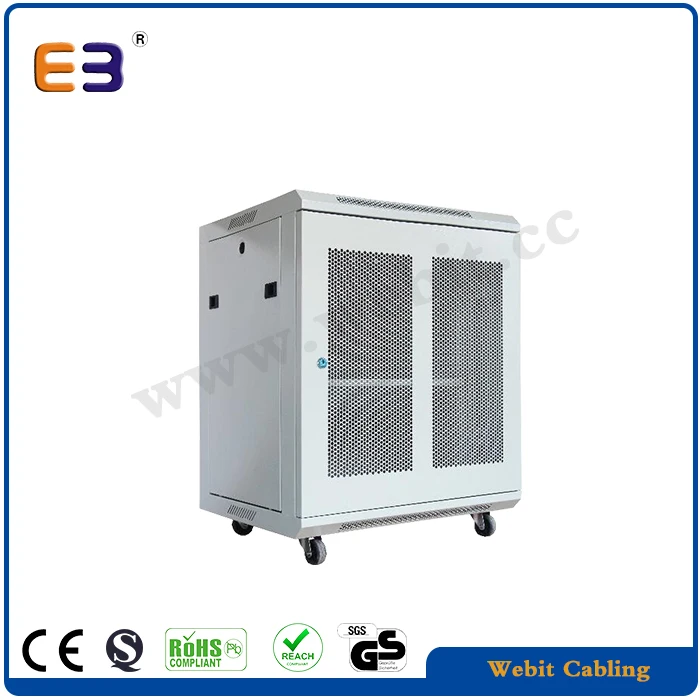

Mesh door type cabinet.

Usually used for data cabling devices.

Doors

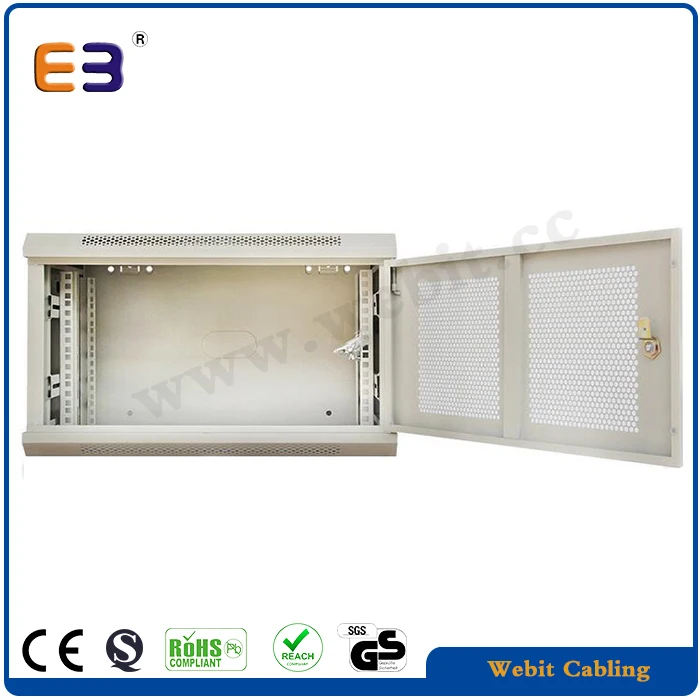

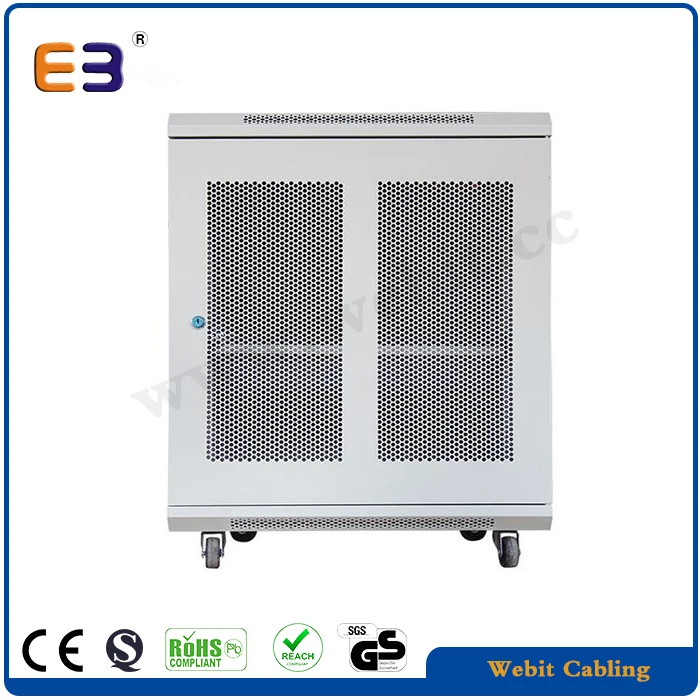

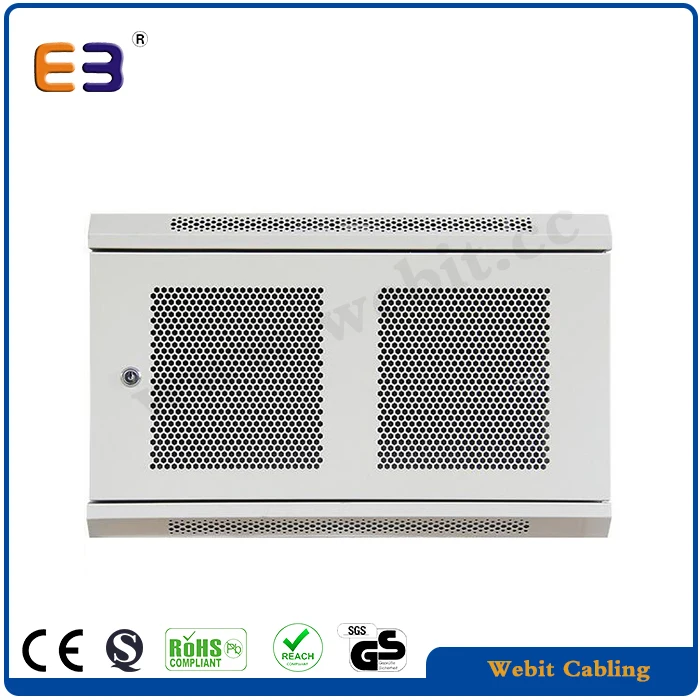

Front single perforated door with - cylinder key lock.

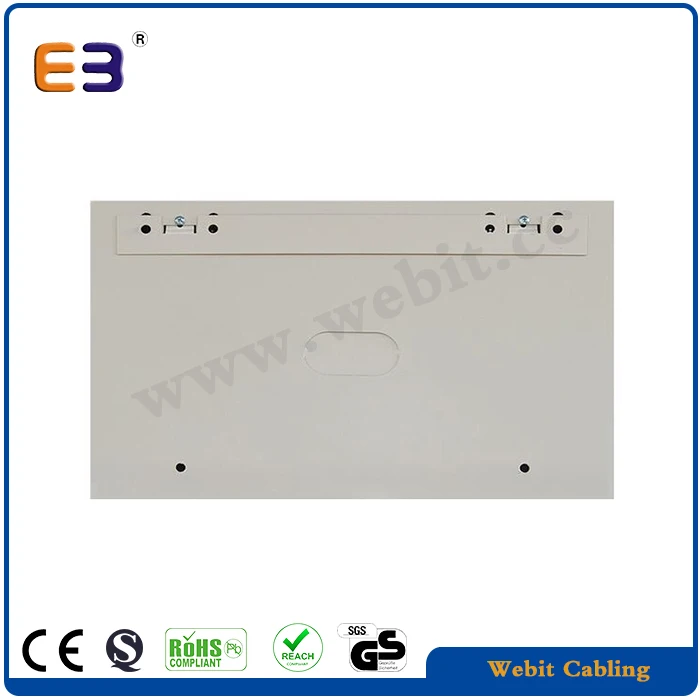

Rear solid metal panel (N/A).

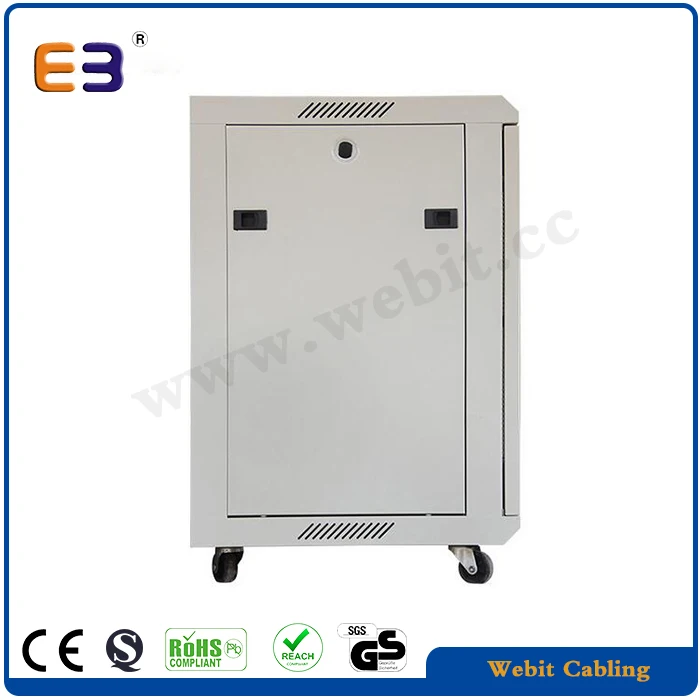

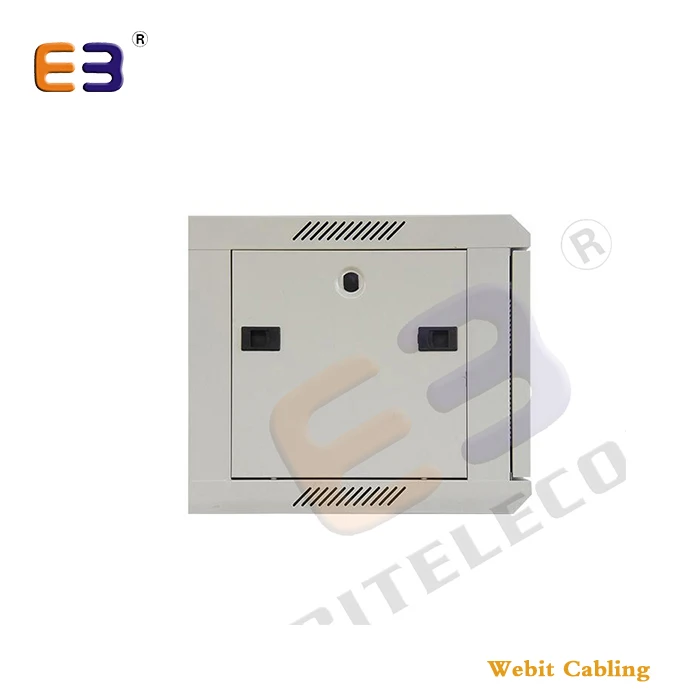

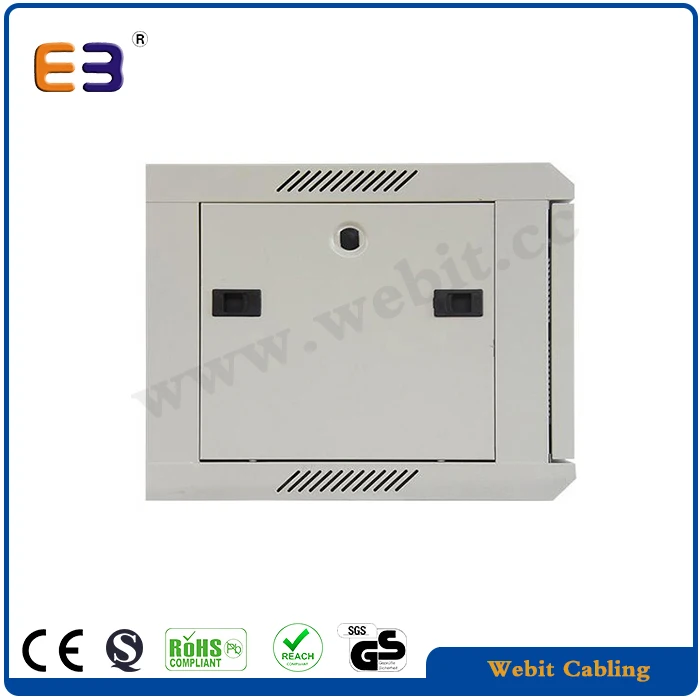

Removable side panel , quick opened latch.

Accessories

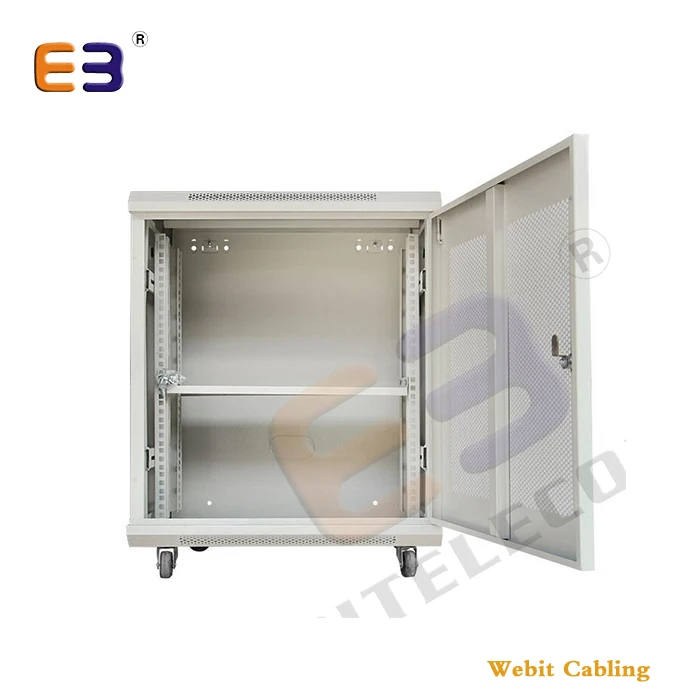

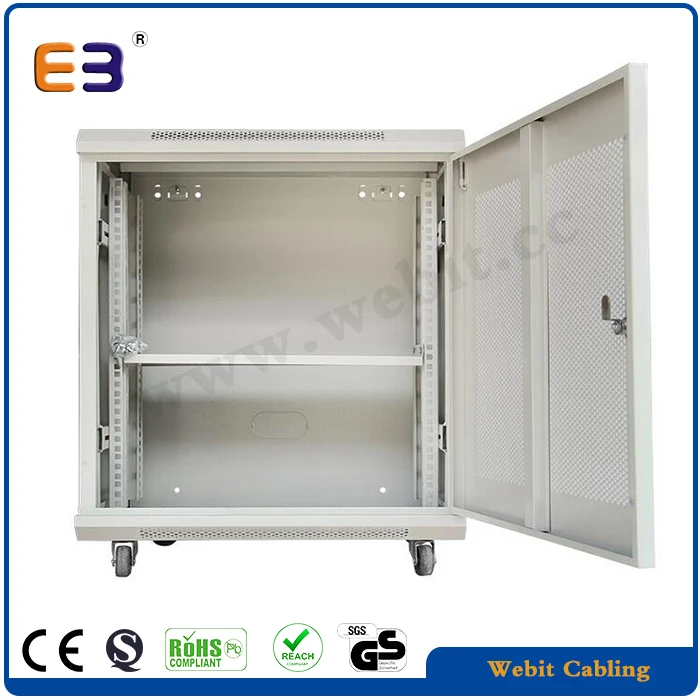

4× Position-adjustable 19" mounting rail.

1× Earthing cable

10 sets of extra M6 caged screws.

Cable entrance

Top  - 1 * 400×50mm rectangle cable entrance

Bottom - 1* 400×50mm rectangle cable entrance

Can ask for more...

Package

Disassembled packing save 66% volume , allows for convenient stocking.

Webitelecomms neutral carton box packed

Plywood pallet for options

= Varies specification upon customers' special requirements=

Size suggestions

Width: 600 mm,Depth: 600,450 mm

Height: 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U,OEM,Customized size is available

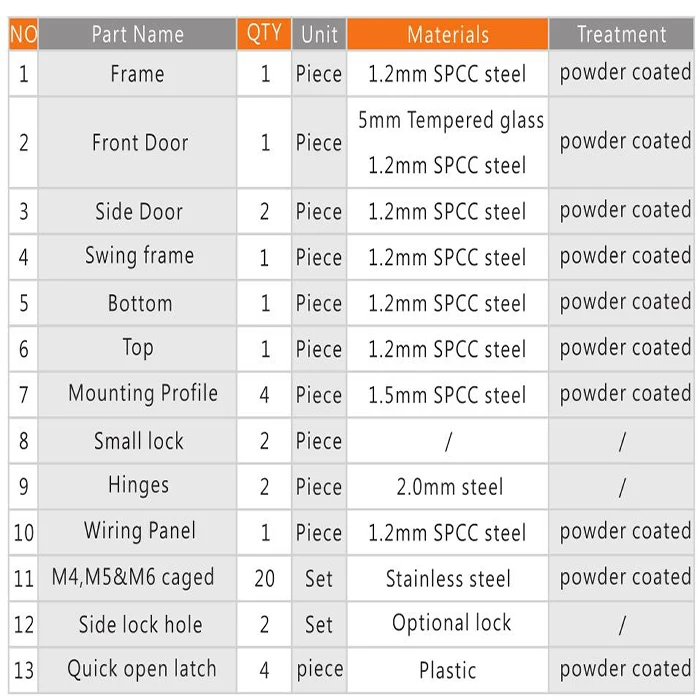

Standard and Materials:

Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.

Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel

Treatment options : Polish | Orange peal (Fine grained / Open frained )

Thickness:Mounting profile:1.5mm,others:1.00mm to 1.20mm

IP degree: IP-20

Loading capacity:
-Static loading: 60KG
Body color:RAL9004(black);RAL7035(grey),etc

standard export carton packing

Wooden Pallet+Case
