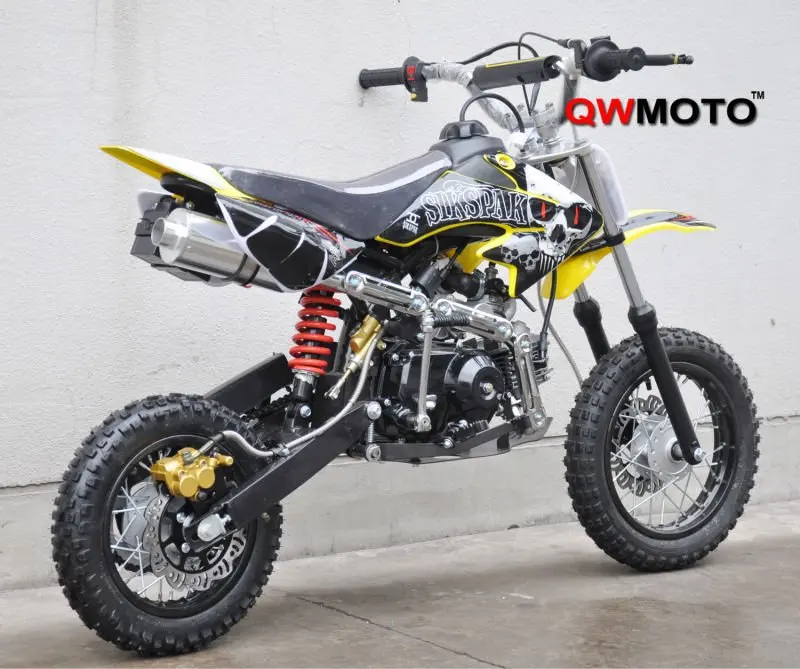

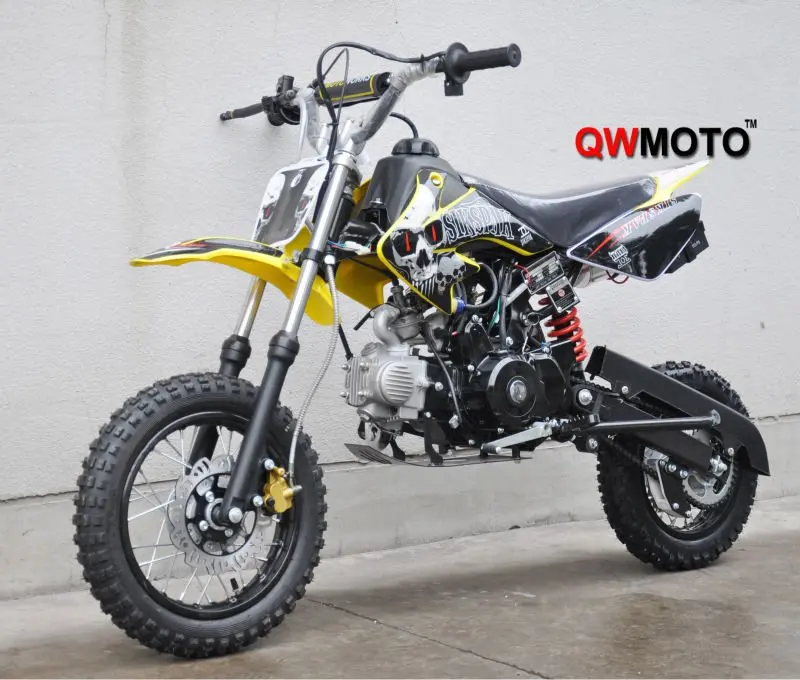

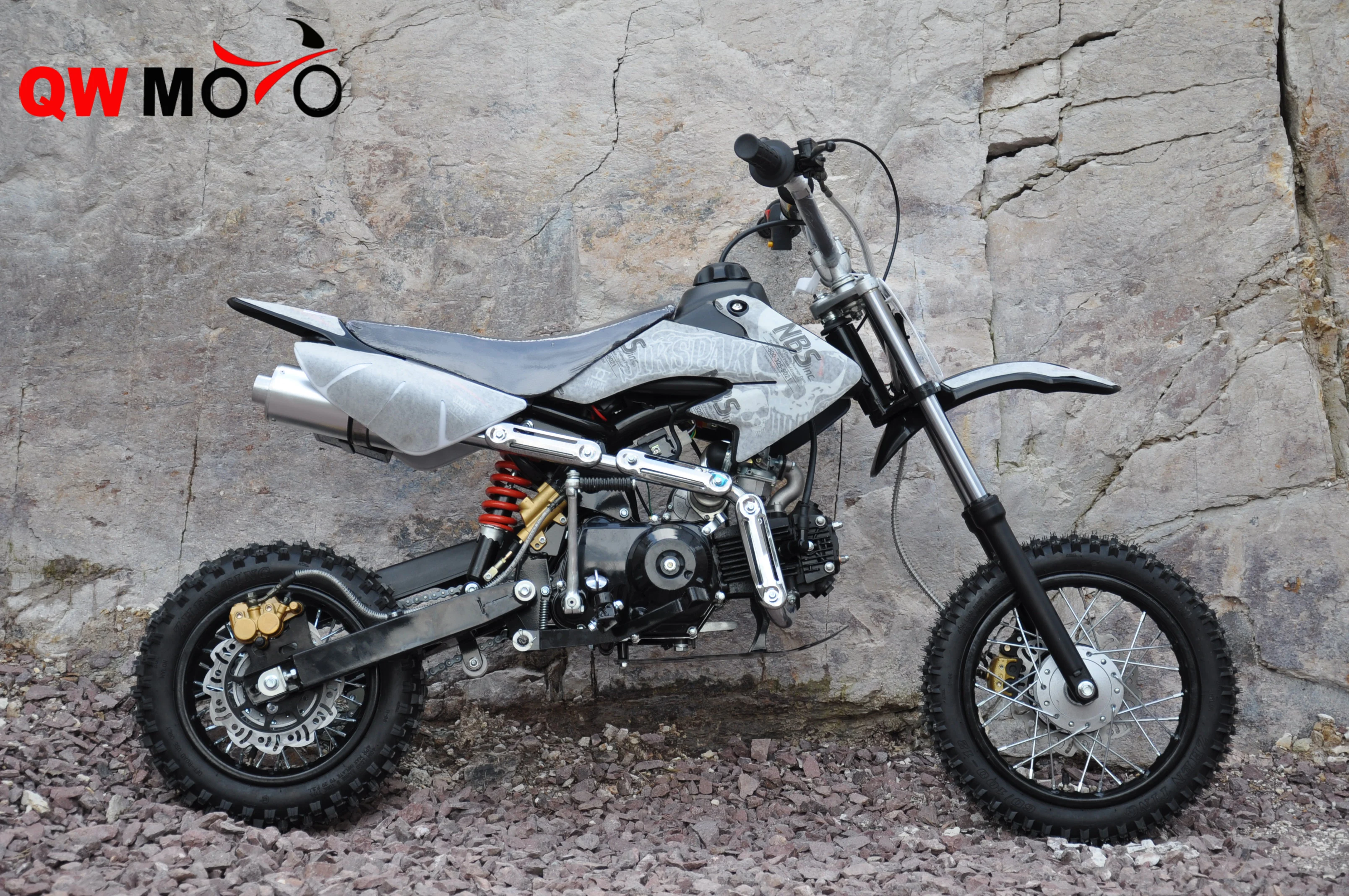

50cc/90cc Dirt Bike for kids CE

Product Overview

Description

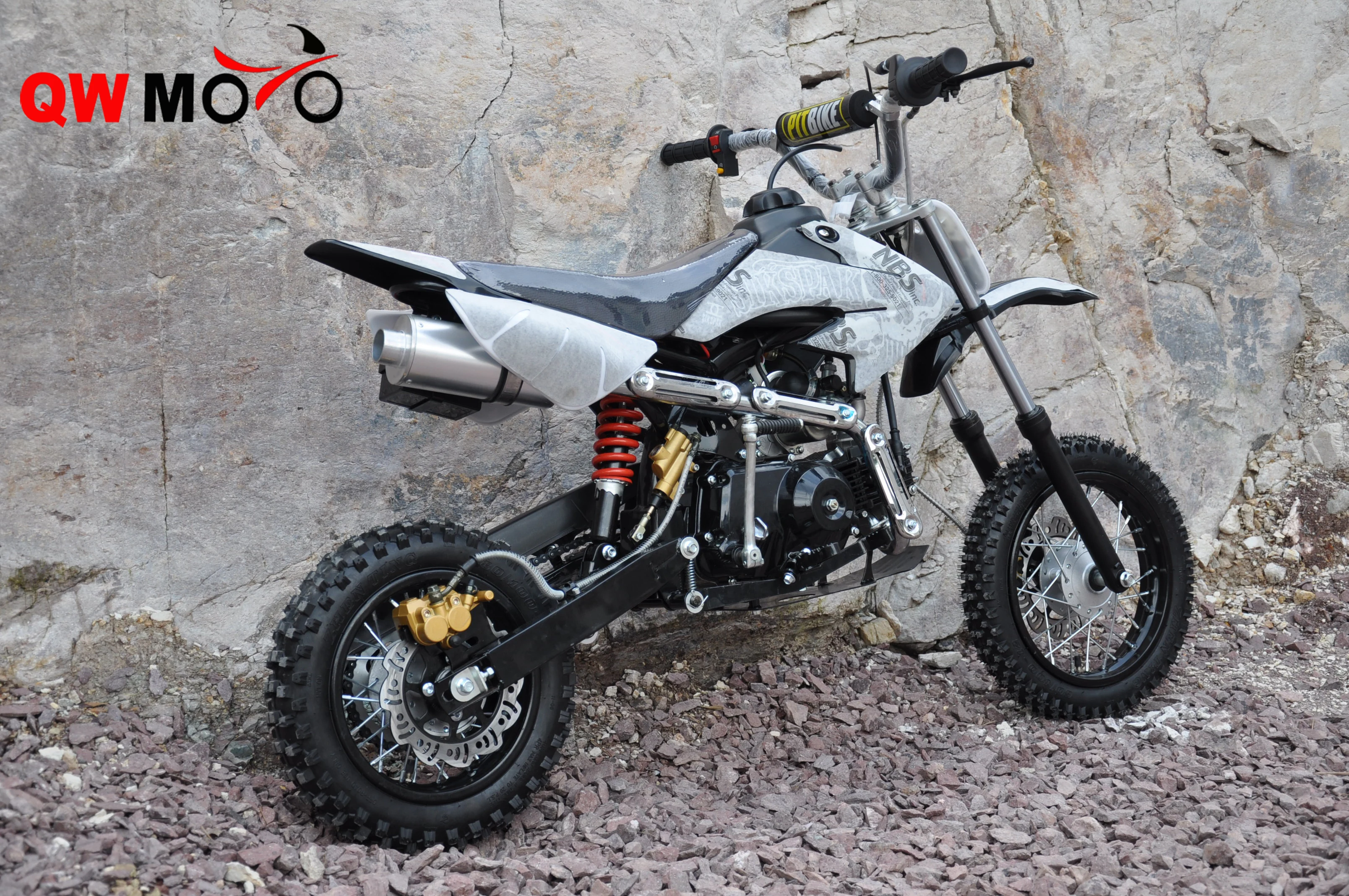

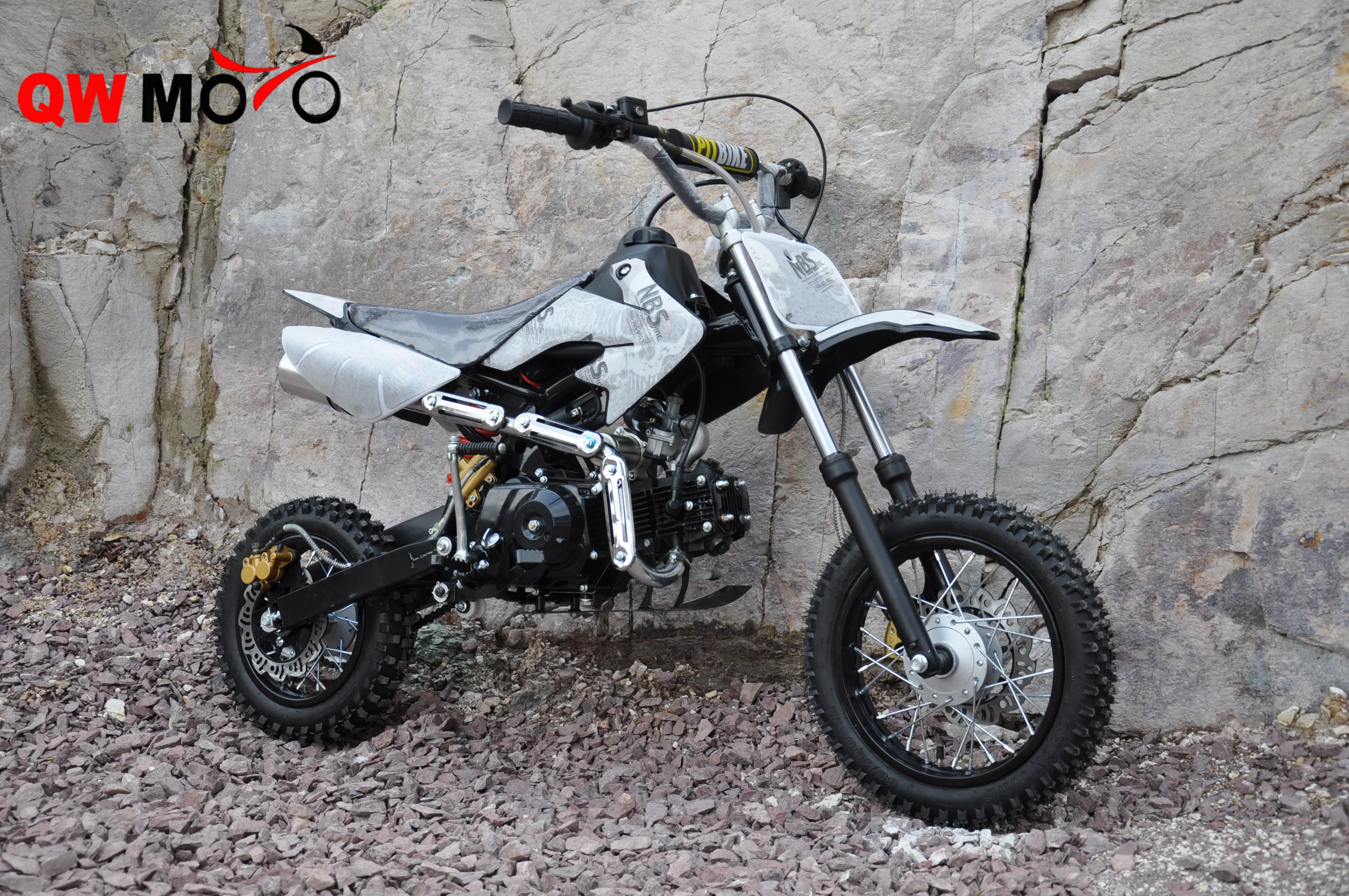

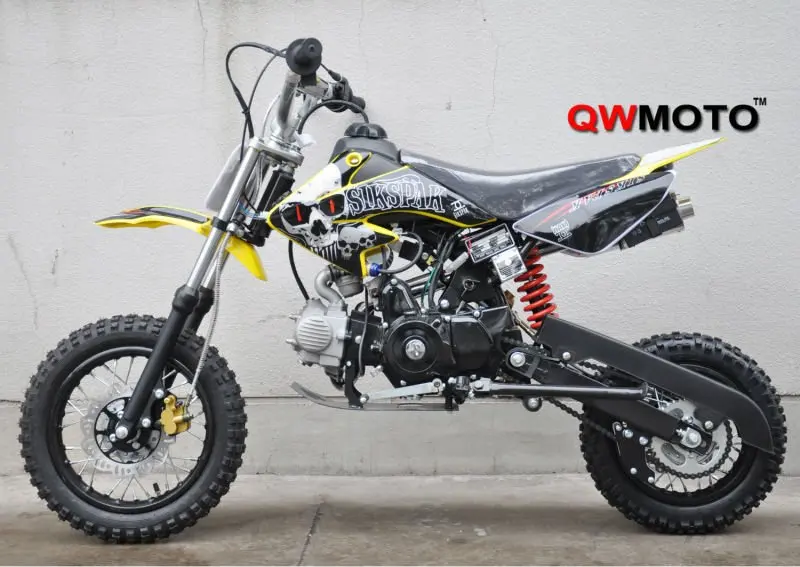

50cc/90cc Dirt Bike for kids:
1.Electric&Kick starter,4 stroke engine,hydraulic disc brakes.12&10 inch tyres.with Stickers.



Model No.:  QW-DB-03B

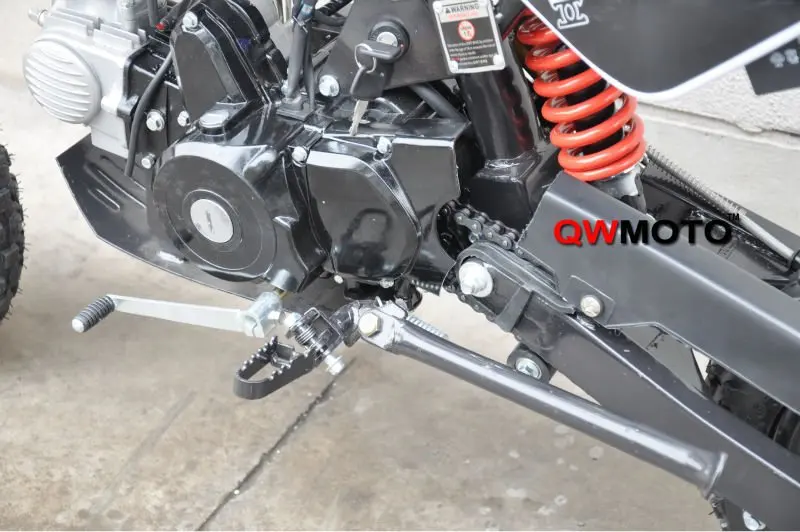

Engine: 50CC/90CC, Single cylinder,4 stroke, air cooled,
Dispacement: 107ml
Compression ratio:9.0:1
Bore * stroke: 52.4x49.5
Max Power:18/7000kw/(r/min)
Transmission: Chain drive auto  clutch
Starting system : Electric Start
Ignition: C.D.I
Battery : 12V 4.5AH
Tire: Front 2.5-12   Rear 3.0-10
Petrol tank volume:2.8(Unleaded Pretol 90 above)
Max load capacity: 125kgs

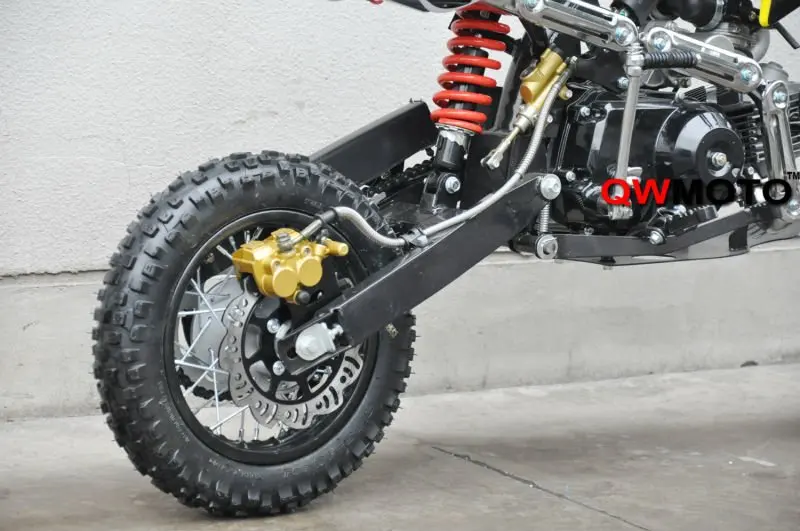

Brake system: Hydraulic disc brake
Suspension: Front hydraulic shocks, rear mono shock
Dimension:  1530mm(L)*7100mm(W)*960mm(H)
Wheelbase:320mm
Seat height:700mm
Dry weight: 60 kg Gross weight:68 kg
Carton Size:1370mm(L)*38mm(W)*650mm(H)
Conveyance Qty:
75pcs/20FT  ,   198pcs/40'HQ

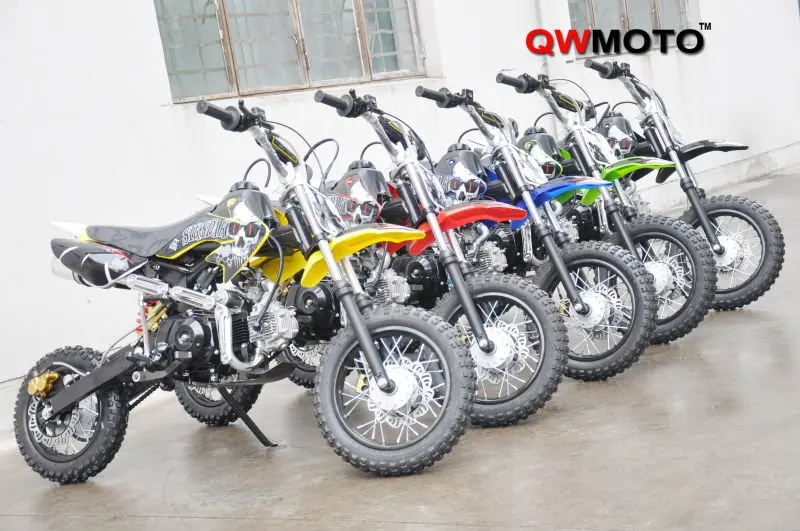

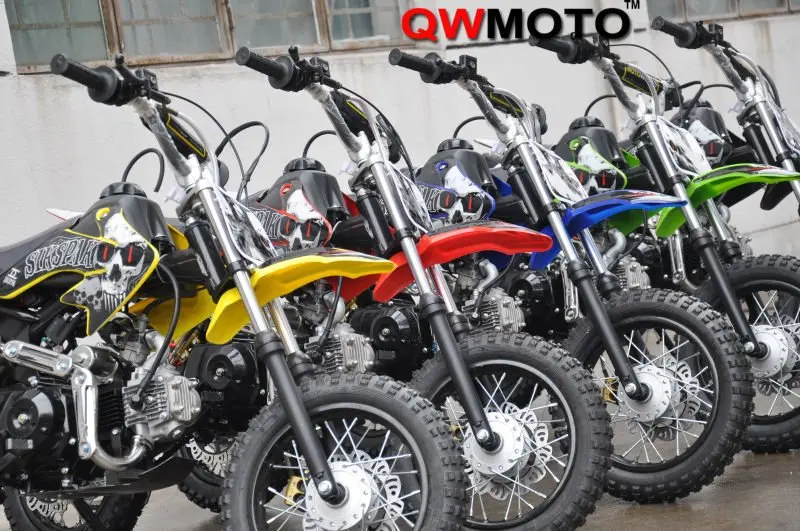

Colors available:red/black/green/blue/yellow etc..



50cc-90cc Dirt Bike H.S CODE No.:  8711201000



110cc-125cc Dirt Bike H.S CODE No.:  8711202000
