pressure die casting machine

Product Overview

Description

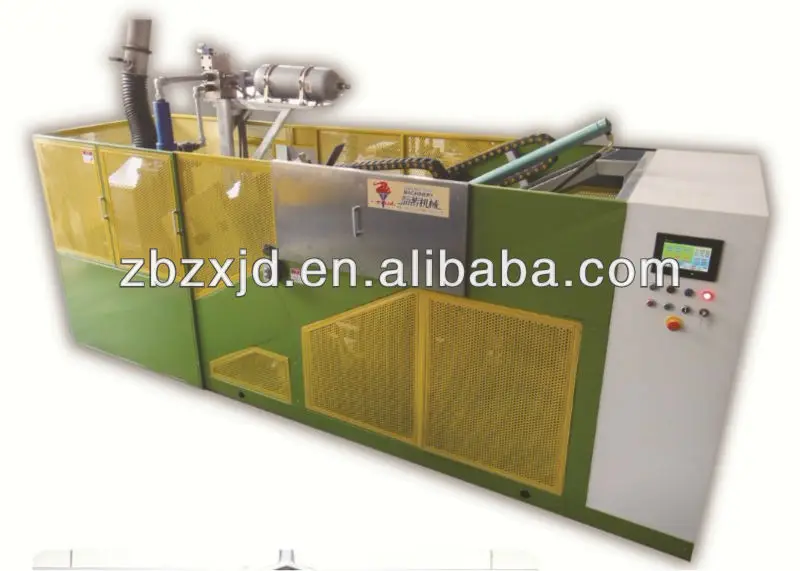

lead acid battery equipment - grid die casting machine



Application: Used for die-casting the spines for positive plates

Composition: Die-casting machine,mould,shearing machine

Spine length: ≤ 620 mm

Cooling water: 0.2-0.3 Mpa

Total power: 45 - 52 Kw



Performance & Features

1  It mainly uses hydraulic controlled die casting system with step less regulator.

2  The lead melting pot, nozzle and mould are heated by electricity, and their temperature are digitally displayed. It will alarm if the temperature gets too high.

3  Circulating cooling water flows through the cooling system of the mould. The temperature of the mould is auto-controlled and adjustable.

4  The mould is made of alloy with high strength and hardness. The working cycle of mould closing, pressing, opening and ejecting is completed automatically.

5  The imported touch screen and PLC are used in programmable control for the machine.

6  The actual processing data are displayed on the monitor. It has manual, semi-automatic, fully automatic control functions, and features dynamic demonstration and digital setting for the process parameters. It is convenient for the operators to understand the operation process clearly.



Specifications:

Parameter   Part no	Spine length (mm)	Spine Diameter(mm)	Capacity of Lead Melting pot	Total power	Production Capacity
YZJ-300I	≤350	≥1.8	1.5	46	2-4
YZJ-300KI	≤300	≥1.8	1.5	50	4-6
YZJ-300KII	≤300	≥1.8	1.5	50	4-6
YZJ-500I	≤520	≥3.2	1.5	52	2-3
YZJ-500II	≤520	≥3.2	1.5	52	2-3
YZJ-700I	≤620	≥3.2	1.5	52	2-3
YZJ-700II	≤620	≥3.2	1.5	52	2-3
