mini size display dc voltmeter
- Category: >>>
- Supplier: Shaanxi Xieli Photo Electric Instrument Co. Ltd.
Share on (405950629):
Product Overview
Description
Product Description

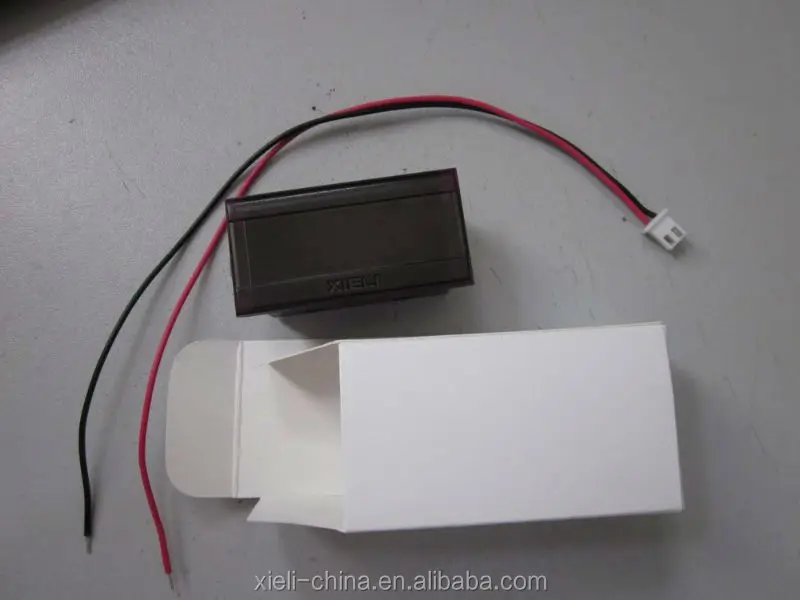

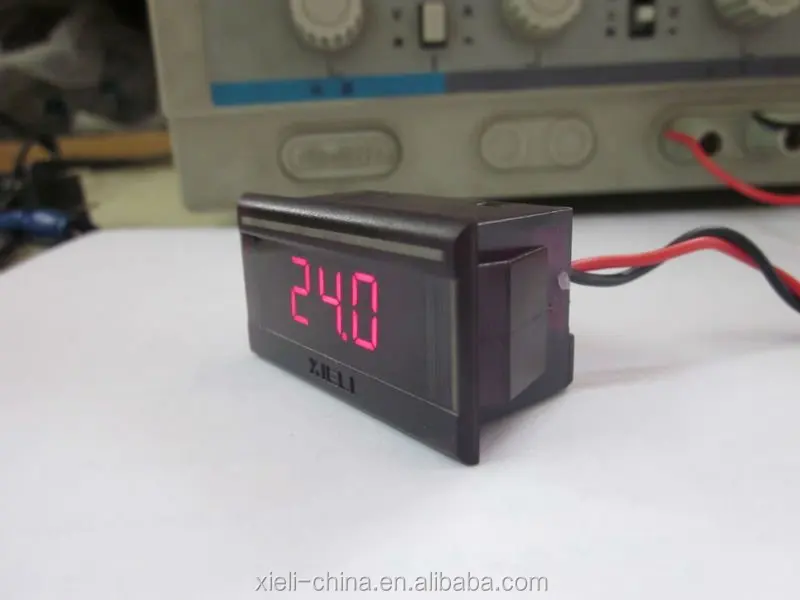

Mini DC voltmeter
Sample period: 2.5 times/S
Resolution:1%+1digit
Dimension:50*26*23mm
Mounting size:47*23mm
XL3DC99V Series mini DC voltmeter 3 digit, 0.36” LED display
Model | Range | Accuracy | Resolution | Impedance | Momentary Max. Input | Power Supply |
XL3DC99V | 8.0-30.0vdc | ±1% | 0.1V | 100kΩ | ±35V | 8.0-30.0VDC |
XL3DC99V-2 | 99.9vdc | ±1% | 100mV | 100kΩ | ±300V | 5v/12vdc, 8-28vdc |
XL3DC99V-3 | 200vdc | ±1% | 1V | 100kΩ | ±300V | 5v/12vdc, 8-28vdc |
* Data transfer display: Input 75mV/5v/10v volt display 999
XL3600, XL3DC99V series Meter Dimension: w50x h26x d23mm
Panel mounting size: w47x h23mm Mounting method: Snap-in
Packaging & Shipping
Company Information
XIELI Ltd has been founded SINCE 1994, at beginning she is a military products manufactuer, now has developed into a high & new technology enterprise which manufacture various digital panel meters for Civilian instrument & Military.
We have more than 80 employees, and the R&D team have 8 members, include ONE electronic subject Doctor.
Our Services
We can provide ODM service according to your equipment/project requirement
Please don't hesitate contact me freely :-). Philip
