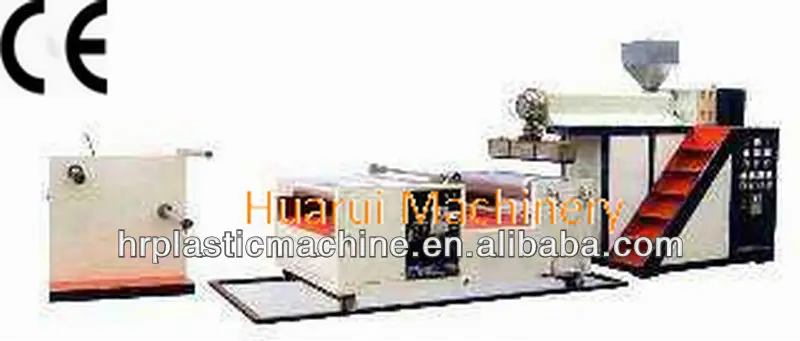

QPE series bubble machine/air bubble film blowing machine

Product Overview

Description

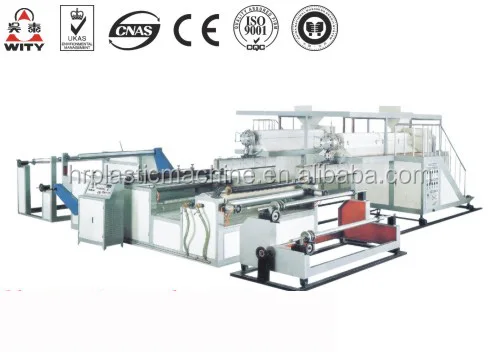

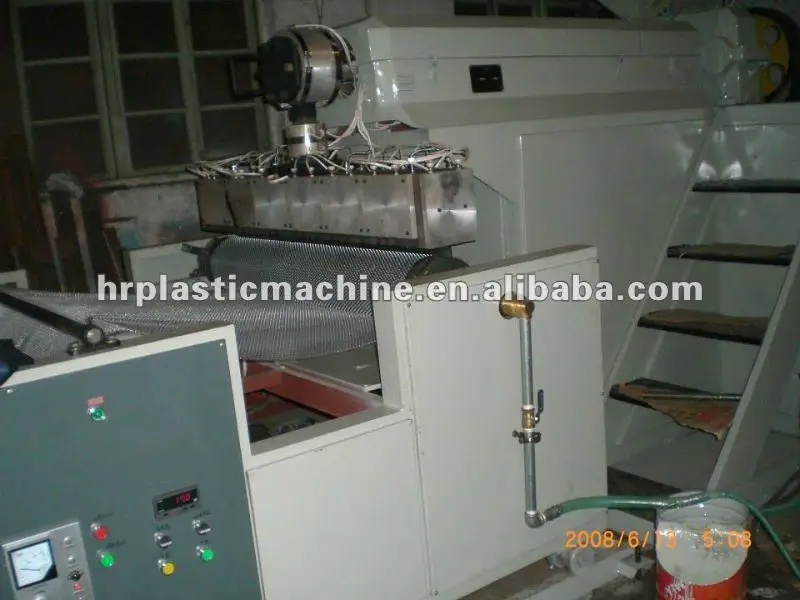

QPE-series air bubble film making machine

The air bubble film blowing machine usages

This air bubble film blowing machine adopts once-through shanping technique,has high efficiency and excellent product quality.This set has such features as scientific and reasonable structure design,smooth and reliable running and easy operation and maintenance.Polyethylene air-cushion film(also called polyethylene),which is devided into two kind:ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present.It not only has good cushioning effect,shock resistence and transparency,etc. So it has been widely used for packing, househole wares,post parcel instrument bicycle,polyethylene funiture ,etc.

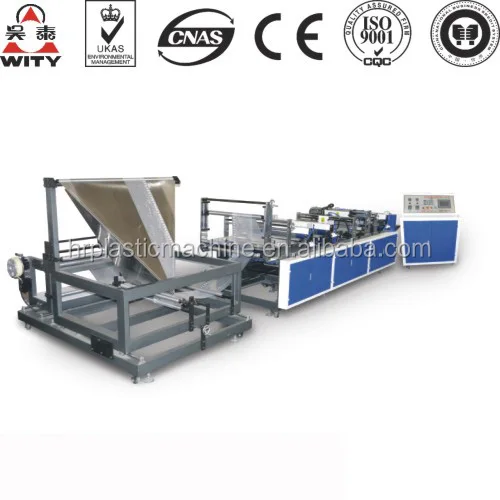

Air bubble film bag machine





Features of  air bubble film blowing machine

1.Robust and reliable.
2.Suitable for a wide spectrum of materials, including LDPE, LLDPE, and recycled PE.
3.Can produce films with various bubble sizes from ? 6- ? 32, by changing the roller.
4.Can be customized to make laminated film with aluminized film and, foamed PE sheet.
5.Index revolving winder is easy to operate.

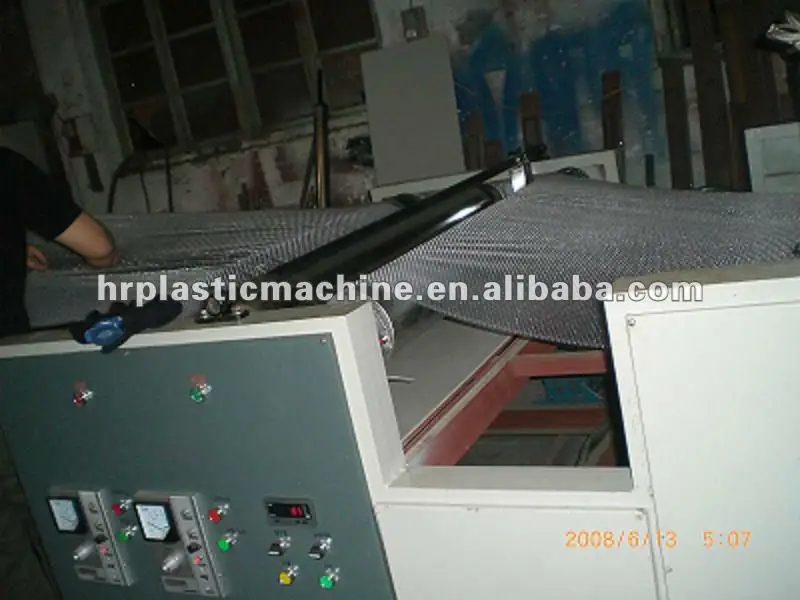

6.Strengthened chilling function with water and wind together, which greatly improved production efficiency. The strong chilling function makes the bubble more transparent and stereoscopic. The wind also dries out the film to make it ready for the next step processing.
7.Variable speed drive can greatly reduce energy consumption.
8.Line speed up to 1200m/hr.

Main parameter of air bubble film blowing machine

Model	QPE-1500	QPE-1200	QPE-1000
Screw Diameter	90mm	75mm	65mm
Film Width	1500mm	1200mm	1000mm
Output	70kg/h	60kg/h	50kg/h
Total Power	68kw	58kw	48kw
L/D	28:1	28:1	28:1

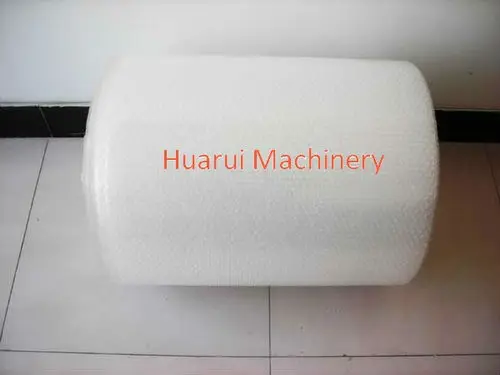

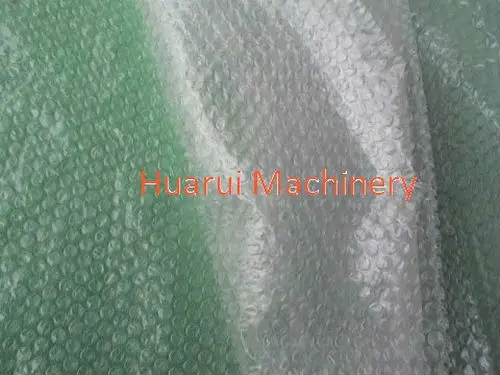

The final product of air bubble film blowing machine

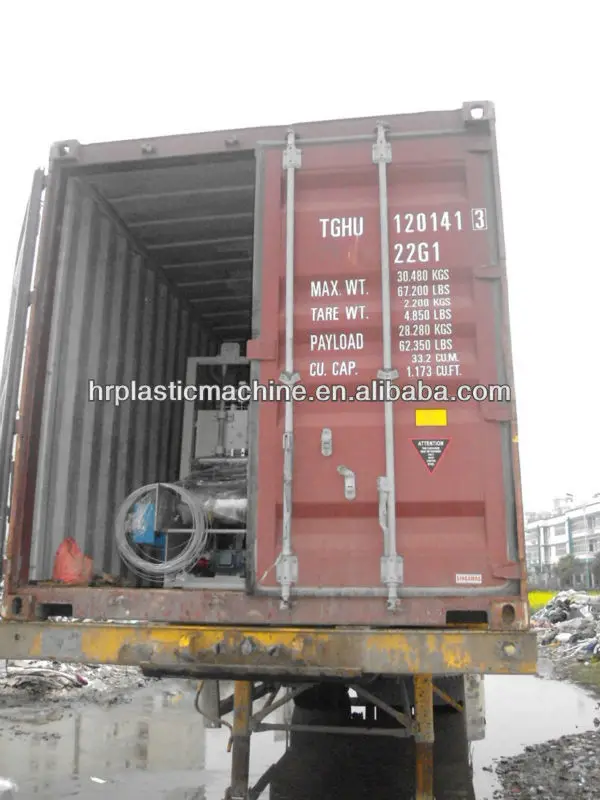

The Package:
