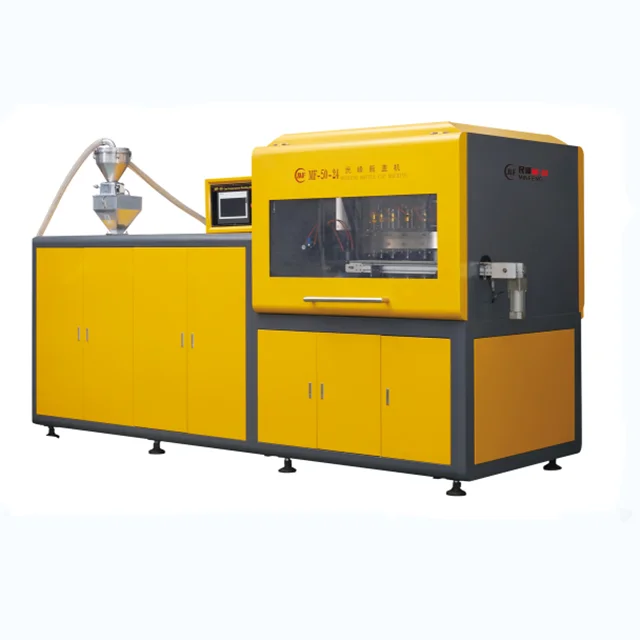

Hydraulic Plastic Closure Molding Machine

Product Overview

Description

Hydraulic Plastic Closure Molding Machine



Available from 16 cavities to maximum 48 cavities to meet your expected production capacity. If you're interested in this product, please include your business email address in the inquiry message, so we're able to send you the detailed specification and quotation soonest.





[Specification]

Number of Cavities: 16 cavities

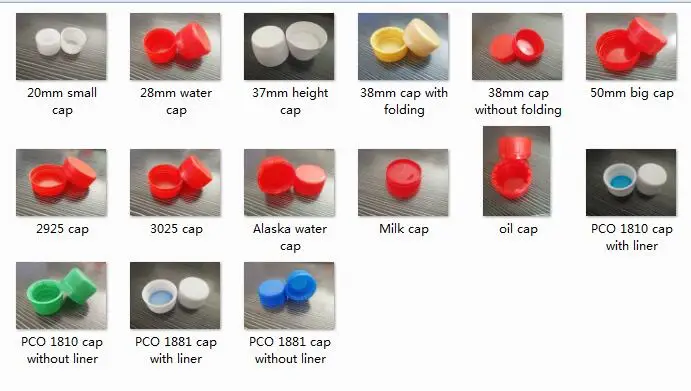

Min. Cap Diameter: 20mm
Max. Cap Diameter: 60mm
Min. Cap Height: 15mm
Max. Cap Height: 25mm
Production: 17000-18000pcs/hour
Installation Power: 30 KW (50HZ)
Working Power: 20 KW





[Features]
Fully automatic, runnerless, reducing your costs of labor and power up to 30~60%
2~3 times faster than equivalent cavitation of injection molding
Driven by hydraulic system, wearing of parts reduced to the minimum level
Key components easy to be assembled and disassembled
Stable grammage and wall thickness, consistent output
Standard components resulting in flexible interchangeability
Optimized design, user-friendly control panel, speed of production adjustable.
1 operator able to operate multiple machines simultaneously
