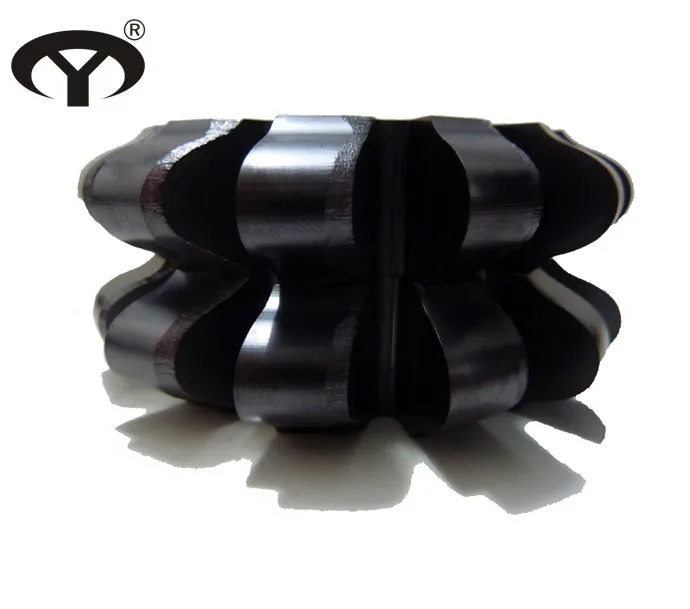

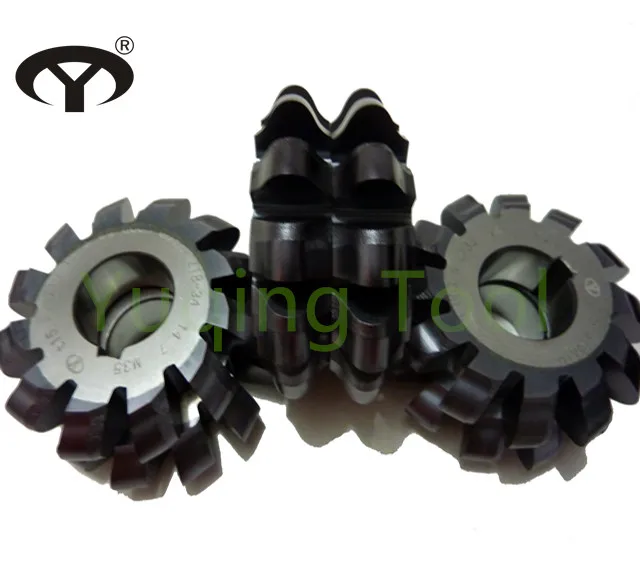

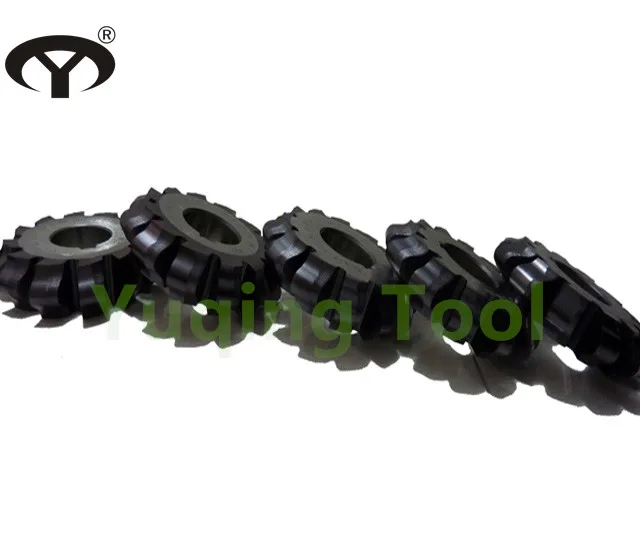

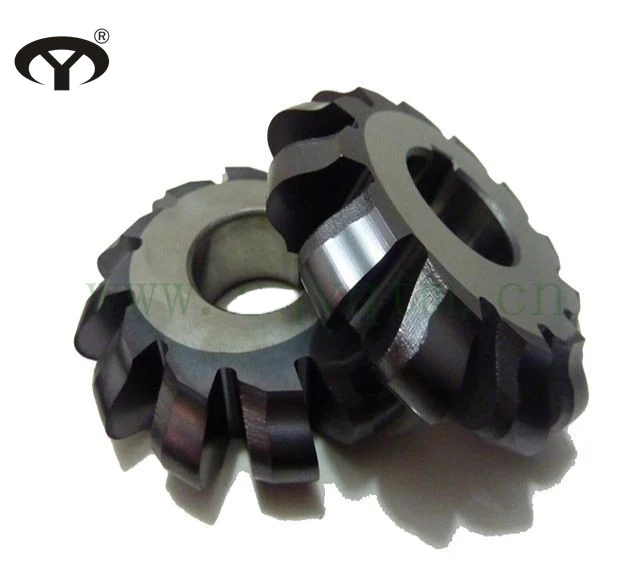

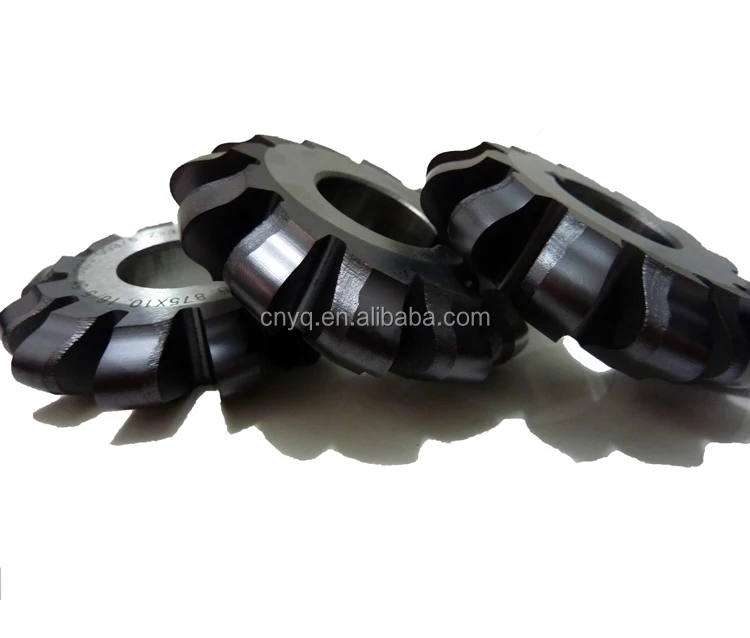

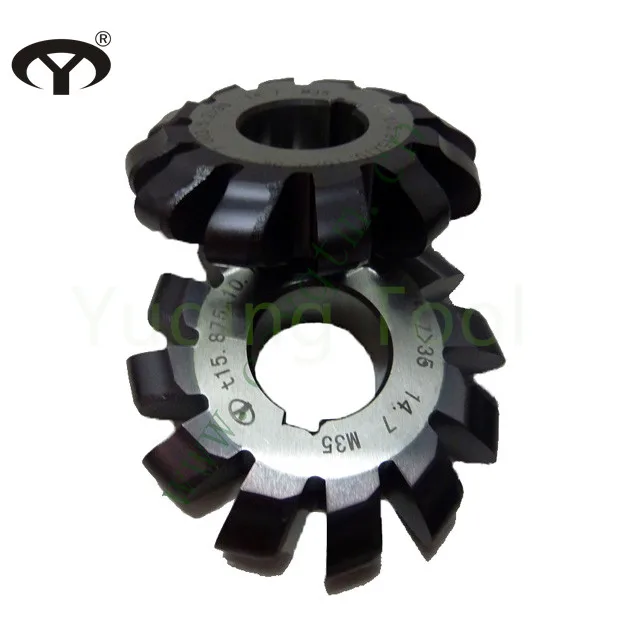

HSS W6Mo5Cr4V2 Sprocket Milling Cutter 12.7*8.51 with AP coating

Product Overview

Description

HSS M2 Roller Chain Sprocket Milling Cutter 5pcs set 12.7*8.51 with AP



 Specification table of sprocket milling cutter :



Specification		Outside Dia.	Hole Dia.
Sprocket pitch	Dia. of Rollers
9.525	6.35	70	27
12.7	8.51	80
15.875	10.16
19.05	11.91	85
25.4	15.88	100	32
31.75	19.05	115
38.1	22.23	120
44.45	25.4	140	40
50.80	28.58	150
63.5	39.68	180	50

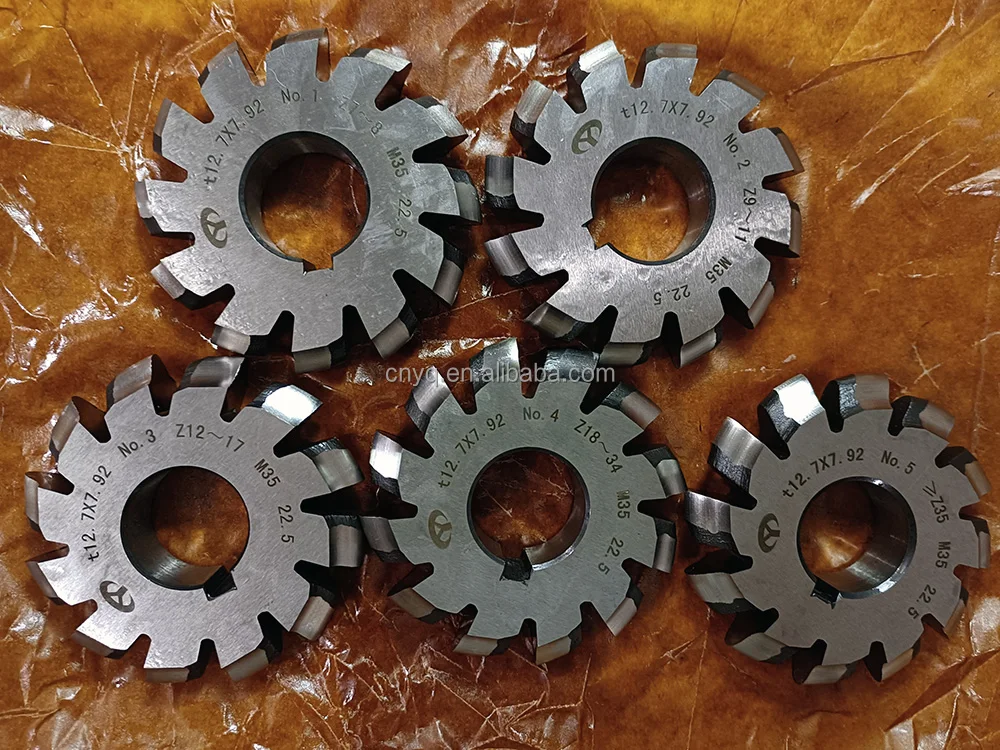

No. of milling cutter	1	2	3	4	5
No. of teeth	7~8	9~11	12~17	18~34	greater than or equal to

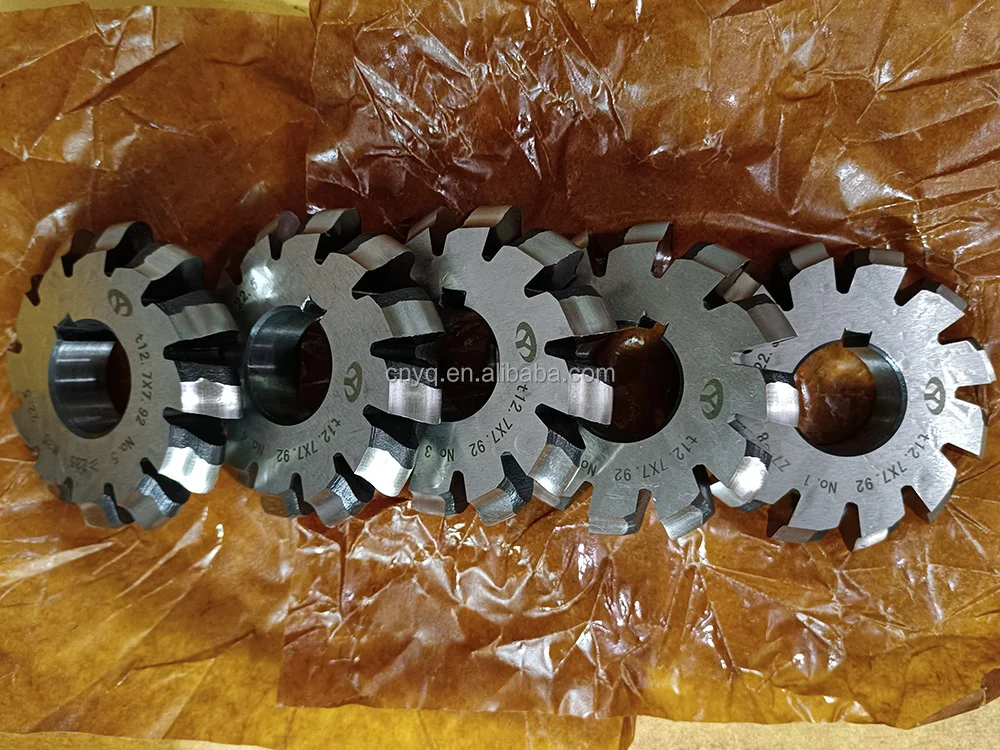

There are 5pcs of cutter per ser of sprocket milling cutter

























Milling cutter series :   Shank end mill  , keyway milling cutter , shell end mill , angle milling cutter , cylindrical milling cutter, side and face milling cutter , concave convex milling cutter , rack milling cutter , roller chain sprocket milling cutter, T-slot milling cutter, woodruff keyseat milling cutter and dovetail milling cutter.



There are 5 pcs of cutter per set of chain sprocket milling cutter , chain sprocket cutter



The production process of HSS M2 rolloer chain sprocket milling cutter  :







Material Introduction:





A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die





B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
