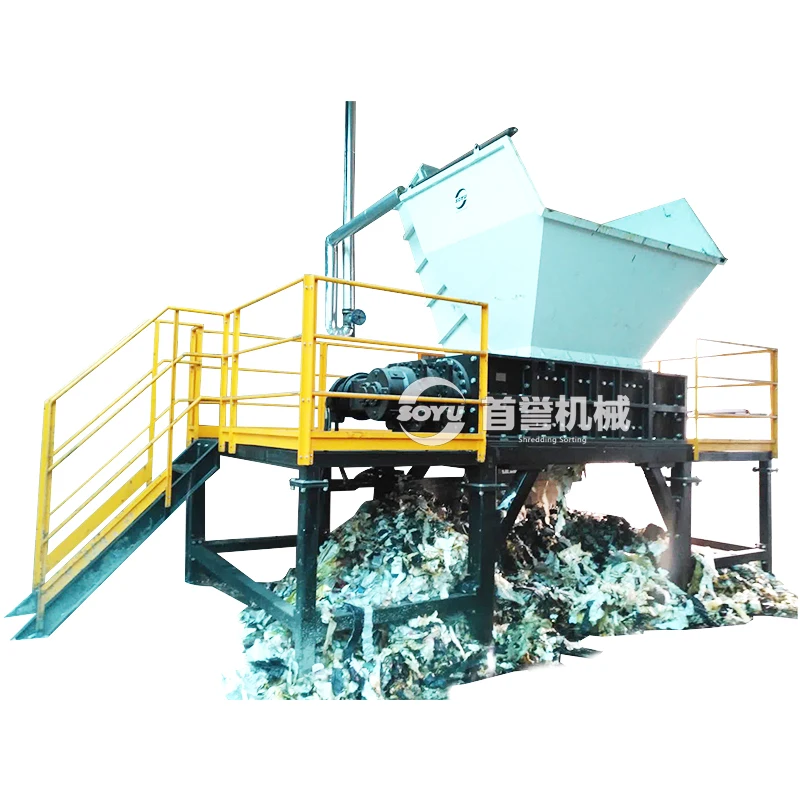

Double Shaft Shredder For Metal/Tire/Barrel/Glass/Waste
- Category: Plastic Crushing Machines >>>
- Supplier: Changshu Shi Shouyu Machinery Co. Ltd.
Share on (409358865):
Product Overview
Description
Product Overview

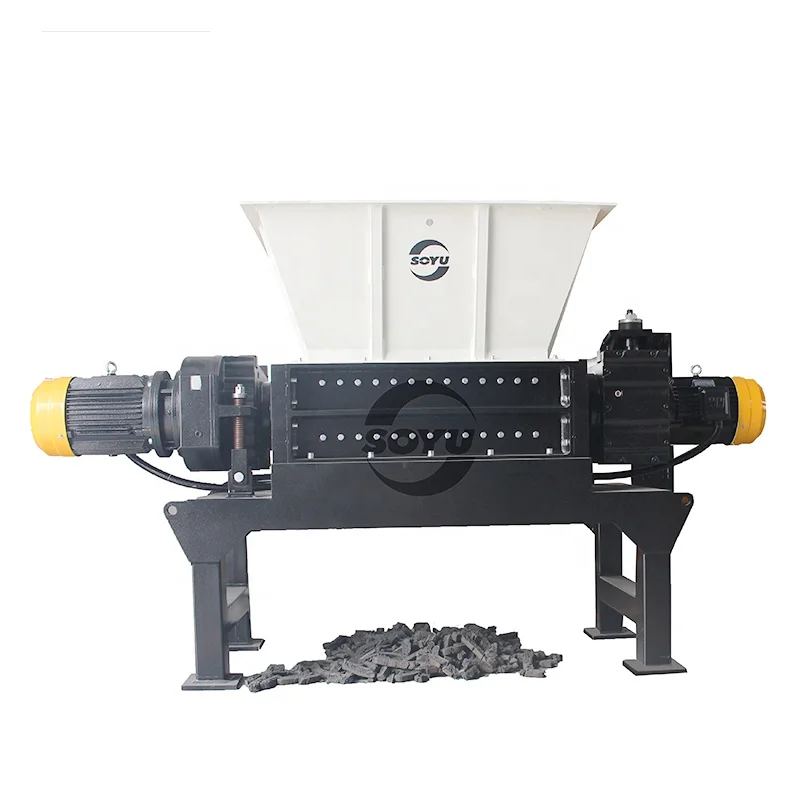

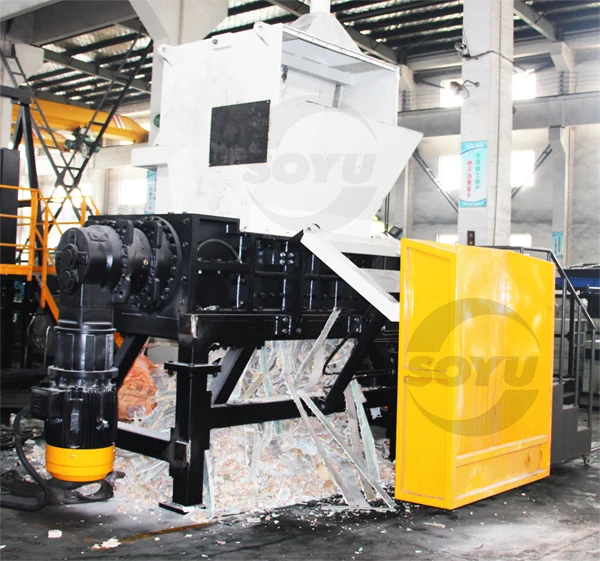

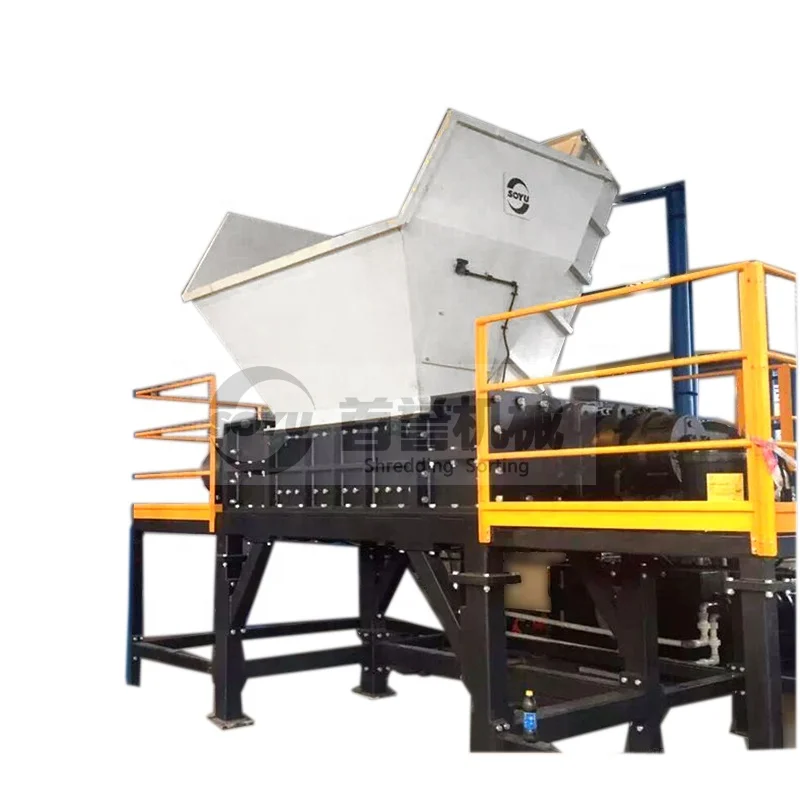

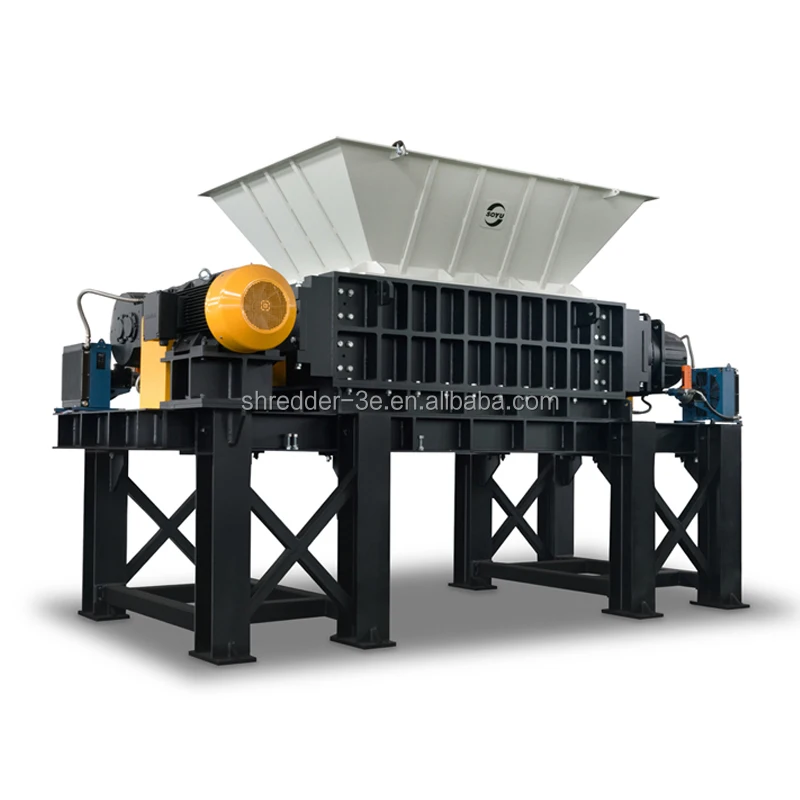

Two shaft shredder
The two-shaft shredder is a low speed and high torque industrial shredder with a minimum power of 1.5kw, thus saving energy. This dual shearing shredder does not have a screen unit. After material is fed into the hopper, material is handled using two counter rotating blades, then directly discharged. Although the output particle size is random, the two shaft shredder features a faster shredding speed and a higher throughput than other shredders.
The industrial shredder can be custom tailored to suit your material and requirements to ensure maximum economic and production benefits. The reducer and rotor utilize Germany standard DIN5480, and a Siemens PLC control offers automatic detection and overload protection. The two shaft shredder features a large transmission torque, reliable connections, low rotation speed, low noise and low maintenance cost.
The industrial shredder can be custom tailored to suit your material and requirements to ensure maximum economic and production benefits. The reducer and rotor utilize Germany standard DIN5480, and a Siemens PLC control offers automatic detection and overload protection. The two shaft shredder features a large transmission torque, reliable connections, low rotation speed, low noise and low maintenance cost.
FEATURES AT A GLANCE
- Applications:
Application: * Organic waste
* tires,
* plastic
* drums,
* metal drums,
* e-waste
* Car shell
* Metal materials
* tires,
* plastic
* drums,
* metal drums,
* e-waste
* Car shell
* Metal materials
PRODUCT CONFIGURATION

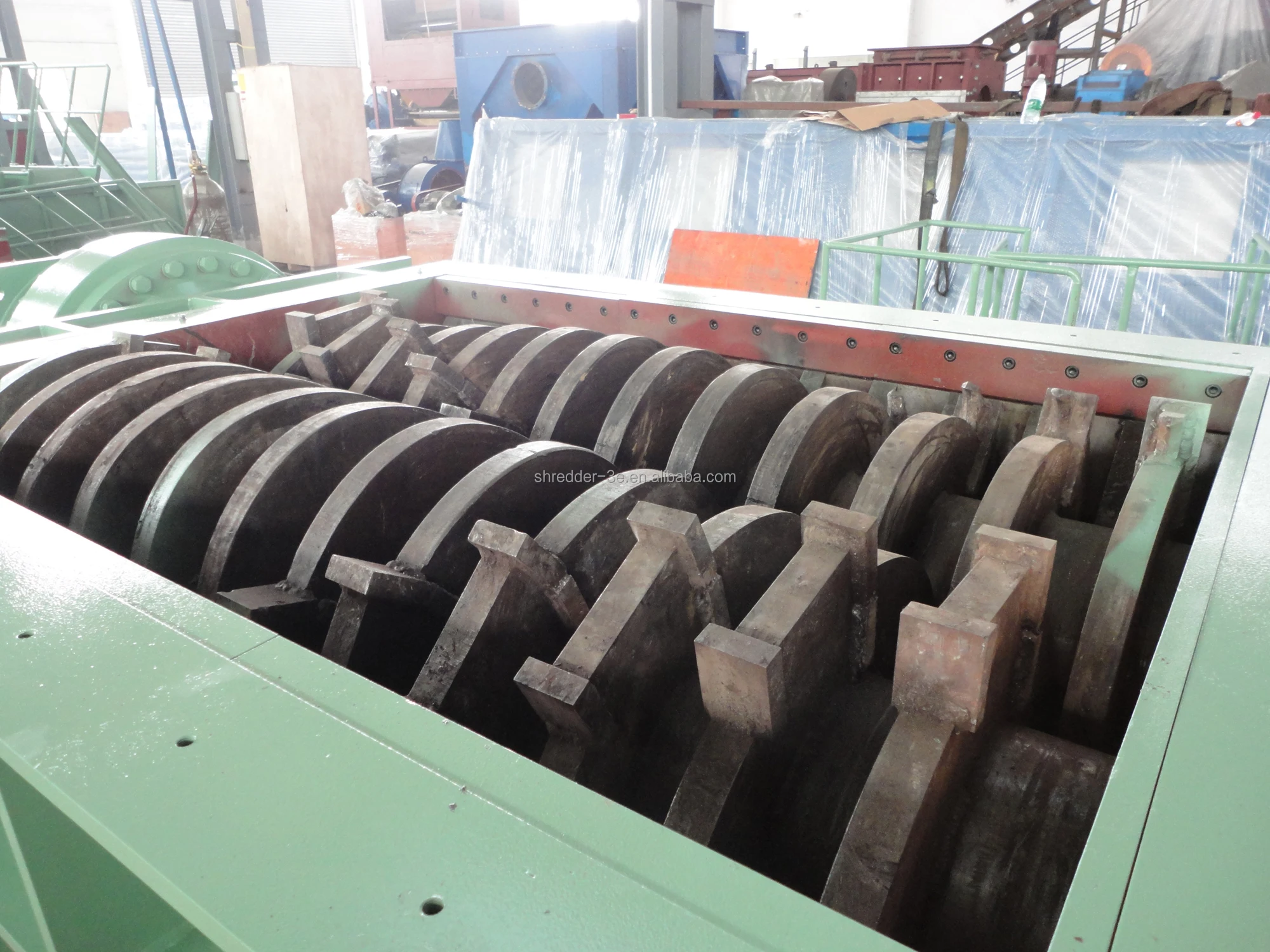

Rotors: “V” arrangement cutter blades create a uniform shredding force. Blade material and structure: CrMoV superior alloy steel.
A variety of materials and configurations are also available based on your application demands. The double sided walls are made of a HARDOXTM wear-resistant steel plate, ensuring a high abrasion resistance and excellent durability.
A variety of materials and configurations are also available based on your application demands. The double sided walls are made of a HARDOXTM wear-resistant steel plate, ensuring a high abrasion resistance and excellent durability.

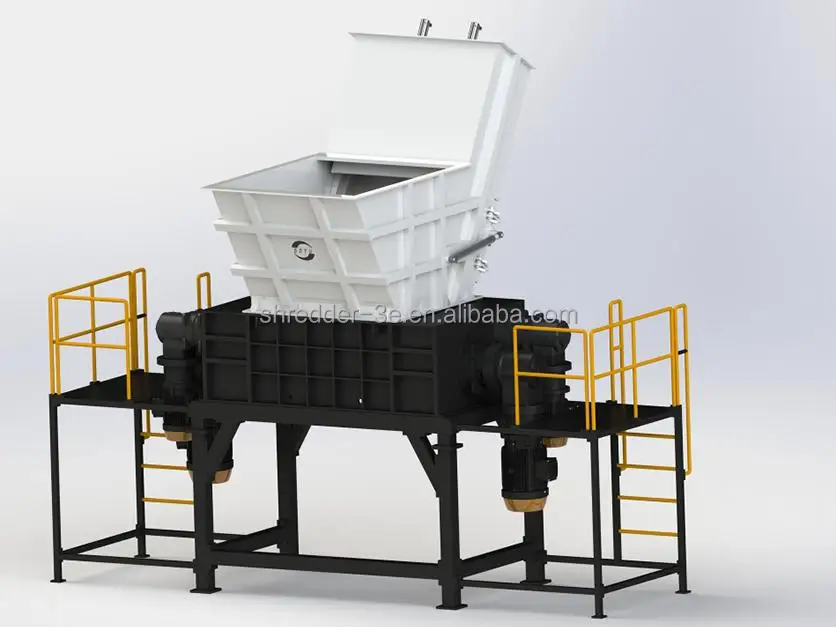

Drive train: A motor and hydraulic drive are provided to meet different applications. Hydraulic ram: common two shaft shredders
don’t come with a hydraulic ram. SOYU can add a hydraulic processing ram according to special material handling requirements,
allowing customers to improve their output.
don’t come with a hydraulic ram. SOYU can add a hydraulic processing ram according to special material handling requirements,
allowing customers to improve their output.

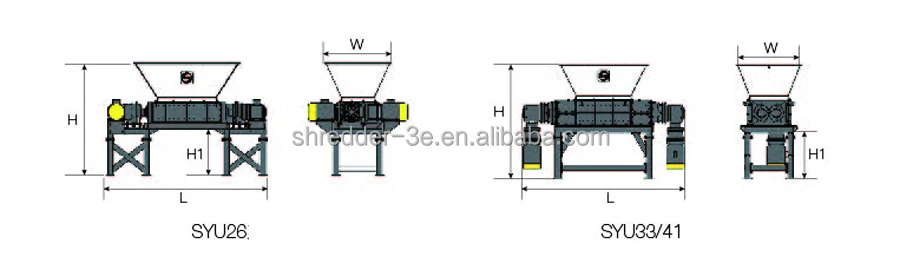

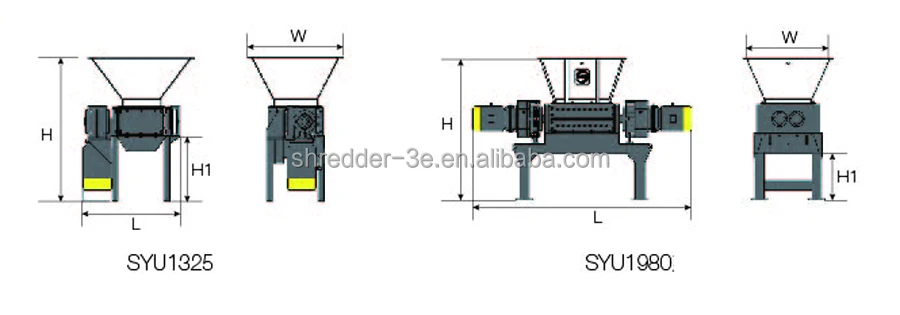

PRODUCT SPECIFICATIONS
Model | Motor power(kw) | Main blade quantity(pcs) | External dimensions(mm) | Equipment weight(kg) |
SYU1530 | 1.5KW | 14 | 850x560x1550mm | 500kg |
SYU1940 | 7.7KW | 20 | 1860x900x1800mm | 1400kg |
SYU1960 | 2X7.5KW | 30 | 1950x900x1800mm | 1600kg |
SYU1980 | 2X11KW | 42 | 2180x900x1800mm | 1800kg |
Model | Motor power(kw) | Main blade quantity(pcs) | External dimensions(mm) | Equipment weight(kg) |
SYU2360 | 18.5KW | 24 | 2300x1000x1950mm | 3000kg |
SYU2380 | 22KW | 32 | 2500x1000x1950mm | 3500kg |
SYU23100 | 22KW | 40 | 2700x1000x1950mm | 4000kg |
SYU2680 | 18.5KW | 20 | 2410x1100x2050mm | 4200kg |
SYU26100 | 22KW | 25 | 2810x1100x2050mm | 4600kg |
SYU3380 | 2x22KW | 16 | 3000x1250x2150mm | 4700kg |
SYU33100 | 2x30KW | 20 | 3200x1250x2150mm | 5200kg |
SYU33120 | 2x30KW | 24 | 3400x1250x2150mm | 5700kg |
SYU41100 | 2x30KW | 20 | 3660x1700x2650mm | 9000kg |
SYU41140 | 2x37KW | 28 | 4160x1700x2650mm | 10000kg |
SYU41160 | 2x45KW | 32 | 4360x1700x2650mm | 11000kg |
SYU50130 | 2x55KW | 32 | 4200x2100x3000mm | 13000kg |
SYU50180 | 2x55KW | 36 | 5200x2100x3000mm | 14000kg |
SYU61180 | 2x75KW | 24 | 5400x2400x3700mm | 20000kg |
SYU61210 | 2x90KW | 21 | 6200x2400x3700mm | 23000kg |
SYU80210 | 2x225KW | 14 | 7100x2900x4200mm | 26000kg |
SYU80250 | 2x225KW | 17 | 7600x2900x4200mm | 29000kg |
SYU80300 | 2x225KW | 20 | 8300x2900x4200mm | 32000kg |
SALES AND SERVICE NETWORK
Successful Project
Project in Australia
Project in Brazil
Project in Mexico
Project in Italy
Project in India
Project in Japan
Project in South Korea
Project in UK
Project in Pakistan
SERVICE
Non-standard customization
Shredder & Crusher customization
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.

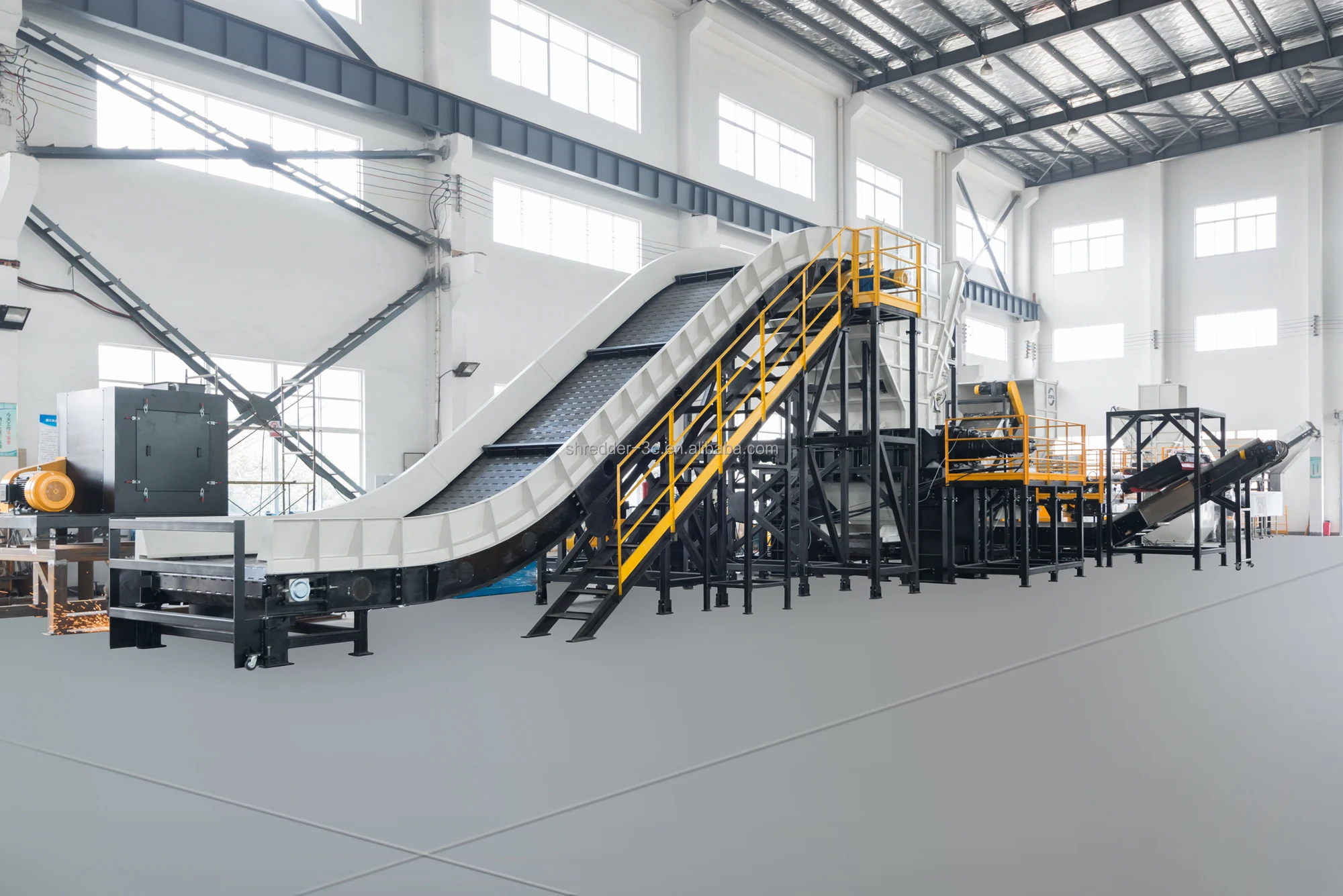

Recycling plant customization
Based on the feeding material size and requirements of subsequent steps, customized recycling plants are provided to meet customer’s expectations. SOYU custom recycling plants are small-footprint, energy saving and environmentally friendly equipment sets.
Installation and debugging
1. Single machine: SOYU standard single shredders are easy to operate and start-up—you only need to connect the power line to the electricity box. In order to save the purchasing cost for customers, SOYU offers off-site technical guidance service.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
