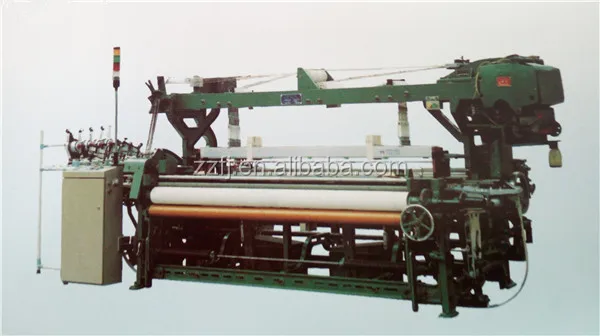

Rapier Loom GA1611 with dobby or cam

No.

Standard Speculations

1

Nominal reed space:

1800m/,2000mm/2300mm/ 2800mm/ 3000mm/3400mm/

                                                                3600mm

2

Weft  insertion  type:

Flexible  rapier  weft  insertion

3

Machine hand

Left hand

4

No. of heddle-frame

 Max. 16pcs

5

Speed

  160-200r/min(180,200)

120-180r/min (230,280,300,340,360)

6

Color selection

Six color selection box

7

Drive

Single motor,V-belt is driven by clutch and brake

8

Shedding motion

 Dobby shedding, horizontal spring box-back

9

Beating-up motion

  4 bar linkage mechanism

10

Let-off motion

Vertical outside let-off

11

Take-up motion

 Worm take-up motion

12

Warp stop

 Electronic warp stop with 6 lines

13

Weft  stop

 Piezoelectric weft stop

14

Temple

Single row copper needle ring roller

15

Selvage winding motion

  Heddle frame selvage binder

16

Cloth winding motion

  Torque spring self-press

17

Weft cutting motion

 Slay-knock weft cutting device

18

Electrical control

Single-motor control
