Cheap hot sale top quality custom made die cutting blade knife steel rule 2pt 3pt 4pt

Product Overview

Description

Cheap hot sale top quality custom made die cutting blade knife steel rule 2pt 3pt 4pt



♣ Material

 Premium Steel (imported steel), offering higher precision



♣ Thickness

 2pt / 0.71mm

 3pt / 1.05mm

 4pt / 1.42mm



♣ Height

 21.50~23.80mm



♣ Body Hardness

 HRC 34~36 (soft)

 HRC 37~39 (medium)--standard

 HRC 40~45 (hard)



♣ Tip Hardness

 HRC 52~56



♣ Tip Hardening Method

 High Frequency Induction under imported machine

 This hardening technology is the most advanced in the world at present, provinding cutting rules a much longer life and durable edge.

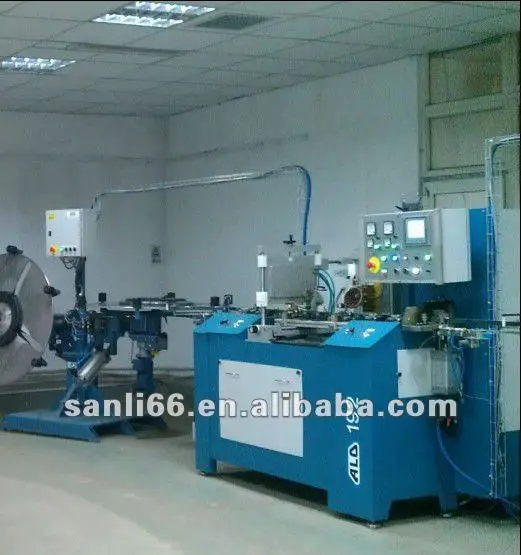

  ALO 192 from famous Swedish company ALO company, SANDVICK have it as well

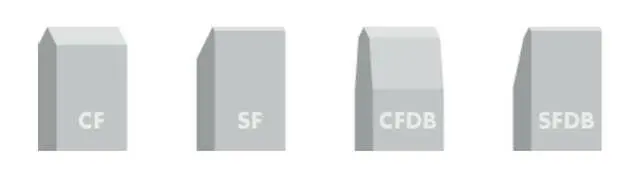

♣ Cutting Bevel

 Center Bevel (CB)= single-blade, Long Center Bevel (LCB)= bi-blades, Side Bevel (SB), Long Side Bevel (LSB)





♦ Tip Type

 Shaved edge, Ground edge (42°, 52°)



♣ Packing: Meter Lenghts or Coils

Thickness	Specification	Packing
2pt / 0.71mm	0.71 × (21.50~23.80) × 1000mm	100m/box
3pt / 1.05mm	1.07 × (21.30~23.80) × 1000mm	70m/box
4pt / 1.42mm	1.42 × 23.80 × 1000mm	50m/box





♦ Usage:

 Die-cutting paperboard, corrugated paper, box, carton, circuit baord and ect.
