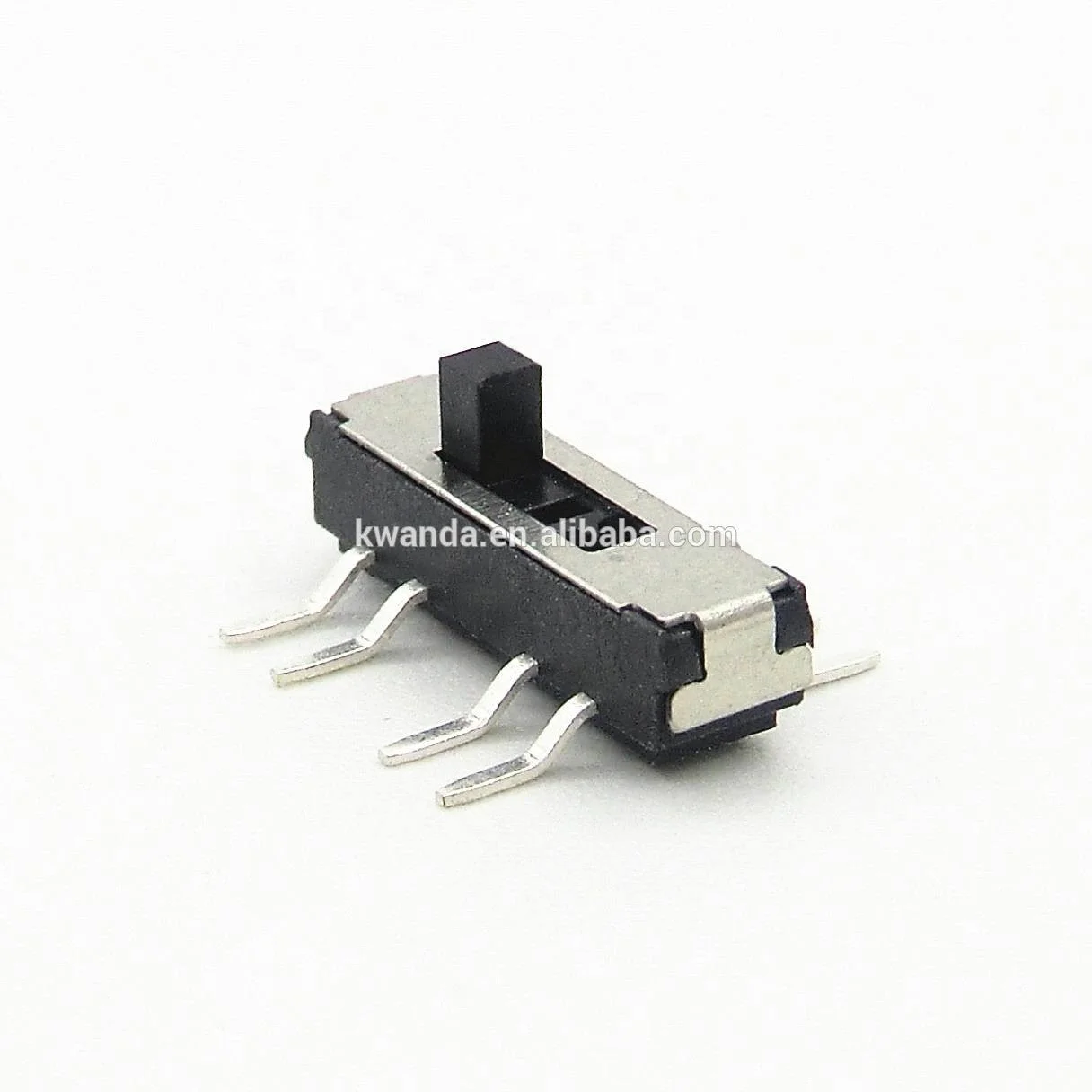

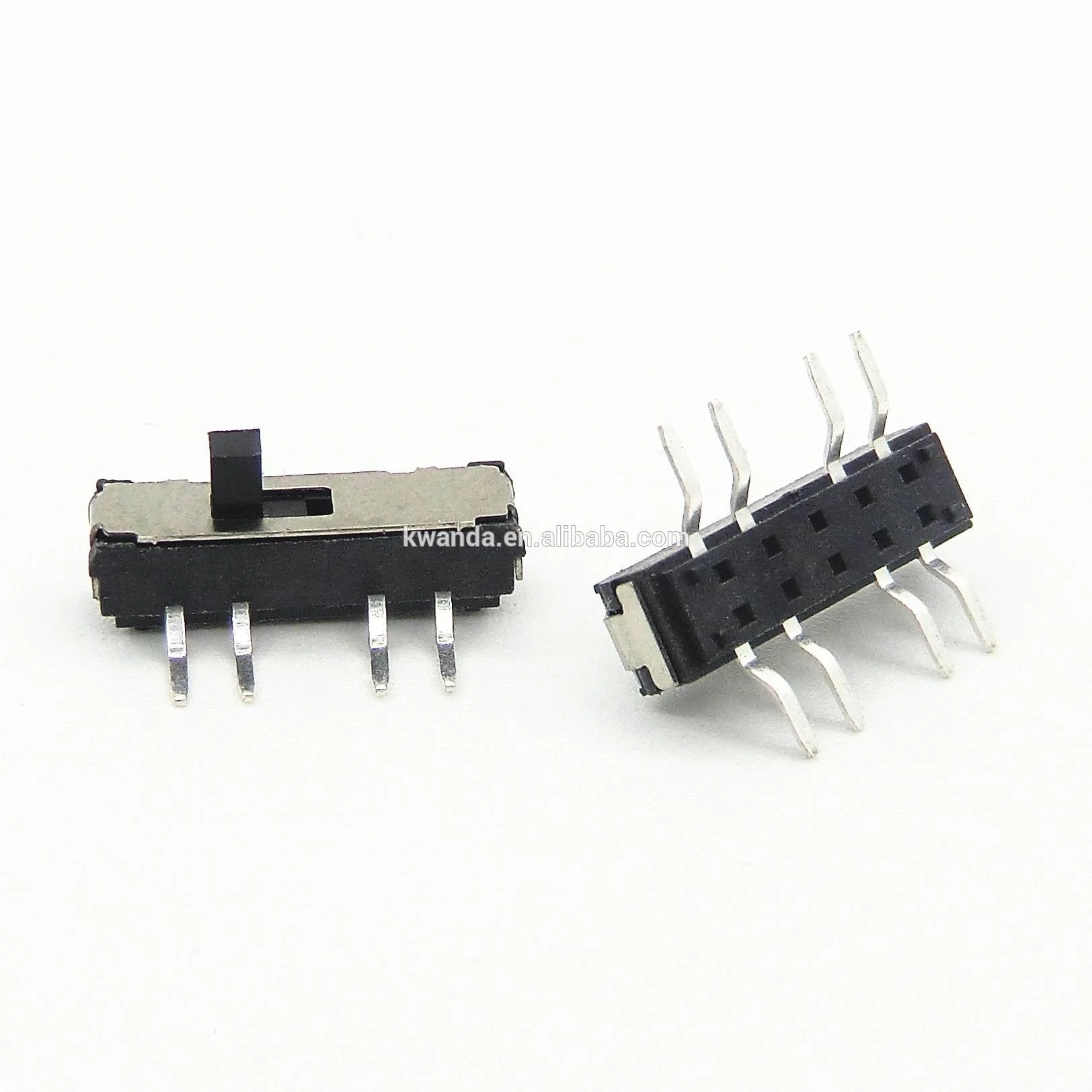

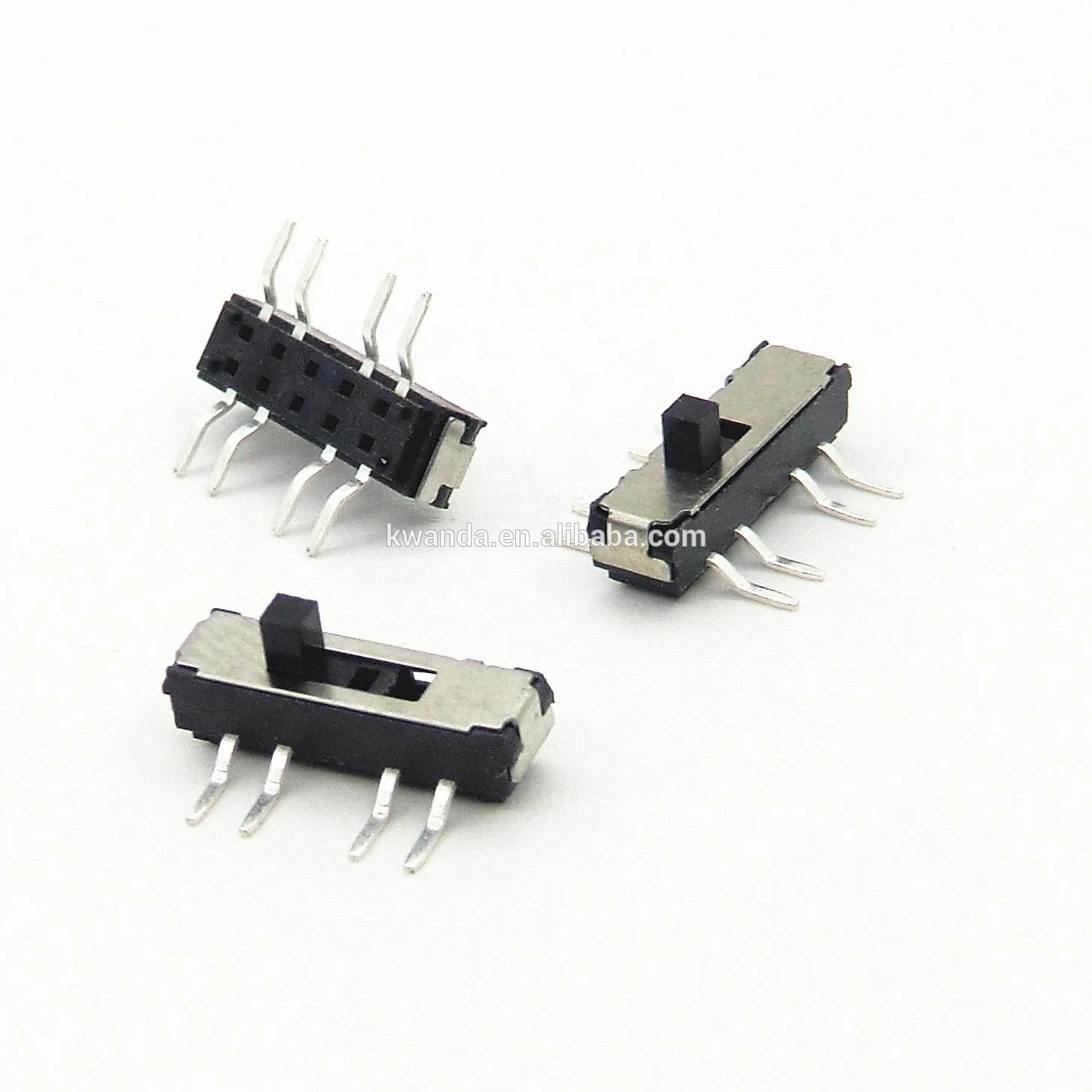

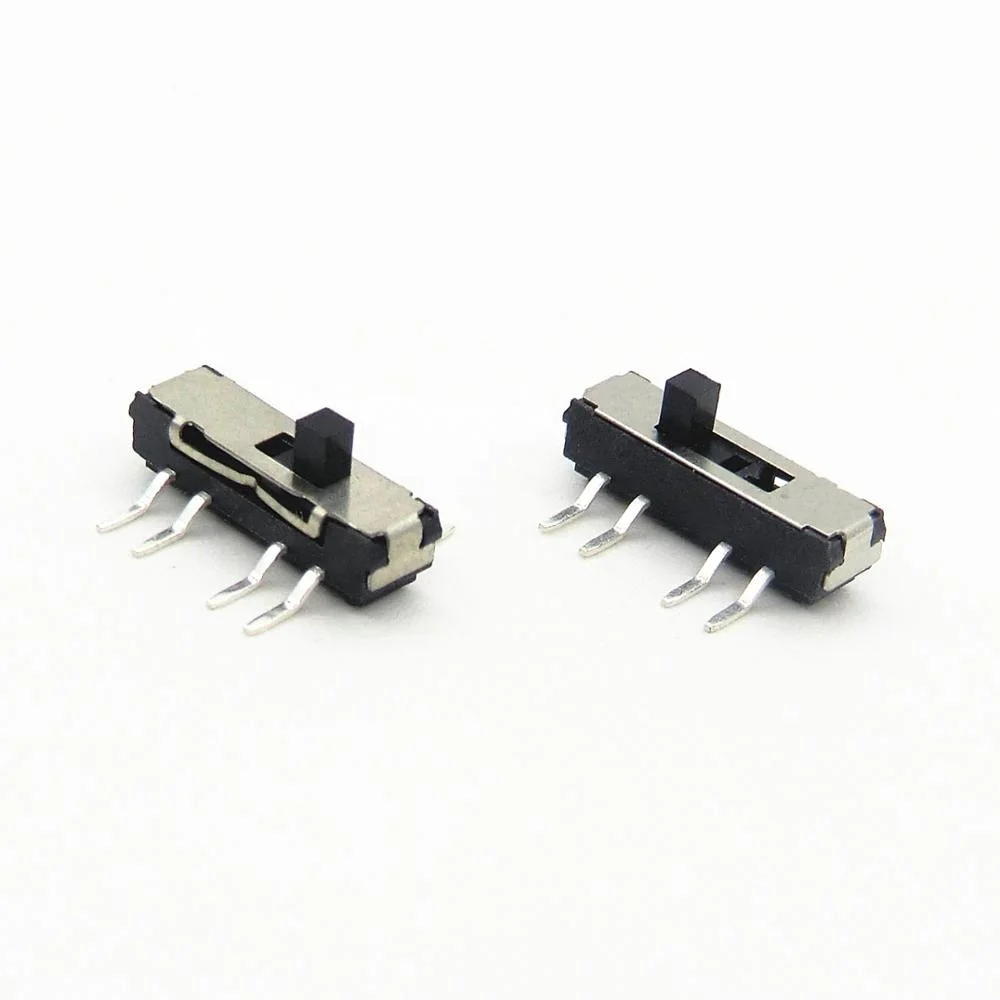

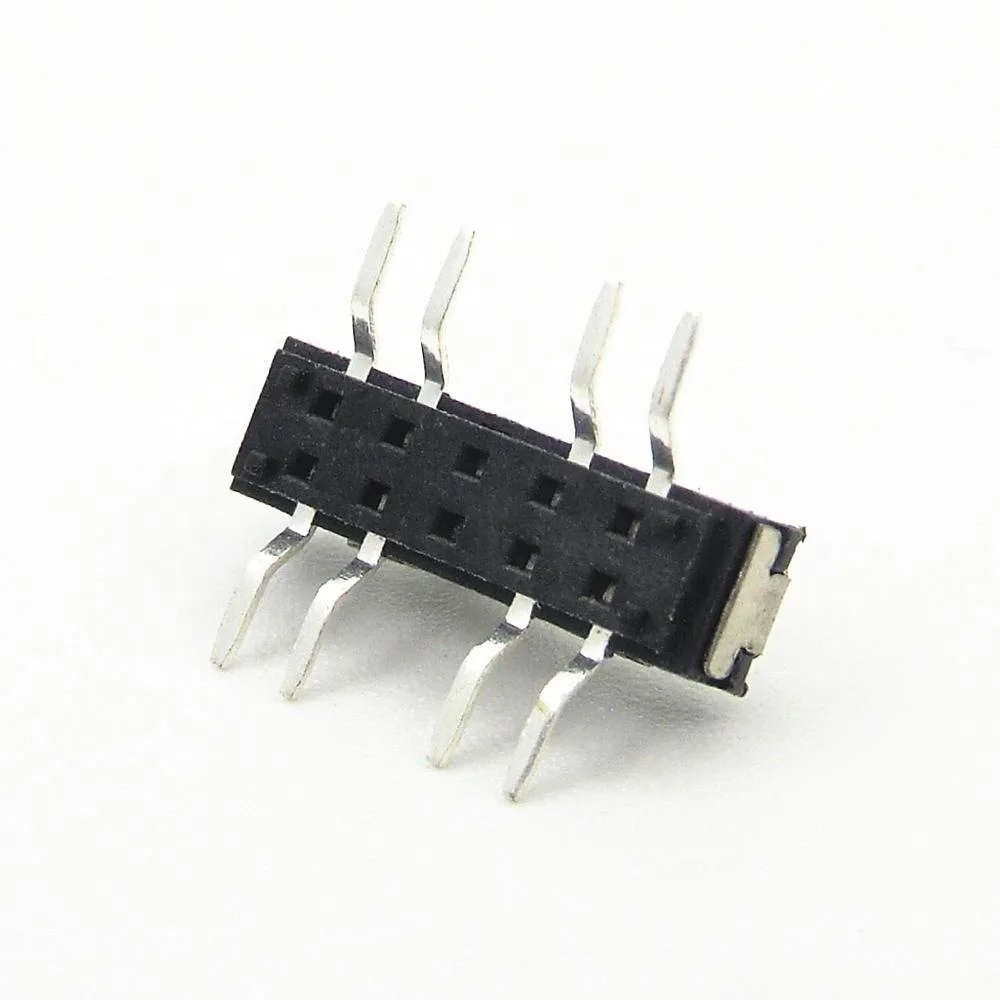

SMD 8 pin mini slide switch

Product Overview

Description

SMD 8 pin mini slide switch

Specification
Mini Slide Switch	Specification
Rating	0.1A 12V DC
Contact resistance	70mΩ max
Insulation resistance	100MΩ min
Dielectric strength	500V AC
Lifespan	10,000Cycles
Practical temperature range	-16 to 60 degrees Celsius
RoHS	Yes



Regarding to our products:



u        More than 2,000 models of switches and sockets.

u        Monthly production capacity: 30 million pieces.

u        MOQ: 5,000pcs, it’s negotiable.

u        Good quality with competitive price.

u        We can offer free samples with shipping and taxes pay by the buyer.

u        Various operation force, height, and color for your choice.

u        The discount depends on your order quantity.

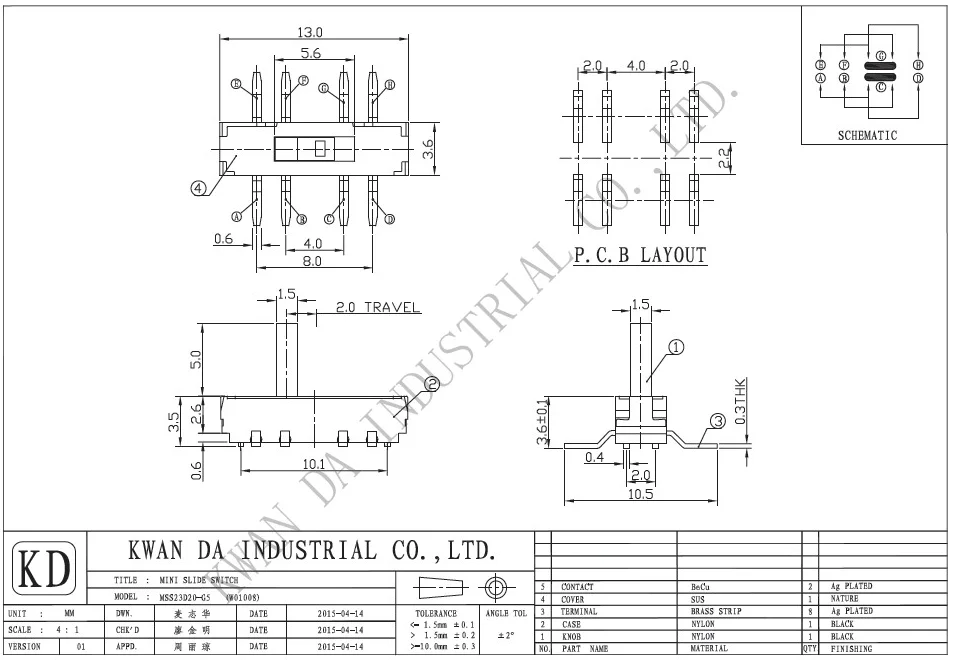

---Drawing---
