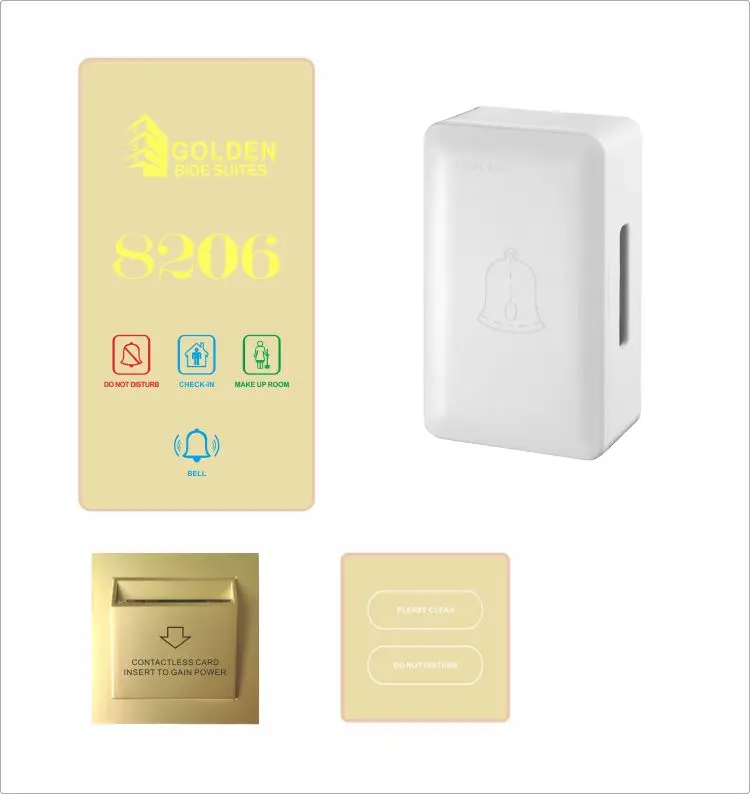

Hotel room service panel with touch switch for DND and MAKE UP ROOM buttons

Product Overview

Description

Functions:
1.Intalled inside the door or bedside;
2.Press touch button"MAKE UP ROOM" on the service panel in the room,then outside doorbell panel"MAKE UP ROOM"design lights up,means this room need clean.
3.Press touch button "DO NOT DISTURB",on the service panel in the room,then outside doorbell panel"DO NOT DISTURB" design lights up,means please don't disturb this room,doorbell button doesn't work same time.

Technical parameters:
1.Working voltage: 180-220V;50 ~ 60HZ;
2.Installation environment: applicable International standard 86 bottom box;
3.Working temperature: - 10 °C ~ 60 °C
4.Work humidity: 0 ~ 95%
5.Service life: touch screen button work million times, relay contacts 100,000 times

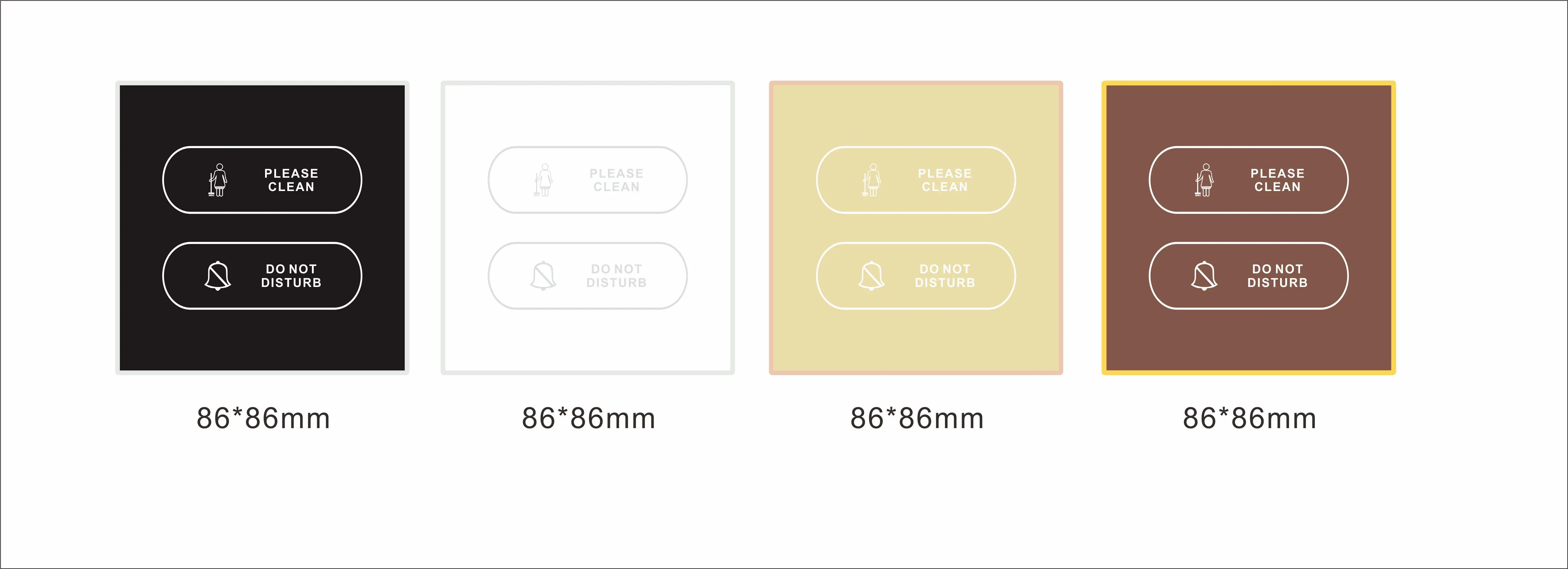

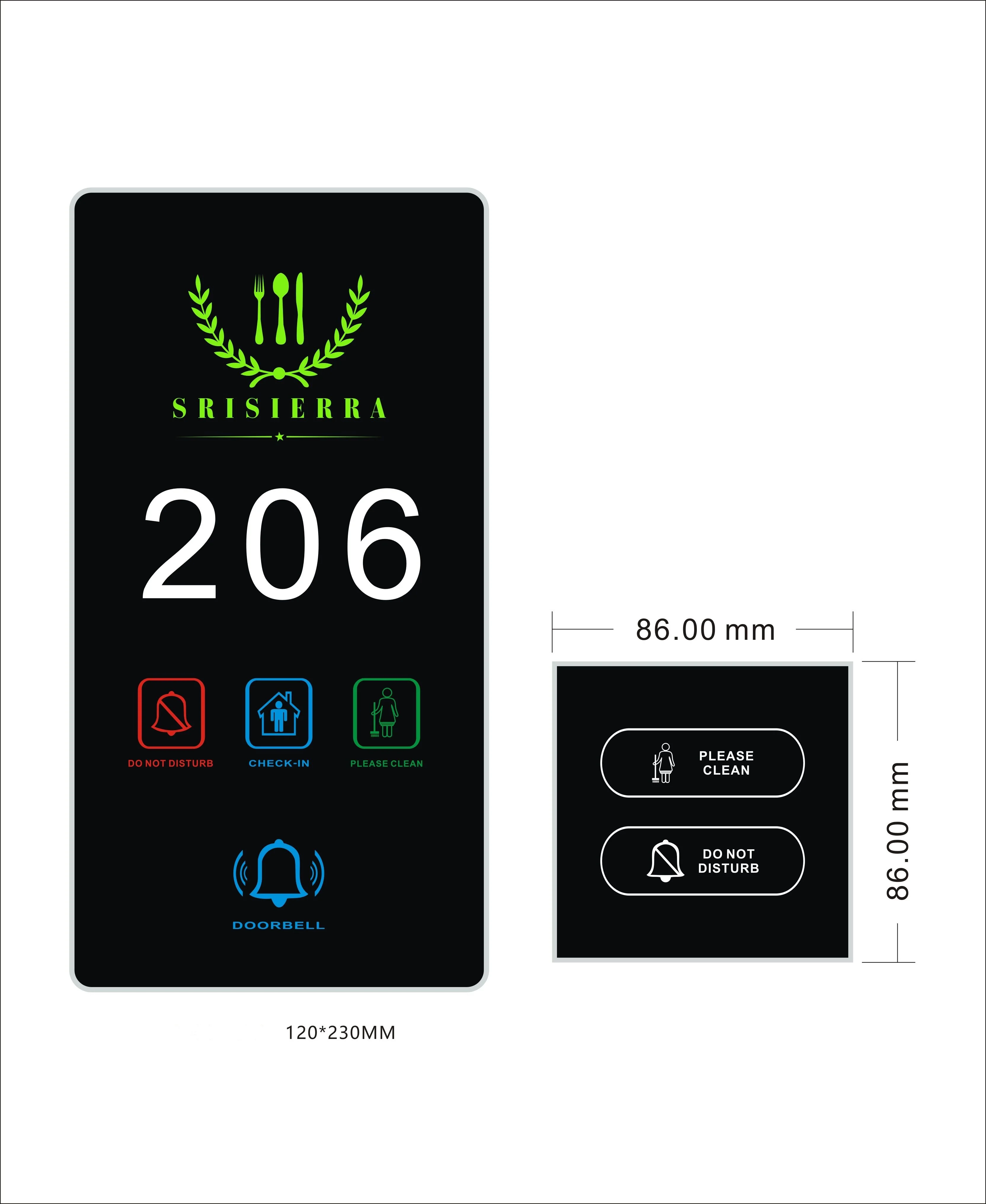

6.Product size: 88*88*31.5mm

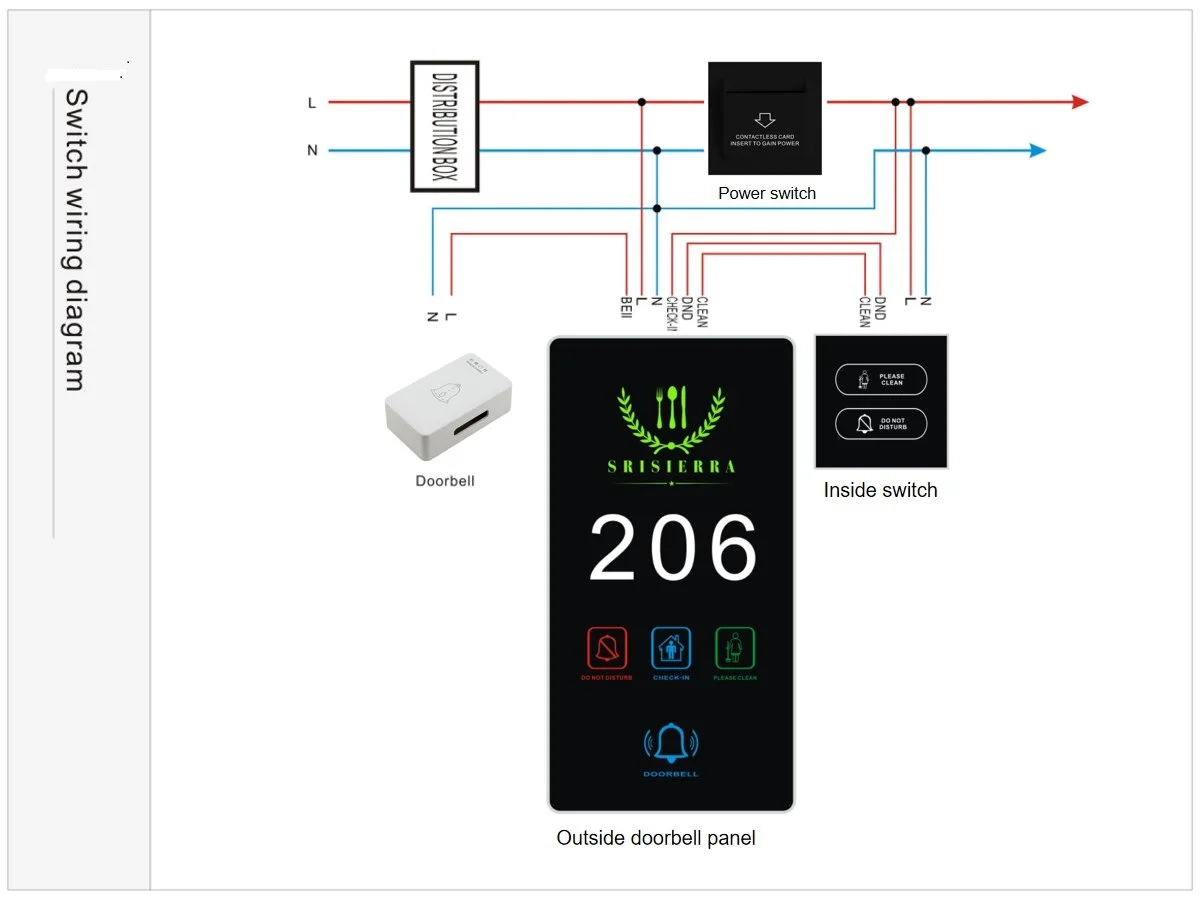

Wiring Diagram:
